Fuse plug - P-FU 5X20 LED 250-5 - 3209264
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Fuse plug, Nominal current: 6.3 A, Width: 5.2 mm, Fuse type: G / 5 x 20, Fuse type: Glass / ceramics / ...,
Mounting type: Plug-in mounting, Color: black
Product Features
■
■
■
■
Large-surface labeling option
Test contacts on both sides of the fuse
Versions with bipolar defect indicator
Can be used for overload/short-circuit protection
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
10 pc
5.29 g
85369085
China
Technical data
General
Note
Suitable for terminal blocks with a width of 5.2 mm and above with TG
zone
Prior to replacing the cartridge fuse, disconnect the fuse connector from
the basic terminal block.
Number of levels
Color
Insulating material
Flammability rating according to UL 94
1
black
PA
V0
Dimensions
Width
5.2 mm
04/22/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/3209264
Fuse plug - P-FU 5X20 LED 250-5 - 3209264
Technical data
Dimensions
Length
23.5 mm
General
Fuse
Fuse type
Degree of pollution
Maximum power dissipation
LED voltage range
LED current range
Maximum load current
Nominal current I
N
Open side panel
G / 5 x 20
Glass / ceramics / ...
3
1.6 W (Short-circuit and overload protection)
110 V AC/DC ... 250 V AC/DC
0.4 mA ... 0.95 mA
6.3 A (the current is determined by the fuse used)
6.3 A (the current is determined by the fuse used)
No
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27142001
27142001
27142001
27142001
27141149
27141149
27142001
ETIM
ETIM 4.0
ETIM 5.0
EC002018
EC000036
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121409
39121409
39121409
39121409
04/22/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/3209264
Fuse plug - P-FU 5X20 LED 250-5 - 3209264
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / CSA / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Nominal current IN
Nominal voltage UN
10 A
250 V
cUL Recognized
Nominal current IN
Nominal voltage UN
10 A
250 V
CSA
Nominal current IN
Nominal voltage UN
10 A
250 V
EAC
04/22/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/3209264
Fuse plug - P-FU 5X20 LED 250-5 - 3209264

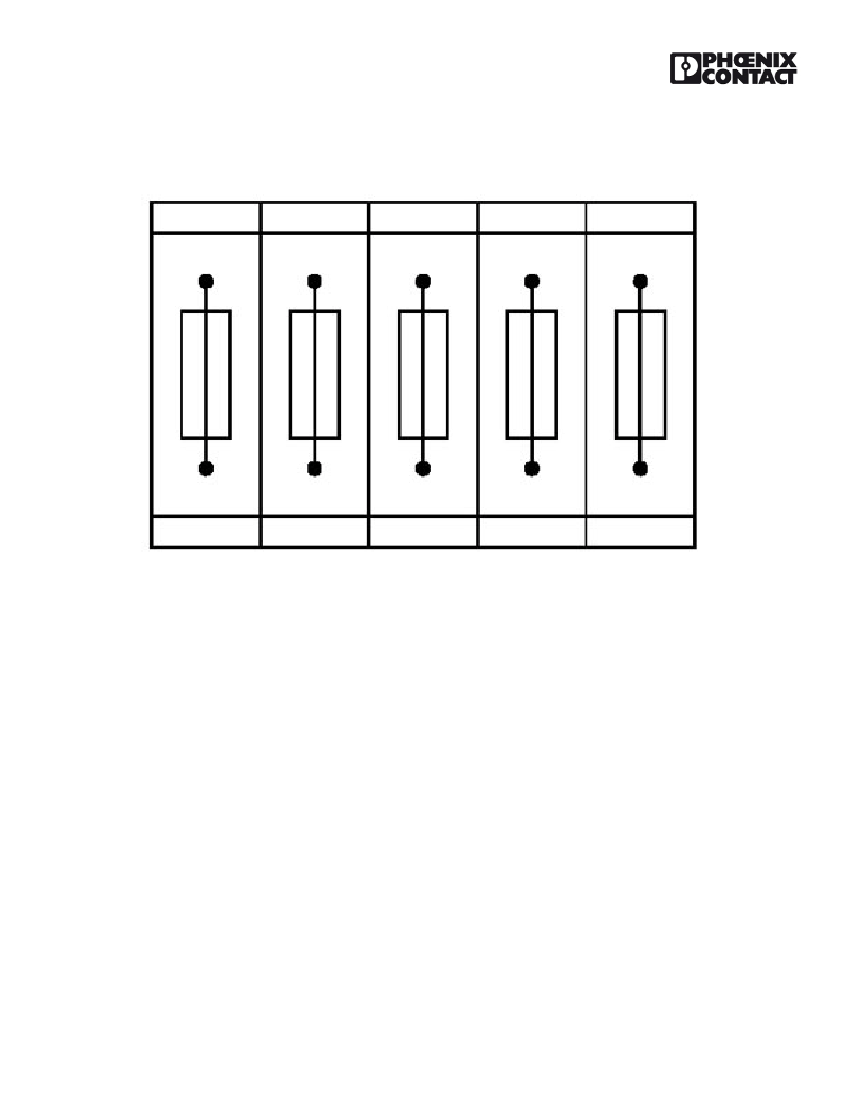

Application drawing
Fuse terminal blocks in interconnected arrangement,
block consisting of 5 fuse terminal blocks
04/22/2016 Page 5 / 6
