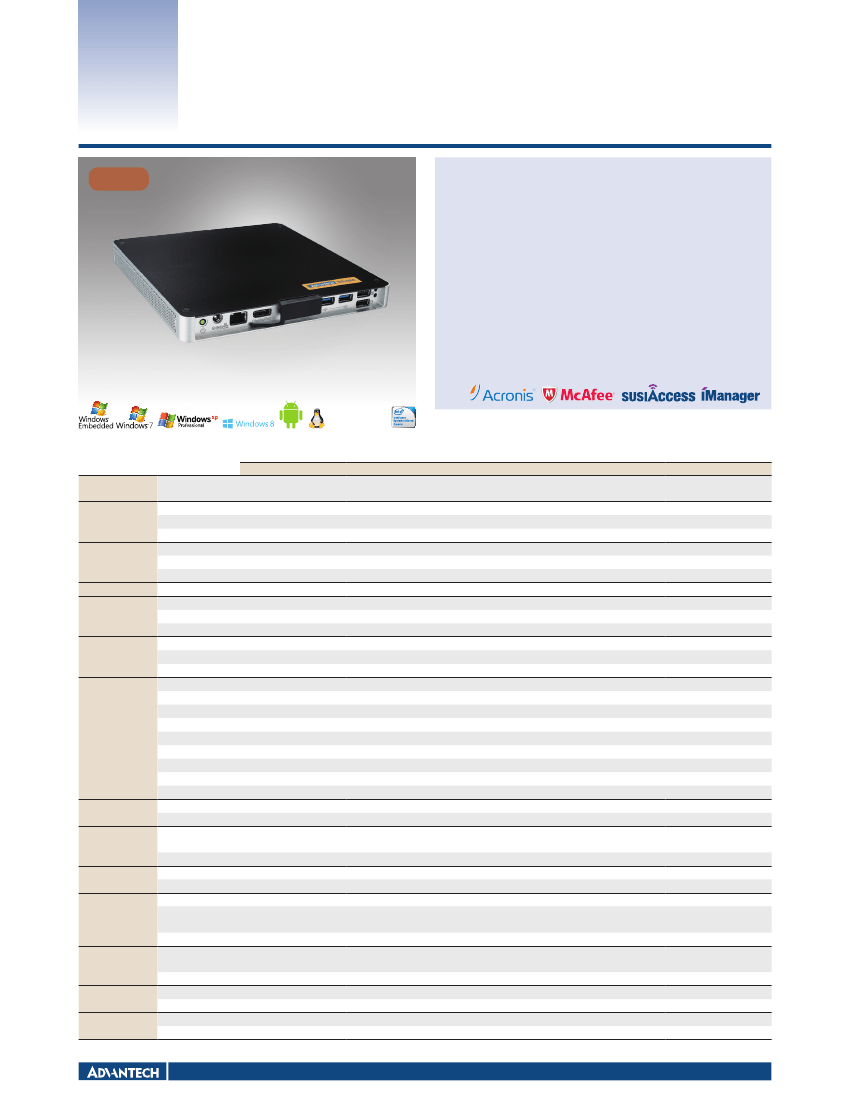

DS-060 Series
NEW
DC input 19V
Ultra-slim 3rd Generation Intel
®
Core™ i7/Celeron
®
/Atom™
Digital Signage Platform
Features
Unified 19 mm-thin chassis powered by Intel
®
multiple platforms
(TDP up to 45W)
Dual 1080P displays by on-board VGA & DisplayPort (HDMI)
Compact in size allows installation in limited space
Highly expandable via internal Mini-PCIe interface (e.g. WLAN, 3G or TV
tuner)
Supports iManager, SUSIAccess and Embedded Software APIs
Design compliant with Energy Star 5.2
Specifications
Features
Processor
Processor system PCH chipset
BIOS
Technology
Memory
Max. Capacity
Socket
Thermal Solution
Chipset
Display
Output
Resolution
Interface
Ethernet
Controller
Connector
Audio
Ethernet
Wireless LAN
USB 2.0
USB 3.0
I/O Interfaces
Serial Port
Expansion
PSW
LED Indicators
SATA
Storage
mSATA
Power
Power
Management
Requirement
Input Voltage
Output
Watchdog Timer
Interval
Mounting
Physical
Dimensions
Characteristics
(W x D x H)
Weight
Operating
Temperature
Environment
Relative Humidity
Operating System
Software
Development Kit Linux
EMC
Certifications
Safety
DS-060
DS-061
DS-062
3rd Generation
3rd Generation
Intel Celeron Mobile
Intel Core i7 Platform
Intel Core i7 Platform
Platform
Core i7-3615QE
Core i7-3517UE
Celeron B810E
Intel QM77 Express
Intel QM77 Express
Intel QM77 Express
AMI uEFI 64 Mbit
AMI uEFI 64 Mbit
AMI uEFI 64 Mbit
DDR3 1333/1600MHz
DDR3 1333/1600MHz
DDR3 1066/1333MHz
8 GB
8 GB
8 GB
1 x 204pin SODIMM
FAN
FAN
FAN
Embedded in Processor
VGA x 1; DP x 1
VGA x 1; DP x 1
VGA x 1; DP x 1
1920 x 1080P
Gigabit LAN Controller
Intel 82579LM
Intel 82579LM
Intel 82579LM
1 x RJ-45
Line-Out, Mic-In
1 x RJ-45 (GigaLAN)
via optional WLAN module
2
2
2
2
2
2
1 x RS-232
1 x Mini PCIe (internal)
1 x Power on/off button
1 x Power, 1 x HDD Access
1 x 2.5-inch SATA II HDD/SSD (only support 7 mm height)
1 x Full-size
ACPI 3.0
19 V DC-in (ATX/AT mode)
Interrupt, system reset
255-level timer interval, setup by software
Easy mounting kits for LCD or Plasma
180 x 190 x 19 mm
0.87 kg (1.92 lb)
0 ~ 40° C (32 ~ 104° F) (w / HDD); 0 ~ 50° C (32 ~ 122° F) (w / SSD)
95% @ 40°C (non-condensing), operating
Supports Microsoft Windows 8, Windows 7, Android 4.0
Linux Fedora 14
CE/FCC Class B, CCC, BSMI
UL, CCC, BSMI
DS-063
Intel Atom Platform
Atom D2550
Intel NM10
AMI uEFI 16 Mbit
DDR3 800/1066MHz
4 GB
FANLESS
VGA x 1; HDMI x 1
DS-065
Intel Atom Platform
Atom N2600
Intel NM10
AMI uEFI 16 Mbit
DDR3 800/1066MHz
2 GB
FANLESS
VGA x 1; HDMI x 1
Intel 82583V
Intel 82583V
4
-
4
-
Linux Fedora 16
Linux Fedora 16
Digital Signage Platforms
All product specifications are subject to change without notice
Last updated : 1-Apr-2014

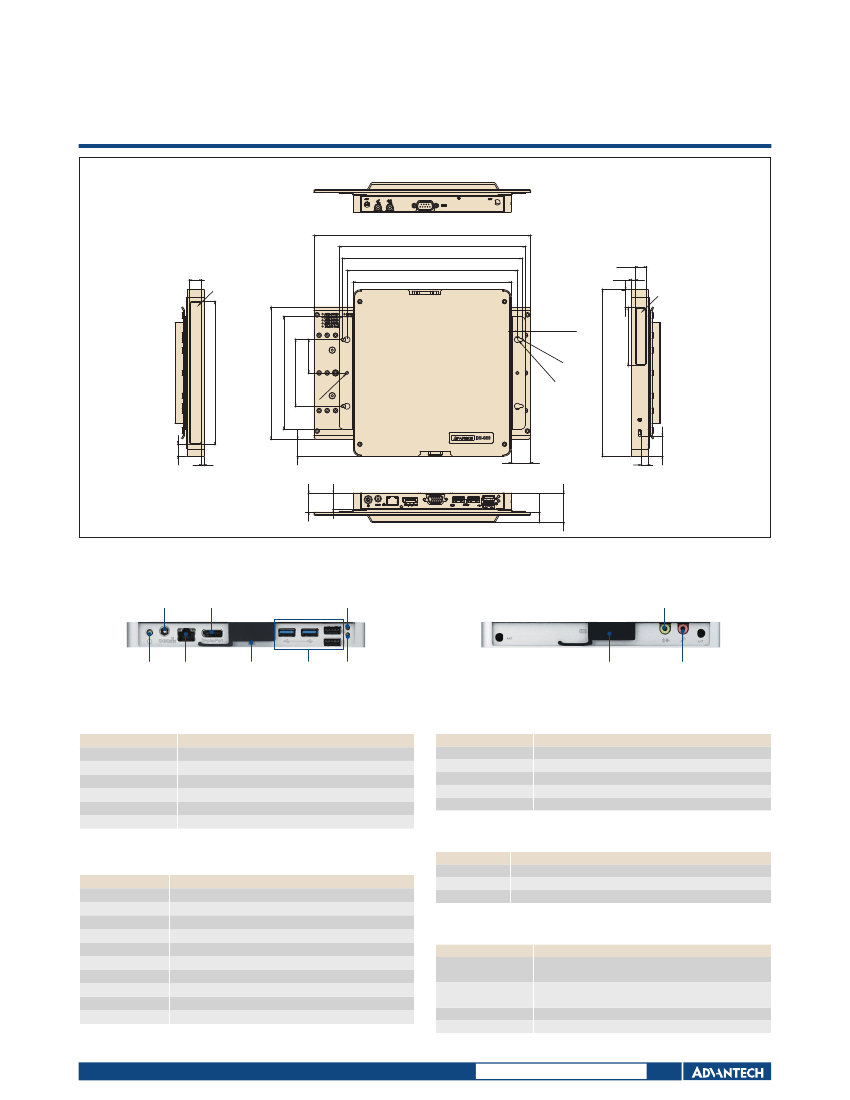

DS-060 Series
Dimensions
247.40 [9.74]
212.40[8.36]
204.90 [8.07]
194.40 [7.65]
180 [7.09]
Mesh Holes
Unit: mm [inch]
14 [0.55]
12 [0.47]
5 [0.20]
20.50
66 [2.60] [0.81]
Mesh Holes
5.25 [0.21]
150.43 [52.92]
128 [5.04]
76 [2.99]
38 [1.50]
R1
.75
163 [6.42]
[
Ø4
0.1
6]
190 [7.48]
[0.0
7]
13.50
[0.53]
19.79
[0.78]
DS-060 External I/O
Front
DC-in Jack (19V) *DisplayPort/HDMI
PWR Indicator
Back
11.20
[0.44]
33.20 [1.31]
2.50
[0.10]
22
[0.87]
19
[0.75]
22.40 [0.88]
8 [0.31]
Line-Out
PWR SW
GLAN
VGA
USB x4
HDD Indicator
COM
Note: DS-063/DS-065 is with on-board HDMI.
Packing List
Part Number
-
-
-
-
-
-
Description
1 x DS-06X Unit
1 x 19V Power adapter
1 x Driver/Utility DVD
1 x China RoHS
1 x Simplified Chinese Manual
1 x Mounting bracket kit (supports VESA/Wall mount)
Power Cord
Part Number
1700001524
170203183C
170203180A
1700008921
1700019146
Description
3-pin power cord (US)
3-pin power cord (EU)
3-pin power cord (UK)
3-pin power cord with PSE (Japan)
3-pin power cord (CCC)
Ordering Information
Part Number
DS-060GB-U3A1E
DS-061GB-S7A1E
DS-062GB-S6A1E
DS-063GB-S8A1E
DS-065GB-S6A1E
DS-060GF-U3A1E
DS-061GF-S7A1E
DS-062GF-S6A1E
DS-063GF-S8A1E
DS-065GF-S6A1E
Description
DS-060, Intel Core i7-3615QE, Barebone
DS-061, Intel Core i7-3517UE, Barebone
DS-062, Intel Celeron B810E, Barebone
DS-063, Intel Atom D2550, Barebone
DS-065, Intel Atom N2600, Barebone
DS-060, Intel Core i7-3615QE, 4G RAM, 500G HDD
DS-061, Intel Core i7-3517UE, 4G RAM, 500G HDD
DS-062, Intel Celeron B810E, 2G RAM, 64G SSD (MLC)
DS-063, Intel Atom D2550, 2G RAM, 64G SSD (MLC)
DS-065, Intel Atom N2600, 2G RAM, 64G SSD (MLC)
Embedded OS
Part Number
2070012198
2070012197
2070012165
Description
Image WES7E 64-bit, DS-060/DS-061/DS-062, ENG/JP/TC/SC
Image WES7E 32-bit, DS-060/DS-061/DS-062, ENG/JP/TC/SC
Image WES7E 32-bit, DS-063/DS-065, ENG/JP/TC/SC
Optional Items
Part Number
AMO-WIFI06E
AMO-HSDPA02E
AMK-S001E
AMK-V006E
Description
Wi-Fi 802.11 b/g/n Mini-PCIe Module
(including Antenna & Cable)
3.75G HSPA Full-size Mini-PCIe Module
(including Antenna & Cable)
Table Stand for DS-060 series
Power Adapter Supporter for VESA Mounting
Online Download
www.advantech.com/products
23.20
[0.91]
Mic-In
.50
R3
]
.14
[0
