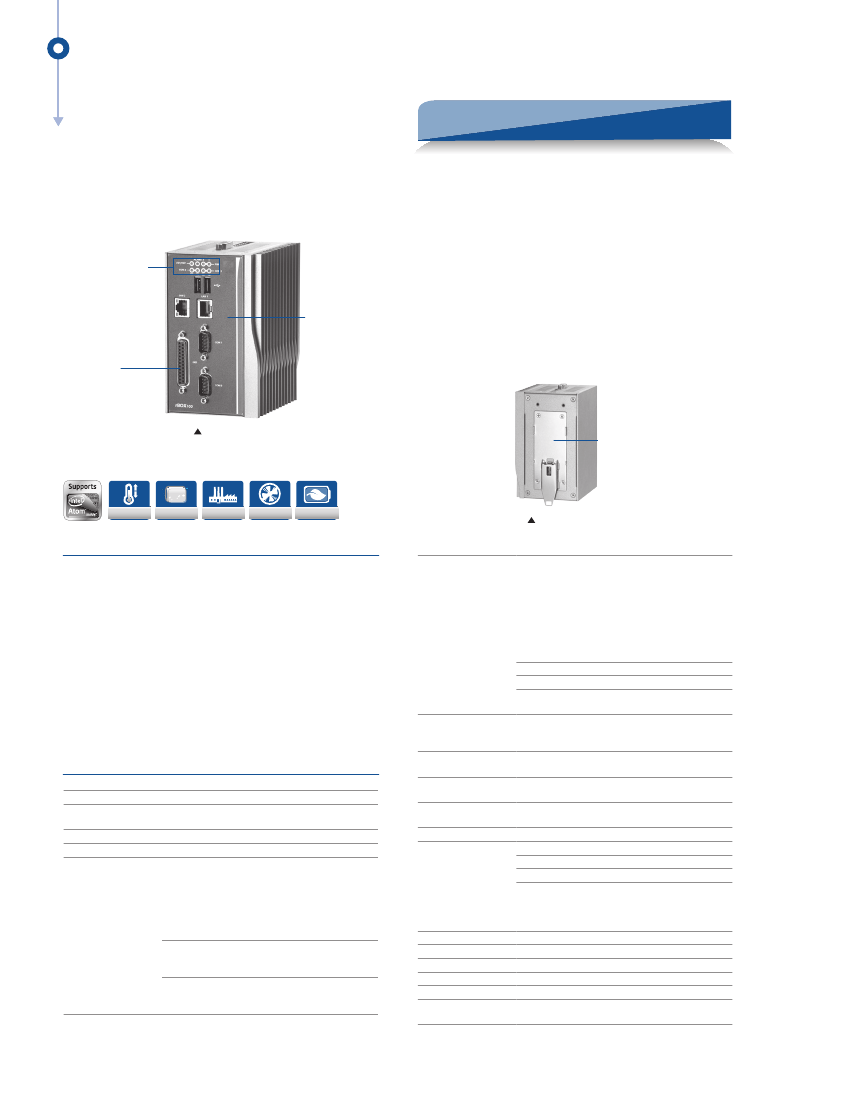

rBOX100
Robust Din-rail Fanless Embedded System
with Intel® Atom™ Processor Z510PT/
Z520PT up to 1.33 GHz, Intel® US15WPT
and 1 Isolated DIO (8-IN/8-OUT)
Features
●
Fanless and cableless design
●
Intel® Atom™ processor Z510PT 1.1 GHz or Z520PT
1.33 GHz
●
Wide temperature operation of -40°C ~ +70°C
●
1 isolated DIO (8-IN/8-OUT)
●
2 isolated Ethernet ports
●
2 watchdog timer
●
LED indicators
●
SNMP V1/V2c
TM
●
Supports 1 CompactFlash , 1 SD card (optional)
●
2 power paths with terminal block and 12-48VDC
●
Supports AXView remote monitoring software package
LED indicators
(power, alarm, ready/
active, COM)
Intel® Atom™
processor Z510 PT/
Z520PT
1 isolated DIO
(8-IN/8-OUT)
Front view
Din-rail kit
Ext. Temp
IP30
UL508
Fanless
Low Power
Rear view
Introduction
The rBOX100 din-rail fanless embedded field controller supports extra low power Intel®
Atom
TM
processors Z510PT and Z520PT with extended temperature range of -40°C to
70°C for use in extreme operating environments.
Its 8-IN/8-OUT DIO port provides users with the digital devices connection, and its
redundant Ethernet connection provides greater availability and reliability. Two power
paths input minimizes the risk of data loss in the event of a single power failure. Besides,
rBOX100 is also specifically built for rugged work environments, has met Safety Agency
requirements and passed heavy industrial EMI/EMS testing. The robust rBOX100 is
specifically built for remote control/ monitoring management applications like unmanned
control room, industrial machine, automatic parking lot, traffic cabinet and more.
The ready-to-run rBOX100 equipped with AXView remote monitoring software is a
total solution for power plant automation, facility monitoring systems, intelligent
transportation systems, and more.
System I/O Outlet
DIO
1 x DIO (8-IN/8-OUT)
DI:
Input range : 0~30 VDC
Logic level 0 : +/- 3V max.
Logic level 1 : +/- 10V min. (COM to DI)
DO:
Max. 200 mA per channel, current sink type
24VDC normal, open collector to 30V
Optical isolation protection 2 KV
1 x DB15 connector
2 x DC power input with terminal block
One relay output with current
0.5A @30VDC
VGA
Power Input
Alarm Contact
Watchdog Timer
Specifications
Standard Color
Construction
CPU
System Board
System Memory
System I/O Outlet
Sliver-Black
Extruded aluminum and heary-duty steel, IP30
Intel® Atom
TM
processor Z510PT 1.1 GHz or Z520PT
1.33 GHz
RM820
1 x 200-pin DDR2 SO-DIMM max. up to 2 GB
Serial Port
2 x RS-232/422/485 (COM 1/2)
(isolated COM as option)
Interface select by software or BIOS
Supports Auto Flow Control in RS-485
mode
ESD protection 15 KV
Serial port speed up to 115.2kbps
LAN
1 x 10/100/1000Mbps Ethernet
1 x 10/100Mbps Ethernet
Magnetic isolation protection 1.5 KV
USB
2 x USB 2.0
USB power distribution control by
software
LEDs
Storage
Installation
Power Supply
Operating Temperature
Storage Temperature
Humidity
Weight (net/gross)
Dimensions
EOS Support
2 WDT
WDT 1: one step is 1 sec, 255 levels
WDT 2: one step is 250ms, 255 levels
System
Power, Alarm, Ready/Active, COM
(TXD,RXD)
Alarm
DC PWR1 or PWR2 is lost (default)
User define event
Supports 1 x CompactFlash
TM
Supports 1 x SD card up to 32 GB (optional)
Din-rail, wall mount
2 power paths
Power Input Range 12-48VDC
Power Input Rating 12-48VDC, 1.3-0.3A
Power
DC Version:
Protection
OVP (over voltage protection)
UVP (under voltage protection)
Reverse protection
-40°C ~ +70°C (-40°F ~ +158°F)
-45°C ~ +85°C (-49°F ~ +185°F)
10% ~ 95%
1.38 kg (3 lb)/1.72 kg (3.78 lb)
81 mm (3.18") (W) x 110 mm (4.33") (D) x 135 mm (5.31") (H)
XPE, WinCE, Linux support package, Windows® 7
Embedded
323
* All specifications and photos are subject to change without notice.
Specifications
ISO
Safety
Manufactured in an ISO9001 facility
UL508
Heavy Industrial CE, including:
EN60950-1, IEC60950-1
UL60950-1
FCC Part 18
Heavy Industrial CE, including:
EN61000-6-4, EN61000-3-2, EN61000-3-3
Heavy Industrial CE, including:
EN61000-6-2
EN61000-4-2 (ESD standards)
* Contact: +/- 6 KV; criteria B
* Air: +/- 8 KV; criteria B
EN61000-4-3 (radiated RFI standards)
* 10V/m, 80 to 1000 MHz; 80% AM criteria A
EN61000-4-4 (burst standards)
* Signal ports: +/- 2 KV; criteria B
* DC power ports: +/- 2 KV; criteria B
EN61000-4-5 (surge standards)
* Signal ports: +/- 1 KV; line-to-line; criteria B
* DC power ports: +/- 0.5 KV; line-to-earth; criteria B
EN61000-4-6 (induced RFI standards)
* Signal ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM
criteria A
* DC power ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM
criteria A
EN61000-4-8 (magnetic field standards)
* 30 A/m @ 50, 60 Hz; criteria A
IEC60068-2-6 Fc (vibration resistance)
5 g @ 10 ~ 150 Hz, amplitude 0.35 mm
(operation/storage/transport)
IEC60068-2-27 Ea (shock) 25 g @ 11 ms
(half-sine shock pulse; operation);
50 g @ 11 ms (half-sine shock pulse;
storage/transport)
IEC60068-2-32 Ed (free fall) 1 M (3.281ft)
Ordering Information
Standard
rBOX100-FL 1.1G-DC
Overview
Safety Compliance
EMI
rBOX100-FL 1.33G-DC
Robust din-rail fanless embedded system with Intel®
Atom
TM
processor Z510PT 1.1 GHz and 1 isolated DIO
(8-IN/8-OUT) (-40°C ~ +70°C)
Robust din-rail fanless embedded system with Intel®
Atom
TM
processor Z520PT 1.33 GHz and 1 isolated DIO
(8-IN/8-OUT) (-40°C ~ +70°C)
Embedded
Systems
EMS
Optional
DDR2 SO-DIMM
DDR2 SO-DIMM
1 GB ~ 2 GB (with W.T. memory)
2 GB or above (with W.T. CF)
1 GB ~ 2 GB (with 0°C ~ +85°C memory; operating
temperature: 0°C ~ +70°C)
CompactFlash
Wall mount kit
*Specifications and certifications are based on options and may vary.
Embedded
Systems for
Transportation
3
Embedded
Field
Controllers
Industrial
Firewall
Environmental Test
Digital Signage
Solutions
Embedded
MicroBoxes

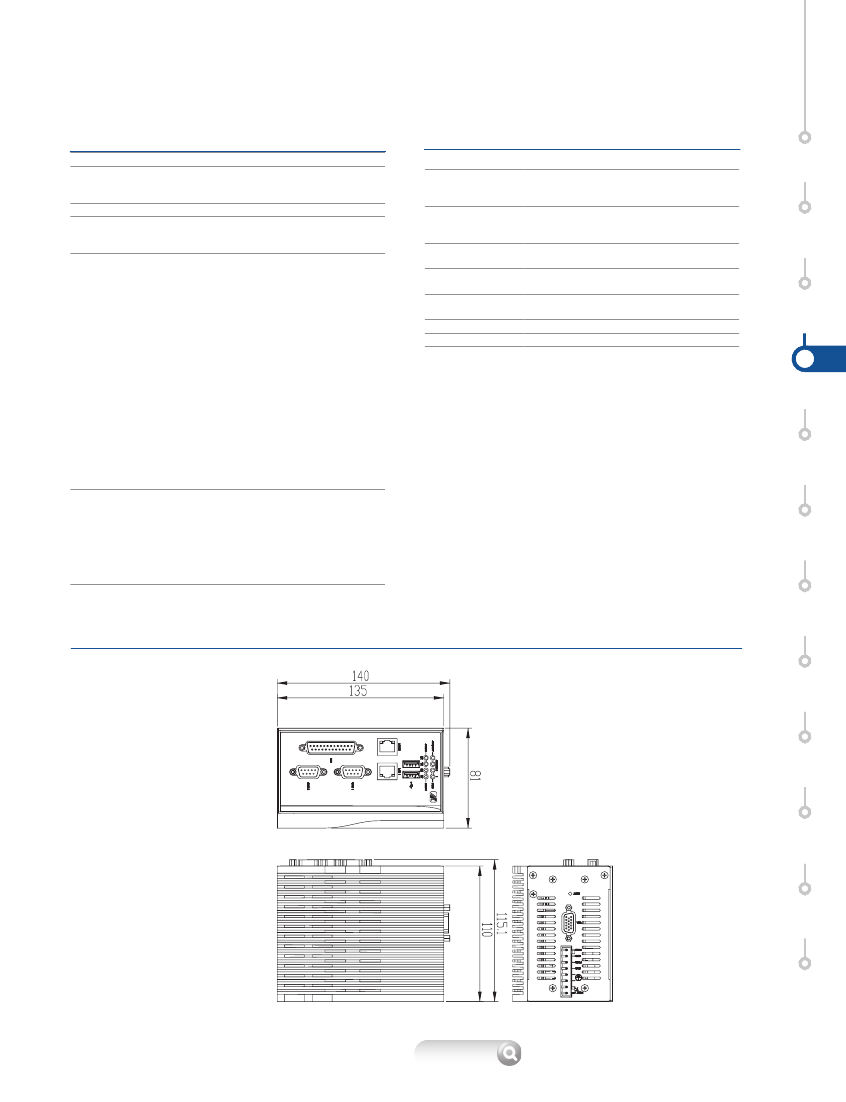

Dimensions
Industrial
Barebone
Systems
Industrial
Chassis
Backplanes
Power
Supplies
Peripherals &
Accessories
* All specifications and photos are subject to change without notice.
