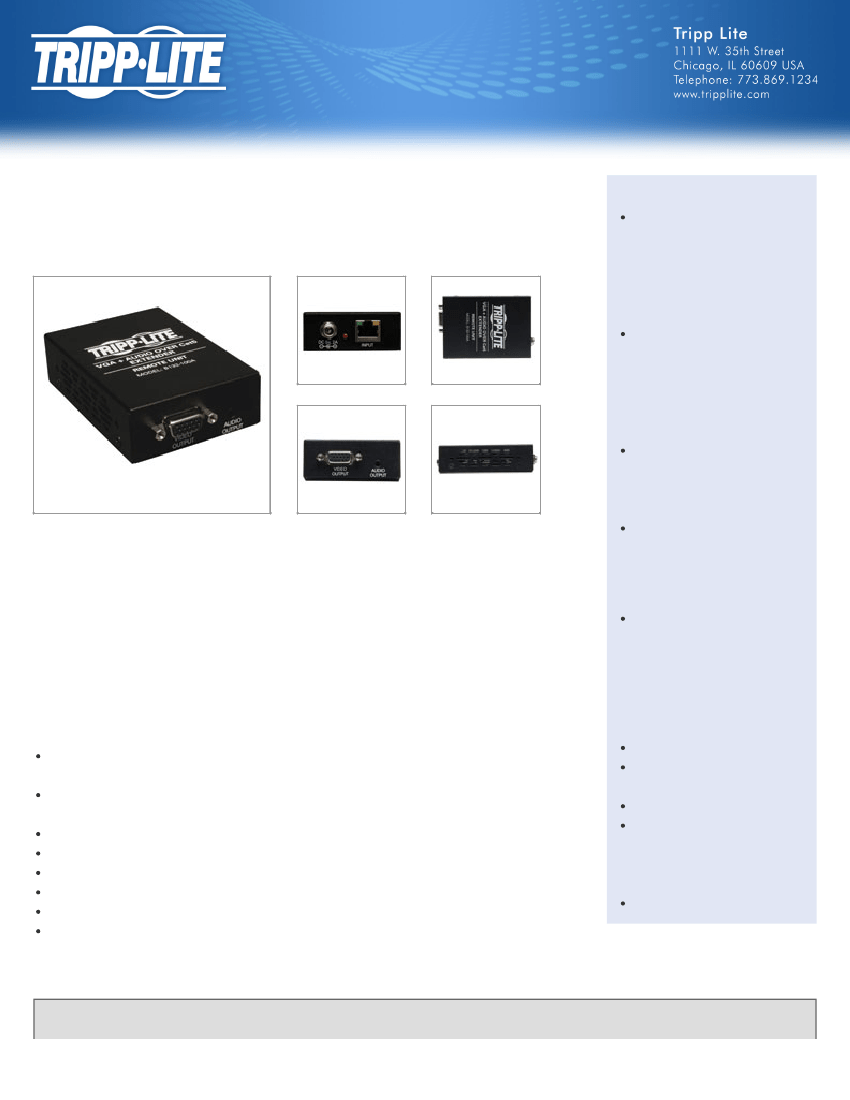

VGA with Audio over Cat5/Cat6 Extender, Box-Style
Receiver, 1920x1440 at 60Hz, Up to 1000-ft., TAA
MODEL NUMBER:
B132-100A
Highlights
Works with a
B132-002A-2
or
B132-004A-2
local unit to extend
a 1920 x 1440 (60Hz) Video and
Audio signal up to 500 ft., or a
1024 x 768 (60Hz) Video and
Audio signal up to 1,000 ft.
24Awg, Solid Wire Cat5e/6
cable, such as Tripp Lite's
N022-01K-GY
(Cat5) and
N222-01K-GY
(Cat6), is required
to achieve maximum distance
and resolution
For optimal image quality
between 500 and 1,000 ft., use
Zero-Skew cable, such as Tripp
Lite
P524-01K
Compliant with the Federal Trade
Description
Tripp Lite's B132-100A works with a
B132-002A-2
or
B132-004A-2
local transmitter unit to extend a 1920 x 1440
(60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft..
24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's
N022-01K-GY
(Cat5) and
N222-01K-GY
(Cat6), is
required to achieve maximum distance and resolution. For optimal image quality between 500 and 1,000 ft., use
Zero-Skew cable, such as Tripp Lite
P524-01K.
Features built-in Equalization and Gain controls to adjust the
video image. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted.
Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade
Agreements Act (TAA) for GSA Schedule purchases.
Agreements Act (TAA) for GSA
Schedule purchases
System Requirements
For international use, the
B110-INT power supply can be
purchased separately; it features
plugs for the UK, Europe, and
Australia
Features
Works with a
B132-002A-2
or
B132-004A-2
local unit to extend a 1920 x 1440 (60Hz) Video and Audio signal
up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft.
24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's
N022-01K-GY
(Cat5) and
N222-01K-GY
(Cat6), is
required to achieve maximum distance and resolution
For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite
P524-01K
Features built-in Equalization and Gain controls to adjust the video image
Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted
Ideal for digital signage situations, such as retail, schools, churches, etc..
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
1 year limited waranty.
Package Includes
Extender remote (Receiver) unit
Mini-Screwdriver for EQ/Gain
adjustment
Mounting Hardware
External Power Supply with
NEMA 1-15P Plug (Input:
100-240V, 50/60Hz, 0.5A;
Output: 5V, 2A, 5 ft.)
Owner’s Manual
Specifications
OVERVIEW
1/3
AC Adapter
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
PHYSICAL
Shipping Weight (lbs.)
Shipping Weight (kg)
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Unit Weight (lbs.)
Unit Weight (kg)
Color
1
0.45
1 x 2.5 x 3.6
2.54 x 6.35 x 9.14
0.45
0.20
Black
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 1080P Range (ft)
Max 1920 x 1440 Range (ft)
Max 480i Range (ft)
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 1600 x 1200 Range (ft)
Max 1920 x 1200 Range (ft)
Max 720P Range (ft)
1000
1000
500
500
500
500
1000
1000
1000
500
500
500
CONNECTIONS
Ports
Side A - Connector 1
Side B - Connector 1
Side B - Connector 2
1
RJ45 (FEMALE)
HD15 (FEMALE)
3.5MM (FEMALE)
WARRANTY
Product Warranty Period (Worldwide)
1-year limited warranty
© 2017 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
