10/100 mbps managed multi-port optical
demarcation device
AccessEtherLinX/4
product FEaturEs
•
•
•
•
•
•
Independent RJ45 ports for flexible configuration
SNMP Manageable
Read/Write IEEE 802.1Q VLAN-tags
Bi-directional Bandwidth control
Linkloss and FiberAlert
Selective Advertising

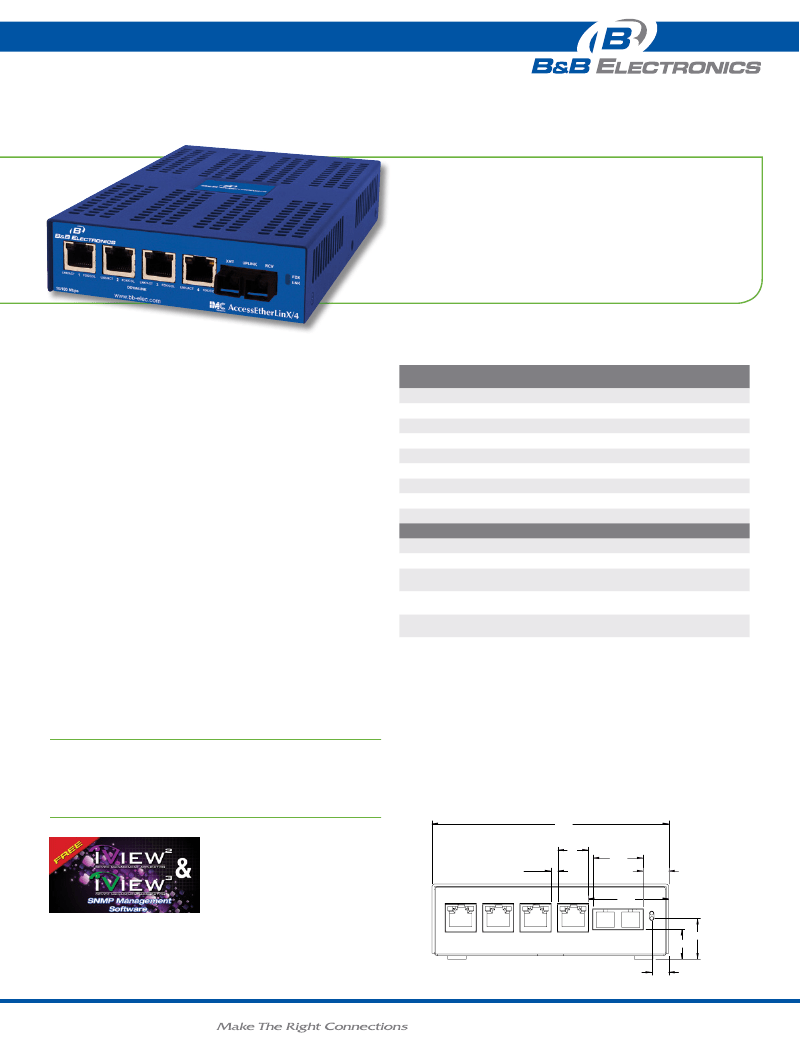

The AccessEtherLinX/4 enables service providers to offer differentiated,
“Transparent LAN” services to multi-tenant building and business
customers. Residing at the customer premises, the AccessEtherLinX/4
provides a VLAN-based, Layer 2 entry point to the last mile fiber
network, trunking, differentiating and separating customer traffic.
Featuring SNMP management, 802.1Q VLAN, 802.1p QoS, traffic
prioritization, bandwidth control and multicast pruning/snooping (using
IGMP v1, v2), the AccessEtherLinX/4 is perfect for a wide range of Fiber
to-the-Home, Fiber-to-the-Curb and Fiber-to-the-Business (collectively
“FTTx”) services, and is an ideal solution for delivering those Ethernet
based services to customers quickly and cost-effectively. Designed
with a small footprint, the AccessEtherLinX/4 facilitates easy
installation inside the premises.
Bandwidth control and 802.1Q VLAN compatibility built-in:
The AccessEtherLinX/4 accepts traffic containing VLAN tags on the
Uplink port and directs traffic to the twisted pair downlink ports or
to management based on VLAN ID. In addition to assigning 802.1Q
VLAN-tags on a per-port basis, priority can be defined for each port and
SNMP tag; traffic is divided into a hi/low level for packet prioritization
in the queue. The AccessEtherLinX/4 also includes bi-directional
bandwidth control, and supports IGMP multicast pruning to ensure the
necessary amount of IP multicast packets are bridged.
ordErIng InFormatIon
Model
FiBer
FiBer
nuMBer
Ports range
accessetherlinx/4
852-13120
100m
852-13121 MM1300-ST
1
5 km
852-13122 MM1300-SC
1
5 km
852-13123 SM1310/PLUS-ST 1
40 km
852-13124 SM1310/PLUS-SC 1
40 km
852-13125 SM1310/LONG-ST 1
80 km
852-13126 SM1310/LONG-SC 1
80 km
852-13127 SM1550/LONG-SC 1
80 km
single strand FiBer *
852-10133
SSFX-SM1310-SC
1
20 km
852-10134
SSFX-SM1550-SC
1
20 km
SSFX-SM1310/
852-10135
1
40 km
PLUS-SC
852-10136
SSFX-SM1550/
1
40 km
PLUS-SC
852-10137
SSFX-SM1310/
1
60 km
LONG-SC
SSFX-SM1550/
852-10138 LONG-SC
1
60 km
ethernet
Ports
5
4
4
4
4
4
4
4
4
4
4
4
4
4
ethernet
ConneCtor
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
AccessEtherLinX/4 also available in CWDM Fiber.
Call for details.

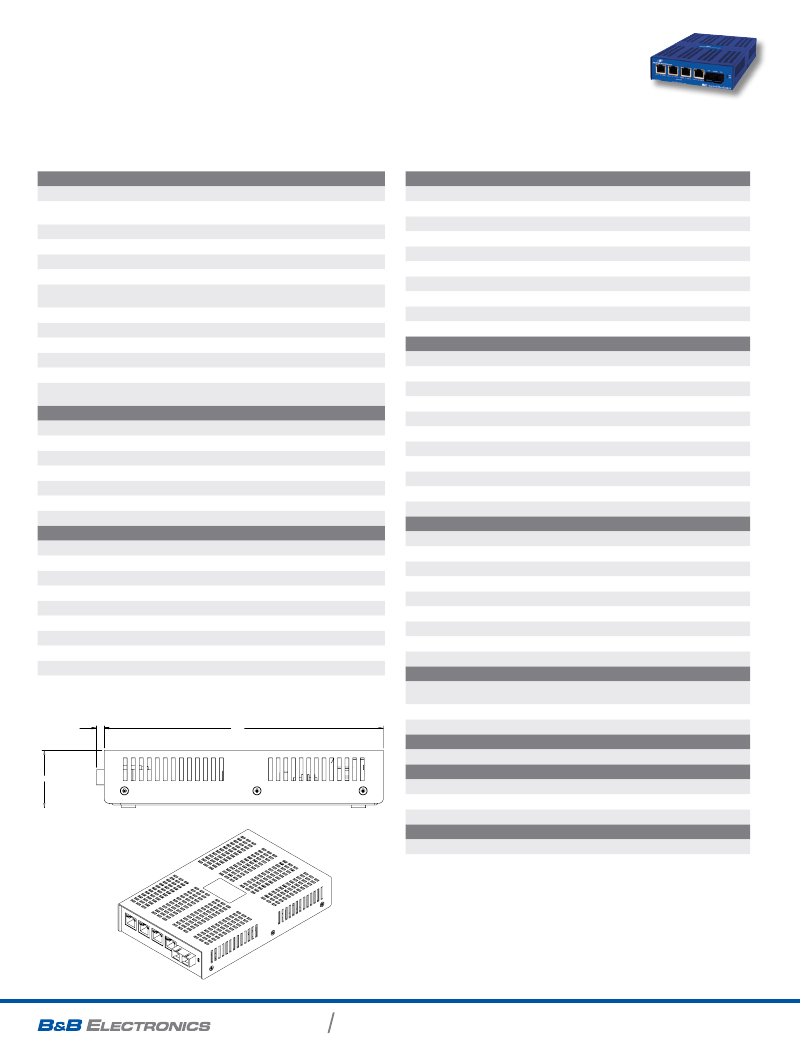

mEchanIcal dIagram
(dimensions in inches)
4.74
.61
4X
3X, .14
accEssorIEs
895-39226
- Rackmount Bracket
895-39949
- Rackmount Shelf
1.00
.51
1.61
iView: Windows 2000/XP/Vista/Win7
.60
.82
.34
www
.
bb
-
elec
.
com
|
AccessEtherLinX/4_3713ds
10/100 mbps managed multi-port
optical demarcation device
AccessEtherLinX/4
SpecificationS
EthErnEt typEs supportEd
IEEE 802.3i Ethernet 10Base-T
IEEE 802.3u Fast Ethernet
(100Base-TX and 100Base-FX)
Features Auto Negotiation and Selective Advertising
Supports Half and Full-Duplex operation
Includes bi-directional bandwidth control
Read/write IEEE 802.1Q VLAN-tags
QoS - IEEE 802.1p-based packet prioritization (two queues [high/low] with eight
priority levels)
Supports IGMP multicast pruning (v1/v2)
Layer 2 packet switching, store and forward operation
Includes LinkLoss and FiberAlert
Forwarding rate: 14,881 pps for 10 Mbps; 148,810pps for 100 Mbps
1024 MAC address learning
MTU: Supports over-sized packets
up to 1916 bytes
ManagEMEnt
Includes GUI-based iView² software
SNMP V1 and V2c compatible
Supports Telnet and RS-232 Craft
Managed through uplink
IEEE 802.3x compliant for Flow Control
Includes DHCP and TFTP clients for remote management and upgrades
Includes diagnostic LEDs
IMC MIB
Traps (Cold Start, Warm Start, Link Up, Link Down, Authentication Failure)
Link Status of Ports
Port Type
Fiber Type
User-Definable Name of Product
User-Definable ID/Name for Ports
Enable/Disable Ports
Enable/Disable FiberAlert
Set for Auto Negotiation/Selective Advertising
Force speed and Duplex Mode for twisted pair ports
.20
7.30
1.50
MIB-II (RFC 1213)
Packets Transmitted
Packets Received
Octets (bytes) Transmitted
Octets (bytes) Received
Unicast Packets Transmitted
Unicast Packets Received
Non-Unicast Packets Transmitted
Non-Unicast Packets Received
Errors Received
Plus All Standard MIB II Objects
RMON StatIStICS
Drop Events
Collisions
Total Bytes
Total Packets
Fragments
Jabbers
Broadcast Packets
Multicast Packets
CRC Align Errors
Under & oversize Packets
Distribution of Frame Size
tRaNSMISSION DOt 3 (RFC1643)
Alignment Errors
Single Collision Frames
CRC Errors
SQE Test Errors
Late Collisions
Frame Too Long
Excessive Collisions
Deferred Transmissions
Multiple Collision Frames
MeChaNICal
1.5” H x 4.75” W x 7.25” D
Dimensions
(3.18 cm x 12.07 cm x 18.42 cm)
Enclosure
Metal
Shipping Weight
1.6 lbs. (0.6 kg)
POweR RatINg
100-240 VAC, 50/60Hz, 1.0A
eNvIRONMeNtal
Operating Temperature
+32° to +122° F (0° to +50° C)
Storage Temperature
-13° to +158° F (-25° to +70° C)
Operating Humidity
5 to 95% Non-condensing
RegulatORy aPPROvalS
FCC Class A
UL/cUL, CSA, CE
