PoE and PoE+
Giga-McBasic
10/100/1000 Mbps PoE & PoE+ Switching Media Converter
M
edia
C
onversion
Supporting the IEEE 802.3af and 802.3at standards, the multi-port PoE
and PoE+ Giga-McBasic media converters offer unparalleled installation
flexibility and cost-savings.
Features and Benefits
Flexible Solution
• Connects 10/100/1000 Mbps copper
to 100 or 1000 Mbps fiber SFP or
10/100/1000 Mbps or 1000 Mbps
copper SFP
• Supports Jumbo Frames
(up to 10240 bytes)
• Rugged standalone metal enclosure
with internal power supply
• Multiple mounting options
(desktop, wallmount or rackmount)
• For multimode, single-mode, single-strand
and CWDM fiber
• Features configurable PoE reset on
Fiber Loss of Signal (LOS)
• Supports IEEE 802.3af PoE (15.4W) and
IEEE 802.3at PoE+ (25.5W) standards
• Internal AC power supply
• Significant cost-savings; no need to extend
existing power/cabling to supply power to
a device
• User-friendly Auto Negotiation technology
• Provides greater installation flexibility;
choose the best location for a powered
device
• Auto-Cross MDI/MDIX offered on
copper ports
* SFPs sold separately
The PoE and PoE+ Giga-McBasic are the perfect solutions for
network applications that require Power over Ethernet for locations
inside buildings where PoE is required to power an Ethernet
device. Their small, table-top design and durability make them
perfect for installation anywhere space is limited. Additionally,
both units are manufactured with an internal AC power supply.
This feature significantly increases reliability over products that use
awkward, external AC/DC power transformers.
The PoE Giga-McBasic unit comes with one SFP or fixed fiber
transceiver, one PoE/PSE 10/100/1000Base-T copper port that
provides 15.4 Watts of power with data, and one 10/100/1000
Mbps copper port to connect a non-PoE unit to the same fiber
uplink.
The PoE+ Giga-McBasic unit comes with one SFP or fixed fiber
transceiver and two PoE/PSE 10/100/1000Base-T copper. Each
port provides 25.5 Watts of power with data.
As a fiber-fed media converter, it provides both power and data
to a remote device over standard CAT5, eliminating the need for
additional power to the remote device. The copper ports Auto
Negotiate to the connected device’s speed and duplex mode: 10
Mbps, 100 Mbps or 1000 Mbps, and HDX or FDX (including Flow
Control). Additionally, both models support jumbo frames up to
10240 bytes.
Power Options
Plug-and-Play Operation

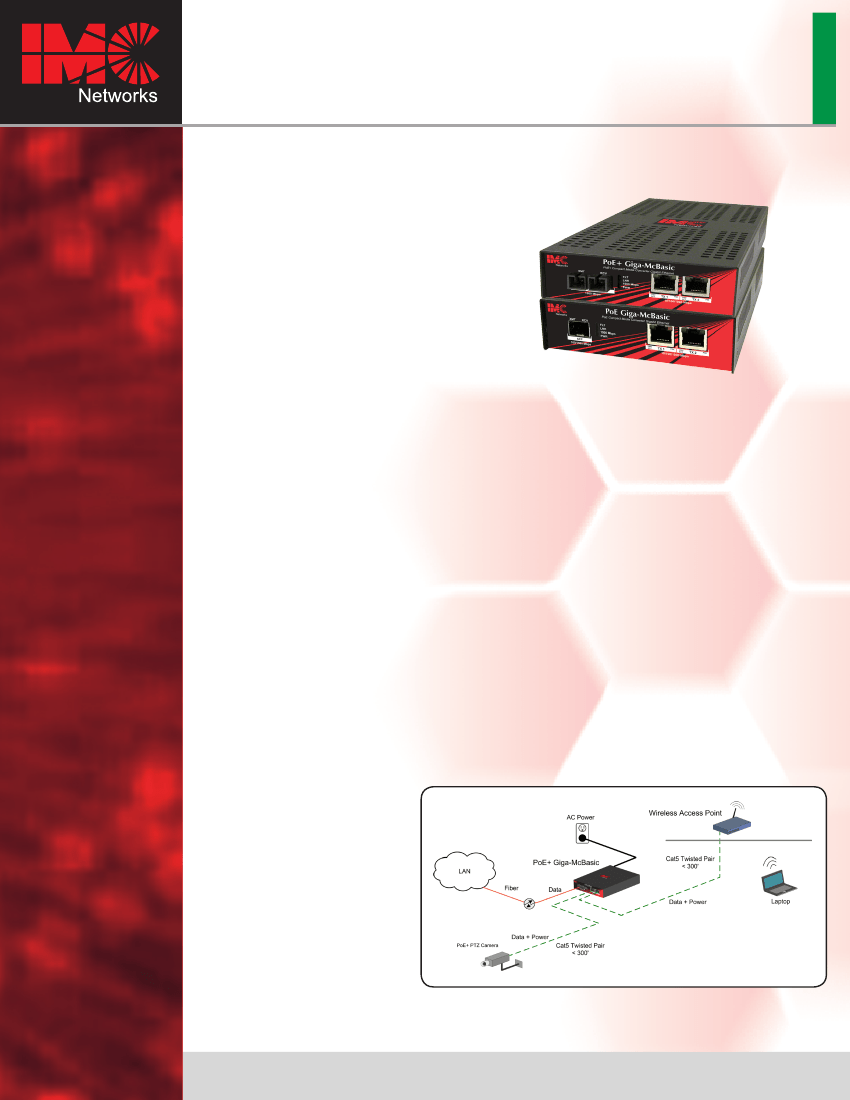

Application Example
Utilizing Power over Ethernet Plus
technology, the PoE+ Giga-McBasic
functions as the power source (PSE).
Both copper ports are capable of sending
data and 25.5 Watts of apower to the
remote Wireless Access Point and the
PTZ security camera.
www.imcnetworks.com
800-624-1070
Making Your Net
Work
Better — Since 1988
RoHS Compliant
Technical Specifications
PoE / PoE+ Giga-McBasic
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3u Auto-Negotiation
RFC-2474
RFC-2475 DiffServ QoS
Plug-and-play operation
Accepts RJ-45 and SFP or SC connectors
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Single-strand fiber and CWDM models
FX and TX Auto Negotiation
AutoCross for MDI/MDIX
MTU: Supports Jumbo Frames up to 10240 bytes
Dimensions
1.46”H x 4.76”W x 7.32”D
(3.71 cm x 12.09 cm x 18.59 cm)
Operating Temperature:
+32° to +122° F (0° to +50° C);
PoE Giga-McBasic
+32° to +104° F (0° to +40° C);
PoE+ Giga-McBasic
Power Characteristics
PoE Giga-McBasic
Consumes less than 10 Watts (heating) plus PSE power
IEEE802.3af Power to field <15.5 Watts
PoE+ Giga-McBasic
Consumes less than 10 Watts (heating) plus PSE power
IEEE802.3af/at Power to field <50 Watts (2x24.5 W)
Storage Temperature:
-40° to +185° F (-40° to +85° C)
Humidity:
5% – 95% (non-condensing)
Shipping Weight:
1.3 lbs (0.58 kg)
Connectors:
• RJ-45 and SFP or SC
Input Specifications:
100-240 ±10% VAC,
50/60Hz, 0.5A to 0.2A (PoE
Giga-McBasic)
50/60Hz, 1.6A to 0.7A (PoE+
Giga-McBasic)
Regulatory Approvals:
• FCC Class A
• UL/cUL, CSA, CE
Fiber Optics Specifications
For each product listed below in the Ordering Information section, the DISTANCE represents an approximate fiber distance based on industry-
standard fiber attenuation specifications. Actual distances will vary for each installation. For complete power budgets and information on calculating
specific distances, visit www.imcnetworks.com/go/fcs or contact IMC Networks Fiber Consulting Services at 949-465-3000.
Ordering Information
PART #
DESCRIPTION
PoE+ Giga-McBasic
852-10911
852-10912
852-10913
852-10914
852-10915
852-10916
852-10917
852-10920
852-10921
852-10922
852-10923
852-10924
852-10925
852-10926
852-10927
852-10928
852-10929
PoE+ Giga-McBasic, 2TX/SFP (requires one SFP module)
§
PoE+ Giga-McBasic, 2TX/SX-MM850-SC
PoE+ Giga-McBasic, 2TX/LX-MM1300-SC
PoE+ Giga-McBasic, 2TX/LX-SM1310-SC
PoE+ Giga-McBasic, 2TX/LX-SM1310/PLUS-SC
PoE+ Giga-McBasic, 2TX/LX-SM1550/LONG-SC
PoE+ Giga-McBasic, 2TX/LX-SM1550/XLONG-SC
PoE+ Giga-McBasic, 2TX/SSLX-SM1310-SC (1550 rcv)
PoE+ Giga-McBasic, 2TX/SSLX-SM1550-SC (1310 rcv)
PoE+ Giga-McBasic, 2TX/SSBX-SM1310-SC (1490 rcv)
PoE+ Giga-McBasic, 2TX/SSBX-SM1490-SC (1310 rcv)
PoE+ Giga-McBasic, 2TX/SSLX-SM1310/PLUS-SC (1550 rcv)
PoE+ Giga-McBasic, 2TX/SSLX-SM1550/PLUS-SC (1310 rcv)
PoE+ Giga-McBasic, 2TX/SSBX-SM1490/PLUS-SC (1310 rcv)
PoE+ Giga-McBasic, 2TX/SSBX-SM1310/PLUS-SC (1490 rcv)
PoE+ Giga-McBasic, 2TX/SSLX-SM1490/LONG-SC (1550 rcv)
PoE+ Giga-McBasic, 2TX/SSLX-SM1550/LONG-SC (1490 rcv)
DISTANCE
Varies
220/550 m
2 km
10 km
40 km
80 km
100 km
15 km
15 km
10 km
10 km
40 km
40 km
30 km
30 km
70 km
70 km
PART #
DESCRIPTION
PoE Giga-McBasic
852-10811
852-10812
852-10813
852-10814
852-10815
852-10816
852-10817
852-10820
852-10821
852-10822
852-10823
852-10824
852-10825
852-10826
852-10827
852-10828
852-10829
PoE Giga-McBasic, 2TX/SFP (requires one SFP module)
§
PoE Giga-McBasic, 2TX/SX-MM850-SC
PoE Giga-McBasic, 2TX/LX-MM1300-SC
PoE Giga-McBasic, 2TX/LX-SM1310-SC
PoE Giga-McBasic, 2TX/LX-SM1310/PLUS-SC
PoE Giga-McBasic, 2TX/LX-SM1550/LONG-SC
PoE Giga-McBasic, 2TX/LX-SM1550/XLONG-SC
PoE Giga-McBasic, 2TX/SSLX-SM1310-SC (1550 rcv)
PoE Giga-McBasic, 2TX/SSLX-SM1550-SC (1310 rcv)
PoE Giga-McBasic, 2TX/SSBX-SM1310-SC (1490 rcv)
PoE Giga-McBasic, 2TX/SSBX-SM1490-SC (1310 rcv)
PoE Giga-McBasic, 2TX/SSLX-SM1310/PLUS-SC (1550 rcv)
PoE Giga-McBasic, 2TX/SSLX-SM1550/PLUS-SC (1310 rcv)
PoE Giga-McBasic, 2TX/SSBX-SM1490/PLUS-SC (1310 rcv)
PoE Giga-McBasic, 2TX/SSBX-SM1310/PLUS-SC (1490 rcv)
PoE Giga-McBasic, 2TX/SSLX-SM1490/LONG-SC (1550 rcv)
PoE Giga-McBasic, 2TX/SSLX-SM1550/LONG-SC (1490 rcv)
DISTANCE
Varies
220/550 m
2 km
10 km
40 km
80 km
100 km
15 km
15 km
10 km
10 km
40 km
40 km
30 km
30 km
70 km
70 km
PoE+ Giga-McBasic Single-Strand Fiber*
PoE Giga-McBasic Single-Strand Fiber*
*
These products have single-strand fiber technology.
Deploy in pairs, or connect to another compatible IMC Networks single-strand fiber product.
For more information go to: www.imcnetworks.com/products/SSFX.cfm
§
SFP modules are sold separately. For more information on IMC Networks’ SFPs,
go to: www.imcnetworks.com/Products/product.cfm?family=32
CWDM models are also available. Check website for part numbers and details.
PART #
DESCRIPTION
Rackmount/Wallmount Accessories
895-39226
895-39227
895-39228
895-39949
McBasic, MediaChassis, AccessEtherLinX Rackmount Brackets
McBasic, MediaChassis, AccessEtherLinX Wallmount Brackets
McBasic, MediaChassis, AccessEtherLinX x3 Rackmount Shelf
McBasic, iMediaChassis/3, MediaChassis, AccessEtherLinX Rackmount Shelf
