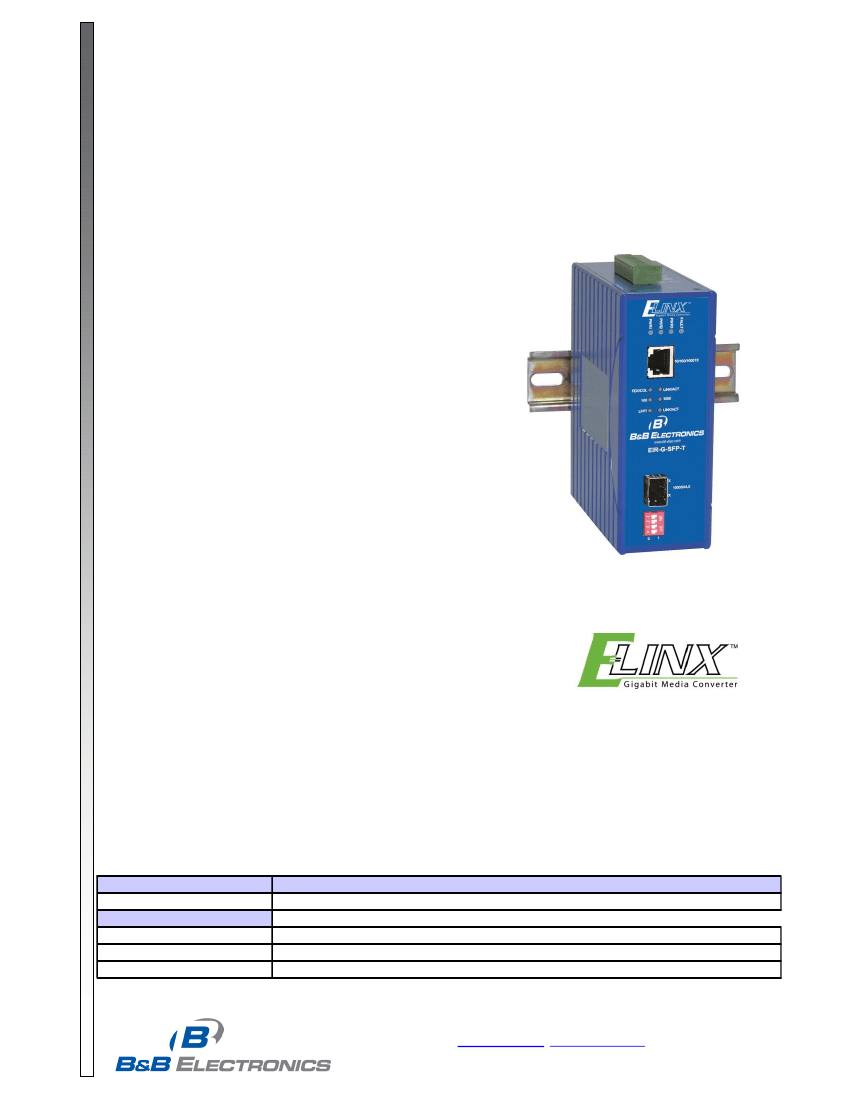

EIR-G-SFP-T 0812ds page 1/3
©2009 B&B Electronics. All rights reserved
B&B ELECTRONICS
EIR-G-SFP-T
10/100/1000Base-TX to Gigabit SFP Hardened
Media Converter
Features
Complies with NEMA TS1 & TS2 Environmental
requirements for Traffic control equipment
Complies with IEC61000-6-2 EMC Generic standard
immunity for Industrial environment
DIP switch configuration for "Link-Fault-Pass-Through",
fiber auto/force mode, link down alarm
1000Mbps-Full-duplex, Auto-Negotiation, Auto-MDI/MDIX
SFP socket for Gigabit fiber optic expansion
Full wire-speed forwarding rate
Alarms for power and port link failure by relay output
Redundant power inputs with Terminal Block and DC Jack
-40°C to 75°C (-40°F to 167°F) operating temperature range
Hardened aluminum case
Supports DIN-Rail or Panel Mounting installation
Overview
The EIR-G-SFP-T, Gigabit Ethernet media converters are designed to
operate in harsh environments. The EIR-G-SFP-T functions at
temperatures ranging from -40°C to 75°C (-40°F to 167°F) and is tested
for functional operation @ -40°C to 85°C (-40°F to 185°F). Whether on the
factory floor or the street corner, the EIR-G-SFP-T will provide flawless
communications when you need it most. EIR-G-SFP-T offers 1000Base
SFP socket to support multi-mode/single-mode fiber optics. The RJ-45
port on this unit provides Auto-MDIX and auto-negotiation. The link-fault-
pass-through feature allows the network management agent on adjacent
equipment to react to a broken link. Flexibility is the main feature of the
EIR-G-SFP-T, it may be DIN rail or panel mounted, and comes with power
options to match the applications that require a tough, environmentally
hardened, Gigabit Ethernet media converter.
PRODUCT INFORMATION
Ordering Information
Model Number
EIR-G-SFP-T
Accessories
SFP-1000SX-M-550M-T
SFP-1000LX-S-10KM-T
SFP-1000LX-S-20KM-T
SFP Module, 1000Base-SX, Multi-mode 550m, LC Connector (-40 to 85°C)
SFP Module, 1000Base-LX, Single-mode 10km, LC Connector (-40 to 85°C)
SFP Module, 1000Base-LX, Single-mode 20km, LC Connector (-40 to 85°C)
Description
Hardened Media Converter 1000Base-T to Gigabit SFP
www.bb-elec.com
orders@bb-elec.com
support@bb-elec.com
International Office:
707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
EIR-G-SFP-T 0812ds page 2/3
©2009 B&B Electronics. All rights reserved
B&B ELECTRONICS
Specifications
Ethernet Technology
Standards
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/1000Base-LX
IEEE802.3x
Forward & Filtering Rate
Ethernet Ports
LED Indicators
Alarm Contact
Enclosure
Dimensions
Weight
Installation
Operating Temperature
Storage Temperature
Ambient Relative Humidity
MTBF
MTBF Calc. Method
Input Voltage
Power Consumption
Overload Current Protection
Reverse Polarity Protection
Safety
EMI
1,488,100pps for 1000Mbps
Interface
1 - 10/100/1000Base-TX
1 - Gigabit SFP
Per Unit: Power Status (Power1, Power2, Power3, Fault), LFPT
Per Port: 10/100/1000TX: Link/Activity, Speed, Full-duplex/Collision Gigabit SFP: Link/Activity
One relay output with current 1A @ 30VDC, 0.5A@120VAC
Mechanical
Aluminum case, IP30
5.00cm x 1.10cm x 1.35cm (2.0 x 4.3 x 5.3 inches)
0.8Kg (1.76lbs.)
DIN-Rail (Top hat type 35mm), Rack Mounting (Optional)
-40°C to 75°C (-40°F to 167°F)
Tested @ -40°C to 85°C (-40°F to 185°F)
-40°C to 85°C (-40°F to 185°F)
5% to 95% (non-condensing)
348,518 Hours
Parts Count Reliability Prediction
Power
Dual 12 to 48VDC (Terminal Block); 12VDC (DC Jack)
10.56W, 0.88A @ 12VDC, 0.44A @ 24VDC, 0.22A @ 48VDC
Present
Present
Regulatory Approvals
EN60950-1, IEC60950-1
FCC Part 15, Class A
VCCI, Class A
EN61000-6-3: EN55022, EN61000-3-2, EN61000-3-3
EMS
EN61000-6-2
EN61000-4-2 (ESD Standards) Contact: + / - 4KV; Criteria B Air: + / - 8KV; Criteria B
EN61000-4-3 (Radiated RFI Standards) 10V/m, 80 to 1000MHz; 80% AM Criteria A
EN61000-4-4 (Burst Standards) Signal Ports: + / - 4KV; Criteria B D.C. Power Ports: + / - 4KV;
Criteria B
EN61000-4-5 (Surge Standards) Signal Ports: + / - 1KV; Line-to-Line; Criteria B D.C. Power
Ports: + / - 0.5KV; Line-to-earth; Criteria B
EN61000-4-6 (Induced RFI Standards) Signal Ports: 10Vrms @ 0.15~80MHz; 80% AM Criteria A
D.C. Power Ports: 10Vrms @ 0.15~80MHz; 80% AM Criteria A
EN61000-4-8 (Magnetic Field Standards) 30A/m @ 50, 60Hz; Criteria A
Environmental Test Compliance
IEC60068-2-6 Fc (Vibration Resistance) 5g @ 10~150KHz, Amplitude 0.35mm
(Operation/Storage/Transport)
IEC60068-2-27 Ea (Shock) 25g @ 11ms (Half-Sine Shock Pulse; Operation) 50g @ 11ms (Half-
Sine Shock Pulse; Storage/Transport)
IEC60068-2-32 Ed (Free Fall) 1M (3.281ft.)
NEMA
NEMA TS1/2 Environmental requirements for Traffic control equipment
PRODUCT INFORMATION
www.bb-elec.com
orders@bb-elec.com
support@bb-elec.com
International Office:
707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
EIR-G-SFP-T 0812ds page 3/3
©2009 B&B Electronics. All rights reserved

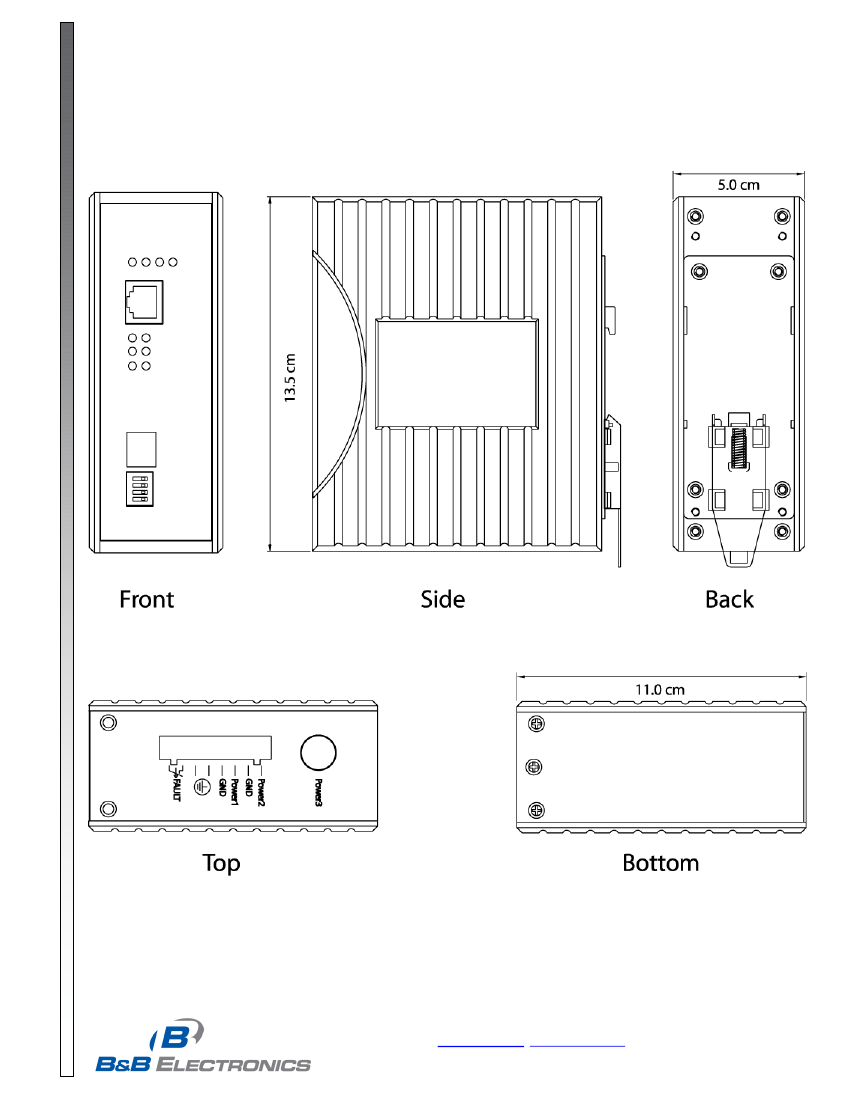

Diagrams
PRODUCT INFORMATION
B&B ELECTRONICS
www.bb-elec.com
orders@bb-elec.com
support@bb-elec.com
