LCD-DEMO-LPC2158
Highlights
•
•
•
•
•
•
•
•
•
•
Single chip solution for LCD User Interface
ARM7TDMI-S Microcontroller
Multiple I/O ports available via optional 20-pin expansion header
512 KB Internal Programmable Flash Memory, 40 KB RAM
Hi-Speed USB 2.0 Device
8-character alphanumeric LCD
Integrated I
2
C based LCD driver with 160 segment support
Powered by 5V Supply from PC USB Port
Two miniature push-buttons on-board for user control
Reprogrammable by the user through USB or optional 6-pin ISP header
The LCD-Demo-LPC2158 is a reference design for a low cost microcontroller and LCD solution
using the NXP LPC2158 along with a few discrete external components. The Board is controlled
by a simple two-button user interface (MODE and SELECT). Example source code may be
downloaded for several sample applications: an FM Radio display during a simulated channel
scan, a 15 minute countdown timer, a repeating pattern of 4 text lines, and virtual COM port
allowing users to display their own messages on the LCD. The user can edit this code and
download to the reprogrammable Flash microcontroller directly through a USB virtual COM port
on the user’s PC (no external programmer required). The LCD-Demo-LPC2158 can function as a
Single Board Computer since the powerful LPC2158 contains an ARM7TDMI-S microcontroller
with 512 kB of programmable Flash memory and 40 kB of RAM. Additionally, the 20-pin
expansion header allows for the connection of external devices to the microcontroller directly
through GPIO or through the SPI and I
2
C interfaces.
Features
The LPC2158 is a TQFP100 pin multi-chip module (MCM) made up of the following 2
NXP devices:
1. LPC2148 32-bit, 60 MHz, ARM7TDMI-S
•
512 KB Flash, 40 KB RAM
•
Full Speed USB 2.0 Device Controller
•
2 UARTs, 2 ADCs , DAC
•
Two 32-bit Timers & RTC
•
Vectored Interrupt Controller
•
Idle, Power-down Power Saving Modes
Optional I/O Expansion Header
2.
PCF8576D LCD Controller
•
400 KHz I
2
C-bus interface
•
40 segment drives
•
Up to 160 elements with ¼ multiplexing
•
No external components
•
Wide supply range 1.8 to 5.5V

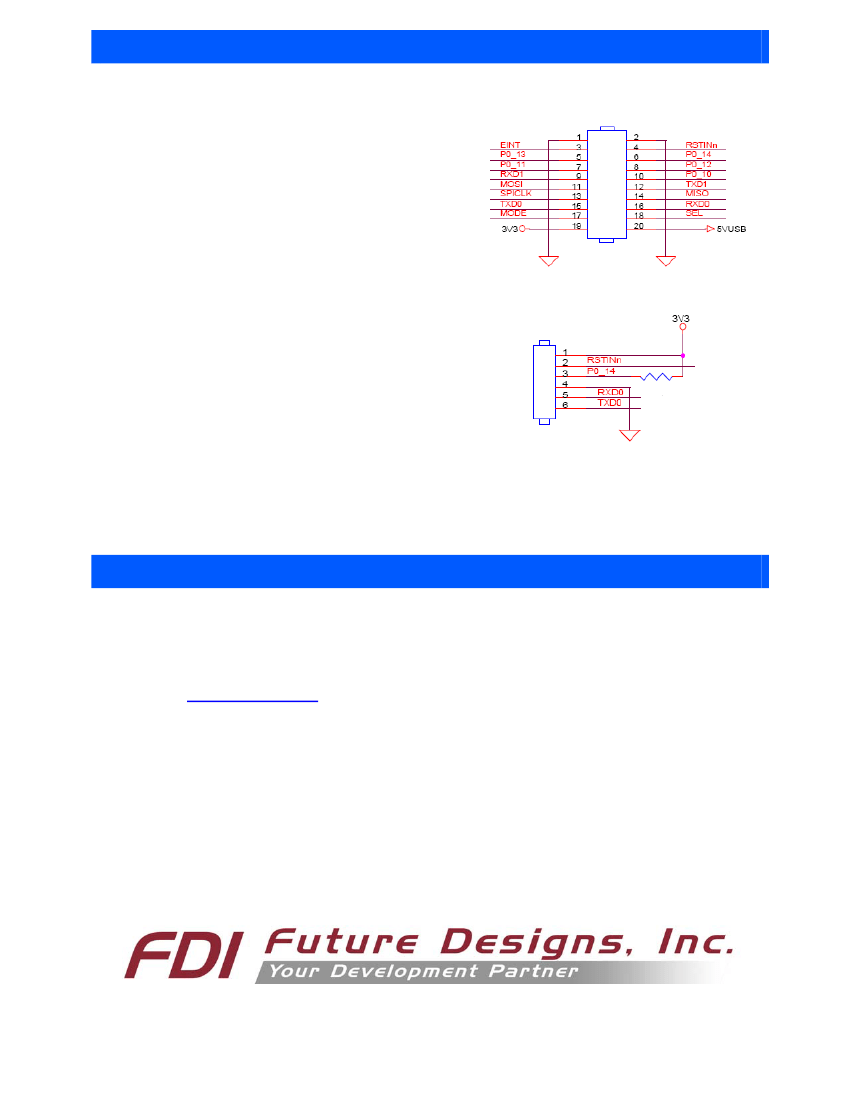

I/O Expansion Header provides access to:
•
UART, I
2
C, SPI
•
3 A/D inputs
•
External Interrupt
•
Mode and Select Buttons
Optional ISP Header
Ordering Information
Part Number: LCD-DEMO-LPC2158
Suggested Resale Price: $69.00(USD)
Order Online at:
www.mouser.com
Warranty: 30-day money back guarantee
Availability: Stock
(256) 883-1240 Phone
(256) 883-1241 FAX
E-mail: sales@teamfdi.com
www.teamfdi.com/lcddemo-lpc2158
Optional JTAG Header
also available
Contents:

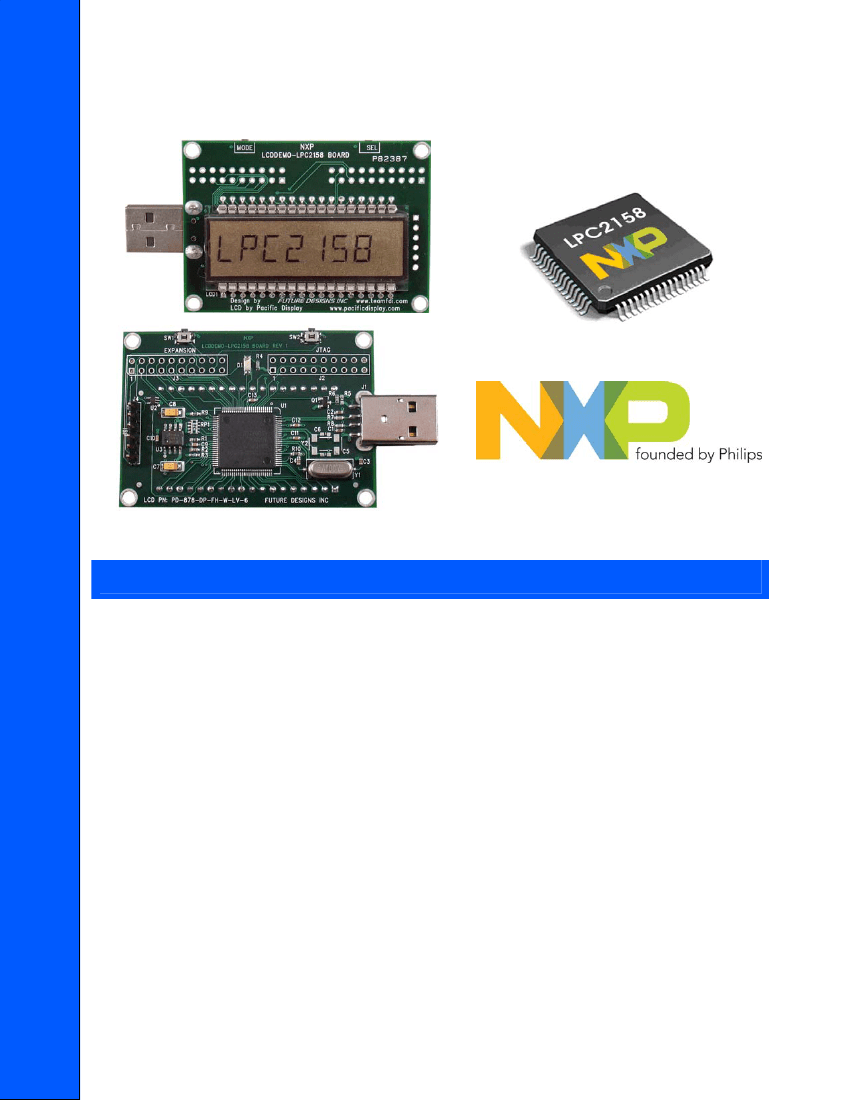

LCD-Demo-LPC2158 Board:
- LPC2158 512KB Flash microcontroller
- Integrated 160-segment LCD Driver
- 8-character alphanumeric LCD
QuickStart Guide:
- Device Installation
- Programming Custom Software
- LCD Demo Software Operation
Optional USB Extension Cable
•
Digi-Key PN: AE9934-ND
•
Mouser PN: 538-68806-0013
All brand names and product names are trademarks or registered trademarks of their respective holders.
Rev 2 8/14/2008
