FIR Filter Generator
Overview
A
Finite Impulse Response (FIR) filter
performs a convolution of an input
data sequence with the filter's impulse response (the discrete-time inverse
Fourier transform of its desired frequency response), which is stored in memory.
The equation for performing the convolution is given by
where y
n
is the filter output at sample n, x
n-i
is the value of the filter input i samples in the past, and h
i
is the ith value
of the filter impulse response.
The Lattice FIR (Finite Impulse Response) Filter IP core is a
widely configurable, multi-channel FIR filter,
implemented using high performance sysDSP™ blocks
available in Lattice devices. In addition to
single rate
filters,
the IP core also supports a range of
polyphase decimation
and
interpolation filters.
The utilization versus
throughput trade-off can be controlled by specifying the number of multipliers used for implementing the filter. The
FIR Filter IP core supports as high as 256 channels, with each having up to 2048 taps. The input data, coefficient and
output data widths are configurable over a wide range. The IP core uses full internal precision while allowing variable
output precision with several choices for saturation and rounding. The coefficients of the filter can be specified at
generation time and/or re-loadable during run-time through input ports.

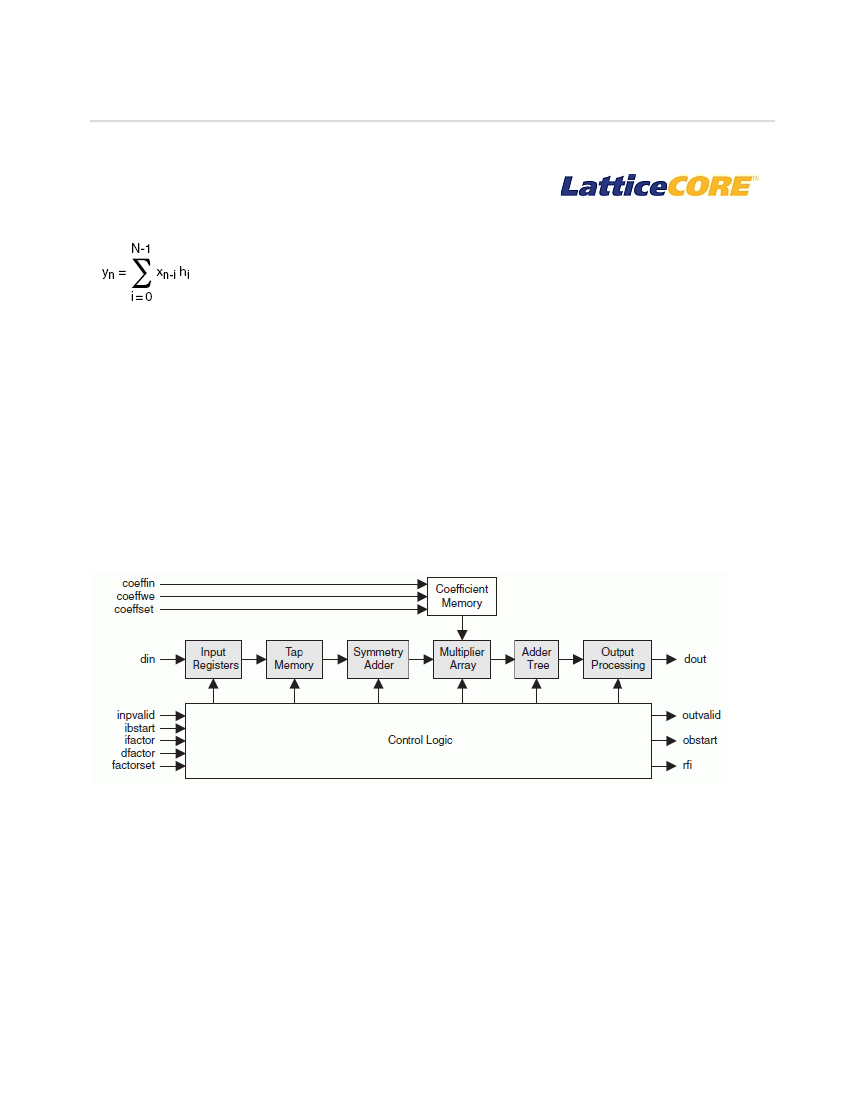

Functional Block Diagram of the FIR Filter IP Core
Features
Variable number of taps up to 2048
Input and coefficients widths of 4 to 32 bits
Multi-channel support for up to 256 channels
Decimation and Interpolation ratios from 2 to 256
Support for half-band filter
Configurable parallelism from fully parallel to serial
Signed or unsigned data and coefficients
Re-loadable coefficients support
Full precision arithmetic
Selectable output width and precision
Selectable overflow: wrap-around or saturation
Selectable rounding: truncation, round towards zero,
round away from zero, round to nearest and convergent
rounding
Width and precision specified using fixed point notations
http://www.latticesemi.com/products/intellectualproperty/ipcores/firfiltergenerator.cfm
10/11/2011
FIR Filter Generator
Page 2 of 3
Coefficients symmetry and negative symmetry
optimization
Handshake signals to facilitate smooth interfacing
Performance and Resource Utilization
LatticeECP3
Mode
4 channels, 64 taps, 1 multiplier
1 channel, 32 taps, 32
multipliers
1 channel, 32 taps, 8 multiplies
SLICEs
127
454
479
LUTs
112
805
498
Registers
188
636
687
1
18x18
Multipliers
2
32
10
sysMEM
EBRs
2
-
-
fMAX
(MHz)
340
298
221
1. Performance and utilization data are generated targeting an LFE3-70E-8FN672CES device using Lattice Diamond 1.0 and Synplify
Pro D-2009.12L-1 software. Performance may vary when using a different software version or targeting a different device density or
speed grade within the LatticeECP3 family.
LatticeECP2M
Mode
4 channels, 64 taps, 1 multiplier
1 channel, 32 taps, 32
multipliers
1 channel, 32 taps, 8 multiplies
SLICEs
169
417
414
LUTs
127
268
532
Registers
244
806
629
1
18x18
Multipliers
1
32
8
sysMEM
EBRs
2
-
-
fMAX
(MHz)
297
283
307
1. Performance and utilization data are generated targeting an LFE2M50E-7F672C device using Lattice Diamond 1.0 and Synplify Pro
D-2009.12L-1 software. Performance may vary when using a different software version or targeting a different device density or
speed grade within the LatticeECP2M/S family.
LatticeECP2
1
Mode
4 channels, 64 taps, 1 multiplier
1 channel, 32 taps, 32
multipliers
1 channel, 32 taps, 8 multiplies
SLICEs
169
417
414
LUTs
127
268
532
Registers
244
806
629
18x18
Multipliers
1
32
8
sysMEM
EBRs
2
-
-
fMAX
(MHz)
349
235
308
1. Performance and utilization data are generated targeting an LFE2-50E-7F672C device using Lattice Diamond 1.0 and Synplify Pro
D-2009.12L-1 software. Performance may vary when using a different software version or targeting a different device density or
speed grade within the LatticeECP2/S family.
LatticeECP
1
Mode
4 channels, 64 taps, 1 multiplier
1 channel, 32 taps, 32
multipliers
1 channel, 32 taps, 8 multiplies
SLICEs
166
415
481
LUTs
118
264
662
Registers
245
806
633
18x18
Multipliers
1
32
8
sysMEM
EBRs
2
-
-
fMAX
(MHz)
216
180
175
http://www.latticesemi.com/products/intellectualproperty/ipcores/firfiltergenerator.cfm
10/11/2011
FIR Filter Generator
Page 3 of 3
D-2009.12L-1 software. Performance may vary when using a different software version or targeting a different device density or
speed grade within the LatticeECP family.
LatticeXP2
Mode
4 channels, 64 taps, 1 multiplier
1 channel, 32 taps, 32
multipliers
1 channel, 32 taps, 8 multiplies
SLICEs
169
417
414
LUTs
127
268
532
Registers
244
806
629
1
18x18
Multipliers
1
32
8
sysMEM
EBRs
2
-
-
fMAX
(MHz)
303
266
292
1. Performance and utilization data are generated targeting an LFXP2-40E-7F672C device using Lattice Diamond 1.0 and Synplify
Pro D-2009.12L-1 software. Performance may vary when using a different software version or targeting a different device density or
speed grade within the LatticeXP2 family.
High Performance ECP3 DSP Based Filter Designs
Lattice has developed the following
Reference Designs
to highlight the
powerful DSP capability
of the LatticeECP3
FPGA.
Direct Form 64-Tap FIR Filter:
In the direct form FIR filter, the input samples are shifted into a shift register
queue and each shift register is connected to a multiplier. The products from the multipliers are added together to
get the FIR filter’s output sample. This example shows a 64-tap FIR filter using 16 sysDSP blocks and approximately
512 slices in the LatticeECP3 FPGA.
128-Tap Long Asymmetrical Filters Using Ladder Architecture:
Using the ladder architecture, the FIR filter is
split into sections each having the same coefficient set as if it was a single continuous filter chain. Instead of
connecting the shifted data and the result outputs from the first section to the corresponding input of the next
section, the ladder network connects a delayed version of the first stage input data to the second stage input data
and sums a delayed version of the first stage sum output with the second stage sum output.
256-Tap Long Symmetrical Filters Using Ladder Architecture:
The impulse response for most FIR filters is
symmetric. This symmetry can generally be exploited to reduce the arithmetic requirements and produce area-
efficient filter realizations. It is possible to use only half the multipliers for symmetric coefficients compared to that
used for a similar filter with non-symmetric coefficients. An implementation for symmetric coefficients is shown in
the figure below. The 256-tap long symmetrical filter example uses only 32 sysDSP slices, 2EBR and 3.5K slices.
Polyphase Interpolator FIR Filter Designs:
The polyphase interpolation filter implements the computationally
efficient 1-to-P interpolation filter where P is an integer greater than 1. The example below shows a design with an
interpolation by 16 that uses 128 taps. This requires 8 polyphase filters (sub-filters) with 16 coefficients each.
Ordering Information
Family
LatticeECP3
LatticeECP2M
LatticeECP2
LatticeECP
LatticeXP2
Part Numbers
FIR-COMP-E3-U4
FIR-COMP-PM-U4
FIR-COMP-P2-U4
FIR-COMP-E2-U4
FIR-COMP-X2-U4
IP Express Version:
4.2
Evaluate:
To download a full evaluation version of this IP, please go to the Lattice IP Server tab in the IPexpress Main
Window. All LatticeCORE IP modules available for download are visible on this tab.
Purchase:
To find out how to purchase the FIR Filter Generator IP Core, please contact your
local Lattice Sales
Office.
http://www.latticesemi.com/products/intellectualproperty/ipcores/firfiltergenerator.cfm
10/11/2011
