SNMP-Manageable Chassis for “iMcV” Series Modular Media Converters
iMediaChassis Series
C
hassis
/E
nClosurEs
Reliable and flexible, the iMediaChassis series has the highest
port density of any modular, intelligent, carrier-class optical access
platform in the industry.
Features and Benefits
Versatile chassis series meeting a
wide range of installation/application
requirements:
• 3, 6 and 20-slot models supporting low
to high density deployment
• Install wide varieties of IMC Networks'
media conversion and optical
demarcation modules
• SNMP management using optional
SNMP management module
• 19” Rack or rack shelf mountable
• 20-slot chassis: Dual (redundant) AC or
DC and AC/DC power supplies and fans
• 3 or 6-slot chassis: Select any
combination of up to two AC and DC
fixed power supplies - mix and match
Flexible powering options:
SNMP management module includes:
• GUI-based iView² application software
• SNMP V2c agent
• Support for the Unified Management
Agent (UMA) - manage the chassis using
a single IP address
• DB-9 connector and cable for serial
configuration
• DHCP and TFTP client
• Support for Telnet
• Last Gasp feature which sends
notification of power source failures
• SNMP management and LEDs assist with
diagnostics
• Fan test featured on 3 and 6-slot chassis
The iMediaChassis series is an intelligent, carrier-class optical
access platform that supports conversion of Ethernet to fiber and
a variety of other telco networking technologies, including VDSL,
T1/E1, DS3/E3/STS-1 and WDM. The iMediaChassis Series
enables network operators to drastically reduce the capital and
operational expenses by providing all copper-to-fiber and multi-
mode to single-mode conversions, network distance extensions
and Ethernet Private Line services from the same managed
chassis platform. Having the highest port density in the industry
- along with a robust design, hot-swappable architecture, SNMP-
management, and redundant power supplies for fault tolerance
- makes the iMediaChassis ideal for installing in the Central
Office (CO) where a multitude of diverse applications, using a
variety of protocols, is required. Pair this multi-slot chassis with
a MediaChassis or other standalone IMC Networks unmanaged
device at the customer premises, for complete end-to-end
management. The iMediaChassis series includes:
• An independent SNMP-management slot to isolate
management data from user traffic
• Temperature controlled fans in 3 and 6-slot chassis
activate only when chassis reaches a certain temperature,
thereby extending the life of the fans
• Fans on the 20-slot chassis can be remotely controlled
via SNMP
• Remote temperature monitoring on all chassis
Easy troubleshooting

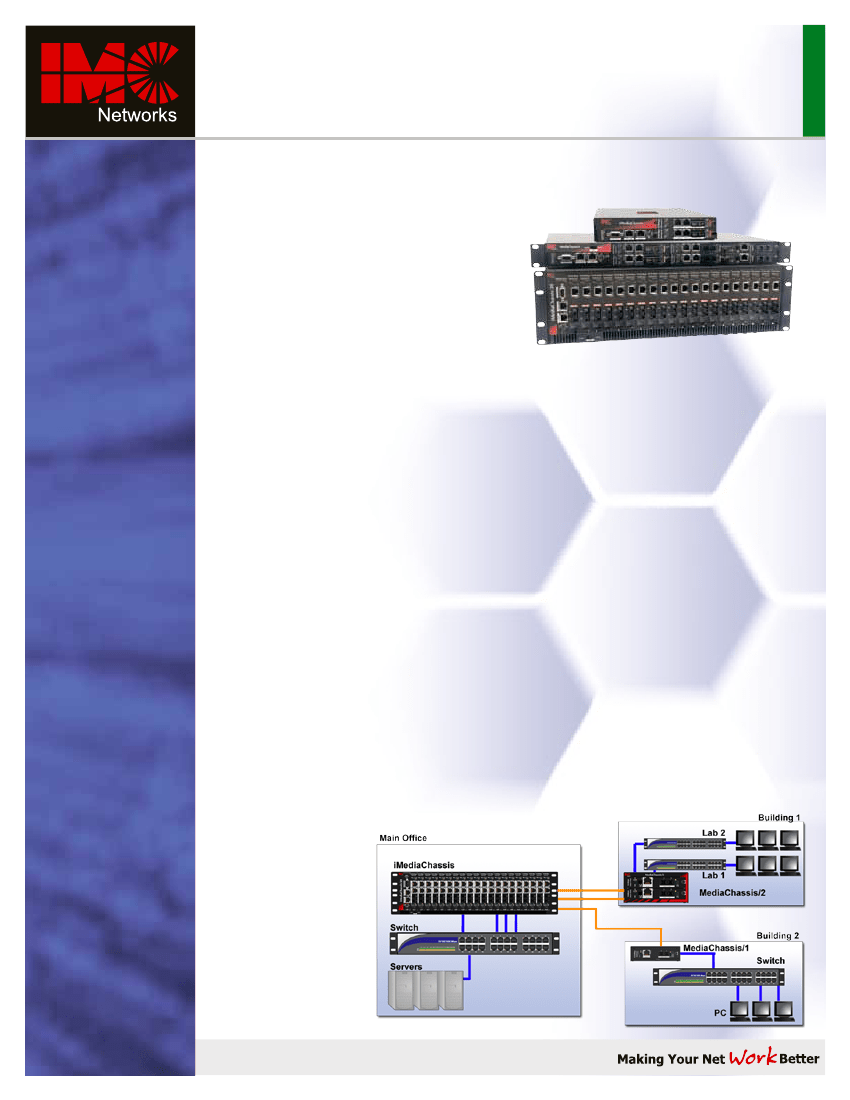

Application
Example
Install iMediaChassis at a
Central Office and pair with
MediaChassis populated with
iMcV Series modules at each
remote location, to deliver a
variety of services.
www.imcnetworks.com
800-624-1070
RoHS Compliant
Technical Specifications
All iMediaChassis
• SNMP-manageable with use of SNMP module
• SNMP Write Lock switch protects the SNMP-configured
settings
• Built to NEBS-III specicfications
• Last Gasp feature sends notification of AC line failures
and power supply failures
• Available with AC or DC power
• Available with redundant power
iMediaChassis SNMP Module
• Installs in any iMediaChassis
• SNMP V1 and V2c compatible
• Includes GUI-Based iView²
• Supports Unified Management Agent
• Includes DB-9 connector and cable for serial config
• Includes DHCP and TFTP client
• Supports Telnet
• Includes diagnostic LEDs
• Port Type
• Fan speeds
• Traps
• Fiber Type
• Module Type
• Link Status of Ports
• Chassis temperature
• Power Supply Type/Status
• User-Definable Name/ID of Product and Each Port
• Enable/Disable Ports
• Enable/Disable FO/FX LinkLoss, TP/TX LinkLoss
• Enable/Disable FiberAlert, Auto Negotiation
MIB-II (RFC 1213):
• Packets Transmitted
• Packets Received
• All Standard MIB II Objects
Regulatory Approvals:
UL/cUL, CSA, CE, FCC (See matrix)
NOTE: This information is for the iMediaChassis’ SNMP agent only
DESCRIPTION
iMediaChassis/20
VERSION
Dual AC
Dual DC
ACDC
AC
Dual AC
DC
Dual DC
AC
2AC
DC
2DC
ACDC
FCC CLASS A
FCC CLASS B
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
IMC MIB:
Operating Temperature:
+32° to +122° F (0° to +50° C);
5% to 95% (non-condensing),
0 – 10,000 ft. altitude
iMediaChassis/6
ü
ü
Storage Temperature:
-4° to +176° F (-20° to +80° C): Dual AC, AC/DC
-4° to +140° F (-20° to +60° C): Dual DC
iMediaChassis/3
Chassis Specifications
iMediaChassis/20
Shipping Weight:
30 lbs (13.60 kg)
• Highest port density, 20 slots
• Includes fan tachometers
iMediaChassis/6
• Only 1U high
• True load sharing with dual, end-user
replaceable power supplies
• Temperature controlled fans
iMediaChassis/3
Shipping Weight:
5 lbs (2.3 kg)
• Only 1U high
• Temperature controlled fans
Dimensions:
5.2”H x 19.0”W x 13.8”D
(13.21cm H x 48.26cm W x 35.05cm D)
Shipping Weight:
13 lbs (5.90 kg)
Dimensions:
AC Input Load:
Dimensions:
1.73”H x 7.5”W x 8.74”D
(4.4cm H x 19cm W x 22cm D)
100 to 240V AC±10%, 50-60Hz, 3.5/1.5A (Dual AC)
DC Input Load:
AC Input Load:
1.75”H x 17.35”W x 10.65”D
(4.45cm H x 44.07cm W x 27.05cm D)
AC Input Load:
-48V DC, 5A Max (per module)
100 to 240V AC±10%, 50-60Hz, 2A (AC/DC)
AC Input Load:
100 to 240V AC, 50-60Hz, 0.75A
100 to 240V AC, 50-60Hz, 1.0A
115V @ 1.6A & 230V @ 0.8A (single)
DC Input Load:
35 to 75V DC, 1.6A
DC Input Load:
-48V DC, 4.4A Max, per module (AC/DC)
DC Input Load:
-48V DC, 2.0A
Ordering Information
PART NuMBER
DESCRIPTION
SNMP Manageable Modular Chassis
850-10949-AC
850-10949-2AC
850-10949-DC
850-10949-2DC
850-10949-ACDC
850-10953-AC
850-10953-2AC
850-10953-DC
850-10953-2DC
850-10952-AC
850-10960-2AC
850-10960-ACDC
850-10960-2DC
PART NuMBER DESCRIPTION
iMediaChassis SNMP Management
850-39950
825-39950
iMediaChassis SNMP Management Module
Serial Cable for Management, DB9 (male) to DB9 (female)
PS/125-AC Power Module — 125 watt, 100/240 V AC ±10%
(for 6-slot chassis)
PS/125-DC Power Module — 125 watt, -48 V DC ±10%
(for 6-slot chassis)
PS/400-AC Power Module — 400 watt, 100/240 V AC ±10%
(for 20-slot chassis)
PS/401-AC Power Module — 400 watt, 100/240 V AC ±10%
(for 20-slot chassis)
PS-960-AC Power Module - 100/240 V AC ±10%
(for 20-slot chassis, 850-10960)
PS-960-DC Power Module - 350 watt, -48 V DC ±10%
(for 20-slot chassis, 850-10960)
Rackmount shelf for iMediaChassis/3
iMediaChassis/3-AC — 3-slot, one AC Fixed Power
iMediaChassis/3-2AC — 3-slot, two AC Fixed Power
iMediaChassis/3-DC — 3-slot, one DC Fixed Power
iMediaChassis/3-2DC — 3-slot, two DC Fixed Power
iMediaChassis/3-ACDC — 3-slot, one AC, one DC Fixed Power
iMediaChassis/6-AC — 6-slot, rackmountable,
includes one PS/125-AC Power Module; option for redundancy
iMediaChassis/6-2AC — 6-slot, rackmountable,
includes two PS/125-AC Power Modules (dual power)
iMediaChassis/6-DC —6-slot, rackmountable,
includes one PS/125-DC Power Module; option for redundancy
iMediaChassis/6-2DC —6-slot, rackmountable,
includes two PS/125-DC Power Modules (dual power)
iMediaChassis/20-Single-AC — 20-slot, rackmountable,
includes one PS/401-AC Power Module
iMediaChassis/20-Dual-AC — 20-slot, rackmountable,
includes two PS/401-AC Power Modules (dual power)
iMediaChassis/20-ACDC — 20-slot, one AC, one DC power supply,
rackmountable, includes one PS/960-AC and one one PS/960-DC
Power Module (dual power)
iMediaChassis/20-Dual-DC —20-slot, rackmountable,
includes two PS/300-DC Power Modules (dual power)
Redundant Power Supplies
806-39125-AC
806-39125-DC
806-39400-AC
806-39401-AC
806-39960-AC
806-39960-DC
Rackmount Shelf
895-39949
IMC Networks
Headquarters
19772 Pauling
Foothill Ranch, CA 92610
TEL: 949-465-3000
FAX: 949-465-3020
sales@imcnetworks.com
IMC Networks
Europe
Herseltsesteenweg 268
B-3200 Aarschot, Belgium
TEL: +32-16-550880
FAX: +32-16-550888
eurosales@imcnetworks.com
IMC Networks
IMC Networks
Eastern US/Latin America
28050 U.S. Hwy. 19 North, Suite 306
Clearwater, FL 33761
TEL: 727-797-0300
FAX: 727-797-0331
latinsales@imcnetworks.com
Fiber Consulting Services
For information call:
TEL: 949-465-3000
1-800-624-1070
(US/CAN)
+32-16-550880
(Europe)
fcs@imcnetworks.com
Copyright © 2011 IMC Networks. All rights
reserved. The information in this document is
subject to change without notice. IMC Networks
assumes no responsibility for any errors that may
appear in this document. Specific product names
may be trademarks or registered trademarks and
are the property of their respective companies.
DS-iMediaChassis-1107
