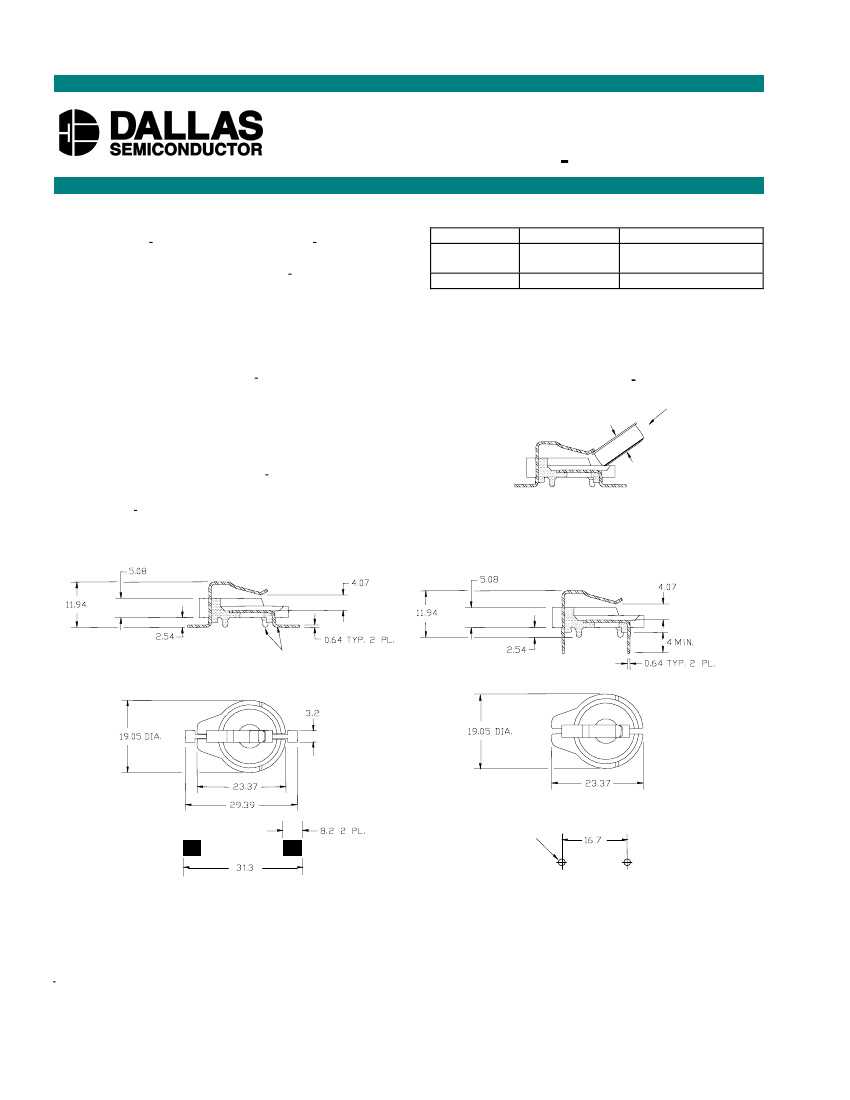

DS9094F
iButton PCB Clip
www.maxim-ic.com
DESCRIPTION
The DS9094F iButton PCB Clip holds an iButton and
connects to a printed circuit board. By deflecting the
spring clip in the molded housing, an iButton can be
inserted and extracted without special tools. If
reverse insertion is attempted, the beveled edge on
the housing prevents contact.
ORDERING INFORMATION
PART
DS9094F+
DS9094FS+
1
2
TEMP RANGE
-40°C to 85°C
-40°C to 85°C
PIN-PACKAGE
1
Through-hole mount
F5 can
2
Surface mount F5 can
NOTE: Wave- or hand-solder only; do not reflow.
NOTE: Hand-solder only; do not reflow.
+ Denotes lead-free compliance.
FEATURES
Low-cost holder for F5 size iButton
(see DS9094SM for F3 holder)
Printed circuit board mount
Contacts are gold plated
Flammability rating: UL94V-O
Two versions:
−
DS9094F for F5 size iButton
−
DS9094FS for surface mounting F5 size
iButton
INSERTION OF iButton
GROUND
DATA
DS9094FS
DS9094F
Bot t om s ur f ac e of m al c ont ac t s t o
et
be 0 t o 0. 13 bel ow t he s eat i ng pl ane
of t he pl as t i c s uppor t s at al l poi nt s
0. 97 DI A.
FI NI SHED
HOLE 2PL.
Rec om ended Pad Si z e
m
Recom ended Hol e Si z e
m
All dimensions in millimeters.
iButton is a registered trademark of Maxim Integrated Products, Inc.
1 of 2
072308
