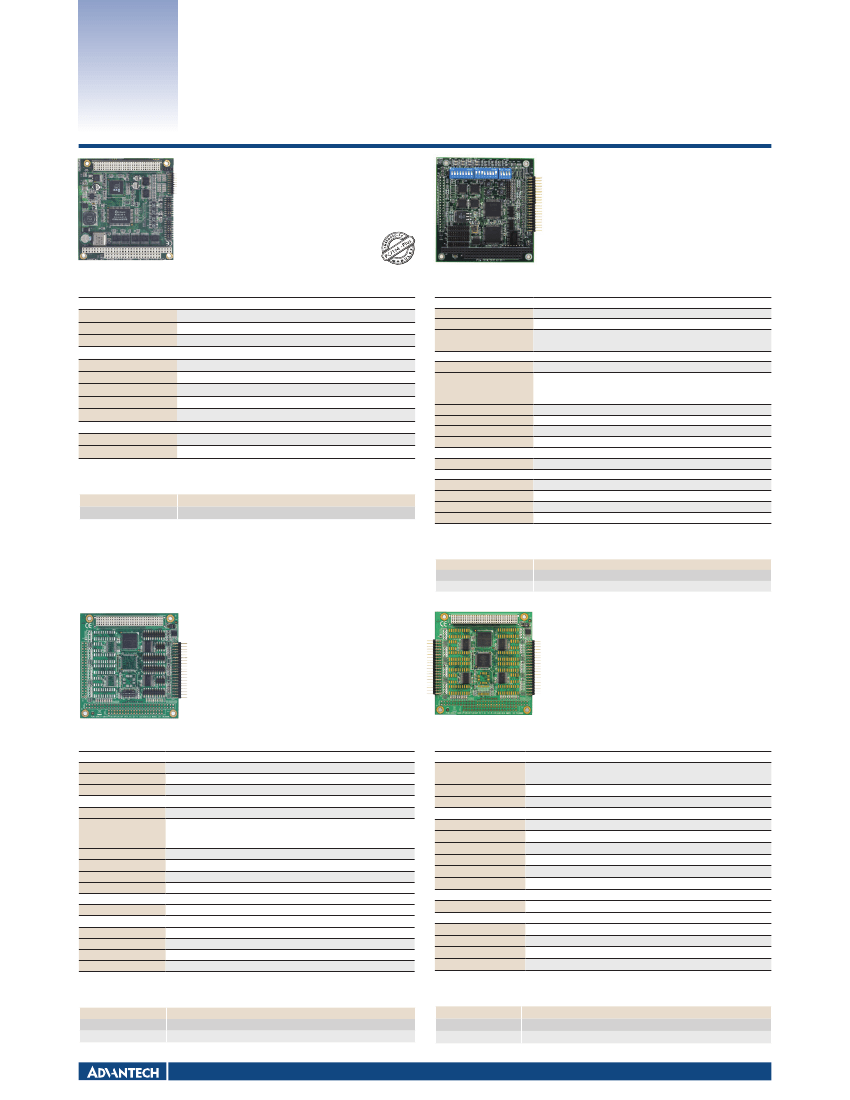

PC/104 Datacom Modules
PCM-3117
PCI to ISA Bridge Module
PCM-3614/3618
4/8-Port RS-422/485
High-speed PC/104 Module
Specifications
General
Bus Interface
PC/104-Plus
Controller
ITE IT8888F
Bus
PC/104 (ISA) and PC/104+ (PCI)
Mechanical and Environmental
Dimensions (L x W)
96 x 90 mm (3.8" x 3.5")
Weight
0.092 kg (0.203 lb)
Operating Temperature
0 ~ 60° C (32 ~ 140° F)
Storage Temperature
-40 ~ 85° C (-40 ~ 18° F)
Operating Humidity
0% ~ 90% relative humidity, non-condensing
Power
Power Supply Voltage
+5 V, ±5 % tolerance on power supply
Power Consumption
+5 V @ 70 mA (typical)
Specifications
General
Connectors
Ports
Power Consumption
Communications
Data Bits
Data Signals
PC/104
PCM-3614:4 ; PCM-3618:8
PCM-3614: +5 V @ 450 mA
PCM-3618: +5V @ 650 mA
5, 6, 7, 8
RS-422: TxD+, TxD-, RxD+, RxD-, CTS+, CTS-, RTS+ and RTSRS-
(RTS- for PCM-3614)
485: DATA+, DATA-, CTS+, CTS-
3, 4, 5, 6, 7, 9, 10, 11, 12, 15
None, Even and Odd
50 bps ~ 921.6 kbps
1, 1.5, 2
Ordering Information
P/N
PCM-3117-00A1E
Description
PCI to ISA bridge module
IRQ
Parity
Speed
Stop Bits
Protection
EFT Protection
1,000 V
DC
Mechanical and Environmental
Operating Humidity
0 ~ 90 % RH
Operating Temperature
0 ~ 65°C (32 ~ 149°F) (IEC-68-1-1, 2)
Storage Temperature
-25 ~ 80°C (-13 ~ 176°F)
Dimensions (L x W)
96 x 90 mm (3.8" x 3.5")
Ordering Information
P/N
PCM-3614-AE
PCM-3618-AE
Description
4-port RS-422/485 High-Speed Module
8-port RS-422/485 High-Speed Module
PCM-3614I/3618I
4/8-Port RS-232/422/485
PCI-104 Modules
PCM-3641I/3642I
4/8-Port RS-232 PCI-104
Modules
Specifications
General
Connectors
Ports
Power Consumption
PCM-3614I: 1 x 40-pin box header, PCM-3618I: 2 x 40-pin box header
PCM-3614I: 4, PCM-3618I: 8
+5 V @ 450 mA
5, 6, 7, 8
RS-422: TxD+, TxD-, RxD+, RxD-, CTS+, CTS-, RTS+, RTS-
RS-485: DATA+, DATA-, GND
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
3, 4, 5, 6, 7, 9, 10, 11, 12, 15
None, even and odd
50 bps ~ 921.6 kbps
1, 1.5, 2
1,000 V
DC
0 ~ 90 % RH
0 ~ 65° C (32 ~ 149° F)
-25 ~ 80° C (-13 ~ 176° F)
96 x 90 mm (3.8" x 3.5")
Specifications
General
Connectors
Ports
Power Consumption
Communications
Data Bits
5, 6, 7, 8
Data Signals
TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
IRQ
3, 4, 5, 6, 7, 9, 10, 11, 12, 15
Parity
None, even and odd
Speed
50 bps ~ 460.3 kbps
Stop Bits
1, 1.5, 2
Protection
EFT Protection
1,000 V
DC
Mechanical and Environmental
Operating Humidity
0 ~ 90 % RH
Operating Temperature 0 ~ 65° C (32 ~ 149° F) (IEC-68-1-1, 2)
Storage Temperature
-25 ~ 80° C (-13 ~ 176° F)
Dimensions (L x W)
96 x 90 mm (3.8" x 3.5")
PCM-3641I: 1 x 40-pin box header, PCM-3642I: 2 x 40-pin box
header
PCM-3641I: 4, PCM-3642I: 8
+5 V @ 250 mA (max.)
Communications
Data Bits
Data Signals
IRQ
Parity
Speed
Stop Bits
Protection
EFT Protection
Operating Humidity
Operating Temperature
Storage Temperature
Dimensions (L x W)
Mechanical and Environmental
Ordering Information
P/N
PCM-3614I-AE
PCM-3618I-AE
Description
4-port RS-232/422/485 PCI-104 Module
8-port RS-232/422/485 PCI-104 Module
Ordering Information
P/N
PCM-3641I-AE
PCM-3642I-AE
Description
4-port RS-232 PCI-104 Module
8-port RS-232 PCI-104 Module
PC/104 CPU Modules
All product specifications are subject to change without notice
Last updated : 15-Jan-2014

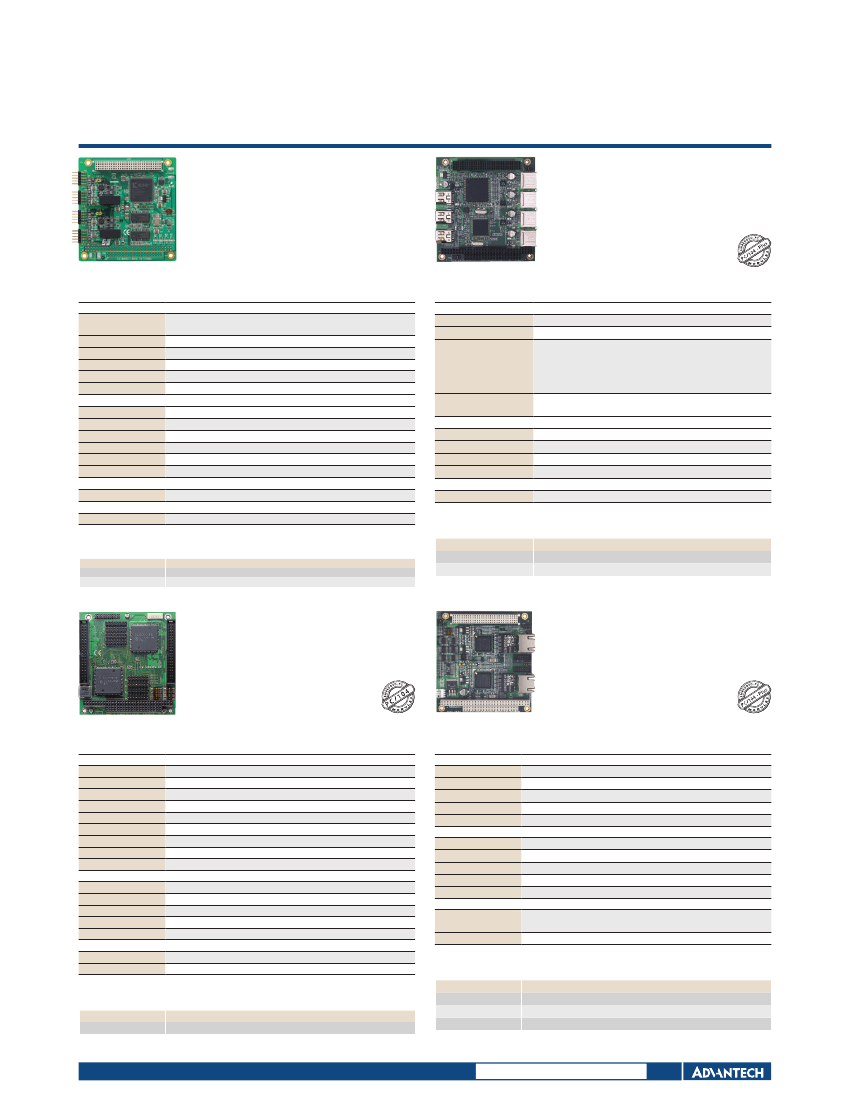

PC/104 Datacom Modules
PCM-3680/I
2-Port CAN-bus PC/104 /
PCI-104 Module with Isolation
Protection
Specifications
General
Card Interface
Certifications
Connectors
Dimensions
Ports
Power Consumption
Communications
CAN Controller
CAN Transceiver
Protocol
Speed
CAN Frequency
Signal Support
Protection
Isolation Protection
Environment
Operating Temperature
PCM-3680: PC/104
PCM-3680I: PCI-104
CE, FCC
2 x DB9-M with cable
90 x 96 mm (3.6" x 3.8")
2
5 V @ 400 mA
SJA-1000
82C250
CAN2.0 A/B
Up to 1 Mbps programmable transfer rate
16 MHz
CAN_H, CAN_L
2,500 V
DC
-40 ~ 85° C (-40 ~ 185° F)
PCM-3620
USB 2.0/IEEE 1394a
PC/104-Plus Module
Specifications
General
Bus Interface
Chipset
PC/104-Plus (PCI interface only)
NEC
®
uPD720101 and TI TSB43AB23
4 x USB 2.0 Compliant Ports
Compliant with OHCI USB Rev 1.0a
USB
Compliant with EHCI for USB Rev 1.0
High-speed (480 Mbps), full-speed (12 Mbps) and
low-speed (1.5 Mbps) transfer
3 port compliant with 1394 Open Host Controller Interface
IEEE 1394a
Specification (Release 1.1)
Mechanical and Environmental
Dimensions (L x W)
96 x 90 mm (3.8" x 3.5")
Weight
0.81 kg (0.18 lb)
Operating Temperature
0 ~ 60° C (32 ~ 140° F)
Operating Humidity
0% ~ 90% relative humidity, non-condensing
Power
Power Supply Voltage
+5 V , +12 V
Ordering Information
P/N
PCM-3680-BE
PCM-3680I-AE
Description
Dual-port Iso CAN-bus PC/104 Module
Dual-port Iso CAN-bus PCI-104 Module
Ordering Information
P/N
PCM-3620-00A1E
PCM-3620P-00A1E
Description
4 x USB 2.0 and 3 IEEE 1394a PC/104-Plus Module
4 x USB 2.0 & 3 IEEE 1394a w/pinhead PC/104-Plus module
PCM-3643
4/8 RS-232 COM Port Module
PCM-3665
Dual GbE Module
Specifications
General
Bus Interface
PC/104 (ISA)
Chipset
Standard 16550, 16650, or 16750 compatible chipsets for serial ports
Channel
4/8 port RS-232 support
Baud Rate
50 ~ 115, 200 bps
Data Bits
5, 6, 7 or 8-bits
Stop Bit
1, 1.5, or 2
Parity
Even, odd, or none
Interrupt Level
IRQ 3, 4, 5, 6, 7, 9, 10, 11, 12 or 15
I/O Connector
40-pin header
Mechanical and Environmental
Dimensions (L x W)
96 x 90 mm (3.8" x 3.5")
Weight
0.084 kg (0.185 lb)
Operating Temperature 0 ~ 60° C (32 ~ 140° F)
Storage Temperature
-40 ~ 85° C (-10 ~ 185° F)
Operating Humidity
0% ~ 90% relative humidity, non-condensing
Power
Power Supply Voltage +5 V, ± 5 % tolerance on power supply
Power Consumption
+5 V @ 400 mA (typical)
Specifications
General
Bus Interface
PC/104-Plus (PCI interface only)
Chipset
Intel
®
82541PI (PCI 10/100/1000 Mbps)
Port
Single/Twin Ethernet port
Speed
10/100/1000 Mbps
Compatibility
PCI version 2.2, 33 MHz PCI
Mechanical and Environmental
Dimensions (L x W)
96 x 90 mm (3.8" x 3.5")
Weight
0.09 kg (0.198 lb)
Operating Temperature 0 ~ 60° C (32 ~ 140° F)
Storage Temperature
-40 ~ 85° C (-10 ~ 185° F)
Operating Humidity
0% ~ 90% relative humidity, non-condensing
Power
Dual LAN: +5 V @ 1.2 A (typical)
Power Consumption
Single LAN: +5 V @ 0.6 A (typical)
Power Supply Voltage +5 V, ±5 % tolerance on power supply
Ordering Information
P/N
PCM-3665-00A1E
PCM-3665P-00A1E
PCM-3665-01A1E
Description
Dual GbE with RJ-45 connector Module
Dual GbE w/o RJ-45 connector Module
Single GbE w/o RJ-45 connector Module
Ordering Information
P/N
PCM-3643-08A1E
Description
8 x COM RS-232 Port Module
Online Download
www.advantech.com/products
