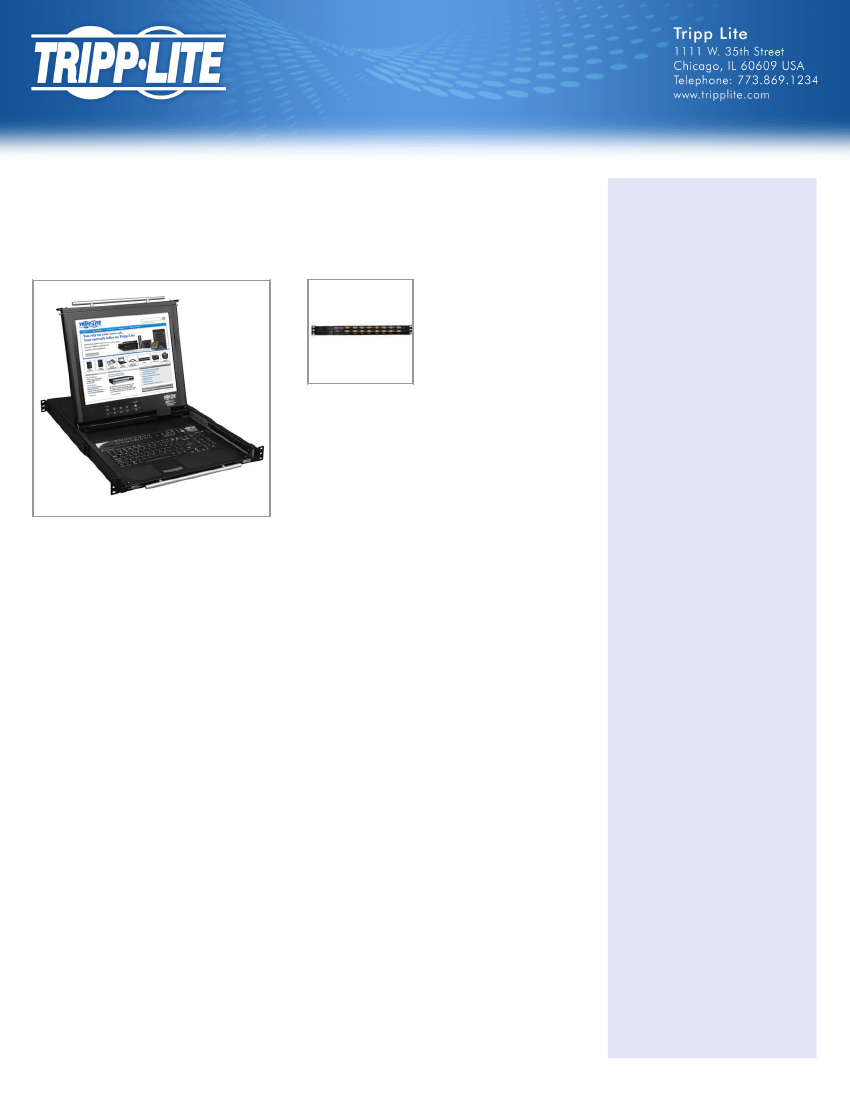

NetDirector 16-Port 1U Rack-Mount Console KVM
Switch with 17-in. LCD and IP Remote Access
MODEL NUMBER:
B020-016-17-IP
Highlights
q
Control computers/servers
locally or via LAN, WAN or
Internet
q
Occupies just 1U of space in a
rack-mountable, dual-rail drawer
q
17” LCD screen supports video
resolutions up to 1280 x 1024
q
Allows up to 64 authorized users
and 32 concurrent remote log-
ins
q
Compatible with all operating
systems
System Requirements
q
PS/2 or USB computer with
VGA, SVGA or MultiSync video
graphics card with HD15 port
Control up to 16 computers from anywhere in the world with a single KVM switch with integrated console.
This KVM switch with IP remote access is a smart solution for secure server control that saves rack space
and money.
q
(1) P774-Series (PS/2) or P776-
Series (USB) KVM Cable Kit is
required for each connected
computer/server
Description
Tripp Lite’s B020-016-17-IP KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a
single console that occupies only 1U of rack space. From across the room, down the street or halfway
around the globe, the B020-016-17-IP can be accessed from any computer on the LAN, WAN or Internet.
Easy to install and use, it’s the optimal solution for controlling up to 16 computers/servers.
q
Computers that access the KVM
remotely should have at least a
Pentium III, 1GHz processor,
The B020-016-17-IP has a built-in 17” LCD screen that supports video resolutions up to 1280 x 1024 and
remote monitor resolutions up to 1600 x 1200. You can switch easily between the 16 ports using on-
console push buttons, an on-screen display (OSD) or keyboard hot key commands. Up to 64 users can be
authorized and 32 remote users can be logged on concurrently when multi-user operation is enabled, with
multi-level password security. RADIUS server authentication is supported.
q
with screen resolution set to
1024 x 768
If remote computer is accessing
the switch with Windows Client,
DirectX 7.0 or higher is needed;
This switch controls PS/2 or USB computers/servers using a P774-Series (PS/2) or P776-Series (USB)
KVM Cable Kit (one of each is included). When not in use, the B020-016-17-IP stores neatly in a rack
drawer and pulls out when needed. With its dual-rail design, you can slide the keyboard into the rack,
while the monitor stays visible. This KVM console is compatible with all major operating systems. Heavy-
duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for
GSA Schedule purchases.
q
if accessing the switch with Java
Client, Sun’s Java 2 (1.4.2 or
higher) runtime environment
must be installed
Browsers must support 128-bit
encryption
Features
Saves Space and Money
q
q
A network transfer speed of 128
Kbps or higher is recommended
Combines 16-port KVM switch, 17" LCD screen, keyboard and touchpad in a 1U rack-mountable drawer
q
Compatible with all major
– ideal when rack space is at a premium
1/4
q
Mounts into 19”-wide rack, 26.5”-30” deep
Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use;
dual-rail design lets you push in the keyboard while the LCD stays open
q
operating systems
Power consumption: 120V,
60Hz, 31W; 230V, 50Hz, 39W
q
IP Remote Access for Fewer Trips to the Server Room
q
Package Includes
q
Remote access offers convenience of controlling servers from anywhere…no need to travel to the
server room or network closet
B020-016-17-IP 16-Port
Console KVM Switch with 17"
LCD and built-in IP access
q
Supports both IPv4 and IPv6 and network interfaces TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP,
SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense and Ping
q
P774-Series 6 ft. PS/2 KVM
Cable Kit
Simplifies IT Tasks
q
q
P776-Series 6 ft. USB KVM
Cable Kit
Switch easily between the 16 ports via on-console buttons, on-screen display or hot keys
Panel array mode lets you monitor multiple ports at the same time
Hot pluggable; add or remove computers without powering down the switch
Auto-scan mode automatically sequences through all active ports accessible to the user
Windows-based log server tracks events on your installation
q
q
C13 to 5-15P power cord
Owner’s Manual CD
q
q
q
q
Large 17” LCD
q
Wide display makes multitasking easier
Supports video resolutions up to 1280 x 1024; remote monitor resolutions up to 1600 x 1200
DDC emulation allows settings of each computer to be automatically adjusted for optimal output to LCD
q
q
Advanced Security Features
q
Includes password protection and advanced encryption: 1024-bit RSA, 256-bit AES, 56-bit DES, and
128-bit SSL
q
Supports RADIUS server authentication
Allows up to 64 user accounts; with multi-user operation enabled, up to 32 users can log on at one time
q
Expandability and Long-Lasting Reliability
q
Compatible with all major operating systems for easy integration into your existing structure
Flash firmware is upgradable over a network connection
Heavy-duty steel housing stands up to frequent use
q
q
TAA Compliant
q
Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
OVERVIEW
UPC Code
037332146908
2/4
Console
Max CPU
Yes
16
INPUT
Nominal Input Voltage(s) Supported
Recommended Electrical Service
Maximum Input Amps
Input Frequency
Input Current
100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
100-250V
1
50/60Hz
120V (0.8A) / 230V (0.4A)
PHYSICAL
Shipping Dimensions (hwd / in.)
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Unit Weight (lbs.)
Unit Weight (kg)
Color
LCD Monitor (in.)
LCD Monitor (cm)
6.00 x 27.00 x 33.00
15.24 x 68.58 x 83.82
49.60
22.50
1.75 x 19 x 27.8
4.45 x 48.26 x 70.61
38.1
17.28
Black
17
43.18
ENVIRONMENTAL
Storage Temperature Range
Relative Humidity
Operating Temperature
BTUs
-20 to +60 degrees C
0% to 80% RH, Non-condensing
0 to 40 degrees C
100.7 to 102.42
COMMUNICATIONS
Port Control
IP Remote Access
Push Buttons, Hotkeys, OSD
Yes
CONNECTIONS
Ports
Computer/Server Ports
PC/Server Connections
16
(x16) HD15 Female
PS/2; USB; VGA
3/4
FEATURES & SPECIFICATIONS
Autoscan (Y,N)
Autoscan Duration
Number of Users
NIAP-Certified Secure
Cat5 KVM Switch
Technology
Y
1 - 255 Seconds
1
No
No
PS/2; USB; VGA/SVGA
CERTIFICATIONS
Certifications
UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE
WARRANTY
Product Warranty Period
(Worldwide)
1-year limited warranty
