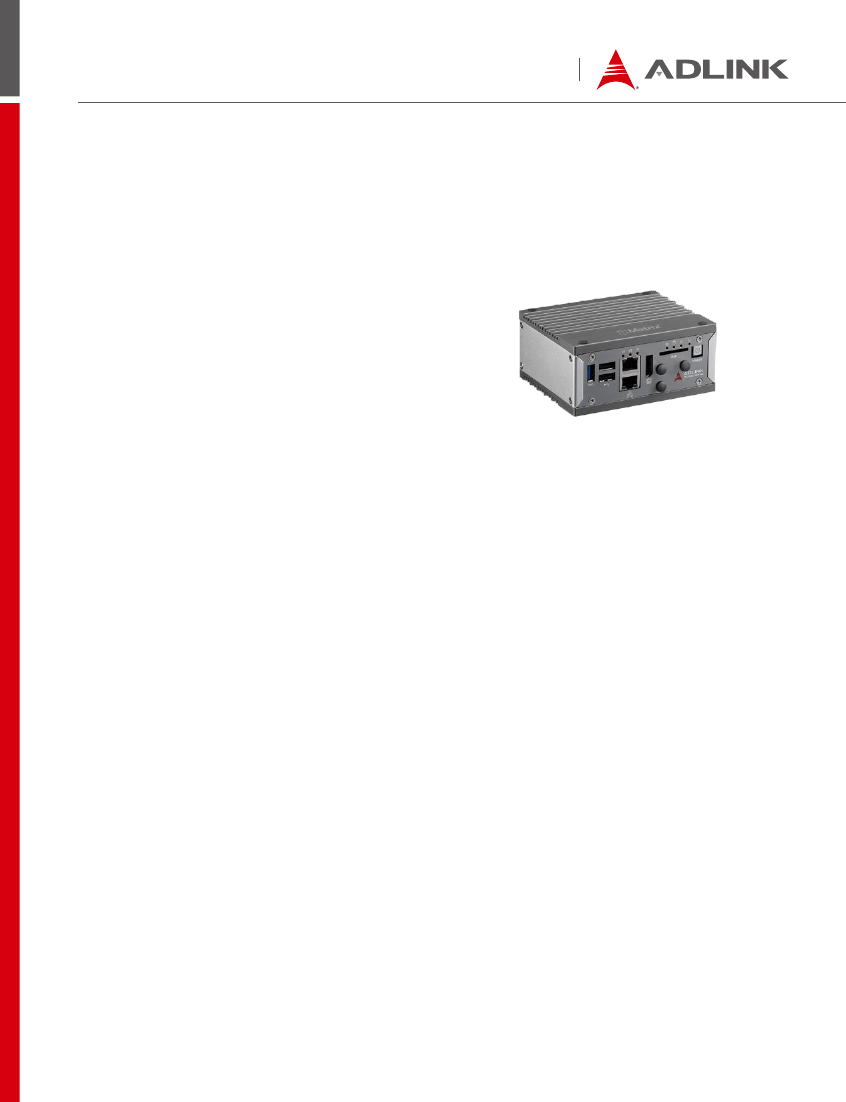

MXE-200/200i Series
Intel
®
Atom™ Processor-Based Ultra Compact Embedded Platform
Features
●
●
●
Intel
®
Atom™ SoC processor E3845/E3826
Extremely compact: 120 (W) x 100 (D) x 55 (H) mm
Rich I/O:
• 1x HDMI, 2x USB 2.0 + 1x USB 3.0, 2x GbE ports,
optional 4 isolated DI/O
• 2x Mini PCIe slots (one supporting mSATA),
1x USIM slot,1x SDIO
●
●
●
Optional DIN-rail / wall mounting
Built-in ADLINK SEMA Cloud solution
Full support Intel
®
IoT Gateway
Introduction
ADLINK’s new Matrix MXE-200/200i ultra-compact embedded platform,
based on the Intel
®
Atom™ SoC processor E3845/E3826, delivers
optimum I/O design for maximum connectivity. A full aluminum alloy
enclosure with industry-class construction makes the MXE-200/200i the
embedded system of choice for industrial automation and applications
demanding reliability in harsh environments. Combined with ADLINK’s
embedded SEMA Cloud solution, the MXE-200/200i delivers leading
manageability and robustness. In addition, the MXE-200i fully supports
the Intel
®
IoT Gateway, integrated Wind River
®
Intelligent Device
Platform XT, and McAfee Embedded Control, guaranteeing essential
manageability and security demanded by IoT-ready platforms.
With dual GbE LAN, two COM, two USB 2.0 and one USB 3.0 host ports,
and optional four isolated DI and four isolated DO w/interrupt support,
dual Mini PCIe slots with one mSATA support and USIM socket support
communication with connections via Wi-Fi, BT, 3G, and LTE, the MXE-
200/200i enables seamless interconnection, ensuring interoperability
between systems. Matrix’s proven rugged construction assures
operation in harsh environments with operating shock tolerance up to
100 G and extended operating temperatures of -20°C to 70°C available.
With implementation of ADLINK’s proprietary SEMA Cloud tool, the
MXE-200/200i brings superior manageability and security for a world of
applications, realizing efficient remote monitoring of system activity and
health in real time, system control over a robust secured channel, and
complete, fully manageable utilization of system resources.
The MXE-200/200i presents an intelligent, robust embedded system
supporting wide application development and easy service deployment,
for outstanding performance in Intelligent Transportation, Facility
Management, Industrial Automation, and Internet of Things (IoT)
applications.
Software Support
●
●
Windows Embedded 7 Standard
Wind River
®
IDP XT (MXE-200i only)
Ordering Information
●
●
●
MXE-201
Quad-Core Intel
®
Atom™ Processor E3845
Ultra Compact Embedded Platform
MXE-202
Dual-Core Intel
®
Atom™ Processor E3826
Ultra Compact Embedded Platform
MXE-202i
Dual-Core Intel
®
Atom™ Processor E3826
Embedded IoT Gateway Platform w/ Pre-loaded Wind River
®
IDP XT
Optional Accessories
●
●
●
●
●
8/16 GB SD Option
Factory installed 8/16 GB MLC type industrial grade SD
(-40°C to 85°C) (-40˚F to 185˚F)
32/64 GB mSATA SSD Option
Factory installed 32/64 GB MLC type industrial grade
mSATA SSD (-40°C to 85°C) (-40˚F to 185˚F)
40 W AC Adapter
40 W industrial grade AC-DC adapter (-20°C to 70°C)
(-4˚F to 158˚F)
Wireless Module Option
Wi-Fi/BT/3G/LTE wireless modules
Extended Temperature Option*
Optional screening service extends operating temperatures of
the MXE-201 to -20°C to 60°C (-4˚F to 140˚F) and
MXE-202/202i to -20°C to 70°C (-4˚F to 158˚F)

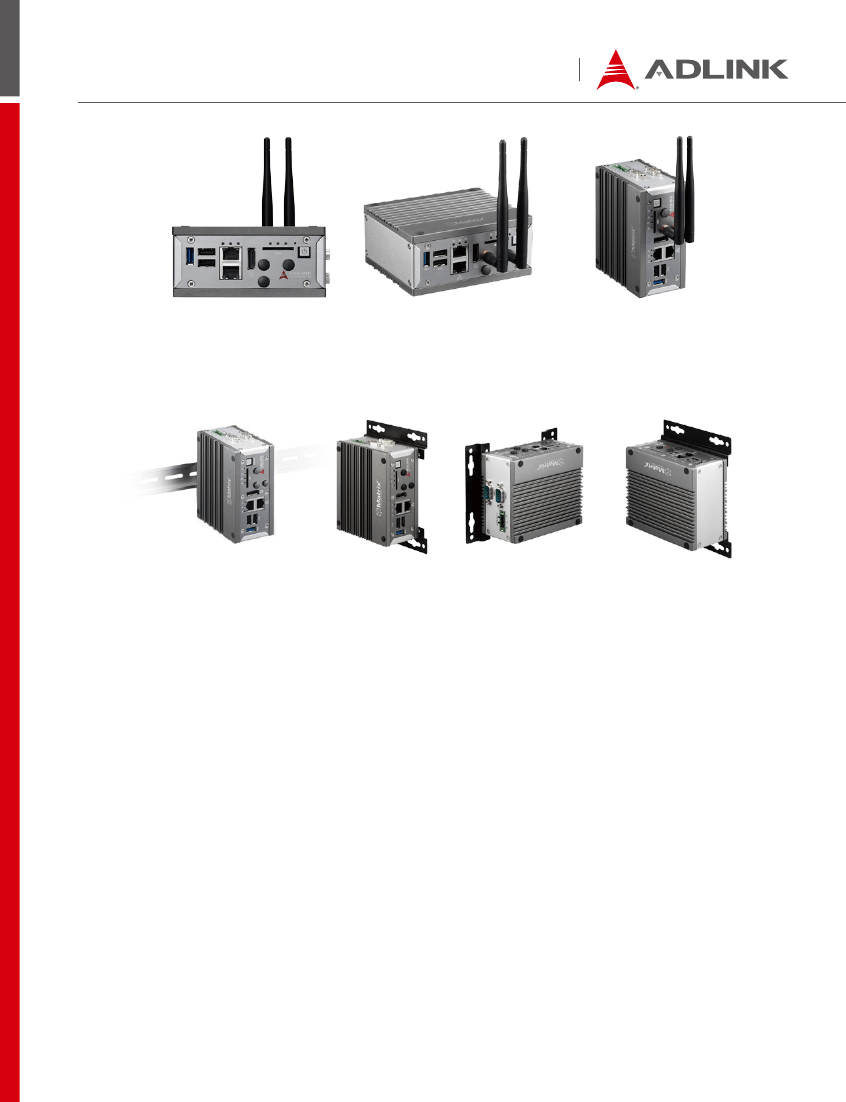

Product Illustration

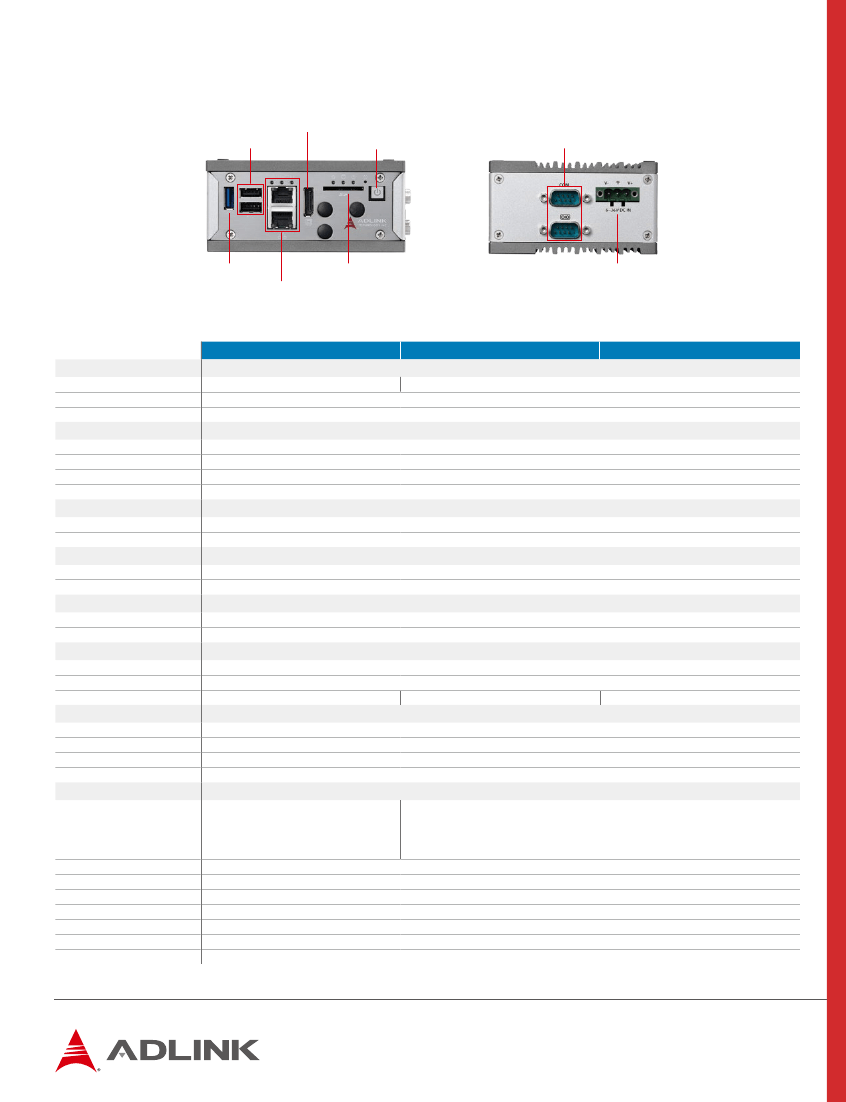

HDMI Port
2x USB 2.0 Ports
Power Button
2x COM Ports
USB 3.0 Port
SD Card Slot
DC Input (6-36V) Connector
Right side view of MXE-200/200i
Specifications
Model Name
System Core
Processor
Video
Memory
2x GbE Ports
Front view of MXE-200/200i
MXE-201
Intel
®
Atom™ E3845
MXE-202
MXE-202i
Intel
®
Atom™ E3826 Dual Core Processor
1x HDMI
DDR3L 1066 2 GB (Memory Down)
2x GbE LAN (Intel
®
I210-IT)
2x COM (1x RS-232 + 1x RS-232/422/485**)
2x USB 2.0 host port + 1x USB 3.0
Optional 4x Isolated DI + 4x Isolated DO
2x Mini PCIe slots
1x USIM slot
Watch Dog Timer support
SEMA support with BMC
6-36 V
DC
Optional 40 W AC-DC adapter
1x mSATA (same slot with Mini PCIe)
1x SD card slot (up to 16 GB)
-
120 (W) x 100 (D) x 55 (H) mm (4.68” x 3.9” x 2.17”)
Full Aluminum Alloy
650 g (1.43 lbs)
DIN-Rail / Wall mounting
I/O Interface
Ethernet
Serial Port
USB
DIO
Expansion
Mini PCIe
USIM
Manageability
WDT
SEMA
Power Supply
DC Input
AC Input
Storage Device
mSATA
SD
OS Preload
-
Wind River
®
IDP XT 2.0***
Mechanical
Dimensions
Construction
Weight
Mounting
Environmental
Operating Temperature*
Storage Temperature
Humidity
Vibration
ESD
Shock
EMC
Safety
Standard: 0°C to 50°C (32°F to 122°F)
Extended temperature option*:
-20°C to 60°C (-4°F to 140°F) (w/
industrial SD/mSATA SSD)
Standard: 0°C to 50°C (32°F to 122°F) Extended temperature option*:
-20°C to 70°C (-4°F to 158°F) (w/industrial SD/mSATA SSD)
-40°C to 85°C (-40°F to 185°F)
~95% @ 40°C (non-condensing)
Operating 5 Grms, 5-500 Hz, 3 axes w/ SD/mSATA SSD
Contact +/-4 KV, Air +/-8 KV
Operating 100 G, half sine 11 ms duration w/ SD/mSATA SSD
CE & FCC Class A (EN61000-6-4/EN61000-6-2)
UL by CB
*Extending the operating temperature is optional and requires use of an industrial solid-state drive storage device
** RS-232 supports Tx, Rx,CTS, and RTS signal only *** Wind River
®
IDP XT 2.0 is pre-loaded in to 8/16G mSATA SSD
www.adlinktech.com
All products and company name listed are trademarks or trade names of their respective companies.
Updated Sep. 13, 2016. ©2016 ADLINK Technology, Inc. All Rights Reserved.
All specifications are subject to change without further notice.
