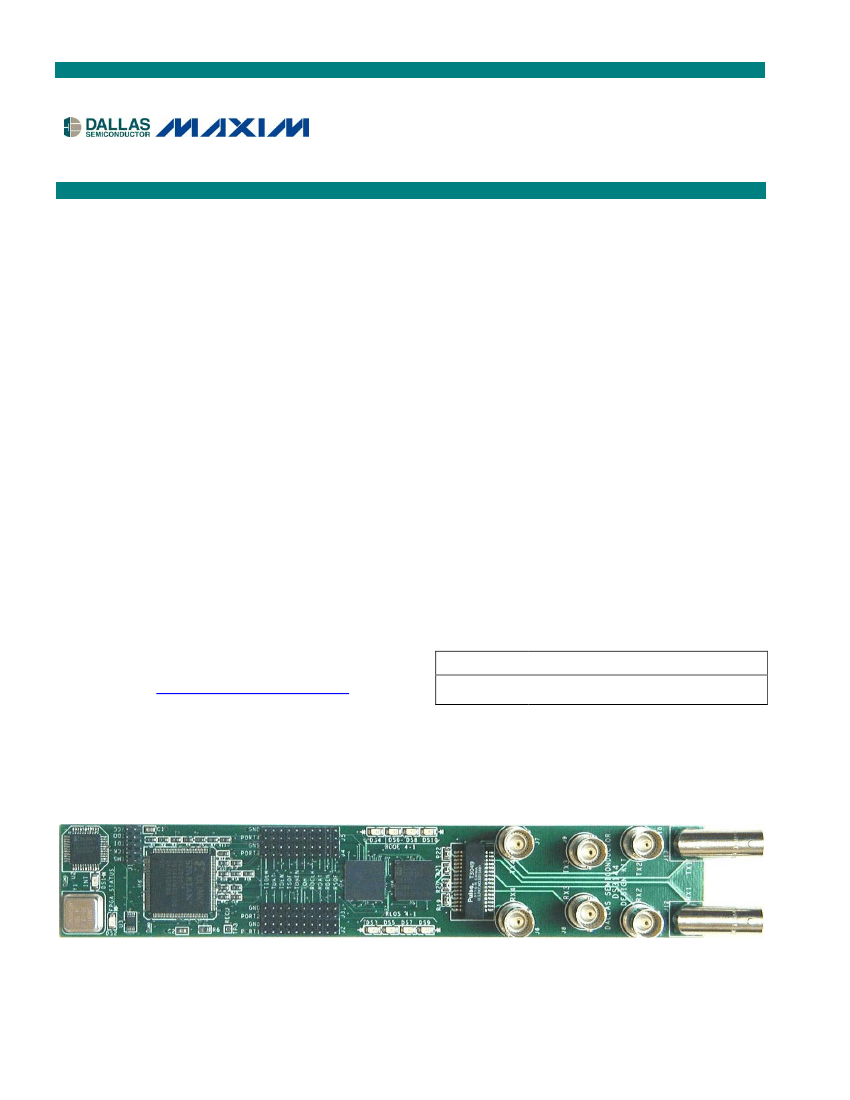

DS3144DK
Quad DS3/E3 Framer
Demo Kit Daughter Card
www.maxim-ic.com
GENERAL DESCRIPTION
The DS3144DK is an easy-to-use evaluation board
for the DS3144 quad DS3/E3 framer. It is intended to
be used as a daughter card with the DK101
motherboard or the DK2000 motherboard. The
DS3144DK comes complete with a DS3144 quad
framer, DS3154 quad LIU, transformers, termination
resistors, network connectors, and motherboard
connectors. The DK101/DK2000 motherboard and
Dallas’ ChipView software give point-and-click
access to configuration and status registers from a
®
Windows -based PC. On-board LEDs indicate loss-
of-signal, out-of-frame, and interrupt status. An on-
board FPGA contains mux logic to connect framer
ports to one another or to the DK2000 in a variety of
configurations.
Each DS3144DK is shipped with a free DK101
motherboard. For complex applications, the DK2000
high-performance demo kit motherboard can be
purchased separately.
Windows is a registered trademark of Microsoft Corp.
FEATURES
§
§
Demonstrates Key Functions of DS3144 Quad
DS3/E3 Framer
Includes DS3154 Quad LIU, Transformers, BNC
Connectors, and Termination Passives for
Communication with Test Equipment over Coax
Compatible with DK101 and DK2000 Demo Kit
Motherboards
DK101/DK2000 and ChipView Software Provide
Point-and-Click Access to the DS3144 Register
Set
All Equipment-Side Framer Pins are Easily
Accessible for External Data Source/Sink
Memory-Mapped FPGA Provides Flexible
Clock/Data/Sync Connections Among Framer
Ports and DK2000 Motherboard
LEDs for Out-of-Frame, Loss-of-Signal, and
Interrupt
Easy-to-Read Silk Screen Labels Identify the
Signals Associated with all Connectors, Jumpers,
and LEDs
§
§
§
§
§
§
DEMO KIT CONTENTS
DS3144DK Demo Kit Daughter Card
DK101 Demo Kit Motherboard
Download from
www.maxim-ic.com/DS3144DK:
DS3144DK Data Sheet
DS3144DK Support Files
ChipView Software
ORDERING INFORMATION
PART
DS3144DK
DESCRIPTION
DS3144 Demo Kit Daughter Card (with
included DK101 motherboard)
1 of
20
REV: 082203
DS3144 DS3/E3 Framer Demo Kit Daughter Card
COMPONENT LIST
DESIGNATION
C1, C2, C15
C3–C9, C11–C14,
C16, C20, C22,
C23, C25–C32
C10, C17, C18, C24
C19, C21
DS1, DS3–DS10
DS2
J1
J2–J5
J6–J11
J12, J13
J14, J15
R1–R5, R7–R18,
R23, R28–R59
R6
R19–R22, R69–R72
R24
R25, R26
R27
R60
R61–R68
T1
U1
U2
U3
U4
U5
U6
Y1
QTY
3
23
4
2
9
1
1
4
6
2
2
49
1
8
1
2
1
1
8
1
1
1
1
1
1
1
1
DESCRIPTION
0.1mF 10%, 16V ceramic capacitors (0805)
0.1mF 10%, 16V ceramic capacitors (0603)
1mF 10%, 16V ceramic capacitors (1206)
10mF 20%, 10V ceramic capacitors (1206)
LED, red, SMD
LED, green, SMD
10-pin connector, dual-row vertical
20-pin headers, dual-row vertical
5-pin BNC connectors, right-angle vertical
5-pin BNC connectors, right-angle
50-pin connectors, dual-row vertical
30W 5%, 1/16W resistors (0603)
470W 5%, 1/10W resistor (0805)
332W 1%, 1/10W resistors (0805)
10kW 5%, 1/10W resistor (0805)
330W 5% 1/10W MF resistors (0805)
Not populated
10kW 5%, 1/10W resistor (0805)
100W 1/16W 5% resistors (0603)
XFMR, XMIT/RCV, 1 to 2, SMT 32-pin
Serial configuration EEPROM for Xilinx, 65kB 8-
pin DIP. Socketed (not populated)
1M PROM for FPGA
44-pin TQFP (not populated)
8-Pin
mMAX
V
OUT
= 2.5V or Adj
Xilinx Spartan
2.5V FPGA, 20mm X 20mm 144-pin TQFP
Quad DS3/E3 framer
144-pin BGA, 0°C to +70°C
Quad DS3/E3/STS-1 LIU
144-pin BGA
3.3V, 34.368MHz crystal clock oscillator
SUPPLIER
Panasonic
Phycomp
Panasonic
Panasonic
Panasonic
Panasonic
Digi-Key
Samtec
Cambridge
Kruvand
Samtec
Panasonic
Panasonic
Panasonic
Panasonic
Panasonic
—
Panasonic
Panasonic
Pulse Engineering
Atmel
Xilinx
Maxim
Xilinx
Dallas
Semiconductor
Dallas
Semiconductor
SaRonix
PART
ECJ-2VB1C104K
06032R104K7B20D
ECJ-3YB1C105K
ECJ-3YB1A106M
LN1251C
LN1351C
S2012-05-ND
HDR-TSW-110-14-T-D
CP-BNCPC-004
UCBJR220
TFM-125-02-S-D-LC
ERJ-3GEYJ300V
ERJ-6GEYJ471V
ERJ-6ENF3320V
ERJ-6GEYJ103V
ERA-6YEB331V
—
ERJ-6ENF1002V
ERJ-3GEYJ101V
T3049
AT17LV65EUA and
61499-30831007000-ND
XC18V01VQ44C_U
MAX1792EUA25
XC2S50-5TQ144C
DS3144
DS3154
NTH089AA3-34.368
BOARD FLOORPLAN
JTAG I/F
FPGA
TEST POINTS
TICLKn
ROCLKn
TDATn
RDATn
TDENn
RDENn
TSOFn
RSOFn
TOHENn RECU
TOHn
TMEI
LEDs: RLOSn and INT
Port 4 BNCs
Port 3 BNCs
Port 2 BNCs
DS3144
FRAMER
DS3154
LIU
Port 1 BNCs
Quad
Transformer
34.668
OSC
FPGA
+
Config
Prom
LEDs: ROOFn, FPGAok
2 of
20
DS3144 DS3/E3 Framer Demo Kit Daughter Card
LINE-SIDE CONNECTIONS
The DS3144DK implements the transmit (Tx) and receive (Rx) line interface networks recommended in the
DS3154 data sheet. The BNC connectors are labeled TX1 through TX4 and RX1 through RX4. Note that the
purpose of the DS3144DK is to evaluate the DS3144 framer, not the DS3154 LIU. The DS3144DK is not an
impedance-matched board and therefore has not been designed to have transmit waveforms with optimal template
fit. To evaluate the analog performance of the DS3154, request a DS3154DK demo kit.
INTERFACE CONNECTORS
Two 50-pin connectors (J14, J15) on the bottom of the DS3144DK daughter card provide the processor interface,
DS3 clock, and power supply from the DK101 or DK2000 motherboards. These connectors also provide a
bidirectional clock/data/sync connection with the DK2000.
CONNECTION TO A COMPUTER
Refer to the DK101 data sheet or the DK2000 data sheet for information. After power is applied, if the DS3144DK
is working correctly, the FPGA status LED (green) is lit, the INT LED (red) on the DS3144DK is not lit, and the
RLOS and ROOF LEDs (red) may or may not be lit.
QUICK SETUP (REGISTER VIEW)
Connect the DS3144DK daughter card to the DK101 motherboard or the DK2000 motherboard.
Connect the motherboard to a PC and a power supply as described in the motherboard data sheet.
Install and run the ChipView software, as described in the motherboard data sheet.
ChipView offers a choice between Register View, Demo, and Terminal Mode. Select Register View.
In the Definition File Assignment window, select the file DS3144DC_FPGA.def. This definition file will, in turn,
load DS3154DC.def, DS3144_1_DC.def, DS3144_2_DC.def, DS3144_3_DC.def, and DS3144_4_DC.def.
6) Next the Register View Screen appears, showing the register names, acronyms, and values for the DS3144,
DS3154, and the FPGA. Select among the register views using the pulldown menu box on the right.
Several register initialization (.INI) files are available for the DS3144DK. Initialization files are loaded by selecting
the menu option File®Register .INI File®Load .INI File.
7) Load the .INI file DS3144_1_txPRBS215-1_Cbit.ini.
8) Switch to the DS3154 register view (DS3154DC.def) and set TCR1 = 0 and RCR1 = 0 on the DS3154 (this
clears the transmit tri-state and receive tri-state bits that are set on power-up in the DS3154).
9) Loopback port 1 by either (a) connecting a length of coax cable between the TX1 BNC and the RX1 BNC, or
(b) setting the GCR1:LLB (local loopback) bit in the DS3154.
10) Switch to the DS3144 port 1 register view (DS3144_1_DC.def). Toggle BCR1:TC high then low to begin
15
transmitting a 2 - 1 PRBS pattern. Toggle BCR1:RESYNC high then low to resynchronize the BERT receiver.
11) At this point the following may be observed:
·
Port 1 RLOS and ROOF LEDs are not lit, meaning the port 1 framer has acquired frame sync. This can
also be observed in the port 1 T3E3SR status register.
15
·
The port 1 BSR:SYNC bit is set, indicating the BERT receiver is receiving the 2 - 1 PRBS pattern.
This is a very basic setup designed to build familiarity with the DS3144DK. Many other configurations are possible.
Consult the DS3144 data sheet and the remainder of this data sheet for further information.
1)
2)
3)
4)
5)
3 of
20
DS3144 DS3/E3 Framer Demo Kit Daughter Card
MEMORY MAP
DK101 daughter card address space begins at 0x81000000.
DK2000 daughter card address space begins at:
0x30000000 for slot 0
0x40000000 for slot 1
0x50000000 for slot 2
0x60000000 for slot 3
All offsets in
Table 1
below are relative to the beginning of the daughter card address space.
Table 1. Daughter Card Address Map
DS3/E3
PORT NUMBER
1
2
3
4
DS3144 OFFSET
0x1300 to 0x13FF
0x1000 to 0x10FF
0x1100 to 0x11FF
0x1200 to 0x12FF
DS3154 OFFSET
0x2030 to 0x203F
0x2010 to 0x201F
0x2020 to 0x202F
0x2000 to 0x200F
FPGA OFFSET
0x0010 to 0x001F
0x0020 to 0x002F
0x0030 to 0x003F
0x0040 to 0x004F
All offsets in
Table 2
below are relative to the daughter card address space
plus
the DS3/E3 port offset in Table 1.
Table 2. DS3144DK FPGA Register Map
OFFSET
0x0000
0x0002
0x0003
0x0004
0x0005
0x0006
0x0007
0x000A
0x000B
0x000C
0x000D
0x000E
0x0010
0x0020
0x0030
0x0040
0x0011
0x0021
0x0031
0x0041
0x0012
0x0022
0x0032
0x0042
REGISTER
BID
XBIDH
XBIDM
XBIDL
BREV
AREV
PREV
PCTC_SR
PCTS_SR
PCRX_SR
PCRC_SR
PCRS_SR
TDAT_SR
TYPE
Read-Only
Read-Only
Read-Only
Read-Only
Read-Only
Read-Only
Read-Only
Control
Control
Control
Control
Control
Control
DESCRIPTION
Board ID
High Nibble Extended Board ID
Middle Nibble Extended Board ID
Low Nibble Extended Board ID
Board Fab Revision
Board Assembly Revision
PLD Revision
PCM_TXCLK Source
PCM_TSYNC Source
PCM_RXD Source
PCM_RXCLK Source
PCM_RSYNC Source
DS3144 TDAT Source
TICK_SR
Control
DS3144 TICLK Source
TSOF_SR
Control
DS3144 TSOF Source
Registers in the FPGA can be easily modified using the ChipView software and the definition file named
DS3144DC_FPGA.def. Registers 0x00 through 0x07 (excluding register 0x01, which has no function on the
DS3144DK) are read-only and are programmed at the factory to document board identification and revision
information. The remaining registers in the FPGA control the connection of the DS3144’s equipment-side framer
pins. With these control registers, the framers within the DS3144 can be looped back on themselves externally,
connected to each other back-to-back, or connected to the DK2000 motherboard.
4 of
20
DS3144 DS3/E3 Framer Demo Kit Daughter Card
In
Table 2
and the control register descriptions below, PCM_TXCLK, PCM_TXD, and PCM_TSYNC are
clock/data/sync lines over which the DS3144 can transmit a DS3/E3 data stream to the DK2000 motherboard or
other daughter cards plugged into the DK2000. PCM_RXCLK, PCM_RXD, and PCM_RSYNC are clock/data/sync
lines over which the DS3144DK can receive a DS3/E3 data stream from the DK2000 or a daughter card plugged
into the DK2000. See the DS3144DK schematics for additional details.
Note that the DS3/E3 port numbers of the DS3144DK (as silk-screened on the board) do not match the DS3144
port numbers and the DS3154 port numbers.
Table 3
details the mapping of device port numbers to board port
numbers. This mapping is reflected in the address ranges shown in
Table 1.
Table 3. Relationship of Silk-Screened Port Numbers to IC Ports Numbers
SILK-SCREENED PORT NUMBER
ON BNCs AND RLOS/ROOF LEDs
1
2
3
4
DS3144 PORT
4
1
2
3
DS3154 PORT
4
2
3
1
From this it can be seen that, for example, the BNCs and LEDs for DS3144DK port 4 are associated with port 3 of
the DS3144 and port 1 of the DS3154.
CONTROL REGISTERS
Register Name:
Register Description:
Register Address Offset:
Bit #
Name
Default
7
—
—
6
—
—
PCTC_SR
PCM_TXCLK Source
0x0A
5
—
—
4
—
—
3
—
—
2
PCS2
0
1
PCS1
0
0
PCS0
0
Bits 2 to 0: PCM_TXCLK Source (PCS[2:0])
000 = Tri-state PCM_TXCLK
001 = Drive PCM_TXCLK with TDEN/TGCLK1
010 = Drive PCM_TXCLK with TDEN/TGCLK2
011 = Drive PCM_TXCLK with TDEN/TGCLK3
100 = Drive PCM_TXCLK with TDEN/TGCLK4
Register Name:
Register Description:
Register Address Offset:
Bit #
Name
Default
7
—
—
6
—
—
PCTS_SR
PCM_TSYNC Source
0x0B
5
—
—
4
—
—
3
—
—
2
PSS2
0
1
PSS1
0
0
PSS0
0
Bits 2 to 0: PCM_TSYNC Source (PSS[2:0])
000 = Tri-state PCM_TSYNC
001 = Drive PCM_TSYNC with TSOF1
010 = Drive PCM_TSYNC with TSOF2
011 = Drive PCM_TSYNC with TSOF3
100 = Drive PCM_TSYNC with TSOF4
Note:
Only use non-zero settings of PSS[2:0] when the TSOFx pin is configured as an output by setting
MC3:TSOFC = 1 in the corresponding DS3144 framer.
5 of
20
京公网安备 11010802033920号
EEWORLD
