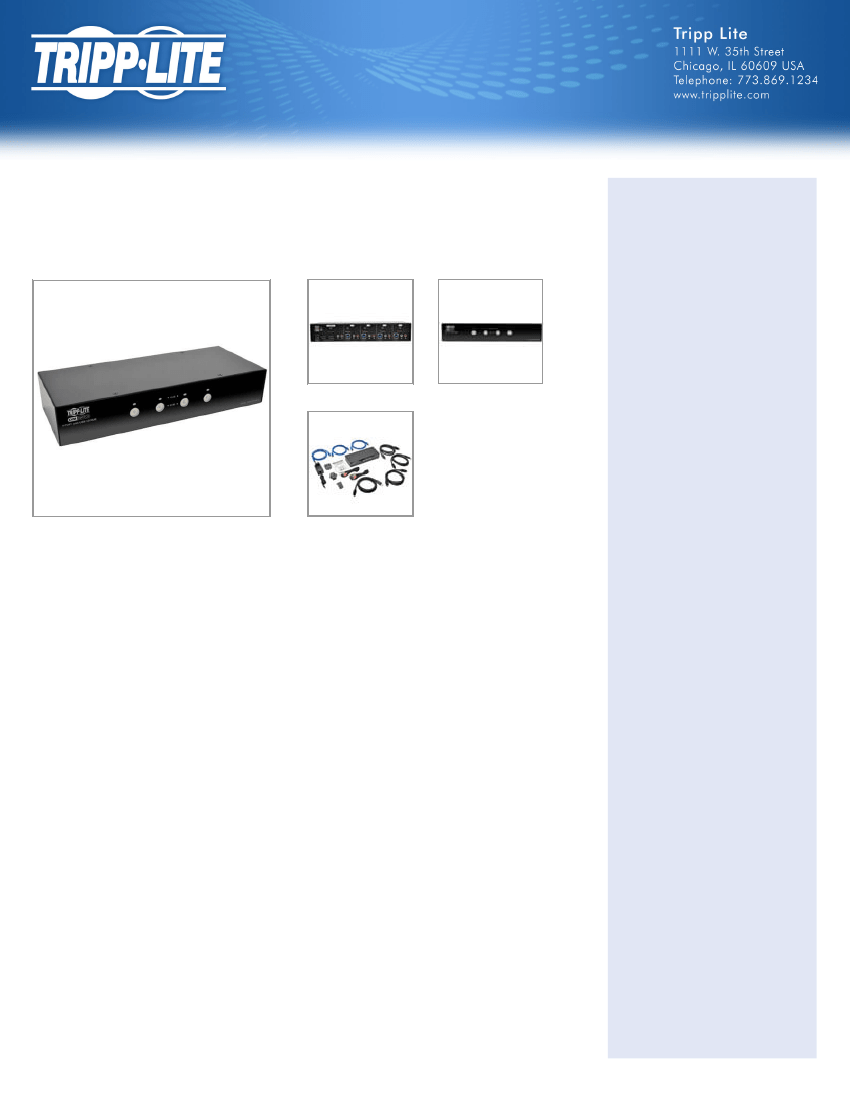

4-Port DisplayPort KVM Switch with Audio,
Cables and USB 3.0 SuperSpeed Hub
MODEL NUMBER:
B004-DPUA4-K
Highlights
q
Connect peripherals to built-in 2-
port USB 3.0 hub
q
Switch among computers via
front buttons or keyboard
hotkeys
q
Supports digital video
resolutions up to 2560 x 1600
q
Supports Displayport 1.1
Includes all necessary
DisplayPort, USB 3.0 and audio
cables
q
System Requirements
q
DisplayPort-enabled monitor
USB keyboard and mouse
Speaker and microphone with
3.5 mm mini-stereo plugs (for
audio)
q
Control 4 DisplayPort computers using one DisplayPort monitor, USB keyboard and USB mouse. Connect
USB 3.0 peripherals, such as hard drives and webcams, and share them between computers.
q
Description
The desktop B004-DPUA4-K 4-Port DisplayPort KVM Switch lets you access, control, boot and reboot
four DisplayPort computers using one DisplayPort monitor, USB keyboard and USB mouse. Switching
among DisplayPort computers is quick and simple using keyboard hotkeys or buttons on the unit.
q
q
Computer with USB port (need
USB 3.0 port for USB 3.0
speed)
Computer with 3.5 mm mini-
stereo jacks (for audio)
You can also plug microphones and speakers into the 3.5 mm mini-stereo jacks, and the two-port USB 3.0
SuperSpeed hub allows you to connect peripherals, such as a webcam, flash drive, printer or scanner,
and share them among computers. Because the audio and USB 3.0 hub ports can be accessed
independently, you can, for instance, use a printer connected to the hub to print data from one computer
while also listening to music from another computer.
q
Compatible with all major
operating systems
Package Includes
q
B004-DPUA4-K 4-Port
DisplayPort KVM Switch
All necessary cables are included. The B004-DPUA4-K supports digital video resolutions up to 2560 x
1600 (including 1080p), 2-channel stereo audio and data transfer rates up to 5 Gbps. The monitor’s EDID
information is sent to the connected computer when selected.
q
q
(4) DisplayPort cables, 6 ft.
(4) USB 3.0 Type-A to Type-B
cables, 6 ft.
The B004-DPUA4-K is easy to set up with no software to install and supports Windows, Mac, Linux and
Sun. The USB 3.0 hub is backward-compatible with USB 2.0 and USB 1.1 devices.
q
(4) 3.5 mm mini-stereo cables, 6
ft.
Features
Access and Control Up to 4 Computers with One KVM Switch
q
q
External power supply (Input:
100/240V, 50/60 Hz, 0.8A;
Output: 9V, 2A)
Switch among computers using keyboard hotkeys or front-panel buttons
Monitor's EDID information sent to connected computer when selected
Auto Scan feature cycles among computers at regular intervals for at-a-glance observation of activity
Supports DisplayPort 1.1
1/4
q
q
q
Universal plug adapters (NEMA
q
1-15P, CEE 7/16, BS1363, and
Independent Audio Switching
q
AS3112)
q
3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment among computers
Listen to audio files on one computer while accessing another computer
Supports 2-channel stereo audio
Owner’s manual
q
q
Independent USB 3.0 Peripheral Sharing
q
2-port USB 3.0 SuperSpeed hub allows connection of peripherals, such as webcams, flash drives,
printers and scanners
q
Print documents from one computer while accessing another computer
Supports USB 3.0 data transfer rates up to 5 Gbps
Backward compatible with USB 2.0 and USB 1.1 devices
q
q
Compatible with All Major Operating Systems
q
Easy to set up with no software or drivers to install
Supports digital video resolutions up to 2560 x 1600, including 1080p
Works with Windows, Mac, Linux and Sun
All necessary cables included
q
q
q
Specifications
OVERVIEW
UPC Code
AC Adapter
037332188632
Input: 100-240V, 50/60Hz, 0.8A Output: 9V, 2A
INPUT
Voltage Compatibility (VAC)
External Power Supply Input Specs
(V / Hz / A)
External Power Supply Output
Specs (V / A)
External Power Supply Cord Length
(ft.)
External Power Supply DC Barrel
Connector Specs
External Power Supply Plug(s)
External Power Supply Certifications
100; 110; 120; 127; 200; 208; 220; 230; 240
100-240V / 50/60Hz / 0.8A
9V/ 2A
6
OD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve
NEMA 1-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia
CE; FCC; UL; cUL; TUV; GS; BS; RCM; CB
USER INTERFACE, ALERTS & CONTROLS
LED Indicators
Red (USB); White (Selected PC)
2/4
PHYSICAL
Shipping Dimensions (hwd / in.)
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Unit Packaging Type
Unit Dimensions (hwd / in.)
Unit Weight (lbs.)
Unit Weight (kg)
Material of Construction
Color
7.40 x 6.20 x 10.60
18.80 x 15.75 x 26.92
5.90
2.68
Box
1.8 x 8.1 x 3.9
2.1
0.95
SECC
Black
ENVIRONMENTAL
Operating Temperature Range
Storage Temperature Range
Relative Humidity
BTUs
Power Consumption (Watts)
32 to 104 F (0 to 40 C)
-4 to 140 F (-20 to 60 C)
0%-90% RH, Non-Condensing
22.2 BTU/Hr
6.5
COMMUNICATIONS
IP Remote Access
No
CONNECTIONS
Ports
PC/Server Connections
Side A - Connector 1
Side A - Connector 2
Side A - Connector 3
Side B - Connector 1
Side B - Connector 2
Side B - Connector 3
Side B - Connector 4
Computer Keyboard and Mouse
Interface
Computer Monitor Interface
Console Keyboard and Mouse
Interface
4
USB; DisplayPort
(4) DISPLAYPORT (FEMALE)
(4) USB 3.0 B (FEMALE)
(8) 3.5MM (FEMALE)
DISPLAYPORT (FEMALE)
(2) USB 3.0 A (FEMALE)
(2) USB A (FEMALE)
(2) 3.5MM (FEMALE)
USB
Displayport
USB
3/4
Console Monitor Interface
Connector Plating
Displayport
Nickel
FEATURES & SPECIFICATIONS
Number of Users
NIAP-Certified Secure
Port Selection
Max Supported Video Resolution
Displayport Specification
USB Hub Ports
Number of USB Hub Ports
USB Specification
Driver Required
Cat5 KVM Switch
Technology
1
No
Pushbutton; Hotkey
2560 x 1600 @60Hz
1.1
Yes
2
USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
No
No
USB 3.0 (SuperSpeed); USB; DisplayPort; Stereo Audio
CERTIFICATIONS
Certifications
Tested to CE, FCC, RoHS, REACH
WARRANTY
Product Warranty Period
(Worldwide)
3-year limited warranty
