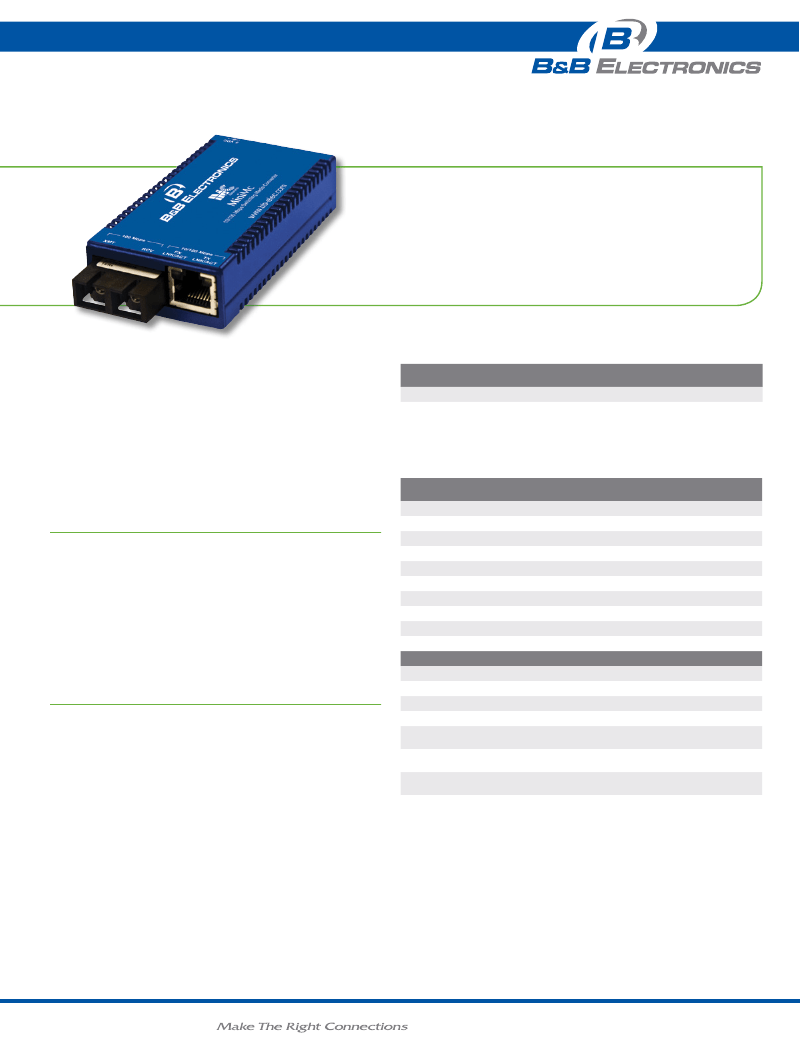

smallest, most reliable switching
media converter
MiniMc & MiniMc SFP
product FEaturEs
• One 100 Mbps FDX fiber port or 1 SFP fiber port
• One 10/100 Base-TX twisted pair port
• AutoCross automatic selection between crossover or
straight-through connection
• Status LEDs
• 18 connections in the 1.5U high IE-PowerTray/18 Chassis
Media conversion is the most cost-effective solution for extending the
productive life of legacy wiring plants and equipment while allowing
implementation of new technologies. Media conversion’s greatest
benefits are flexibility and cost savings.
Measuring less than 3.5 inches deep and 2 inches wide, the MiniMc
is the industry’s smallest media converter with both data connections
on the same side of the unit, and at a fraction of the cost of other
alternatives. Plug-and-play operation with a variety of model types and
powering options make the MiniMc series easy and convenient to use.
ordErIng InFormatIon
Model
FiBer range
FiBer
nuMBer
Ports
MiniMc sFP *
855-10619 SFP
1
Various
* SFP Fiber sold separately
ethernet
Ports
1
ethernet
ConneCtor
RJ45
accEssorIEs
806-39105
- DIN Rail Clip
806-39628
- USB 36”/.9m Power Cable (for MiniMc only)
806-39629
- USB 12”/.3m Power Cable (for MiniMc only)
806-39638
- Double-USB Power Cable, 36”/.9m
806-39650
- 12”/.3m Barrel-Connector Power Cable
850-13086
- IE-PowerTray/18-AC (-20°C to +70°C), 18-slot AC powered chassis
895-39229
- Wall Mount Bracket
ordErIng InFormatIon
Model
FiBer range
FiBer
nuMBer
Ports
MiniMc tP-tx/Fx
855-10620 MM850-ST
1
2 km
855-10621 MM850-SC
1
2 km
855-10622 MM1300-ST
1
5 km
855-10623 MM1300-SC
1
5 km
855-10624 SM1310/PLUS-ST 1
40 km
855-10625 SM1310/PLUS-SC 1
40 km
855-10626 SM1310/LONG-ST 1
80 km
855-10627 SM1310/LONG-SC 1
80 km
855-10641 SM1550/LONG-SC 1
80 km
single strand FiBer *
855-10650
SSFX-MM1300-SC
1
2 km
855-10651
SSFX-MM1550-SC
1
2 km
855-10652
SSFX-SM1310-SC
1
20 km
855-10653
SSFX-SM1550-SC
1
20 km
SSFX-SM1310/
855-10654
1
40 km
PLUS-SC
855-10655
SSFX-SM1550/
1
40 km
PLUS-SC
855-10656
SSFX-SM1310/
1
60 km
LONG-SC
SSFX-SM1550/
855-10657 LONG-SC
1
60 km
ethernet
Ports
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
ethernet
ConneCtor
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
MiniMc TP-TX/FX also available in CWDM Fiber.
Call for details.
www
.
bb
-
elec
.
com
|
MiniMc & MiniMc SFP_3713ds
smallest, most reliable switching
media converter
MiniMc & MiniMc SFP
SpecificationS
Technical
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
Supports jumbo packets up to 1916 bytes
Plug-and-play operation
RJ45, ST or SC connectors and SFPs available
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Available with single-strand fiber support
Country-specific, high-reliability power adapter
Auto Negotiation, Auto-Cross for MDI/MDIX
Layer 2 packet switching, store and forward (forwarding rate: 14,881 pps for 10
Mbps, 148,100 pps for 100 Mbps)
Status LEDs

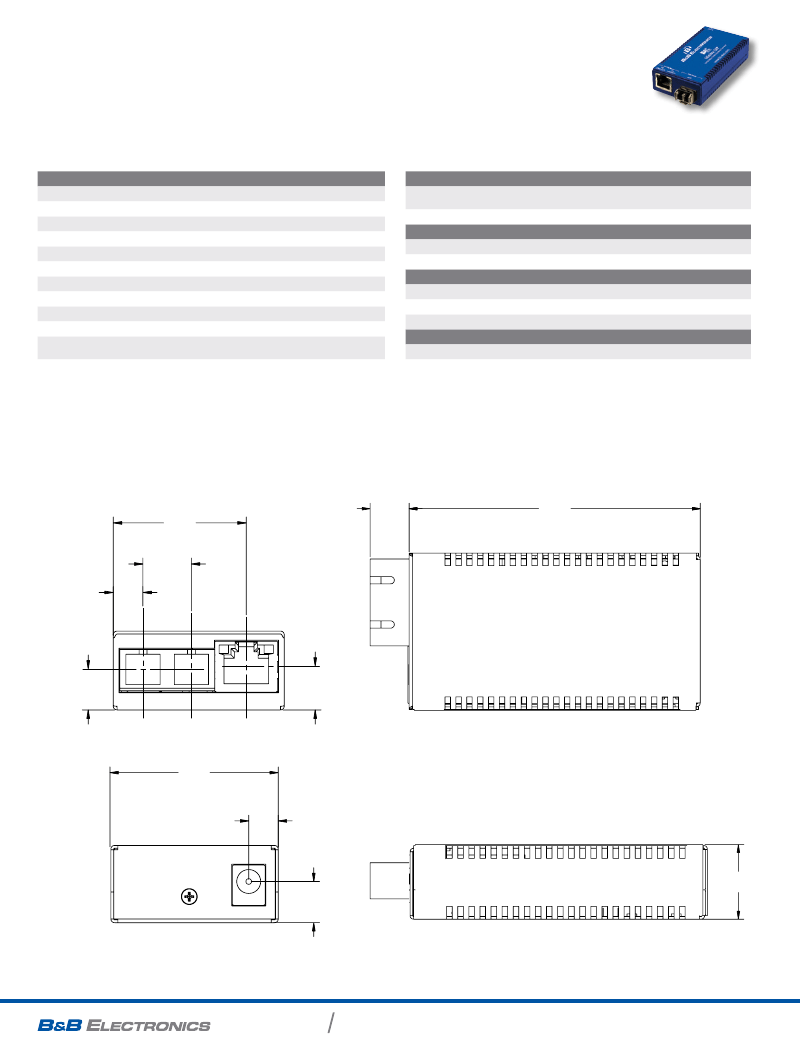

mEchanIcal dIagram
(dimensions in inches & millimeters)
Mechanical
Dimensions
Shipping Weight
Power
5 VDC, 500mA
AC Adapter: +32° F to +122° F (0° C to +50° C)
environMental
Operating Temperature:
+32° F to +122° F (0° C to +50° C)
Storage Temperature:
-31° F to +167° F (-35° C to +75° C);
Operating Humidity
5% to 95% (non-condensing)
regulatory aPProvals
FCC Class B
UL/cUL, CSA, CE
0.83”H x 1.80”W x 3.35”D
(2.11 x 4.57 x 8.51 cm)
0.7 lbs (.317 kg)
1.40
(35,6)
.51
(12,9)
REF
.31
(7,9)
.45
(11,4)
3.35
(85,1)
.43
(11,0)
.46
(11,7)
1.81
(46,0)
.32
(8,1)
.44
(11,2)
.84
(21,3)
