28-PIN LIN DEMO BOARD
USER’S GUIDE
Chapter 1. 28-Pin LIN Demo Board Overview
1.1
INTRODUCTION
The 28-Pin LIN Demo Board is a small and simple demonstration PCB for Microchip’s
28-pin Dual Inline Package (DIP) PIC
®
Microcontroller Units (MCU). It is populated with
a PIC16F886 MCU, a MCP2021 LIN Transceiver with voltage regulator, four LEDs, 2
push buttons and a potentiometer. The demo board has several test points to access
the I/O pins of the MCU and a generous prototyping area. The MCU can be
programmed with the PICkit™ 2 Microcontroller Programmer or the MPLAB
®
ICD 2
using the RJ-11 to 6-pin inline adapter (AC164110).
1.2
HIGHLIGHTS
This chapter discusses:
• 28-Pin LIN Demo Board Supported Devices
• The 28-Pin LIN Demo Board Overview
• Running the Default Demonstration
1.3
28-PIN LIN DEMO BOARD SUPPORTED DEVICES
The 28-Pin LIN Demo Board can be used with virtually any 28-pin Dual Inline Package
(DIP) PIC MCU. The assembled 28-Pin LIN Demo Board is populated with a
PIC16F886-I/P microcontroller.
Additional 28-Pin LIN Demo Boards can be ordered from Microchip Technology and
distributors. Part number, DM164120-3, comes with one assembled and two blank
28-Pin LIN Demo Boards. The blank demo board can be used for evaluating or proto-
typing circuits using any of the 28-pin devices listed below.
PIC16CR63
PIC16CR76
PIC16C63A
PIC16C745
PIC16C773
PIC16F737
PIC16F767
PIC16F870
PIC16F872
PIC16F873A
PIC16F876A
PIC16F882
PIC16F883
PIC16F886
PIC18F2220
PIC18F2221
PIC18F2320
PIC18F2321
PIC18F2331
PIC18F2410
PIC18F2420
PIC18F2423
PIC18F2431
PIC18F2450
PIC18F2455
PIC18F2480
PIC16F913
PIC16F916
PIC18F2510
PIC18F2520
PIC18F2515
PIC18F2523
PIC18F2525
PIC18F2550
PIC18F2580
PIC18F2585
PIC18F2610
PIC18F2620
PIC18F2680
PIC18F2682
PIC18F2685
PIC18F24J10
PIC18F25J10
©
2009 Microchip Technology Inc.
DSxxxxx-page 4
28-Pin LIN Demo Board Overview
1.4
28-PIN LIN DEMO BOARD OVERVIEW
The 28-Pin LIN Demo Board is populated with a PIC16F886 MCU (U1), a MCP2021
LIN Transceiver with Voltage Regulator (U2), four LEDs (DS1-DS4), Two push buttons
(SW1 and SW2), 32 KHz crystal (X2) and potentiometer (RP1). The board layout is
shown in Figure 1-1. The demo board has several test points to access the I/O pins of
the MCU and a generous prototyping area. The MCU can be programmed with the
PICkit™ 2 Microcontroller Programmer from header P1.

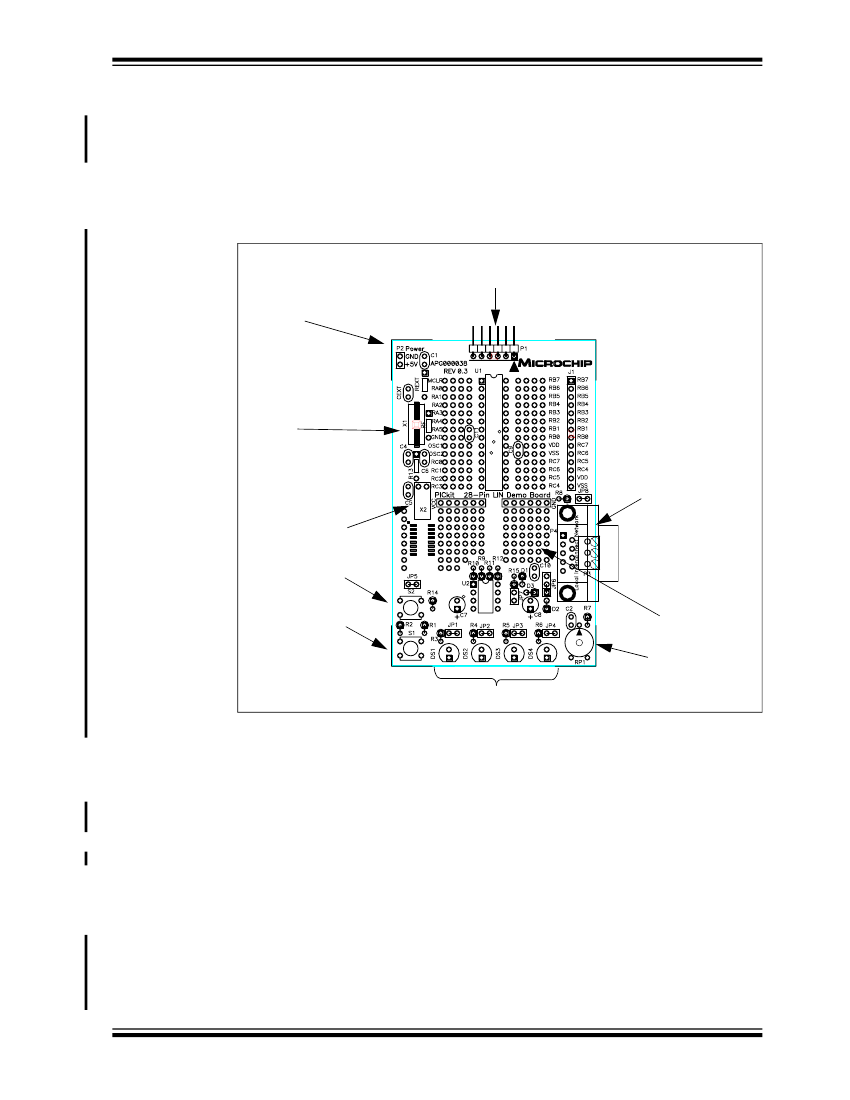

FIGURE 1-1:
28-PIN LIN DEMO BOARD
PICkit™ 2 or 3
Programming Header
Aux Power
Connector
Crystal
Mounting Pads
LIN Analyzer
Connectors
32 KHz Crystal
Push Button
SW2
Push Button
SW1
GND
LIN
+9-18V
Generous
Prototyping
Area
Potentiometer
RP1
LEDs DS1-DS4
1.5
RUNNING THE DEFAULT DEMONSTRATION
The assembled 28-Pin LIN Demo Board comes preprogrammed with a demonstration
program. To use this program, power the demo board (9.0-18.0 V
DC
) using a LIN
Network Analyzer and/or a bench power supply connected to header P3 or P4. To use
the PICkit™ 2 Microcontroller Programmer, connect it to a PC USB port using the USB
cable. The demo board will blink the LEDs in the Reset pattern. The Reset pattern
consists of three different LED blink patterns. First, the LEDs will “ping pong” (LED1, 2,
3 and 4, then LED 4, 3, 2 and 1). Second, the LEDs will blink on and off in unison. Third,
the LEDs will perform the ADC display where values 0x0A, 0x0D and 0x0C display in
sequence followed by the Most Significant 4 bits of the ADC result measuring channel
1, which is the on-board potentiometer. After this sequence, the EAUSART is initialized
for LIN communcation.
Sending an ID of 0x2F will request a four-byte data response as follows:
Data byte 1 = ADC result
©
2009 Microchip Technology Inc.
DSxxxxx-page 5
PCB Design
