10/100 mbps switching media converter
iMcV-LIM 10/100 Mbps
product FEaturEs
• Has a small, rugged design offering many advanced features
• Available for multi-mode or single-mode fiber
• LinkLoss, Transparency and Link Fault Detection features, along
with LEDs, assist in diagnosing problems on fiber optic networks
• Convert 10 Mbps twisted pair to 10 Mbps fiber OR convert 100
Mbps twisted pair to 100 Mbps fiber
The iMcV-LIM 10/100 includes troubleshooting features such as
LinkLoss, Transparency and Link Fault Detection that make isolating
fiber breaks easier should they occur. The iMcV-LIM 10/100 also
features a crossover/pass-through switch on the twisted pair
connection for MDI/MDIX connectivity and diagnostic LEDs. Most
iMcV-LIM 10/100 modules are available with single-strand fiber which
can effectively double the capacity of fiber by allowing two individual
channels to share one strand of fiber; Full-Duplex data travels on
different wavelengths — 1310 nm and 1550 nm, for example.
Auto-Sensing 10/100 Mbps iMcV-LIM 10/100 converters offer
significant advantages over regular 10 and 100 Mbps converters. An
ideal choice for both enterprise and service provider networks, 10/100
converters save time and money when deployed at the host and
remote site. Enterprise networks planning a migration path from 10
Mbps to 100 Mbps often deploy Auto Sensing converters, then upgrade
when ready and units will automatically adapt to increased speed.
Service providers with 10 or 100 Mbps links to customer premises can
sell customers more bandwidth without upgrading the converters at
the POP and the customer network edge.
ordErIng InFormatIon
Model
FiBer
FiBer
nuMBer
Ports
iMcV-LIM 10/100 TX/FX
850-14260
MM850-ST
1
850-14261
MM850-SC
1
850-14262
MM1300-ST
1
850-14263
MM1300-SC
1
850-14267
SM1310/PLUS-ST
1
850-14268
SM1310/PLUS-SC
1
850-14269
SM1310/LONG-ST
1
850-14270
SM1310/LONG-SC
1
850-14274
SM1550/LONG-SC
1
single strand FiBer *
850-14240
SSFX-MM1310-SC
1
850-14243
SSFX-MM1550-SC
1
850-14244
SSFX-SM1310-SC
1
850-14245
SSFX-SM1550-SC
1
850-14246
SSFX-SM1310/PLUS-SC
1
850-14247
SSFX-SM1550/PLUS-SC
1
850-14248
SSFX-SM1310/LONG-SC
1
850-14249
SSFX-SM1550/LONG-SC
1
range
2 km
2 km
5 km
5 km
40 km
40 km
80 km
80 km
80 km
2 km
2 km
20 km
20 km
40 km
40 km
60 km
60 km
ethernet ethernet
Ports
ConneCtor
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
iMcV-LIM 10/100 Mbps also available in CWDM Fiber.
Call for details.
iView: Windows 2000/XP/Vista/Win7
www
.
bb
-
elec
.
com
|
iMcV-LIM 10/100 Mbps_3713ds
10/100 mbps switching
media converter
iMcV-LIM 10/100 Mbps
SpecificationS
Technical
10Base-T twisted pair
10Base-FL fiber
100Base-TX twisted pair
100Base-FX or SX fiber
MDI/MDIX switch
Features Link Fault Detection and Transparency
Features Auto Negotiation
Connectors: RJ-45 and ST, SC
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Install in any iMediaChassis or MediaChassis
Support GUI-Based iView²
Support Half- and Full-Duplex operation
Include diagnostic LEDs
Include hot-swappable architecture

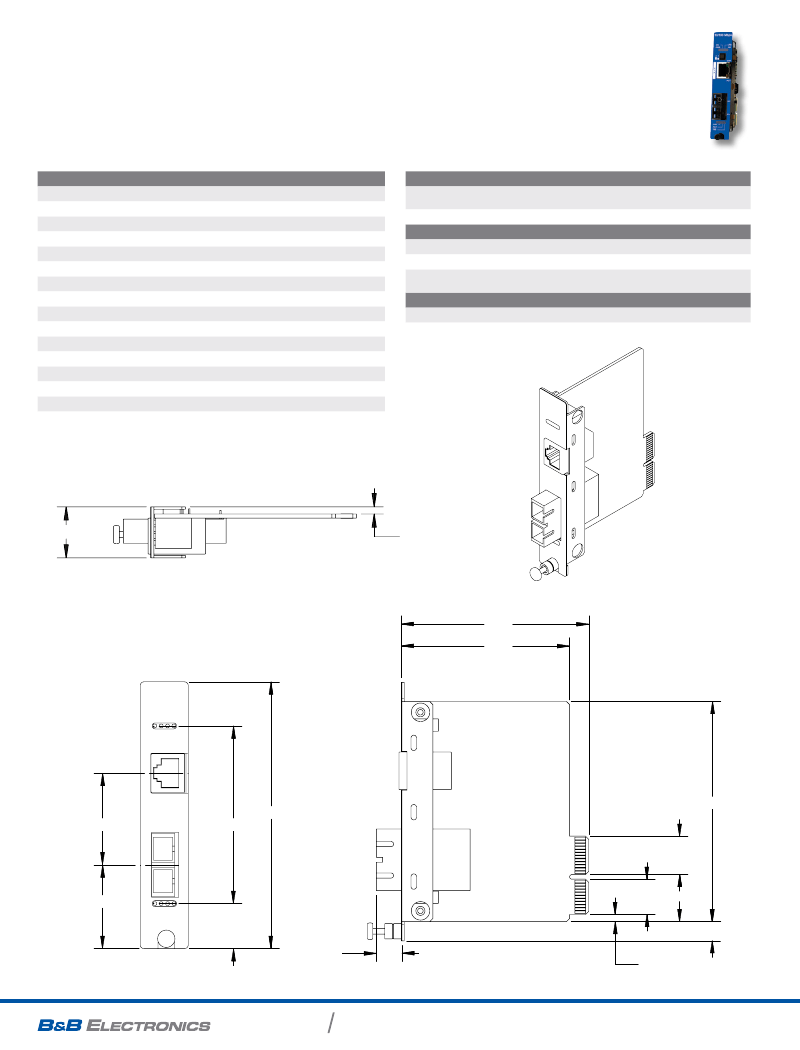

mEchanIcal dIagram
(dimensions in inches & millimeters)
Mechanical
Dimensions
Shipping Weight
environMental
Operating Temperature:
Storage Temperature:
Operating Humidity
regulatory approvals
FCC Class B
CE
4.19”H x 0.78”W x 2.75”D
(10.74 x 2 x 7.05 cm)
0.30 lbs (.11 kg)
+32° to +122° F (0° to +50° C)
-13° to +158° F (-25° to +70° C)
5% to 95% (non-condensing),
0 – 10,000 ft. altitude
.76
.11
3.04
2.73
1.44
2.79
4.19
3.57
.62
.57
.76
.31
.42
.12
1.32
.71
