2X3mm RECTANGULAR SOLID LAMP
XSUGR91M
SUN LED
Email
: sales@us.sunled.com
Web Site : www.sunled.com
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
Absolute maximum ratings
(T
A
=25
°
C)
Forward current
Forward current (peak)
1/10Duty cycle
0.1ms pulse width
Power dissipation
Operating temperature
Storage temperature
I
F
i
FS
P
T
T
A
Tstg
UR
(GaAsP/GaP)
30
160
105
-40 ~ +85
-40 ~ +85
UG
(GaP)
25
140
105
-40 ~ +85
-40 ~ +85
Unit
Op e r a t i n g Ch a r a c t e r i s t i c s
( T
A
=25
°
C)
C)
Forward voltage (typ.)
(I F=20mA)
Forward voltage (max.)
(I F=20mA)
Wavelength at peak
emission
(I F=20mA)
Wavelength at Dominate
emission
(I F=20mA)
Spectral Line half-width
(I F=20mA)
Capacitance
(V
F
=0V, f=1MHz)
UR
UR
( G a As P /G a P )
UG
UG
(Ga P )
Un i t
mA
mA
mW
°C
V
F
V
F
2.0
2.5
2.2
2.5
V
V
λ
peak
627
565
nm
Lead solder temperature
[2mm below package base]
260
°
C For 5 Seconds
λD
625
568
nm
∆λ
45
30
nm
C
15
15
pF
P art
Nu m b e r
Em i t t i n g
Co l o r
Em i t t i n g
Ma te ria l
L e n s -c o l o r
L u min o u s
In t e n si t y
( I F = 20m A )
mc d
min .
ty p .
7
19
14
Wa v e l e n g t h
nm
λ
P
Vi e w i n g
An g l e
2θ1/2
θ
R ed
XSUGR91M
Green
GaAsP/GaP
White Diffused
GaP
627
110°
565
7
Published Date : JUL 30,2002
Drawing No: XDSA2527
V1
Checked : B.L.LIU
2-1
XSUGR91M
!

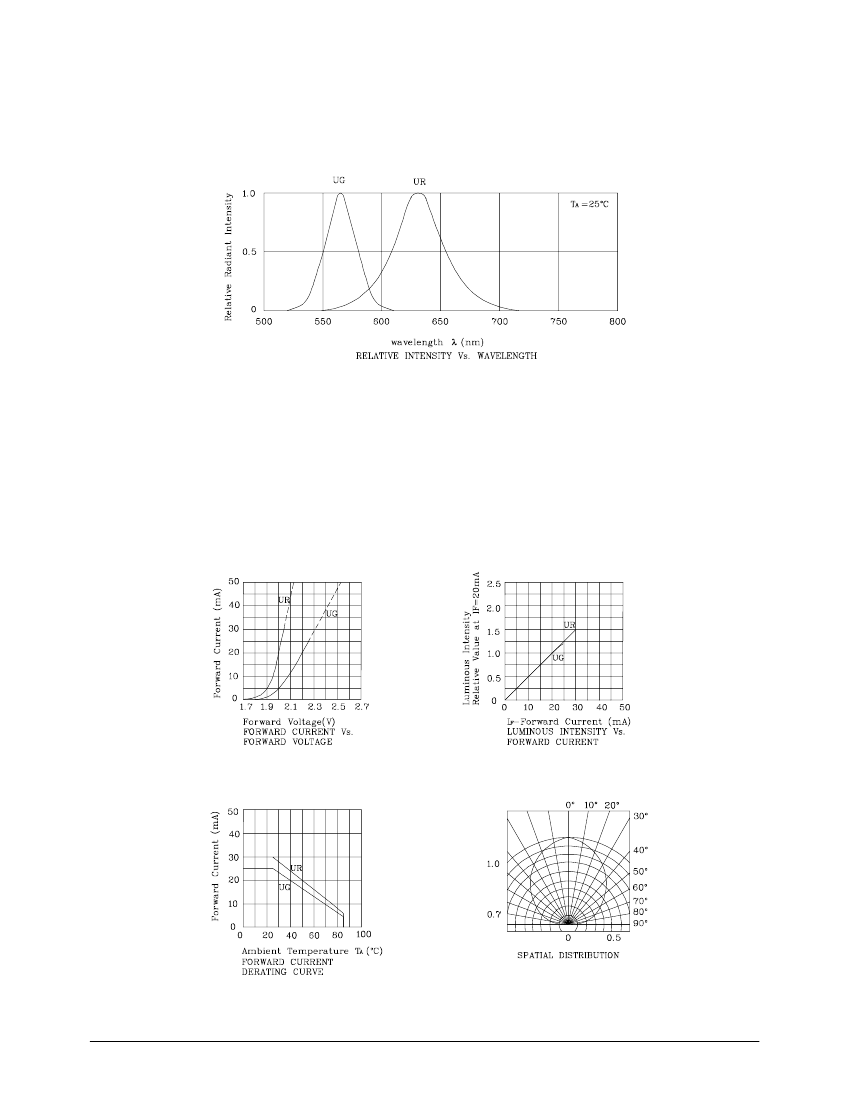

UR/UG
Published Date : JUL 30,2002
Drawing No: XDSA2527
V1
Checked : B.L.LIU
2-2
