Intel® Desktop board DH61DL
Classic Series
Mini-ITX Form Factor
Intel
®
Desktop Board DH61DL
Classic Series
Supports 2nd generation Intel® Core™
processors in the LGA1155 package
The Intel® Desktop Board DH61DL is based
on the Intel® H61 Express Chipset and
supports 2nd generation Intel® Core™
processors, including Intel® Core™ i7 and
Intel® Core™ i5 processors and other Intel®
processors in the LGA1155 package. The
2nd generation Intel Core processors
feature optimized Intel® Turbo Boost
Technology
1
2.0 and enhanced Intel® Hyper-
Threading Technology
2
, which provide
smarter performance and a seamless
visual experience. The mini-ITX form factor
provides maximum design flexibility to
support system designs ranging from
all-in-one PCs to portable systems.
Dual independent display for
processors with Intel® HD Graphics
The Intel Desktop Board DH61DL is
equipped with DVI-D and VGA ports to
support flexible, dual independent display
for processors with Intel® HD Graphics.
Powered by the 2nd generation Intel Core
processors with Intel HD Graphics, the
Intel Desktop Board DH61DL delivers su-
perb visual performance for sharper
images, richer color, and lifelike video.
The Intel Desktop Board DH61DL is designed
to support a wide range of memory voltage
from 1.2 V to 1.8 V to maximize memory
DIMM compatibility.
Two back panel SuperSpeed USB 3.0 ports
address the needs of higher performance
connections between the PC and increasingly
sophisticated peripherals by offering a
higher transfer rate of 5.0 Gb/s.
Legacy features such as PCI connectors,
a parallel port, and a PS/2 port are also
supported for backward compatibility
with peripherals.
Premium features
The Intel Desktop Board DH61DL offers
premium features such as Intel® High
Definition Audio
3
with 5.1 surround sound
and multi-streaming capability and an inte-
grated Intel® PRO 10/100/1000 Network
Connection in a low-power design.

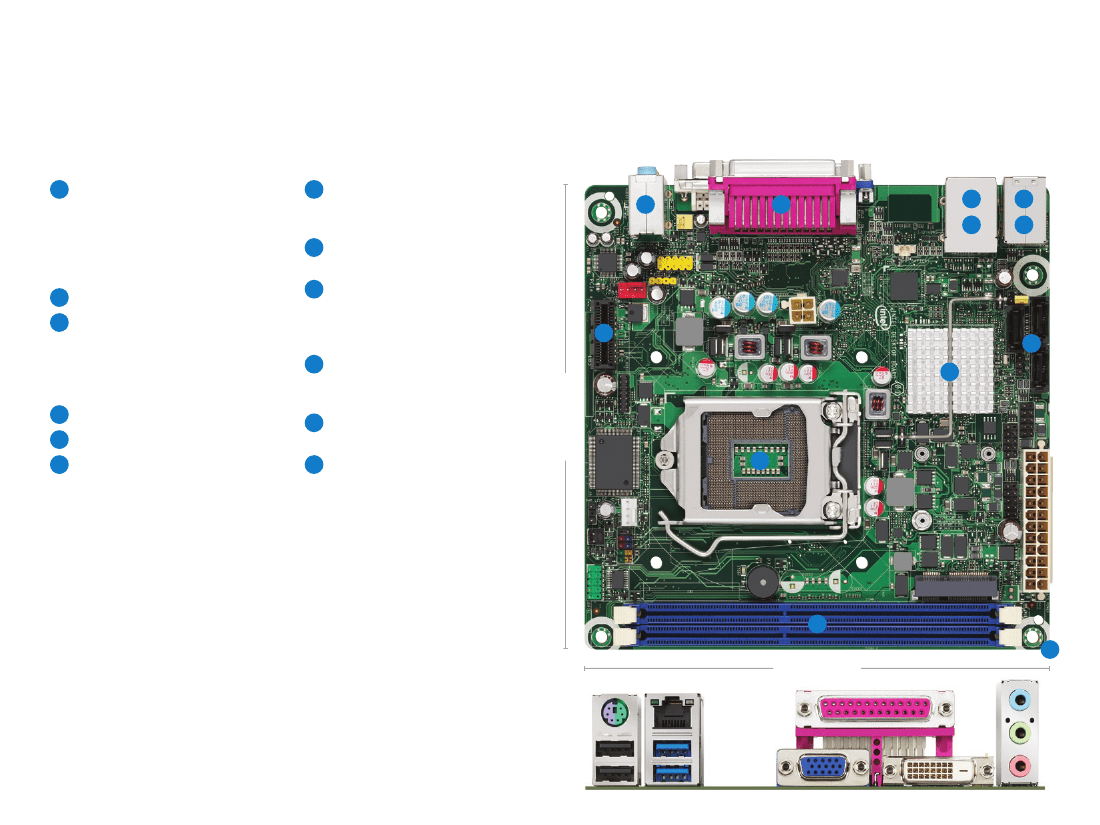

Intel® Desktop Board DH61DL Classic Series
Technical Specifications
ProCeSSor
Processor Support
• Intel® Core™ i7 and Intel® Core™ i5 processors and
other Intel® processors in the LGA1155 package
• Supports Intel® 64 architecture
6
CHIPSet
Intel® H61 express Chipset
• Intel® 82H61 Platform Controller Hub (PCH)
Peripheral Connectivity
• Three SATA 3.0 Gb/s ports
• Two SuperSpeed USB 3.0 ports with 5.0 Gb/s
link speed
• Eight Hi-Speed USB 2.0 ports (two back panel ports
and six additional ports via internal headers)
• Parallel port
System bIoS
• 32 Mb Flash EEPROM with Intel® Platform
Innovation Framework for EFI Plug and Play
• Advanced configuration and power interface
V3.0b, SMBIOS2.5
• Intel® Express BIOS update support
Hardware Management features
• Processor fan speed control
• System chassis fan speed control
• Voltage and temperature sensing
• Fan sensor inputs used to monitor fan activity
• ACPI-compliant power management control
Intel® Pro 10/100/1000 Network Connection
• Low-power design
expansion Capabilities
• One PCI Express* 2.0 x1 connector
Headers
• One serial port header
• Chassis intrusion header
• S/PDIF audio header
Audio
• 7.1 multi-streaming Intel® High Definition Audio
3
• Five stack analog audio ports and one optical
S/PDIF out port
SYSteM MeMorY
Memory Capacity
• Two 240-pin DIMM connectors supporting up to
four double-sided DIMMs (8 GB
5
max)
Memory types
• DDR3 1333 / 1066 / 800 SDRAM memory support
• Non-ECC Memory
Memory Modes
• Dual- or single-channel operation support
Memory Voltage
• Memory voltage control from 1.2 V to 1.8 V
• 1.5 V standard JEDEC voltage
JuMPerS AND froNt-PANeL CoNNeCtorS
Jumpers
• Single configuration jumper design
• Jumper access for BIOS maintenance mode
For ordering information, visit
www.intel.com
For the most current product information, visit
http://developer.intel.com/products/desktop/motherboard/
front-Panel Connectors
• Reset, HDD LED, Power LEDs, power on / off
• Front-panel Hi-Speed USB 2.0 headers
• Front-panel audio header
MeCHANICAL
board Style
• Mini-ITX
board Size
• 6.7” x 6.7” (17.2cm x 17.2cm)
baseboard Power requirements
• ATX 12 V
eNVIroNMeNt
operating temperature
• 0° C to +55° C
Storage temperature
• -20° C to +70° C
reGuLAtIoNS AND SAfetY StANDArDS
united States and Canada
CSA / UL 60950-1, First Edition (Binational Standard)
europe
(Low Voltage Directive 2006 / 95 / EC)
EN 60950-1
International
IEC 60950-1
eMC regulations (tested in representative chassis)
united States
FCC 47 CFR Part 15, Subpart B
Canada
ICES-003 Class B
europe
(EMC Directive 2004 / 108 / EC)
EN 55022 and EN 55024
Australia / New Zealand
EN 55022 Class B
Japan
VCCI V-3, V-4 Class B
South Korea
KN-22 and KN-24
taiwan
CNS 13438 Class B
International
CISPR 22 Class B
environmental Compliance
europe
Europe RoHS (Directive 2002 / 95 / EC)
China
China RoHS (MII Order # 39).
1
Intel® Turbo Boost Technology 2.0 requires a PC with a processor
with Intel Turbo Boost Technology 2.0 capability. Intel Turbo
Boost Technology 2.0 performance varies depending on
hardware, software, and overall system configuration. Check
with your PC manufacturer on whether your system delivers
Intel Turbo Boost Technology. See www.intel.com/technology/
turboboost for more information.
Intel® Hyper-Threading Technology requires a computer system
with a processor supporting HT Technology and an HT Technology-
enabled chipset, BIOS, and operating system. Performance will
vary depending on the specific hardware and software you use.
See www.intel.com/info/hyperthreading for more information.
Intel® High Definition Audio requires a system with an appropriate
Intel® chipset and a motherboard with an appropriate codec and
the necessary drivers installed. System sound quality will vary
depending on actual implementation, controller, codec, drivers,
and speakers. For more information about Intel® HD Audio, refer
to www.intel.com/design/chipsets/hdaudio.htm
The Intel® Core Utilities bundle includes Intel® Integrator Assistant,
Intel® Integrator Toolkit, Intel® Express Installer and Intel®
Express Bios Update.
5
System resources and hardware (such as PCI and PCI Express*)
require physical memory address locations that can reduce avail-
able addressable system memory. This could result in a reduction
of as much as 1 GB or more of physical addressable memory being
available to the operating system and applications, depending on
the system configuration and operating system.
64-bit computing on Intel® architecture requires a computer
system with a processor, chipset, BIOS, operating system, device
drivers, and applications enabled for Intel® 64 architecture.
Processors will not operate (including 32-bit operation) without
an Intel 64 architecture-enabled BIOS. Performance will vary
depending on your hardware and software configurations. See
http://developer.intel.com/technology/intel64/index.htm for
more information.
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION
WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY
ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY
RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN
INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS,
INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DIS-
CLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO
SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY
OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR
PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PAT-
ENT, COPYRIGHT, OR OTHER INTELLECTUAL PROPERTY RIGHT.
Intel products are not intended for use in medical, life-saving,
or life-sustaining applications. Intel may make changes to speci-
fications and product descriptions at any time, without notice.
All products, dates, and figures specified are preliminary based
on current expectations, and are subject to change without
notice. Availability in different channels may vary.
Actual Intel® Desktop Board may differ from the image shown.
Intel, the Intel logo, and Intel Core are trademarks of Intel
Corporation in the U.S. and other countries.
* Other names and brands may be claimed as the property of others.
Copyright © 2011 Intel Corporation. All rights reserved.
0111/TC/MS/PDF 324993-001US
