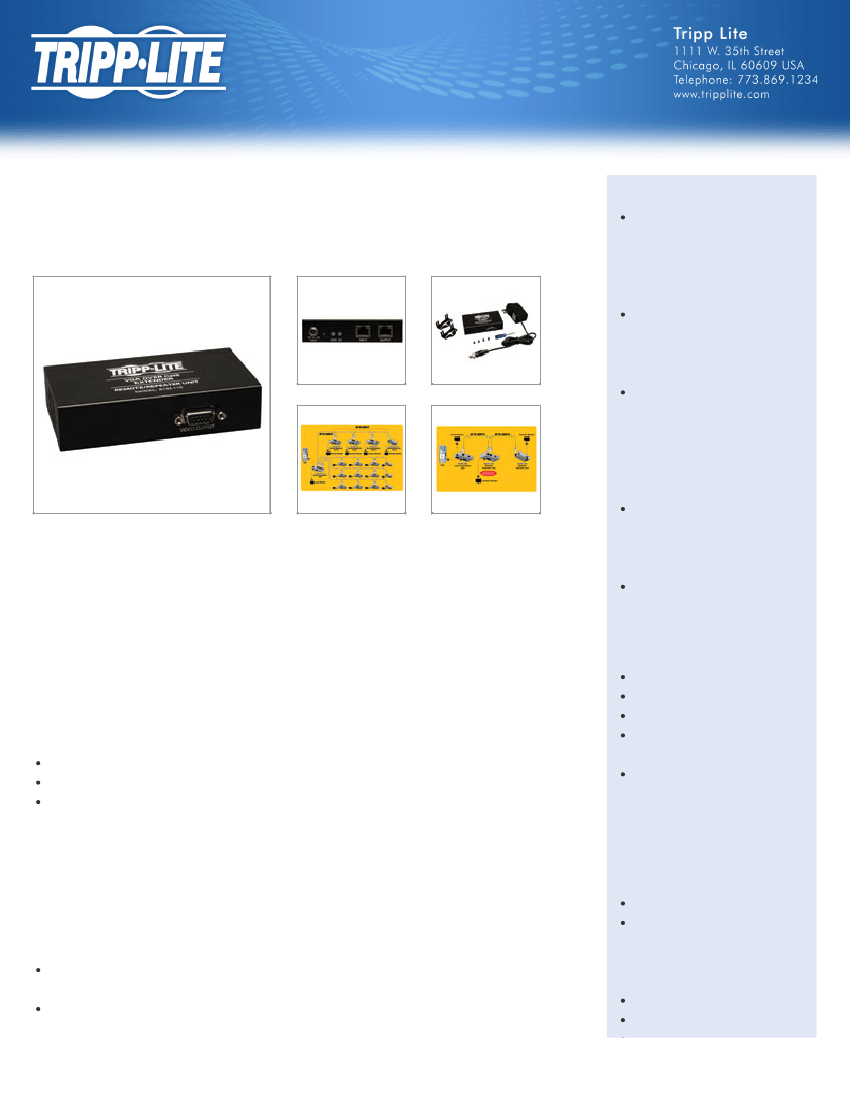

VGA over Cat5/Cat6 Extender, Box-Style Repeater,
1920x1440 at 60Hz, Up to 1000-ft., TAA
MODEL NUMBER:
B132-110
Highlights
Both extends and expands your
Tripp Lite VGA over Cat5
installation, allowing you to locate
multiple monitors at different
points in a chain of up to 2,000 ft.
Up to 4 remote units (3 repeaters
and 1 receiver) can be connected
together, providing video to up to
4 remote displays in a full chain
24Awg, Solid Wire Cat5e/6
cable, such as Tripp Lite's
N022-01K-GY
(Cat5) and
N222-01K-GY
(Cat6), is required
to achieve maximum distance
and resolution
For optimal image quality
between 500 and 1,000 ft., use
Description
Tripp Lite's B132-110 remote/repeater unit both extends and expands your VGA over Cat5 installation, allowing
you to locate multiple monitors at different points in a chain of up to 2,000 ft.. With Tripp Lite's standard
transmitter and receiver units, a single VGA monitor can be located up to 1,000 ft. from the source. By inserting
the B132-110 remote/repeater unit in between, the signal can be regenerated and extended to another monitor
up to an additional 1,000 ft. away. A monitor can be connected to both the remote/repeater and the receiver,
allowing the signal to be transmitted to both points in the chain. Up to 4 remote units (3 remote/repeaters and 1
receiver) can be connected together, providing video to up to 4 remote displays located at different points in the
installation.
With Tripp Lite's wide assortment of VGA over Cat5 extender solutions, the B132-110 remote/repeater unit can
be used in a variety of ways to create the installation best suited to your needs.
Insert the B132-110 in between the local transmitter and remote receiver units of your
B130-101-2
Extender kit
Connect the B132-110 to the remote/repeater unit that comes with the
B130-111
extender/repeater kit
Connect the B132-110 to an available port on a
B132-002-2
or
B132-004-2
extender/splitter
Zero-Skew cable, such as Tripp
Lite
P524-01K
Compliant with the Federal Trade
Agreements Act (TAA) for GSA
Schedule purchases
System Requirements
Computer with VGA video output
Monitor / TV with VGA video input
A
B130-111
extender kit
Not compatible with the
B130-101-U
For international use, the
B110-INT power supply can be
purchased separately; it features
24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's
N022-01K-GY
(Cat5) and
N222-01K-GY
(Cat6), is
required to achieve maximum distance and resolution. For optimal image quality between 500 and 1,000 ft., use
Zero-Skew cable, such as Tripp Lite
P524-01K.
Unit features Equalization and Gain controls to adjust the video
image. Includes mounting hardware that allows unit to be wall mounted, rackmounted, or pole mounted.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
plugs for the UK, Europe, and
Australia
Package Includes
B132-110 remote/repeater unit
External Power Supply with
NEMA 1-15P Plug (Input:
100-240V, 50/60Hz, 0.5A;
Output: 5V, 2A, 5 ft.)
Screwdriver for video adjustment
Mounting hardware
Owner's manual
Features
Both extends and expands your Tripp Lite VGA over Cat5 installation, allowing you to locate multiple monitors
at different points in a chain of up to 2,000 ft..
Up to 4 remote units (3 remote/repeaters and 1 receiver) can be connected together, providing video to up to
4 remote displays in a full chain.
24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's
N022-01K-GY
(Cat5)
1
and
N222-01K-GY
(Cat6), is
/3
24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's
N022-01K-GY
(Cat5) and
N222-01K-GY
(Cat6), is
required to achieve maximum distance and resolution.
For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite
P524-01K.
Owner's manual
Extend a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., between the local transmitter and the first remote/repeater
unit in the installation
Extend a 1920 x 1440 (60Hz) signal up to an additional 500 ft., or a 1024 x 768 (60Hz) signal up to an additional 1,000 ft., from the first remote/repeater
unit to the last display in the installation.
Features built-in Equalization and Gain controls for video image adjustment
Includes mounting hardware that allows wall mounting, rack mounting, or pole mounting
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
OVERVIEW
AC Adapter
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft
PHYSICAL
Shipping Weight (lbs.)
Shipping Weight (kg)
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Included Mounting Accessories
Color
1.50
0.68
1.0" x 4.50" x 2.50"
2.54 x 11.43 x 6.35
Yes
Black
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 1080P Range (ft)
Max 1920 x 1440 Range (ft)
Max 480i Range (ft)
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 1600 x 1200 Range (ft)
Max 1920 x 1200 Range (ft)
Max 720P Range (ft)
1000
1000
500
500
500
500
1000
1000
1000
500
500
500
2/3
