PCA-6113DP4-0A2E:
13 slot Dual Segment BP, 2 ISA, 7 PCI, 3 PICMG, 1 PICMG/PCI, Rev. A 201-1

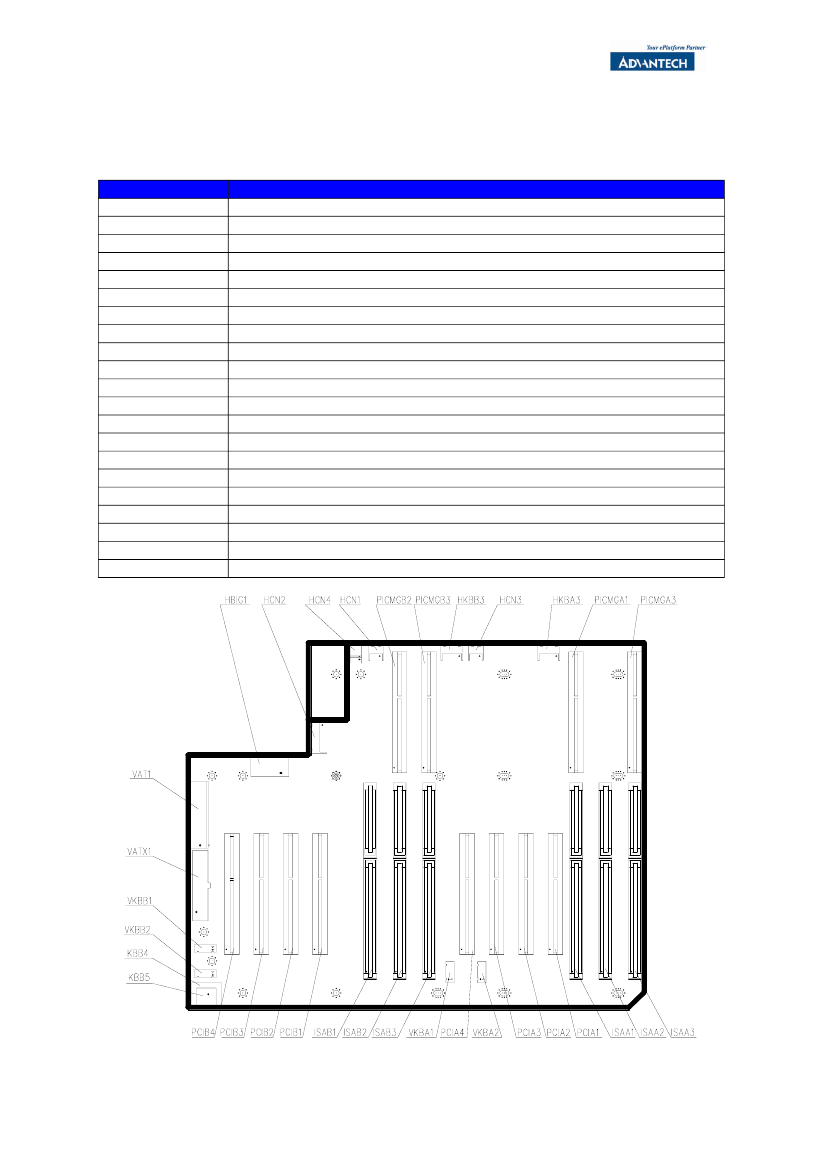

1.Connectors
Connector
ISAA2
ISAA1 , ISAA3
PICMGA1,PICMGA3
PCIA1~PCIA4
ISAB1
ISAB2~ISAB3
PICMGB2,PICMGB3
PCIB1~PCIB4
VKBA1
VKBA2,HKBA3
KBB4
KBB5
VKBB1
VKBB2,HKBB3
HBIG1
VAT1
VATX1
HCN1
HCN2
HCN3
HCN4
Description
16 Bit ISA Bus connector (System A)
PICMG connector (System A) (PCI slot is PICMGA1,PICMGA3)
PICMG connector (PCI slot is PICMGA1,PICMGA3)
32 bit PCI slot (System A)
16 Bit ISA Bus connector (System B)
PICMG connector (System B) (PCI slot is PICMGB2,PICMGB3)
PICMG connector (PCI slot is PICMGB2,PICMGB3)
32 bit PCI slot (System B)
KB-In, from CPU card K/B connector (System A) (180´Þ)
KB-Out, 5 pin extemal K/B connector (System A)
AT Keyboard Connecotor (reserved)
PS2 Keyboard Connecotor (reserved)
KB-In, from CPU card K/B connector (System B) (180´Þ)
KB-Out, 5 pin extemal K/B connector (System B)
Big 4 Pin Power connector (90´Þ)
AT Power connector (180´Þ)
ATX Power connector (180´Þ)
PS-ON Function, to CPU card for ATX Power signal, 3 pin connector (90´Þ)
8 pin Alarm Board Power connector (90´Þ)
3 pin +5V and +12V Power connector (90´Þ)
3 pin +12V DC Fan connector (reserved) (90´Þ) (Optional)
PCA-6113DP4-0A2E Manual Ed.1
1
www.advantech.com
4. Detachable Board
Depending on chassis usage, users may need to remove the detachable board along the dotted lines.

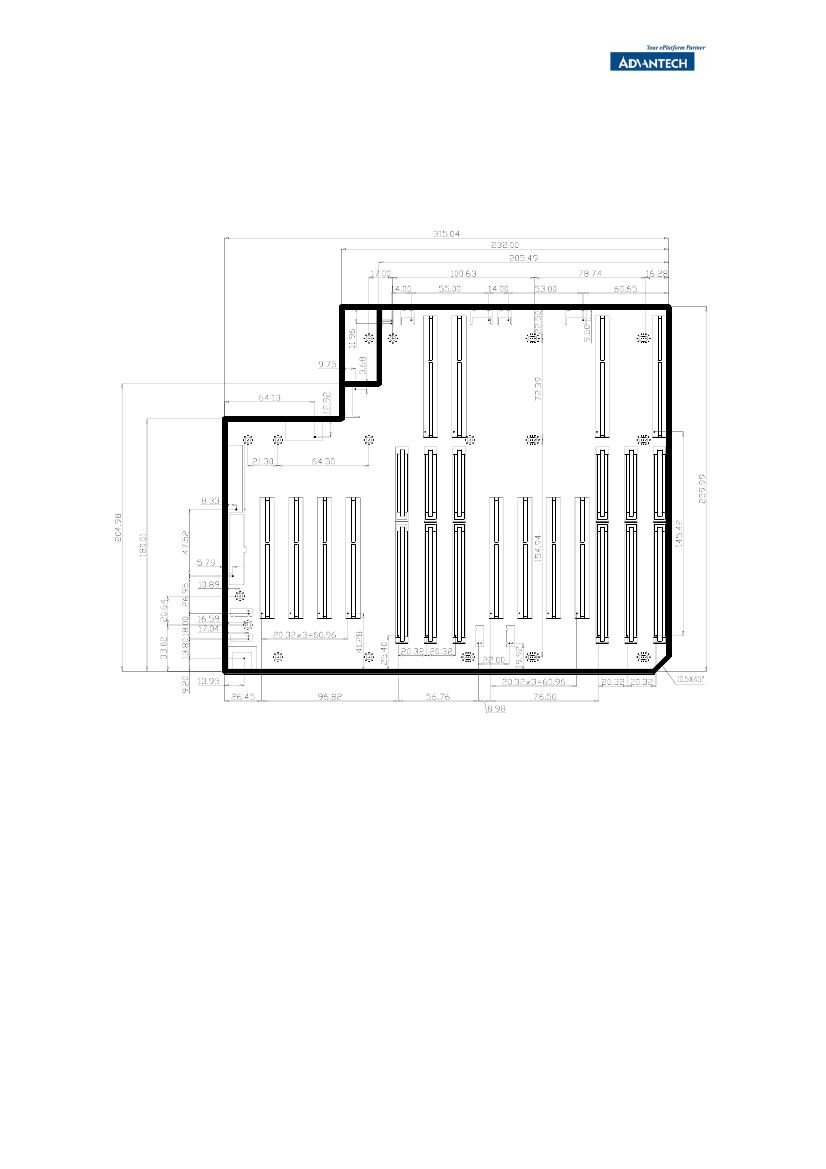

5. Mechanical Dimension
6. Note
*
Support for 3.3V PCI card when ATX power supply is used
*
No 3.3V is available when AT power supply is used.
