10/100/1000 Mbps Ethernet Media Converter
iMcV-Giga-MediaLinX
• Available for multi-mode or single-mode fiber including SFP form factor
• Double fiber capacity with single-strand fiber versions
• Modular, hot-swappable architecture reduces operational costs
associated with product installation, upgrades and maintenance
• SNMP Manageable
• Converts 10,100 or 1000 Mbps Copper to 1000 Mbps Fiber
• Supports Configuration Control
• Features Link Fault Pass-Through (SFP model)
PrOdUCt fEatUrES
Satisfying today’s networking needs while preparing for tomorrow’s
cabling requirements can make designing and installing the physical
layer of networks a daunting task. The decreasing cost of fiber optic
cabling and switching equipment makes all-optical LANs the obvious
choice when future-proofing network equipment. Replacing legacy
equipment and wiring infrastructure is a costly choice. Managed media
conversion allows implementation of new technologies on existing
networks, while monitoring all connections, to keep networks running
and up-to-date.
B+B SmartWorx offers a wide range of SNMP-managed Ethernet
copper to fiber media converters, with a choice of fixed rate or
rate conversion capabilities. The “iMcV-“ modules also include
troubleshooting features and LEDs to assist in network diagnostics as
well as make isolating cable breaks easier. The iMcV-Giga-MediaLinX
features Link Fault Pass-Through. In addition, support for Config
Control, included only on the SFP model, is available if using SNMP
management.
All converters feature an RJ-45 copper port and a fiber port, with a
choice of SC or SFP connectors, and are hot-swappable. An SFP-form
factor is also available, providing more flexibility.
Rate converters employ Auto Negotiation functionality on the twisted
pair port for plug-and-play operation, or they can be manually
configured for the desired speed and duplex mode.
OrdEring infOrMatiOn
Model
Fiber raNge
etherNet etherNet
Fiber
NuMber
Ports
Ports
CoNNeCtor
iMcV-giga-MedialinX tX/sFP with lFPt and Config Control
856-15410
TX/SFP
1
Various
1
RJ-45
iMcV-giga-MedialinX tX/lX or sX 10/100/1000 Mbps with (lFPt) and
Config Control
856-11959 SX-MM850-ST
1
220/550 m 1
RJ45
856-11950 SX-MM850-SC
1
220/550 m 1
RJ45
856-11951 LX-SM1310-SC
1
10 km
1
RJ45
856-11952 LX-SM1310/PLUS-SC
1
40 km
1
RJ45
856-11953 LX-SM1550/LONG-SC
1
80 km
1
RJ45
856-11958 LX-SM1550/XLONG-SC 1
100 km
1
RJ45
siNgle straNd Fiber *
856-11940 SSLX-SM1310-SC
1
10 km
1
RJ45
(1310xmt/1550rcv)
856-11941 SSLX-SM1550-SC
1
10 km
1
RJ45
(1550xmt/1310rcv)
SSBX-SM1310-SC
856-11933 (1310xmt/1490rcv)
1
10 km
1
RJ45
856-11935 SSBX-SM1490-SC
1
10 km
1
RJ45
(1490xmt/1310rcv)
856-11942 SSLX-SM1310/PLUS-SC 1
40 km
1
RJ45
(1310xmt/1550rcv)
856-11943 SSLX-SM1550/PLUS-SC 1
40 km
1
RJ45
(1550xmt/1310rcv)
SSBX-SM1310/PLUS-SC
856-11937 (1310xmt/1490rcv)
1
30 km
1
RJ45
856-11939 SSBX-SM1490/PLUS-SC 1
30 km
1
RJ45
(1490xmt/1310rcv)
856-11954 SSLX-SM1490/LONG-SC 1
70 km
1
RJ45
(1490xmt/1550rcv)
856-11955 SSLX-SM1550/LONG-SC 1
70 km
1
RJ45
(1550xmt/1490rcv)
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B+B IMC LLC single-strand fiber product.
iMcV-Giga-MediaLinX 10/100/1000Mbps also available in
CWDM Fiber. Call for details.
iView: Windows 2000/XP/Vista/Win7
www.bb-smartworx.com
|
Enabling connEctEd intElligEncE
iMcV-Giga-MediaLinX_1915ds
10/100/1000 Mbps Ethernet
Media Converter
iMcV-Giga-MediaLinX
SpecificationS
Technical
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T twisted pair
IEEE 802.3z 1000Base-LX or SX fiber
Supports packets up to 1632 bytes
Connectors: RJ-45 and ST, SC, LC or SFP
IEEE 802.3x Flow Control
AutoCross for MDI/MDIX
Features LinkLoss and FiberAlert
Features Link Fault Pass-Through (LFPT)
Features Auto Negotiation and Selective Advertising
Layer 2 packet switching, store and forward operation
Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps for 100 Mbps; 1,488,100
pps for 1000 Mbps (Gig only)
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Available for single-strand fiber
Installs in any iMediaChassis or MediaChassis
Supports GUI-Based iView²
Supports Half- and Full-Duplex operation
Includes diagnostic LEDs
Includes hot-swappable architecture

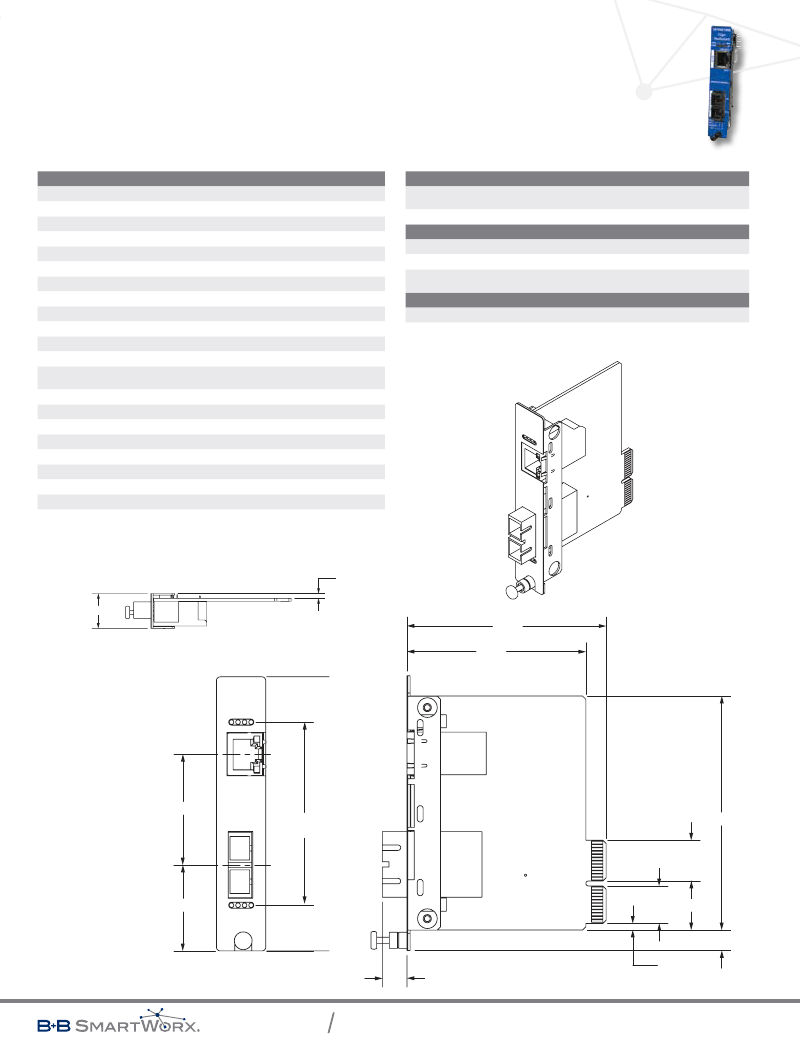

MEChaniCal diagraM
(dimensions in inches )
.11
Mechanical
Dimensions
Shipping Weight
environMental
Operating Temperature:
Storage Temperature:
Operating Humidity
regulatory approvals
FCC Class B
CE
4.19”H x 0.78”W x 2.75”D
(10.74 x 2 x 7.05 cm)
0.30 lbs (.11 kg)
+32° to +122° F (0° to +50° C)
-13° to +158° F (-25° to +70° C)
5% to 95% (non-condensing),
0 – 10,000 ft. altitude
.76
3.04
2.73
1.69
2.80
4.19
3.57
.62
1.31
.70
.57
.75
.31
.38
orders@bb-smartworx.com
support@bb-smartworx.com
.10
International Office:
707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
