UDN5744M datasheet, PDF - EEWORLD Datasheet

UDN5744M: DescriptionDUAL PERIPHERAL POWER DRIVERS TRANSIENT PROTECTED OUTPUTS; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size435KB，6 Pages; ManufacturerAllegro; Websitehttp://www.allegromicro.com/

Download Datasheet Parametric Compare View All

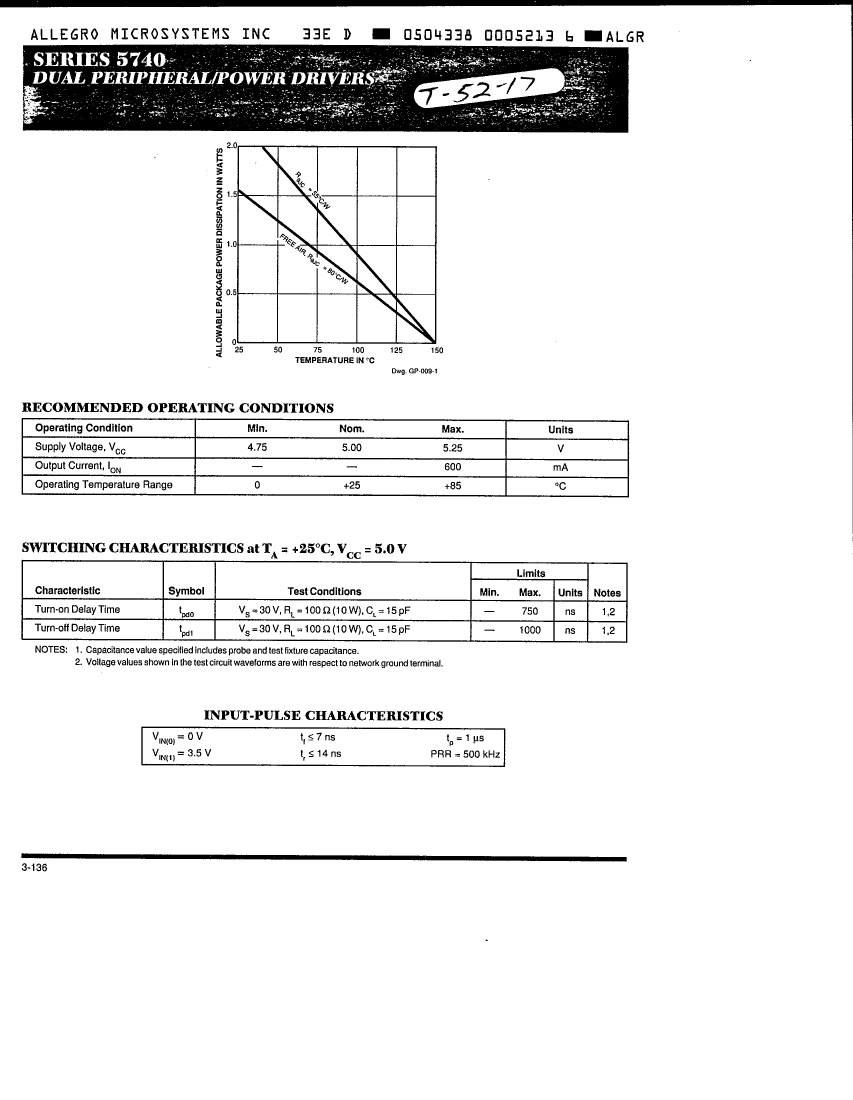

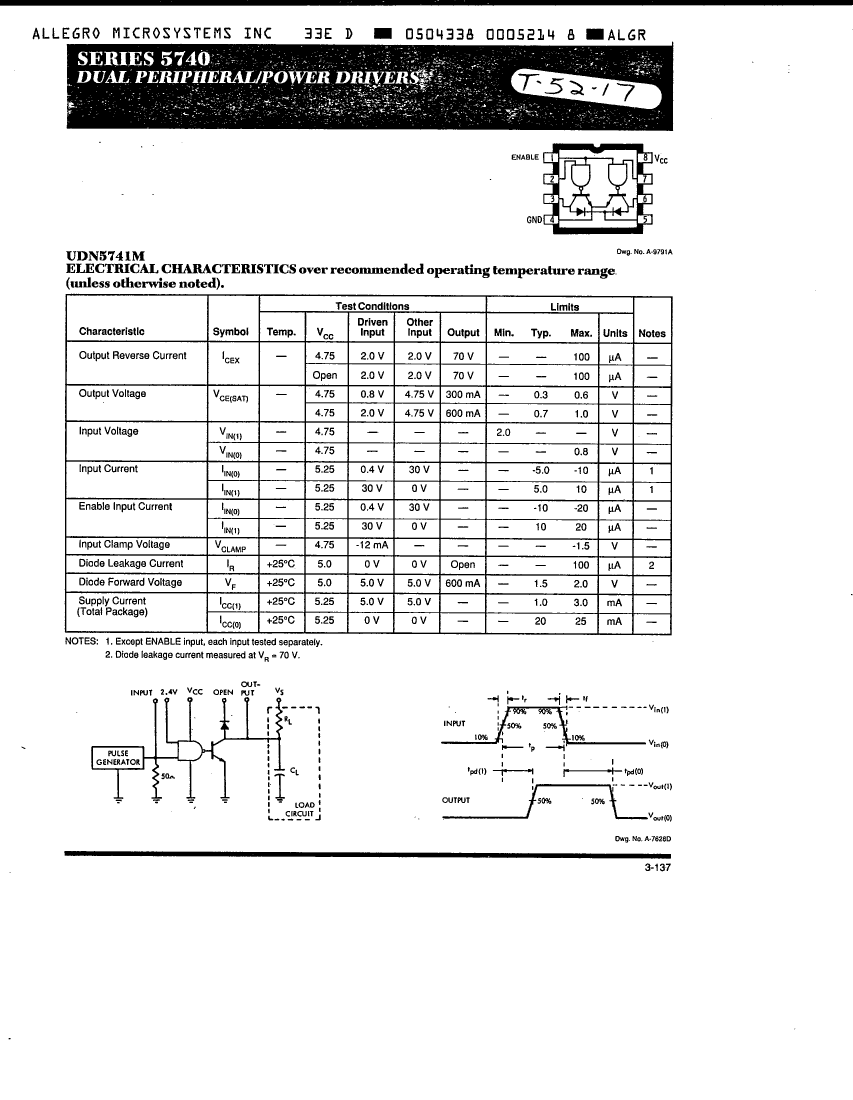

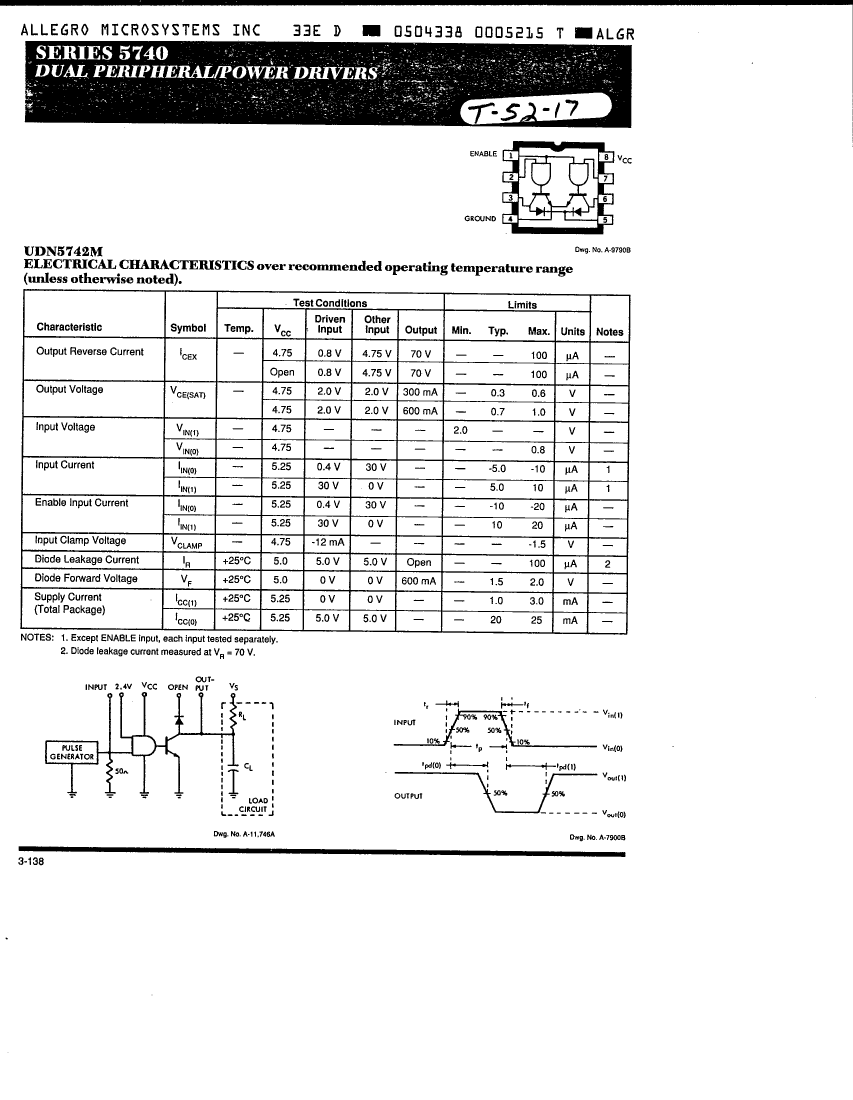

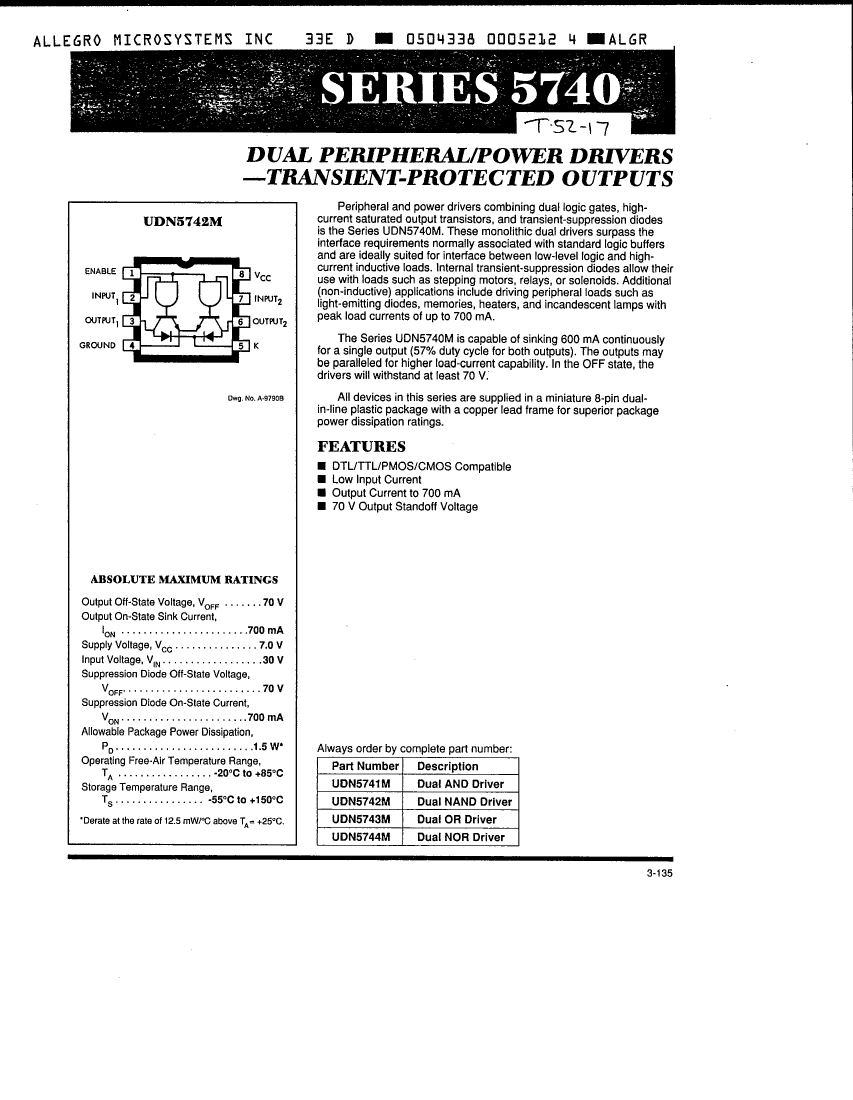

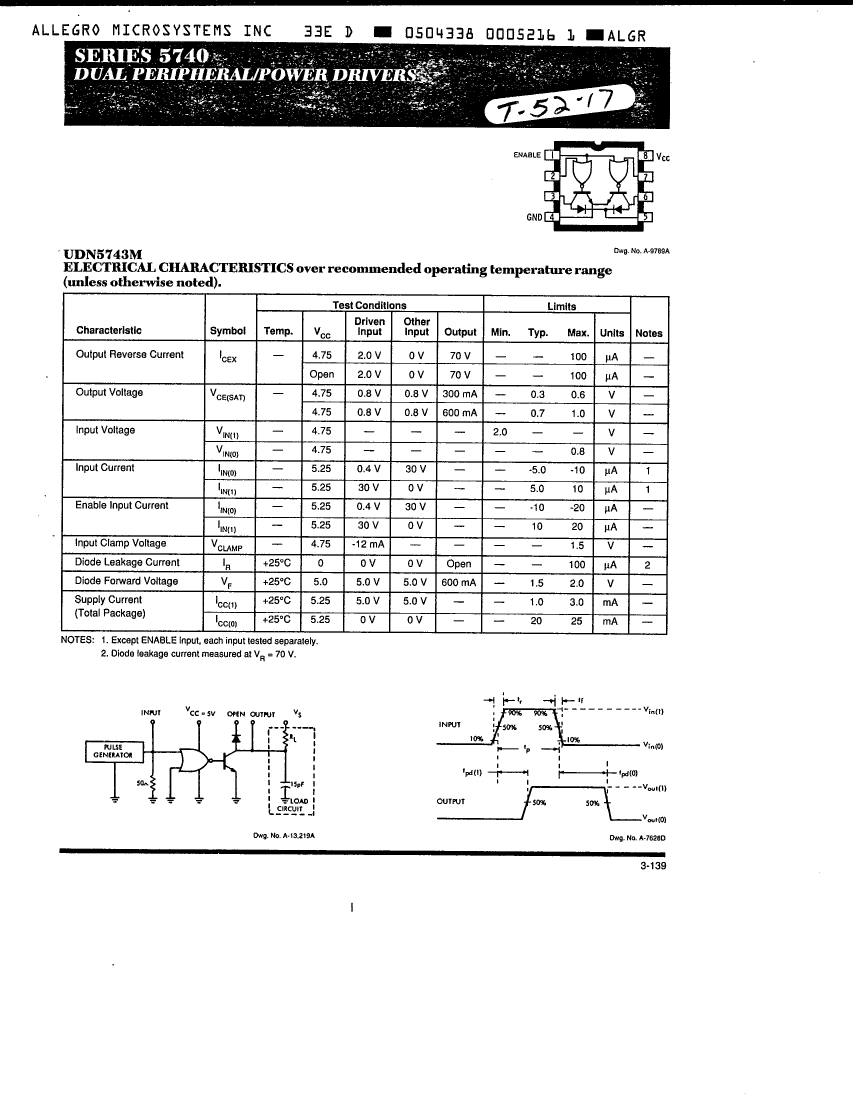

UDN5744M Overview

DUAL PERIPHERAL POWER DRIVERS TRANSIENT PROTECTED OUTPUTS

Parameter Name	Attribute value
Maker	Allegro
Parts packaging code	DIP
package instruction	DIP,
Contacts	8
Reach Compliance Code	unknow
ECCN code	EAR99
Built-in protection	TRANSIENT
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDIP-T8
length	9.88 mm
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature
Output current flow direction	SINK
Nominal output peak current	0.6 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.33 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Disconnect time	1 µs
connection time	0.75 µs
width	7.62 mm

	UDN5744M	UDN5743M	UDN574x
Description	DUAL PERIPHERAL POWER DRIVERS TRANSIENT PROTECTED OUTPUTS	DUAL PERIPHERAL POWER DRIVERS TRANSIENT PROTECTED OUTPUTS	DUAL PERIPHERAL POWER DRIVERS TRANSIENT PROTECTED OUTPUTS
Maker	Allegro	Allegro	-
Parts packaging code	DIP	DIP	-
package instruction	DIP,	DIP,	-
Contacts	8	8	-
Reach Compliance Code	unknow	unknow	-
ECCN code	EAR99	EAR99	-
Built-in protection	TRANSIENT	TRANSIENT	-
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	-
JESD-30 code	R-PDIP-T8	R-PDIP-T8	-
length	9.88 mm	9.88 mm	-
Number of functions	2	2	-
Number of terminals	8	8	-
Maximum operating temperature	85 °C	85 °C	-
Output current flow direction	SINK	SINK	-
Nominal output peak current	0.6 A	0.6 A	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	DIP	DIP	-
Package shape	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE	IN-LINE	-
Certification status	Not Qualified	Not Qualified	-
Maximum seat height	5.33 mm	5.33 mm	-
Maximum supply voltage	5.25 V	5.25 V	-
Minimum supply voltage	4.75 V	4.75 V	-
Nominal supply voltage	5 V	5 V	-
surface mount	NO	NO	-
Temperature level	OTHER	OTHER	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	2.54 mm	2.54 mm	-
Terminal location	DUAL	DUAL	-
Disconnect time	1 µs	1 µs	-
connection time	0.75 µs	0.75 µs	-
width	7.62 mm	7.62 mm	-
