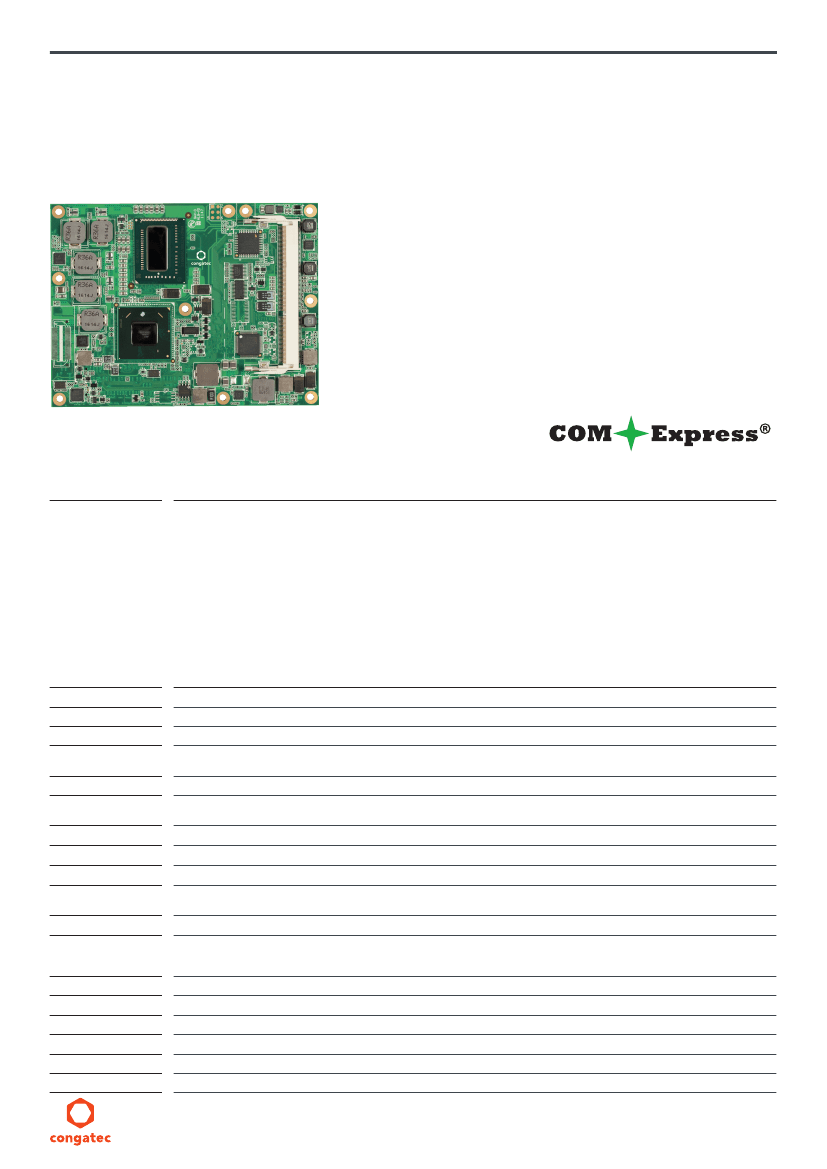

HIGHEST PERFORMANCE

conga-TS77

Highest Performance COM Express Type 6

3rd Generation Intel

Core

™

processor-based platform

Better transcode HD-HD, HD Video Conferencing

Improved Graphics Performance, DirectX

Formfactor

CPU

COM Express

™

Basic | (95 x 125 mm) | Type 6 Connector Layout

Intel

Core

™

i7-3615QE

Intel

Core

™

i7-3612QE

Intel

Core

™

i7-3555LE

Intel

Core

™

i7-3517UE

Intel

Core

™

i5-3610ME

Intel

Core

™

i3-3120ME

Intel

Core

™

i3-3217UE

Intel

Celeron

847E

Intel

Celeron

827E

Intel

Celeron

1020E

Intel

Celeron

1047UE

Intel

Celeron

927UE

4x 2.3 GHz

4x 2.1 GHz

2x 2.5 GHz

2x 1.7 GHz

2x 2.7 GHz

2x 2.4 GHz

2x 1.6 GHz

2x 1.1 GHz

1x 1.4 GHz

2x 2.2 GHz

2x 1.4 GHz

1x 1.5 GHz

6 MB Cache

4 MB Cache

3 MB Cache

2 MB Cache

1.5 MB Cache

2 MB Cache

1 MB Cache

TDP 45 W

TDP 35 W

TDP 25 W

TDP 17 W

TDP 35 W

TDP 17 W

TDP 35 W

TDP 17 W

Intel

Turbo Boost Technology 2.0 | Intel

Hyper-Threading Technology | Integrated dual channel memory controller | up to 25.6 GByte/sec.

memory bandwidth | Integrated Intel

HD Graphics 4000 with dynamic frequency up to 1.0GHz | Intel

Clear Video HD Technology

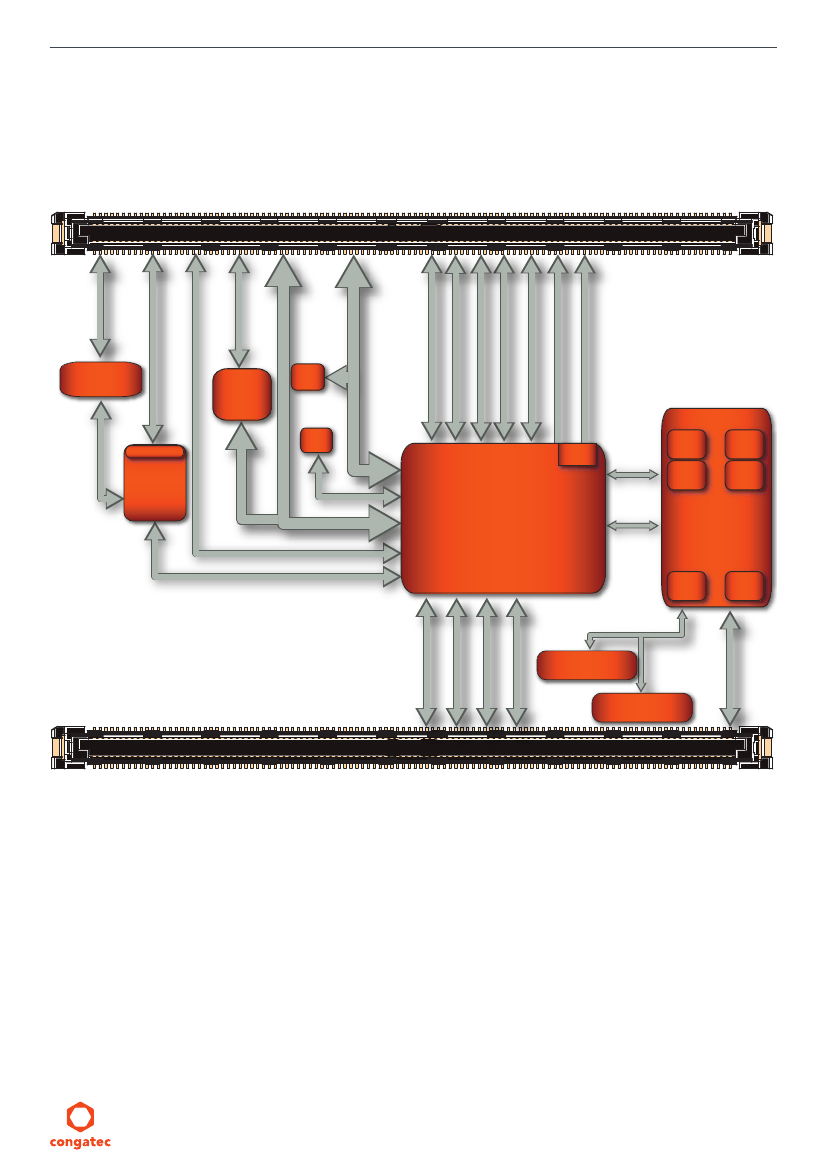

DRAM

Chipset

Ethernet

I/O Interfaces

Sound

Graphics

LVDS

Digital Display Interface

CRT Interface

congatec Board Controller

Embedded BIOS Features

Security

2 Sockets | SO-DIMM DDR3 up to 1600MT/s and 16 GByte

Mobile Intel

7 Series Chipset: Intel

BD82QM77 PCH (Intel

BD82HM76 PCH for Intel

Celeron

equipped modules)

Intel

82579 GbE LAN Controller with AMT 8.0 support

7x PCI Express

™

GEN. 2.0 lanes | 1x PEG GEN 3.0 (8GT/s) | 2x Serial ATA

with 6 Gb/s | 2x Serial ATA

with 3 Gb/s | RAID 0/1/5/10 support

2x ExpressCard

| 4x USB 3.0 (XHCI) | 8x USB 2.0 (EHCI) | LPC bus | I²C bus (fast mode / 400 kHz / multi-master)

Digital High Definition Audio Interface with support for multiple audio codecs

Intel

Flexible Display Interface (FDI) | OpenCL 1.1 | OpenGL 3.1 and DirectX11 support | Three simultaneous independet displays | High

performance hardware MPEG-2 decoding | WMV9 (VC-1) and H.264 (AVC) support Blu-ray support @ 40 MBit/s | hardware motion compensation

Dual channel LVDS transmitter | Supports flat panels 2x24 Bit interface | VESA mappings | resolutions up to 1920x1200 | Automatic Panel Detection via EDID/EPI

1x SDVO / DisplayPort 1.1 / TMDS (DVI / HDMI) | 2x DisplayPort 1.1 / TMDS (DVI / HDMI)

340.4 MHz RAMDAC | resolutions up to QXGA (2048x1536 @75Hz)

Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | BIOS Setup Data Backup

I²C bus (fast mode / 400 kHz / multi-master) | Power Loss Control

AMI Aptio

UEFI 2.x firmware | 8 MByte serial SPI firmware flash

The conga-TS77 can be optionally equipped with a discrete ”Trusted Platform Module” (TPM). It is capable of calculating efficient hash and

RSA algorithms with key lengths up to 2,048 bits and includes a real random number generator. Security sensitive applications such as gaming and

e-commerce will benefit also with improved authentication | integrity and confidence levels.

ACPI 4.0 with battery support

Microsoft

Windows 8 | Microsoft

Windows 7 | Linux | Microsoft

Windows

embedded Standard

Typ. application: tbd. | see manual for full details | CMOS Battery Backup

Operating: 0 .. +60°C | Storage: -20 .. +80°C

Operating: 10 - 90% r. H. non cond. | Storage: 5 - 95% r. H. non cond.

95 x 125 mm (3.74” x 4.92”)

Power Management

Operating Systems

Power Consumption

Temperature

Humidity

Size

www.congatec.com
