AM6012ACWP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> AM6012ACWP

AM6012ACWP: DescriptionD/A Converter, 1 Func, CDSO20; CategoryAnalog mixed-signal IC converter; File Size696KB，8 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

AM6012ACWP Overview

D/A Converter, 1 Func, CDSO20

AM6012ACWP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	SOIC
Contacts	20
Reach Compliance Code	_compli
Converter type	D/A CONVERTER
Enter bit code	BINARY, COMPLEMENTARY BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY, 1\'S COMPLEMENT BINARY, MODIFIED 1\'S COMPLEMENT BINARY
JESD-30 code	R-XDSO-G20
JESD-609 code	e0
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	+-15 V
Certification status	Not Qualified
Nominal supply voltage	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

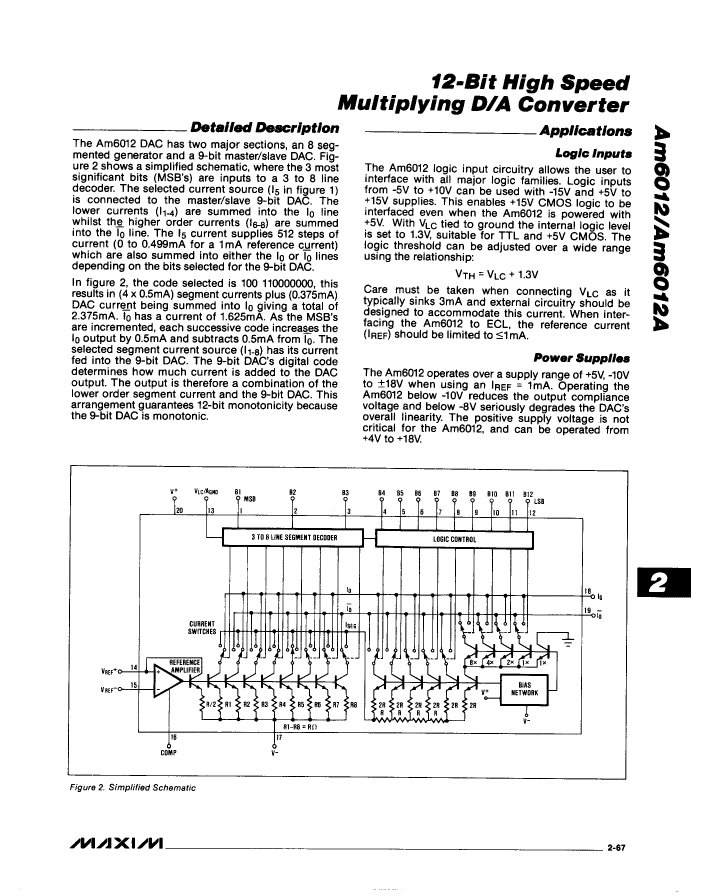

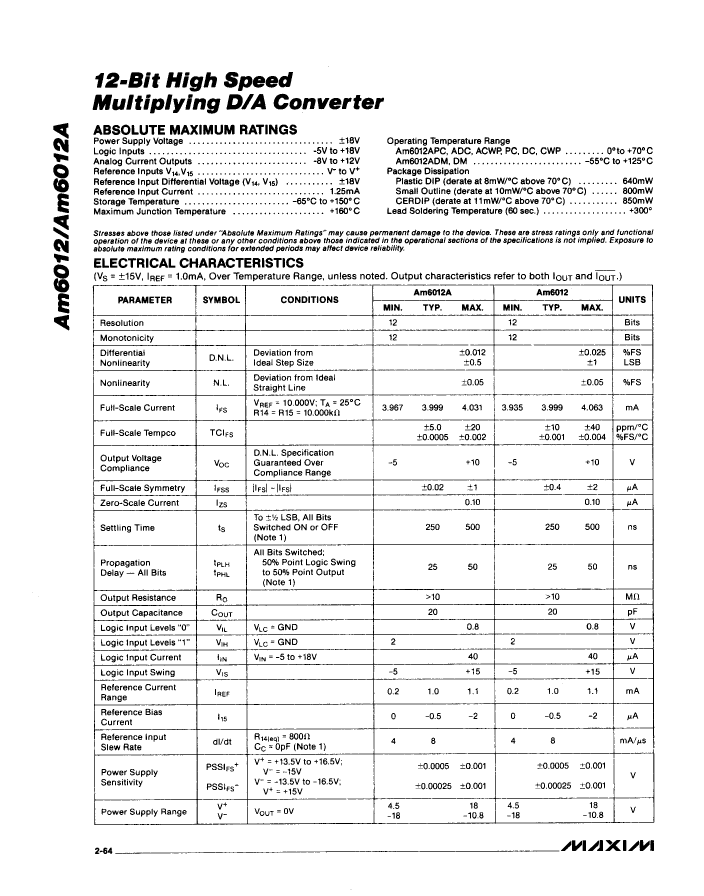

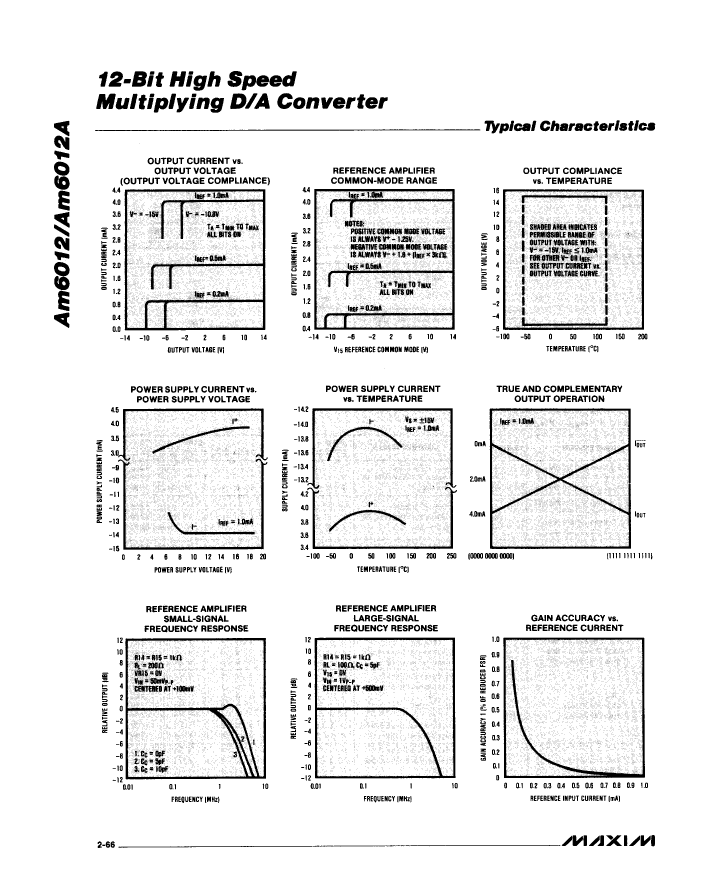

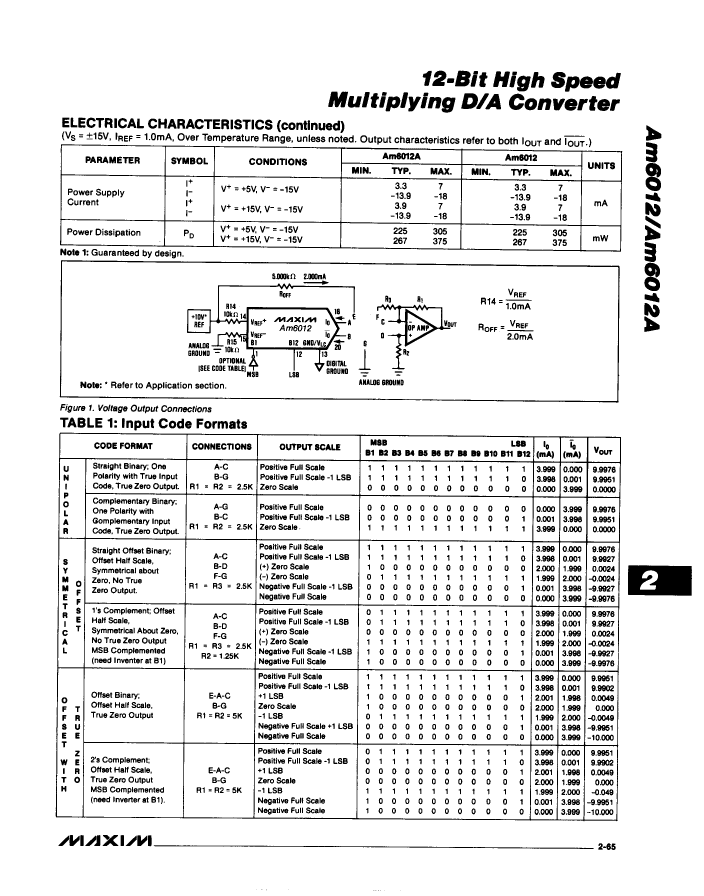

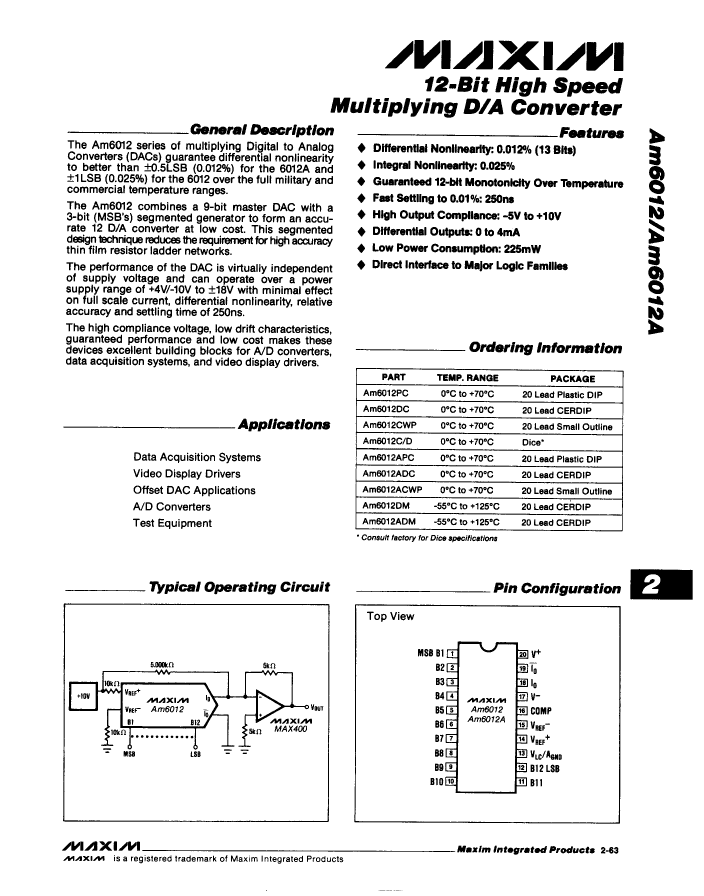

Preview

Download Datasheet

View All

AM6012ACWP Related Products

	AM6012ACWP	AM6012ADC	AM6012APC	AM6012PC	AM6012ADM	AM6012DC	AM6012DM	AM6012C/D	AM6012CWP
Description	D/A Converter, 1 Func, CDSO20	D/A Converter, 1 Func, CDIP20	D/A Converter, 1 Func, PDIP20	D/A Converter, 1 Func, PDIP20,	D/A Converter, 1 Func, CDIP20	D/A Converter, 1 Func, CDIP20,	D/A Converter, 1 Func, CDIP20	D/A Converter, 1 Func	D/A Converter, 1 Func, PDSO20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim
Parts packaging code	SOIC	DIP	DIP	DIP	DIP	DIP	DIP	DIE	SOIC
Contacts	20	20	20	20	20	20	20	12	20
Reach Compliance Code	_compli	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, COMPLEMENTARY BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY, 1\'S COMPLEMENT BINARY, MODIFIED 1\'S COMPLEMENT BINARY	BINARY, COMPLEMENTARY BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY, 1\'S COMPLEMENT BINARY, MODIFIED 1\'S COMPLEMENT BINARY	BINARY, COMPLEMENTARY BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY, 1\'S COMPLEMENT BINARY, MODIFIED 1\'S COMPLEMENT BINARY	BINARY, COMPLEMENTARY BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY, 1\'S COMPLEMENT BINARY, MODIFIED 1\'S COMPLEMENT BINARY	BINARY, COMPLEMENTARY BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY, 1\'S COMPLEMENT BINARY, MODIFIED 1\'S COMPLEMENT BINARY	BINARY, COMPLEMENTARY BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY, 1\'S COMPLEMENT BINARY, MODIFIED 1\'S COMPLEMENT BINARY	BINARY, COMPLEMENTARY BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY, 1\'S COMPLEMENT BINARY, MODIFIED 1\'S COMPLEMENT BINARY	BINARY, COMPLEMENTARY BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY, 1\'S COMPLEMENT BINARY, MODIFIED 1\'S COMPLEMENT BINARY	BINARY, COMPLEMENTARY BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY, 1\'S COMPLEMENT BINARY, MODIFIED 1\'S COMPLEMENT BINARY
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	12	12	12	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	125 °C	70 °C	125 °C	70 °C	70 °C
Encapsulate equivalent code	SOP20,.4	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIE OR CHIP	SOP20,.4
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL
JESD-30 code	R-XDSO-G20	R-XDIP-T20	R-PDIP-T20	R-PDIP-T20	R-XDIP-T20	R-XDIP-T20	R-XDIP-T20	-	R-PDSO-G20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	-	e0
Number of terminals	20	20	20	20	20	20	20	-	20
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	-	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	DIP	DIP	DIP	DIP	-	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	-	SMALL OUTLINE
surface mount	YES	NO	NO	NO	NO	NO	NO	-	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL
