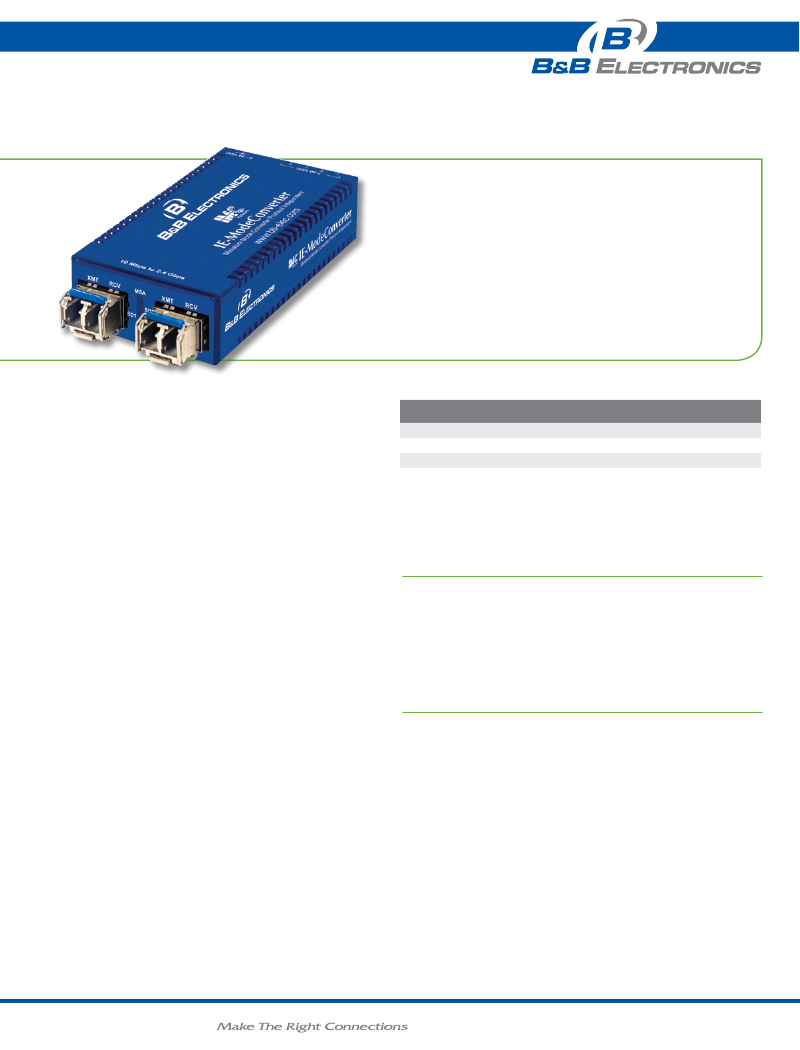

protocol-Independent, Fiber mode conversion
via sFp modules
IE-ModeConverter
product FEaturEs
• Interchangeable SFP modules allow for multiple fiber mode/type
conversion options (single-mode, multi-mode, long haul, short haul, etc.)
• Extended operating temperatures
• Multiple mounting options (Desktop, DIN Rail, IE-PowerTray/18-AC
[for high-density installations])
• Compact size conserves space
• AC or DC powering options
• Supports a full range of fiber SFP Modules in various transmission
speeds, from 10 Mbps up to 2.4 Gbps*
• Wallmount Bracket
Mode converters allow network operators to incorporate multiple
fiber types within a network. The IE-ModeConverter provides the
ability to accomplish this by working with existing equipment and
thus, eliminating replacement costs. With the flexibility to convert
fiber between single-mode, multi-mode, single-strand and various
wavelengths, one can easily extend network range to reach more
remote locations. Additionally, since the IE-ModeConverter is an
Industrial Equipment device (IE), the unit operates in environments that
demand extended operating temperatures.
The IE-ModeConverter uses SFP modules to provide greater fiber
flexibility in the network environment. The hot-swappable nature of
the SFPs and the numerous fiber modes and types available allow for
easy configuration and future upgrading as network demands evolve.
The SFP modules must be MSA compliant and support the same speed
range. The IE-ModeConverter operates as a mode converter only and
not as a rate or media converter.
ordErIng InFormatIon
Model
desCriPtion
FiBer Ports
nuMBer
ie-ModeConverter sFP/sFP with aC adapter **
855-19619
SFP
2
ie-ModeConverter sFP/sFP without aC adapter **
854-19619
SFP
2
* Certified at 1.25 Gbps, 2.4 Gbps is achievable
** SFP fibers sold separately
distanCe
Various
Various
accEssorIEs
806-39105
- DIN Rail Clip
806-39638
- Double-USB Power Cable, 36”/.9m
806-39650
- 12”/.3m Barrel-Connector Power Cable
850-13086
- IE-PowerTray/18-AC (-20°C to +70°C), 18-slot AC powered chassis
895-39229
- Wall Mount Bracket
www
.
bb
-
elec
.
com
|
IE-ModeConverter_3713ds
protocol-Independent, Fiber mode
conversion via sFp modules
IE-ModeConverter
SpecificationS
Technical
Two SFP ports
Protocol-independent operation
Converts between dissimilar fiber modes and wavelengths
Includes diagnostic LEDs
Hot-swappable architecture
Small Form Factor
7 VDC to 50 VDC terminal block powering option
Supports an external 5 VDC power module (not extended temperature)
Extended temperature range from -10° to +50° C
Compatible with IMC Networks SFPs and all standard MSA compliant SFP
transceivers
Supports DIN Rail mounting
DC terminal block has dual inputs and supports cascading power
Standard Compliance
SFP-MSA SFP standard (September 14, 2000)
SFF-8472 DDMI standard (Revision 1.0)

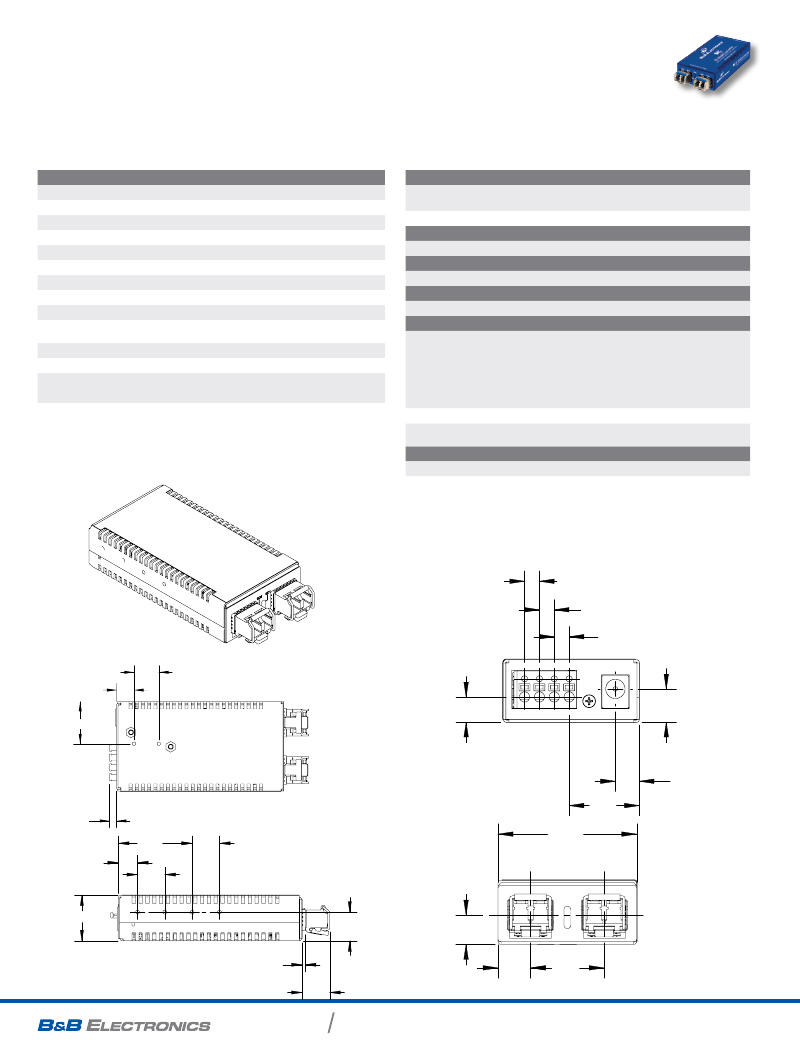

mEchanIcal dIagram
(dimensions in inches)
Mechanical
Dimensions
0.83”H x 1.80”W x 3.35”D
(2.11 x 4.57 x 8.51 cm)
0.25 lbs (0.11 kg)
Shipping Weight
ac wall adapter
100 to240 ±10% VAC input, 5 VDC output, 2A max.
dc input Voltage
+7 to +50 VDC @ 2.5 Watts (chassis grounded to negative terminal)
power
Maximum 3.3 Watts of combined power to both SFPs
enVironMental
-13°F to +185°F (-25°C to +85°C)
Operating Temperature:
DC configuration
-4°F to +158°F (-20°C to +70°C)
DIN Railmount power supply
+14°F to +122°F (-10°C to +50°C)
with AC wall adapter
Storage Temperature:
-49°F to +185°F (-45°C to +85°C)
5% to 95% (non-condensing),
Operating Humidity
0 – 10,000 ft. altitude
regulatory approVals
FCC Class A
UL/cUL, CSA, CE
