COM-1289
PC/104 Tri-Band GPRS/GSM-R & 12-Ch GPS Receiver Board
Features
General Features:
• Siemens 900/1800/1900MHz MC55 GPRS modem
(or as option: Selex RGM101 GSM-R with onboard or
external SIM-card interface)
• 12-channel low power Fastrax iTrax03 GPS with NMEA
and Binary protocols, +3.3V antennas
• Two available free 16C550 compatible RS-232/RS422/
RS485 serial ports, two serial ports used by GPRS and
GPS
• Audio I/O port for headset
• Two status LEDs indicating GPS status
• Jumperless configuration (addresses and IRQs)
• Setup stored on EEPROM
• Antenna starter kits available:
– ACS-9110-00 (3-band GSM antenna kit)
Refer to Technical Datasheet Td0019
– ACS-9111-00 (GPS antenna kit)
Refer to Technical Datasheet Td0006

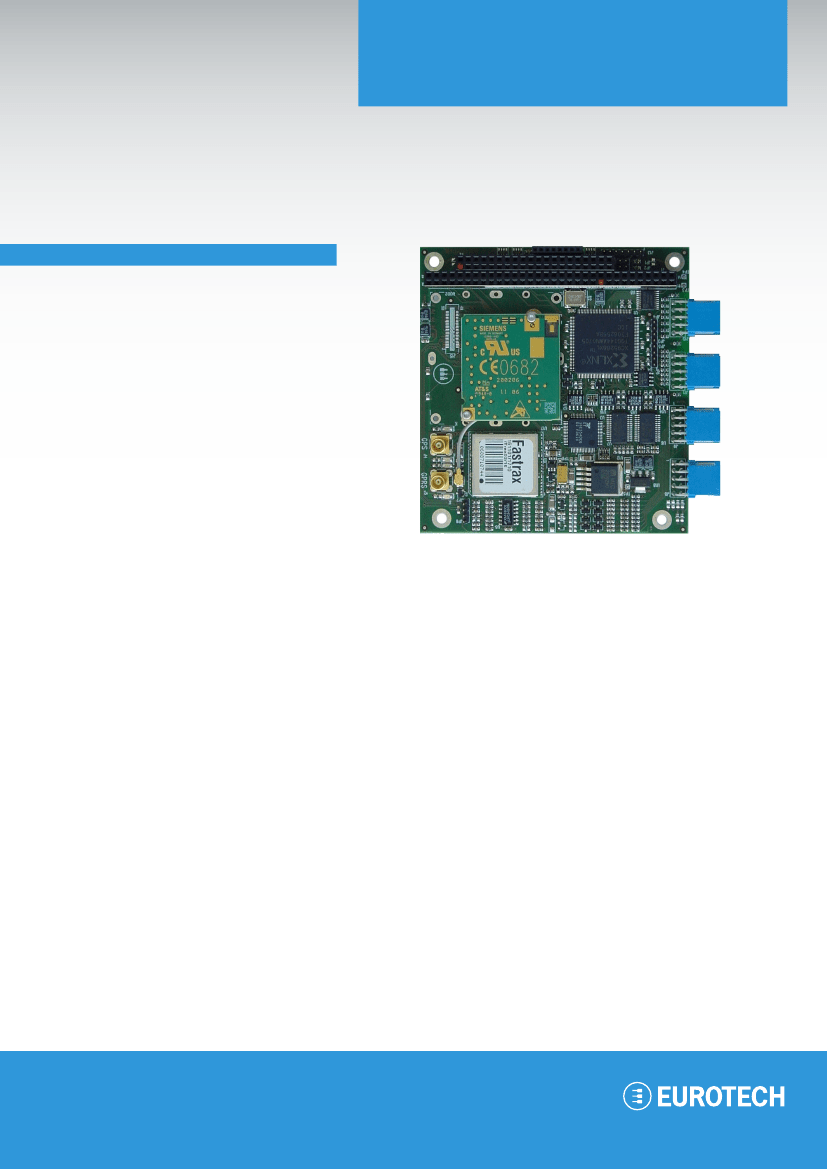

The Eurotech COM-1289 integrates
GSM/GPRS
(optionally GSM-R) wireless cellular
connectivity and a low power GPS receiver within a PC/104 module. This low power
integrated telematics board is the ideal choice for onboard computing applications
requiring GPRS roaming across three continents and precise GPS positioning.
A standard SIM-card can be installed onboard into a locking card holder, or onto an
external SIM card carrier.
The COM-1289 is available with the Fastrax iTrax03 12-channel GPS receiver and the
Siemens MC55 GSM/GPRS modem, or as option the Selex RGM101 GSM-R modem.
GSM-R is widely used in rail and rolling stock system devices throughout Europe and
Asia.
Onboard features include a 4-channel 16C550 compatible UART with two multistandard
RS-232/422/485 serial ports are free for other devices, while two ports are reserved for
the onboard cellular GPRS modem and GPS receiver. Board configuration is performed
in software eliminating banks of configuration, interrupt and base address jumpers.
The setup information is stored in a non volatile EEPROM that is loaded upon power-up.
Reconfiguring your COM-1289 is easy even after the system is completely assembled.
The board supports full interrupt sharing for all the serial ports.
RoHS:
• Fully RoHS (2002/95/CE) Compliant.
Supported Operating Systems:
• Windows CE®
• Linux®
COM-1289
Main GPS Features
• Fastrax iTrax03 12-channel low power GPS receiver
• L1 frequency, C/A code (SPS)
• Update rate: 1fix/s (user configurable up to 3 Hz)
• Accuracy:
– Position: 1.2m (CEP95)
– Velocity: 0.1m/s
– Time: 20ns rms (static mode)
• Reacquisition: 100ms (typical)
• Tracking sensitivity: -156 dBm
• Support for +3.3 active & passive external antennas
• Protocols: NMEA-0183 and proprietary iTalk™ binary protocol
Physical Characteristics
DIMENSIONS
HEIGHT
POWER SUPPLY
POWER CONSUMPTION
90 x 96 mm (3.6” x 3.8”)
15 mm (0.6”)
Single +5V DC +/- 5%
1.1 W (idle)
3.2 W (peak)
OPERATING TEMPERATURE
-20 ~ + 55°C (for GPRS)
-40 ~ + 85°C (for GPS)
HUMIDITY
Up to 95% non-condensing
Options
• Conformal coating
Main GPRS Features
• Siemens MC55 900/1800/1900MHz
• Onboard or external 3V SIM card
• GPRS downlink data rate up to 85,6kbps
• 14,4kbps GSM data, group 3, class 2 fax services
• SMS and SMS cell broadcast
• GPRS mobile station class B and GPRS multi slot class 10 compliance
• WAP and MMS compliant
• Output power class 4 (2W) at 900MHz and class 1 (1W) at 1800/1900MHz
• Selex RGM101 GSM-R radio modem
Typical Applications
• Vehicle and mobile computers
• Wireless Mobile Access Routers - MAR
• Telematics systems, onboard computing
• GSM-R Rail communication systems
• Fleet management
• Remote data acquisition and telemetry
Main GSM-R Features (optional)
• Selex RGM101 GSM-R module
• Onboard or external 3V SIM card
• GPRS features:
– Multi-slot capabilities: 4+1 max (class8)
– Coding: CS1, CS2, CS3, CS4
• Output power:
– class 4 (2W) GSM-R
– class 1 (1W) DCS
• Sensivity: -102 dBm
• Frequency Band:
UIC
UPLINK (MHz)
DOWNLINK (MHz)
876 - 880
921 - 925
E-GSM
880 - 915
925 - 960
DCS
1710 - 1715
1805 - 1880
About Eurotech
EuroTech delivers embedded computer systems for high capability and
low power applications, networking and wearable computing solutions,
and application framework middleware for multimedia, industrial,
transportation, medical, and wireless applications. EuroTech platforms
allow OEM and enterprise customers to focus on their core revenue-
generating products and services and get to market quickly.
ETH_COM-1289_DS071008
