RoHS Compliant
ATA Flash Drive 187-M
Specifications
September 4
th
, 2012
Version 1.0
Apacer Technology Inc.
th
4 Fl., 75 Hsin
Tai Wu
Rd., Sec.1, Hsichih, New Taipei City, Taiwan 221
Tel: +886-2-2698-2888
Fax: +886-2-2698-2889
www.apacer.com
ATA Flash Drive 187- M
AP-FD18C22BxxxxxS-XCM
Features:
Standard ATA/IDE bus interface
– ATA command set compatible
– ATA operating mode supports up to:
PIO Mode-4
Multiword DMA Mode-2
Ultra DMA Mode-6
Connector type
– 40-pin ZIF
Power consumption (typical)*
– Supply voltage: 3.3V
– Active mode: 495 mA
– Idle mode: 18 mA
Performance*
– Sustained read: Up to 100 MB/sec
– Sustained write: Up to 95 MB/sec
Capacity
– 8, 16, 32, 64, 128, 256 GB
NAND Flash Type:
MLC
*The values presented in Performance and Power consumption are typical and may vary depending on various settings and
platforms.
Temperature ranges
– Operation: 0° to 70°
C
C
– Storage: -40° to 100°
C
C
Flash management
– Intelligent endurance design
Advanced wear-leveling algorithms
S.M.A.R.T.
Built-in Hardware ECC: 72bit/1KB
– Power failure management
– Enhanced security level
ATA Secure Erase
Supports synchronous flash interface
RoHS compliant
1
© 2012 Apacer Technology Inc.
Rev. 1.0
ATA Flash Drive 187- M
AP-FD18C22BxxxxxS-XCM
Table of Contents
1. GENERAL DESCRIPTION ......................................................................................... 3
2. FUNCTIONAL BLOCK ............................................................................................... 3
3. PIN ASSIGNMENTS ................................................................................................... 4
4. PRODUCT SPECIFICATION ...................................................................................... 5
4.1 C
APACITY
.............................................................................................................................................. 5
4.2 P
ERFORMANCE
S
PECIFICATIONS
............................................................................................................. 5
4.3 E
NVIRONMENTAL
S
PECIFICATIONS
.......................................................................................................... 5
5. FLASH MANAGEMENT ............................................................................................. 6
5.1 I
NTELLIGENT
E
NDURANCE
D
ESIGN
.......................................................................................................... 6
5.1.1 Advanced wear-leveling algorithms .............................................................................................. 6
5.1.2 S.M.A.R.T. .................................................................................................................................... 6
5.1.3 Built-in Hardware ECC.................................................................................................................. 6
5.1.4 Flash Block Management ............................................................................................................. 6
5.2 P
OWER
F
AILURE
M
ANAGEMENT
.............................................................................................................. 7
5.3 E
NHANCED
S
ECURITY
L
EVEL
.................................................................................................................. 7
5.3.1 ATA Secure Erase ........................................................................................................................ 7
6. SOFTWARE INTERFACE ......................................................................................... 8
6.1 C
OMMAND
S
ET
...................................................................................................................................... 8
7. ELECTRICAL SPECIFICATION ................................................................................ 9
8. PHYSICAL CHARACTERISTICS ............................................................................ 10
9. PRODUCT ORDERING INFORMATION ................................................................. 11
9.1 P
RODUCT
C
ODE
D
ESIGNATIONS
........................................................................................................... 11
9.2 V
ALID
C
OMBINATIONS
.......................................................................................................................... 12
2
© 2012 Apacer Technology Inc.
Rev. 1.0
ATA Flash Drive 187- M
AP-FD18C22BxxxxxS-XCM
1. General Description
Apacer’s ATA-Flash Drive (AFD) is a high-performance, solid state drive (SSD) designed to replace a
conventional IDE hard disk drive. AFD supports standard ATA/IDE protocol and can be plugged into a
standard IDE connector commonly found in desktop or portable PCs. It is more rugged, reliable and
power-efficient compared to the mechanical hard drive and is designed for use in rugged laptops, military
devices, thin clients, Point of Sale (POS) terminals, telecom, medical instruments, surveillance systems
and industrials PCs. Apacer AFD Series is the best instant replacement for high-maintenance HDD where
reliability is a major concern.
AFD includes a built-in microcontroller and file management firmware that communicates through with the
ATA standard interfaces. AFD is designed to work at 3.3 Volts, support the standard ATA/IDE protocol up
to PIO Mode-4, Multiword DMA Mode-2, and Ultra DMA Mode-6 interfaces, and use a standard ATA
driver that fits to most of the mainstream operating systems.
Featuring technologies as Advanced Wear-leveling algorithms, S.M.A.R.T, Enhanced Data Integrity,
Power Failure Management, and ATA Secure Erase, the AFD device assures users of security in storage
applications.
2. Functional Block
The ATA-Flash Drive (AFD) includes the ATA controller and flash media, as well as the ATA standard
interface. Figure 2-1 shows the functional block diagram.

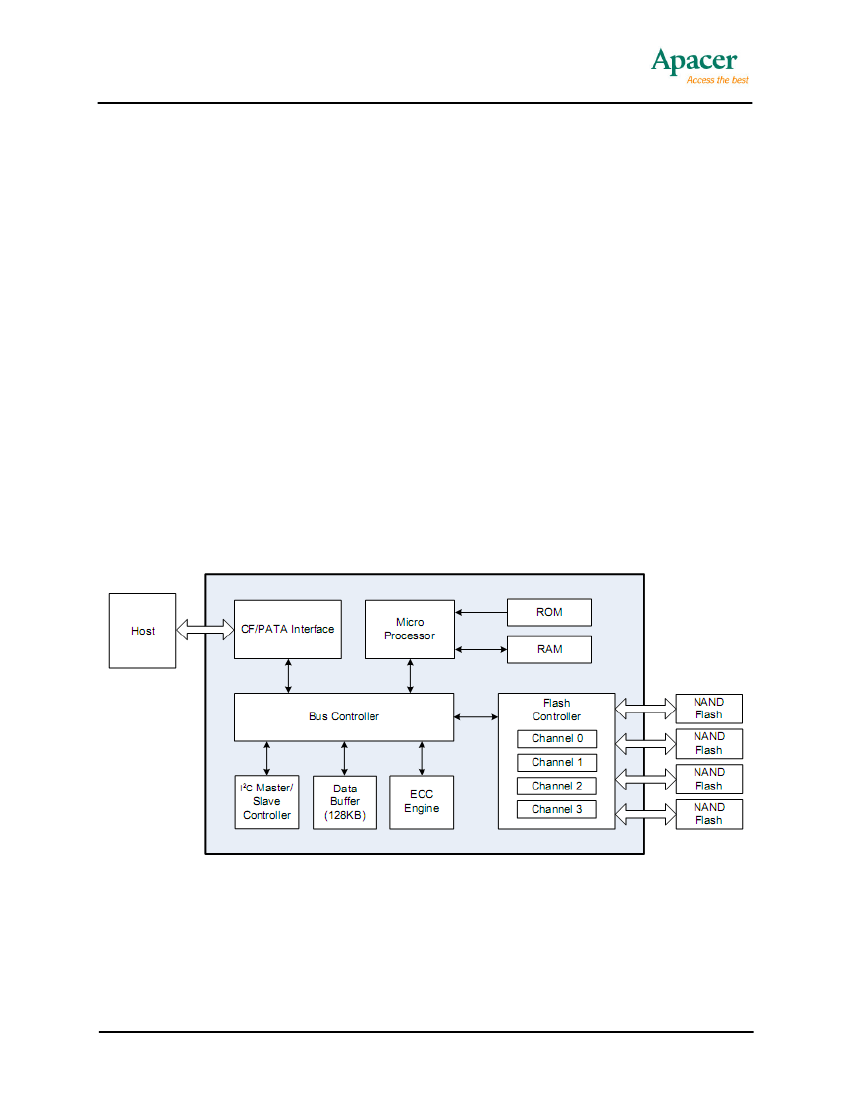

Figure 2-1:
ATA-Flash Drive functional block diagram
3
© 2012 Apacer Technology Inc.
Rev. 1.0
ATA Flash Drive 187- M
AP-FD18C22BxxxxxS-XCM
3. Pin Assignments
Table 3-1:
Pin assignments
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
SIGNALS
Reserved
Reserved
RESET#
GROUND
DD 7
DD 8
DD 6
DD 9
DD 5
DD 10
DD 4
DD 11
DD 3
DD 12
DD 2
DD 13
DD 1
DD 14
DD 0
DD 15
Pin #
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40*
SIGNALS
GROUND
DMARQ
GROUND
DIOW#
DIOR#
GROUND
IORDY
GROUND
DMACK#
INTRQ
A1
PDIAG#
A0
A2
CS0#
CS1#
DASP#
3.3V
3.3V
CSEL
*The pin is set as “Master”.
4
© 2012 Apacer Technology Inc.
Rev. 1.0
