Simplifying System Integration
TM
73S8009R
Demo Board User Manual
May 7, 2010
Rev. 1.2
UM_8009R_065
73S8009R Demo Board User Manual
UM_8009R_065
© 2010 Teridian Semiconductor Corporation. All rights reserved.
Teridian Semiconductor Corporation is a registered trademark of Teridian Semiconductor Corporation.
Simplifying System Integration is a trademark of Teridian Semiconductor Corporation.
All other trademarks are the property of their respective owners.
Teridian Semiconductor Corporation makes no warranty for the use of its products, other than expressly
contained in the Company’s warranty detailed in the Teridian Semiconductor Corporation standard Terms
and Conditions. The company assumes no responsibility for any errors which may appear in this
document, reserves the right to change devices or specifications detailed herein at any time without
notice and does not make any commitment to update the information contained herein. Accordingly, the
reader is cautioned to verify that this document is current by comparing it to the latest version on
http://www.teridian.com or by checking with your sales representative.
Teridian Semiconductor Corp., 6440 Oak Canyon, Suite 100, Irvine, CA 92618
TEL (714) 508-8800, FAX (714) 508-8877, http://www.teridian.com
2
Rev. 1.2
UM_8009R_065
73S8009R Demo Board User Manual
Table of Contents
1
Introduction ................................................................................................................................... 5
1.1 Package Contents.................................................................................................................... 5
1.2 Safety and ESD Notes ............................................................................................................. 5
1.3 Recommended Operating Conditions and Absolute Maximum Ratings ..................................... 6
2
Connections................................................................................................................................... 7
3
Jumpers, Switches and Test Points ............................................................................................. 9
4
Design Considerations ................................................................................................................ 11
4.1 General Layout Rules ............................................................................................................ 11
4.2 Optimization for Compliance with EMV................................................................................... 11
5
73S8009R Demo Board Schematics, PCB Layouts and Bill of Materials .................................. 12
5.1 Schematics ............................................................................................................................ 12
5.2 73S8009R PCB Layouts ........................................................................................................ 13
5.3 73S8009R Demo Board Bill of Materials................................................................................. 16
6
Ordering Information ................................................................................................................... 17
7
Contact Information..................................................................................................................... 17
Revision History .................................................................................................................................. 18
Rev. 1.2
3
73S8009R Demo Board User Manual
UM_8009R_065
Figures
Figure 1: 73S8009R Demo Board ............................................................................................................ 5
Figure 2: 73S8009R Demo Board External Connectors ............................................................................ 7
Figure 3: 73S8009R Demo Board Description.......................................................................................... 9
Figure 4: 73S8009R Electrical Schematic .............................................................................................. 12
Figure 5: 73S8009R Demo Board: Top View.......................................................................................... 13
Figure 6: 73S8009R Demo Board: Bottom View..................................................................................... 13
Figure 7: 73S8009R Demo Board: Top Signal Layer .............................................................................. 14
Figure 8: 73S8009R Demo Board: Middle Layer 1, Ground Plane .......................................................... 14
Figure 9: 73S8009R Demo Board: Middle Layer 2, Supply Plane ........................................................... 15
Figure 10: 73S8009R Demo Board: Bottom Signal Layer ....................................................................... 15
Tables
Table 1: Recommended Operating Conditions ......................................................................................... 6
Table 2: Absolute Maximum Ratings ........................................................................................................ 6
Table 3: J4 Pin Descriptions .................................................................................................................... 7
Table 4: J2 Pin Descriptions .................................................................................................................... 8
Table 5: 73S8009R Demo Board Description ......................................................................................... 10
Table 6: 73S8009R Demo Board Bill of Materials ................................................................................... 16
Table 7: 73S8009R Demo Board Order Number .................................................................................... 17
4
Rev. 1.2
UM_8009R_065
73S8009R Demo Board User Manual
1 Introduction
The Teridian Semiconductor Corporation 73S8009R Demo Board is a platform for evaluating the Teridian
73S8009R Smart Card Interface IC. It incorporates the 73S8009R integrated circuit and it is designed to
operate either as a standalone platform (to be used in conjunction with an external microcontroller) or as
a daughter card to be used in conjunction with the 73S12xxF evaluation platform.
1.1
Package Contents

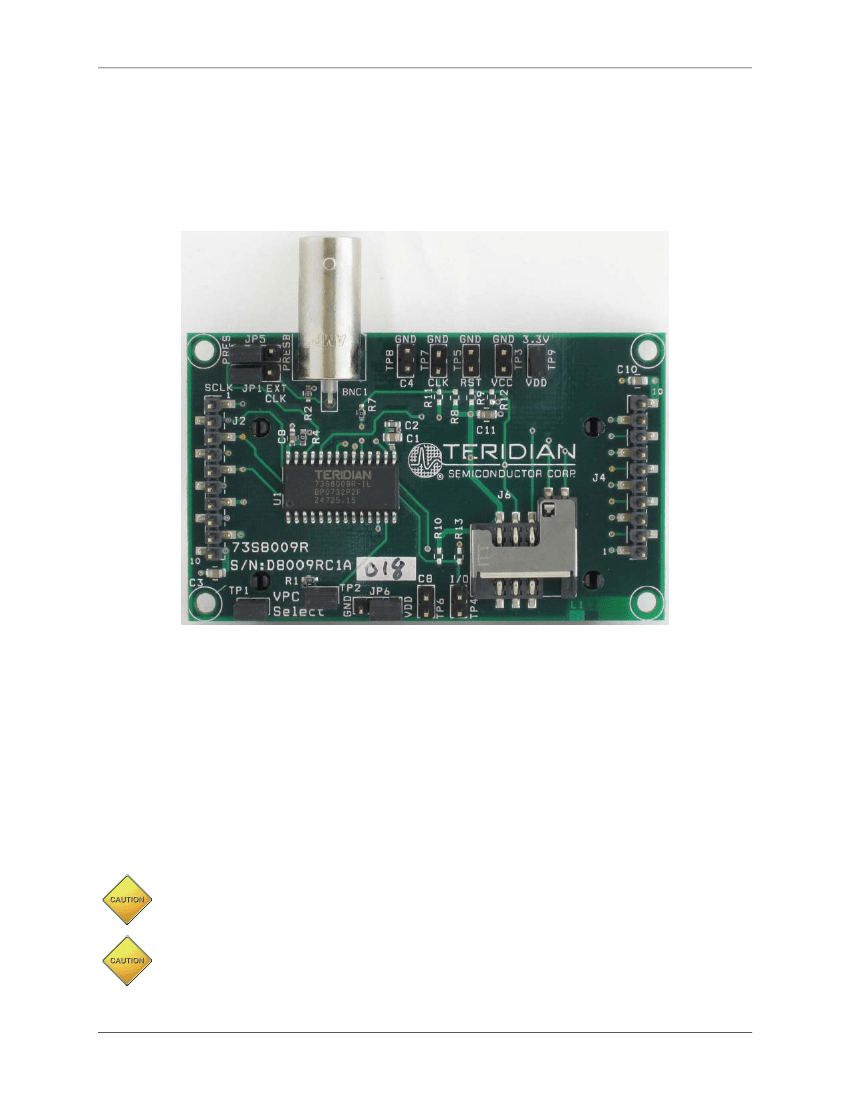

Figure 1: 73S8009R Demo Board
The 73S8009R Demo Board Kit includes:
•
•
A 73S8009R Demo Board (Rev. 1)
The following documents:
•
73S8009R Data Sheet
•
73S8009R Demo Board User Manual
(this document)
1.2
Safety and ESD Notes
Connecting live voltages to the 73S8009R Demo Board system will result in potentially hazardous
voltages on the boards.
Extreme caution should be taken when handling the 73S8009R Demo Board after
connection to live voltages!
The 73S8009R Demo Board is ESD sensitive! ESD precautions should be taken when
handling this board!
Rev. 1.2
5
