PrODUCT BrIEf
Intel® Desktop Board DX79TO
Extreme Series
ATX Form Factor
The Ultimate Workhorse!

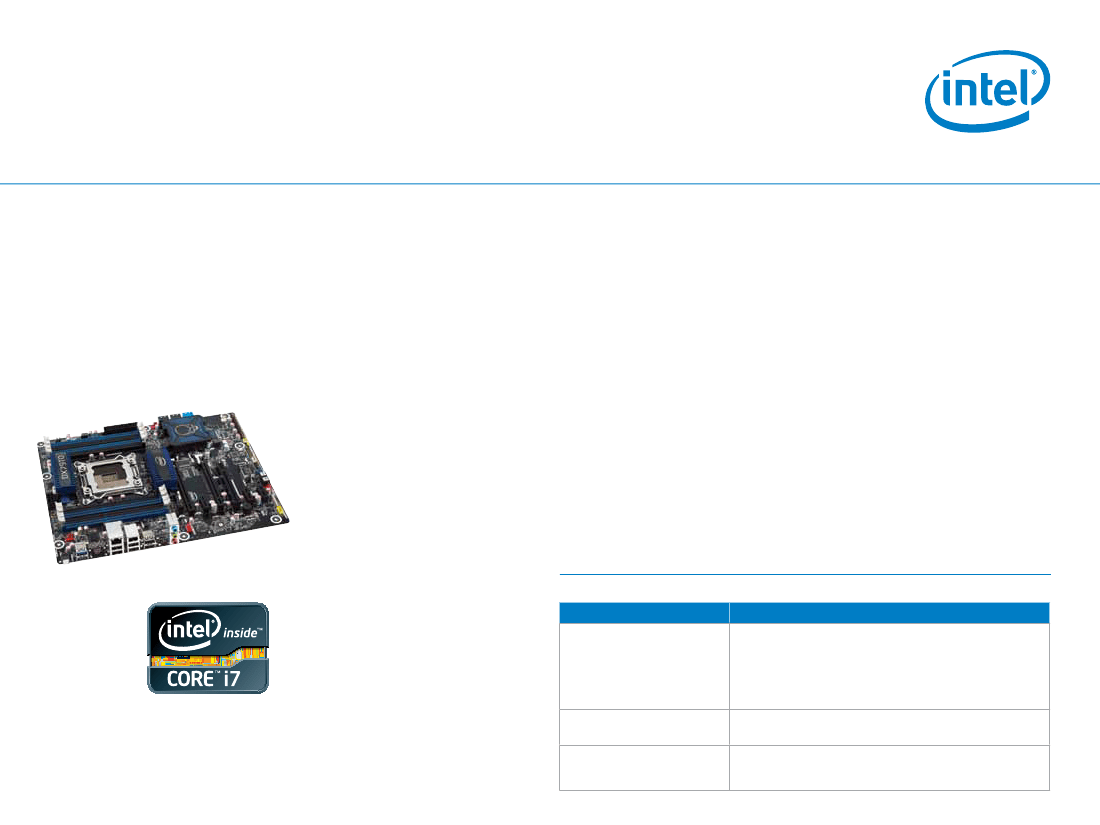

Introducing the Intel® Desktop Board DX79TO, designed for professional
grade computing and to support the new Intel® Core™ i7 Processors
When Performance Counts
With the Intel® Desktop Board DX79TO,
Intel is at it again. Built with stability and
reliability in mind, performance users will
have the peace of mind needed to perform
critical compute-intensive tasks. The Intel
Desktop Board DX79TO provides break-
away performance in production and edit-
ing, as well as digital media rendering and
real-time audio/video preview capabilities.
The massive data throughput and support
for the Intel® Core™ i7 processor runs more
applications simultaneously, with less wait
time. The Trusted Platform Module (TPM)
provides extra platform integrity with se-
cure hardware authentication for the most
sensitive work environments.
BIOS Vault Technology protects the board
and provides fault tolerant and secure
firmware. Intel BIOS is protected from out-
side attacks and enables advance security
checks and balances. Fast Boot also speeds
through boot times and eliminates unneces-
sary delays. Intel® Extreme Memory Profiles
(Intel® XMP) is a performance-packed
expansion of the standard DDR3 memory
specification, enabling a robust and stable
solution for ultra-fast memory.
Intel® Desktop Board DX79TO
Extreme Series
The Boxed Intel® Desktop Board DX79TO
Solution Includes:
• Intel® Desktop Board DX79TO
• ATX 2.2 compliant I/O shield
• SATA cables
• Board and back panel I/O layout stickers
• Quick reference guide
• Intel® Express Installer driver and software DVD
• Windows* Premium WHQL certified
• NVIDIA* SLI* Bridge connectors
• Post code information card
Software Included:
Capability
Utilities
Software Included
• Intel® Extreme Tuning Utility (XTU) (Internet Download):
- Monitors system temperature and fan speeds
- Enables manual tuning of memory and processor
or one-button auto-tuning
• Intel® Express Installer: Streamlines board integration
• Additional free software: Helps get your system up
and running smoothly and quickly
• ESET* Smart Security 5 Antivirus: Removes viruses
automatically, blocks certain internet worm attacks,
and protects e-mail and instant messages
Power and Stability
With incredible support for up to twelve
threads of raw processing power, unprec-
edented bandwidth, quad-channel DDR3
memory with support for up to eight
DIMMs, the Intel Desktop Board DX79TO
offers the power and affordability for a
desktop workhorse.
Productivity
Antivirus
Intel® Desktop Board DX79TO Extreme Series

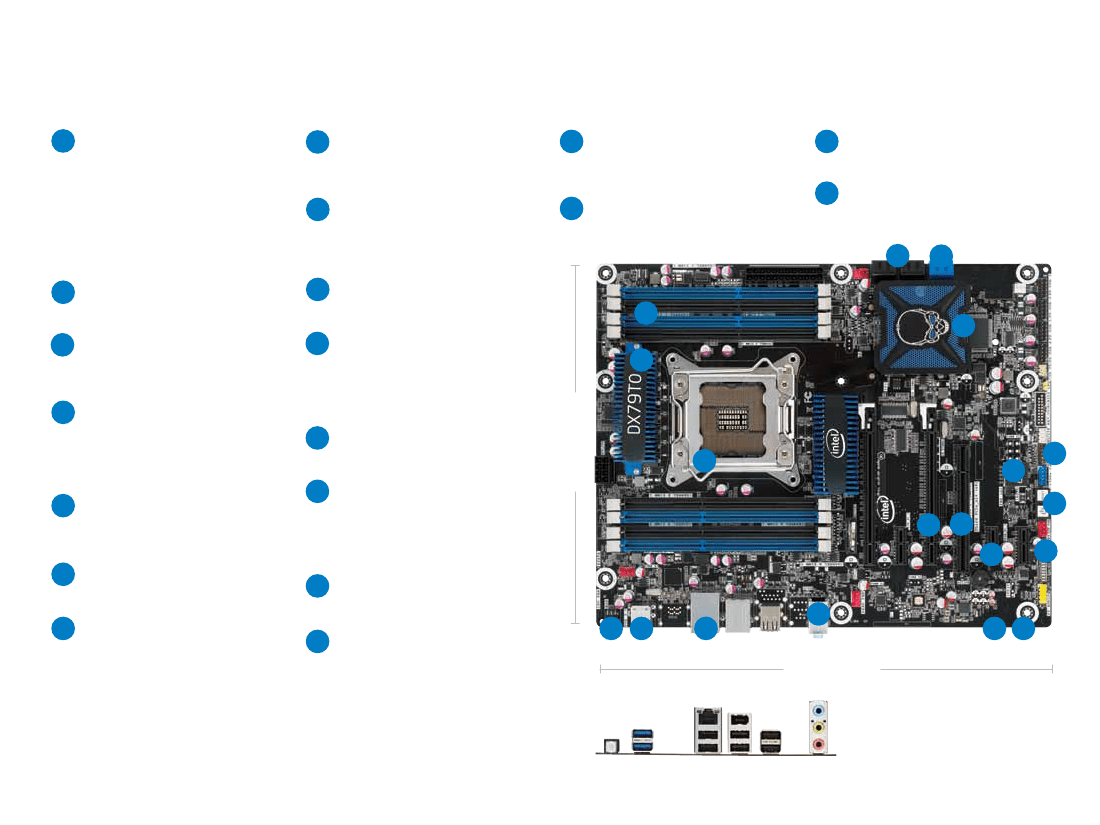

Features and Benefits
1
Support for the Intel® Core™ i7
processor Extreme Edition in the
LGA2011 package:
Supports both 4
core and 6 core processors. Features
Intel® Turbo Boost Technology
1
,
Intel® Hyper-Threading Technology
2
for exceptional performance and
scalability, and up to 15 MB Intel®
Smart Cache, enabling dynamic and
efficient allocation of cache.
Intel® X79 Express Chipset:
Features DMI uni-directional
connectivity to the processor.
Eight DIMM slots:
Designed to
support overclocked
3
DDR3 2400+
O.C.
4
memory, delivering up to
64 GB/s memory bandwidth.
Two Super Speed USB 3.0 Ports, Two
IEEE 1394a ports (1 external/1 via
internal header) and 14 USB 2.0 ports
(6 back ports/8 via internal headers):
Provides for the most flexible back
panel connectivity options.
Two PCI Express 3.0* x16 slots:
Improved graphics bandwidth and
support for Certified ATI CrossFireX*
and NVIDIA* SLI*
.
PCI Express* and PCI connectors:
Flexibility to support PCI Express and
legacy PCI devices.
Two SATA 6.0 Gb/s ports and four
SATA 3.0 Gb/s ports:
Support for up
to six ports with the ability to disable
individual ports via the Intel® Rapid
Storage driver stack.
14
8
Intel® rapid recovery Technology:
Performance and reliability with
support for RAID 0, 1, 5, 10, and
Intel® Rapid Recover Technology.
6-Channel Intel® High Definition
Audio (5.1):
Enables high-quality
integrated audio that rivals the
performance of high-end
discrete solutions.
Intel® Gigabit Ethernet LAN:
Features
onboard 10/100/1000 Mb/s Ethernet
LAN connectivity.
Consumer infrared receiver and
transmitter:
Supports receiving,
learning, and emitting capabilities,
controls up to two additional CE
devices with your PC, and eliminates
the need for a USB CIR dongle.
Back-to-BIOS switch:
Allows
easy access to the BIOS for easy
overclocking
3
and recovery.
Post code decoder:
Allows for display
of post codes for debug along with
the included post code quick reference
card displaying critical areas to
help troubleshoot performance-
increase roadblocks.
Initialization and Diagnostic
LEDs:
Provides instant visible
system feedback.
Exclusive voltage regulator
heat sinks:
Provides reliable
and silent cooling for extreme
performance tuning.
16
Solid State Capacitors and exclusive
Power Supervisor:
Maximizes
stability and power for advanced
performance tuning.
Tweaker switches:
Power and reset
switches for overclocking
3
on the go,
quick reset and power on.
18
ATX (9.6¨ x 11.6¨) form factor:
ATX board supports more fully
featured tower designs.
19
Lead-free:
Meets all worldwide
regulatory requirements for lead-
free manufacturing.
7
8
9
17
2
10
3
2
3
11
15
4
12
9.6¨ (24.38 cm)
1
11
13
17
5
6
16
14
5
13
6
7
15
12
4
10
9
18
19
11.6¨ (29.46 cm)
2
Intel® Desktop Board DX79TO Extreme Series
Technical Specifications
PrOCESSOr
Processor Support
• Intel® Core™ i7 processors in the LGA2011 package
• Intel® Turbo Boost Technology
1
• Intel® Hyper-Threading Technology
2
• ntegrated Memory Controller with support for
I
up to 64 GB
4
of system memory DDR3 2400+
O.C. SDRAM
• Intel® Fast Memory Access
• Supports Intel® 64 architecture
5
ChIPSET
Intel® X79 Express Chipset
• Intel® X79 PCH
• Intel® Rapid Storage Manager (RAID 0, 1, 5, 10)
• Two SATA (6.0 Gb/s) and four SATA (3.0 Gb/s) ports
USB POrTS
• Six Hi-Speed USB 2.0 ports via back panel
• ight additional Hi-Speed USB 2.0 ports via four
E
internal headers
• Two Super-Speed USB 3.0 ports via NEC controller
SySTEM BIOS
• 4 Mb Flash EEPROM with Intel® Platform
6
Innovation Framework for EFI Plug and Play, IDE
drive auto-configure
• dvanced configuration and power interface
A
V3.0b, DMI 2.5
INTEL® rAPID BIOS BOOT
• Intel® Rapid BIOS Boot
• ntel® Express BIOS update support: BIOS update
I
via F7 function key
hArDWArE MANAGEMENT fEATUrES
• Processor fan speed control
• System chassis fan speed control
• Voltage and temperature sensing
• Fan sensor inputs used to monitor fan activity
• Power management support for ACPI 3.0b
INTEL® PrO 10/100/1000
NETWOrk CONNECTION
• Intel® LAN on the back panel
• ew low-power design can meet Energy Star* 5.0
N
specifications
EXPANSION CAPABILITIES
• wo PCI Express* x16 connectors (configured
T
as x16/x16 in Dual graphics mode)
• Two PCI Express 2.0 x1 slots
• One PCI Express x4 slot
• One PCI slots
AUDIO
• 8-channel Intel® High Definition Audio
6
codec
• 6-channel via the back panel
• 2-channel via the front panel
• Back panel support for output via optical cable
• ne internal header for S/PDIF output for
O
HDMI* support
SySTEM MEMOry
Memory Capacity
• ight 240-pin DIMM connectors supporting
E
quad channel memory. Two double-sided DIMMS
per channel
• aximum system memory up to 64 GB
7
using
M
8 GB double-sided DIMMs
Memory Types
• DDR3 2400+ O.C. SDRAM memory support
• Non-ECC Memory
Memory Modes
• uad- or tri- or dual- or single-channel
Q
operation support
Memory Voltage
• 1.35 V low voltage
• 1.5 V standard JEDEC voltage
• Support for Intel® XMP extended voltage profiles
JUMPErS AND frONT PANEL CONNECTOrS
Jumpers
• Single configuration jumper design
• Jumper access for BIOS maintenance mode
Front Panel Connectors
• Reset, HD LED, Power LEDs, power on/off
• Four front-panel Hi-Speed USB 2.0 headers
• Front-panel audio header
• One IEEE 1394a header
MEChANICAL
Board Style
• ATX
Board Size
• 11.6¨ x 9.6¨ (29.46 cm x 24.38 cm)
Baseboard Power Requirements
• ATX 12 V
ENvIrONMENT
Operating Temperature
• 0° C to +55° C
Storage Temperature
• –20° C to +70° C
rEGULATIONS AND SAfETy STANDArDS
United States and Canada
UL 1950, Third edition—CAN/CSA C22.2
o. 950-95 with recognized U.S. and Canadian
N
component marks
Europe
Nemko certified to EN 60950 International
Nemko certified to IEC 60950
(CB report with CB certificate)
EMC regulations (tested in
representative chassis)
United States
FCC Part 15, Class B
FCC Part 15, Class B open-chassis (cover off) testing
Canada
ICES-003, Class B
Europe
EMC directive 89/336/EEC; EN 55022:1998
Class B; EN 55024:1998
Australia/New Zealand
AS/NZS 3548, Class B
Taiwan
CNS 13438, Class B International
CISPR 22:1997, Class B
3
Intel® Desktop Board DX79TO Extreme Series
Technical Specifications
Environmental Compliance
Complies with US CRF via EN55022 +6 db in
system configurations with an open chassis and
EU Directive 89/336/EEC and use via EN55022
and EN50082-1 in a representative chassis.
Lead-Free: The symbol is used to identify
electrical and electronic assemblies and compo-
nents in which the lead (Pb) concentration level
in any of the raw materials and the end product
is not greater than 0.1% by weight (1000 ppm).
This symbol is also used to indicate conformance
to lead-free requirements and definitions
adopted under the European Union’s Restriction
on Hazardous Substances (RoHS) directive,
2002/95/EC.
For ordering information, visit
www.intel.com
For the most current product information, visit
www.intel.com/go/idb
1
Intel
®
Turbo Boost Technology requires a PC with a processor with
Intel Turbo Boost Technology capability. Intel Turbo Boost Technology
performance varies depending on hardware, software, and overall system
configuration. Check with your PC manufacturer on whether your system
delivers Intel Turbo Boost Technology. See www.intel.com/technology/
turboboost for more information.
Intel
®
Hyper-Threading Technology requires a computer system with a
processor supporting HT Technology and an HT Technology-enabled
chipset, BIOS, and operating system. Performance will vary depending on
the specific hardware and software you use. For more information including
details on which processors support HT Technology, see www.intel.com/
info/hyperthreading.
Warning: altering clock frequency and/or voltage may (i) reduce system
stability and useful life of the system and processor; (ii) cause the processor
and other system components to fail; (iii) cause reductions in system perfor-
mance; (iv) cause additional damage; and (v) affect system data integrity.
Intel has not tested, and does not warranty, the operation of the processor
beyond its specifications.
4
Maximum peak memory bandwidth requires four DDR3 modules to be
populated in each of the blue memory slots. DDR3 2400 memory support
on this motherboard requires advanced knowledge of BIOS and memory
tuning; individual results may vary. For specific supported memory for this
motherboard, please visit www.intel.com/products/motherboard/ for more
details.
64-bit computing on Intel
®
architecture requires a computer system with a
processor, chipset, BIOS, operating system, device drivers, and applications
enabled for Intel
®
64 architecture. Processors will not operate (including 32-
bit operation) without an Intel 64 architecture-enabled BIOS. Performance
will vary depending on your hardware and software configurations. See
http://developer.intel.com/technology/intel64/index.htm for more information.
Intel
®
High Definition Audio requires a system with an appropriate Intel
®
chipset and a motherboard with an appropriate codec and the necessary
drivers installed. System sound quality will vary depending on actual imple-
mentation, controller, codec, drivers, and speakers. For more information
about Intel
®
HD Audio, refer to www.intel.com/design/chipsets/hdaudio.htm.
System resources and hardware (such as PCI and PCI Express*) require
physical memory address locations that can reduce available addressable
system memory. This could result in a reduction of as much as 1 GB or more
of physical addressable memory being available to the operating system and
applications, depending on the system configuration and operating system.
2
5
3
6
7
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION
WITH INTEL
®
PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY
ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY
RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN
INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS,
INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS
ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR
USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES
RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANT-
ABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT, OR OTHER
INTELLECTUAL PROPERTY RIGHT.
Intel products are not intended for use in medical, life-saving, or life-
sustaining applications. Intel may make changes to specifications and
product descriptions at any time, without notice.
All products, dates, and figures specified are preliminary based on current
expectations, and are subject to change without notice. Availability in different
channels may vary.
Actual Intel
®
Desktop Board may differ from the image on the box.
Copyright © 2011 Intel Corporation. All rights reserved. Intel, the Intel
logo, and Intel Core are trademarks of Intel Corporation in the U.S.
and other countries.
*Other names and brands may be claimed as the property of others.
0911/JB/HBD/PDF 326044-001US
京公网安备 11010802033920号
EEWORLD
