KSC815YTA

Description
Bipolar Transistors - BJT 16A 250V 250W NPN
CategoryDiscrete semiconductor    The transistor
File Size293KB,8 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

KSC815YTA Online Shopping

Suppliers Part Number Price MOQ In stock
KSC815YTA - - View Buy Now

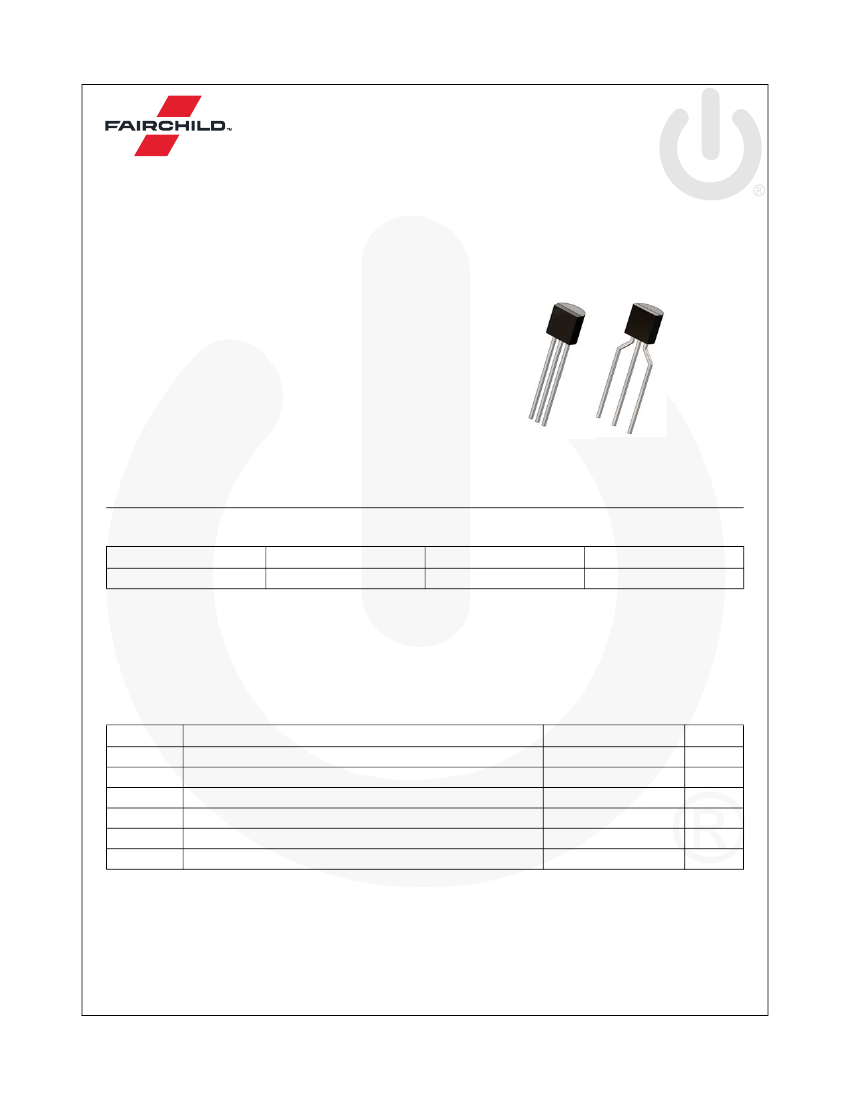

KSC815YTA Overview

Bipolar Transistors - BJT 16A 250V 250W NPN

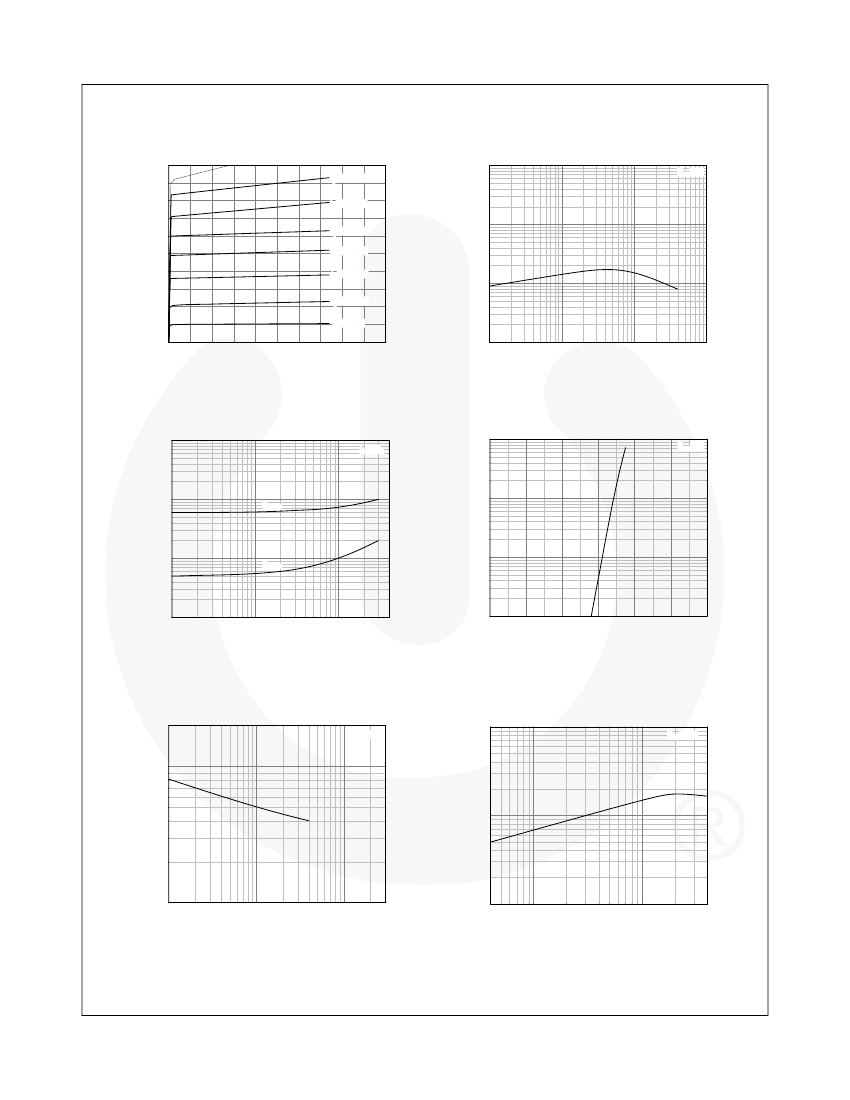

KSC815YTA Parametric

Parameter NameAttribute value
Brand NameFairchild Semiconductor
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerFairchild
Parts packaging codeTO-92
package instructionCYLINDRICAL, O-PBCY-T3
Contacts3

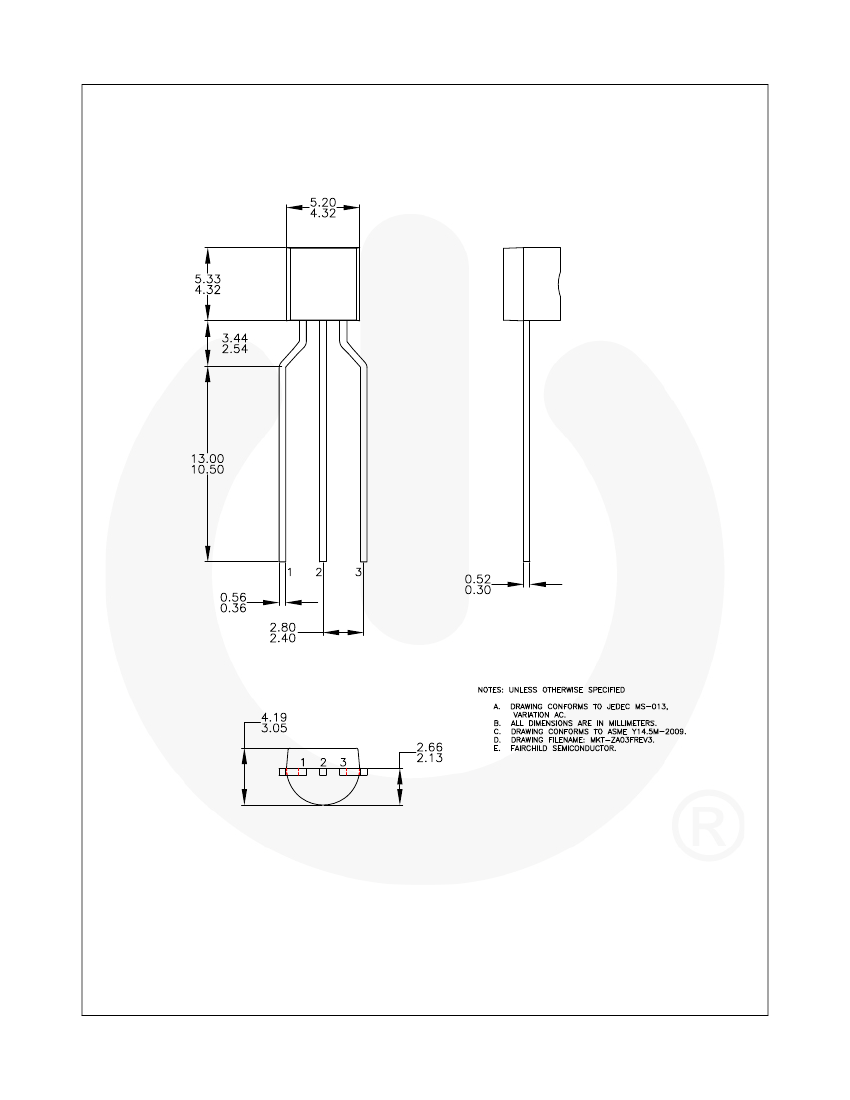

Manufacturer packaging code3 LD, TO92, MOLDED 0.200 IN LINE SPACING LD FORM
Reach Compliance Codecompliant
ECCN codeEAR99
Maximum collector current (IC)0.2 A
Collector-emitter maximum voltage45 V
ConfigurationSINGLE
Minimum DC current gain (hFE)120
JEDEC-95 codeTO-92
JESD-30 codeO-PBCY-T3
JESD-609 codee3
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formCYLINDRICAL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeNPN
Maximum power dissipation(Abs)0.4 W
Certification statusNot Qualified
surface mountNO
Terminal surfaceMatte Tin (Sn)
Terminal formTHROUGH-HOLE
Terminal locationBOTTOM
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Nominal transition frequency (fT)200 MHz
Is Now Part of
To learn more about ON Semiconductor, please visit our website at
www.onsemi.com
Please note: As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers
will need to change in order to meet ON Semiconductor’s system requirements. Since the ON Semiconductor
product management systems do not have the ability to manage part nomenclature that utilizes an underscore
(_), the underscore (_) in the Fairchild part numbers will be changed to a dash (-). This document may contain
device numbers with an underscore (_). Please check the ON Semiconductor website to verify the updated
device numbers. The most current and up-to-date ordering information can be found at
www.onsemi.com.
Please
email any questions regarding the system integration to
Fairchild_questions@onsemi.com.
ON Semiconductor and the ON Semiconductor logo are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number
of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent-Marking.pdf. ON Semiconductor reserves the right
to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON
Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON
Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s
technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA
Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended
or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out
of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor
is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.

KSC815YTA Related Products

KSC815YTA KSC815YBU KSC815OBU KSC815COBU
Description Bipolar Transistors - BJT 16A 250V 250W NPN Bipolar Transistors - BJT NPN Epitaxial Sil Bipolar Transistors - BJT NPN Epitaxial Sil Bipolar Transistors - BJT NPN Epitaxial Sil
Is it lead-free? Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to
Maker Fairchild Fairchild Fairchild Fairchild
package instruction CYLINDRICAL, O-PBCY-T3 CYLINDRICAL, O-PBCY-T3 CYLINDRICAL, O-PBCY-T3 CYLINDRICAL, O-PBCY-T3
Reach Compliance Code compliant unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99
Maximum collector current (IC) 0.2 A 0.2 A 0.2 A 0.2 A
Collector-emitter maximum voltage 45 V 45 V 45 V 45 V
Configuration SINGLE SINGLE SINGLE SINGLE
Minimum DC current gain (hFE) 120 120 70 70
JEDEC-95 code TO-92 TO-92 TO-92 TO-92
JESD-30 code O-PBCY-T3 O-PBCY-T3 O-PBCY-T3 O-PBCY-T3
JESD-609 code e3 e3 e3 e3
Number of components 1 1 1 1
Number of terminals 3 3 3 3
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape ROUND ROUND ROUND ROUND
Package form CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE
Polarity/channel type NPN NPN NPN NPN
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
surface mount NO NO NO NO
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn)
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location BOTTOM BOTTOM BOTTOM BOTTOM
Maximum time at peak reflow temperature NOT SPECIFIED NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE
transistor applications AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER
Transistor component materials SILICON SILICON SILICON SILICON
Nominal transition frequency (fT) 200 MHz 200 MHz 200 MHz 200 MHz
Maximum power dissipation(Abs) 0.4 W 0.4 W 0.4 W -
