SVC203C
Varactor Diode
Monolithic dual Varactor Diode for FM Tuning
16V, 50nA, CR=4.6, Q=60
Features
•
•
•
www.onsemi.com
Dual type with a good linearity of C-V characteristic. Excels in large input characteristics
Small-sized package (CP) usable in ultrasmall-sized sets (surface mount type)
Applicable to FM wide band due to high capacitance ratio (VR=1.5 to 9V)
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Reverse Voltage
Junction Temperature
Storage Temperature
Tj
Tstg
Symbol
VR
Conditions
Ratings
16
125
--55 to +125
Unit
V
°C
°C
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed,
damage may occur and reliability may be affected.

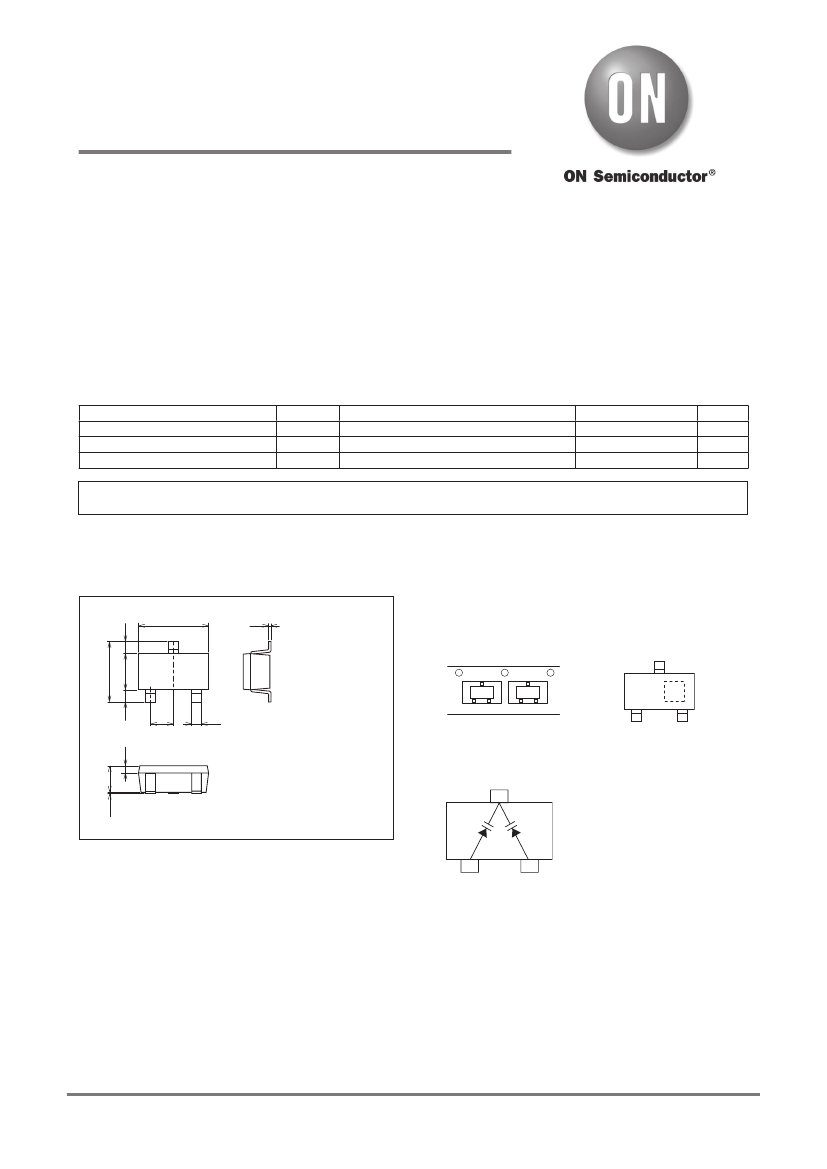

Package Dimensions
unit : mm (typ)
7013A-006
2.9
3
0.1
Product & Package Information
• Package
: CP
• JEITA, JEDEC
: SC-59, TO-236, SOT-23, TO-236AB
• Minimum
Packing Quantity
: 3,000 pcs./reel
SVC203C-TB-E
0.5
Packing Type: TB
Marking
2.5
1.5
AV
0.5
1
0.95
2
0.4
TB
LOT
No.
1 : Anode
2 : Anode
3 : Cathode
CP
0.3
Electrical Connection
3
0.05
1.1
1
2
ORDERING INFORMATION
See detailed ordering and shipping information on page 2 of this data sheet.
© Semiconductor Components Industries, LLC, 2014
October 2014 - Rev. 2
1
Publication Order Number :
SVC203C/D
SVC203C
Electrical Characteristics
at Ta=25°C
Parameter
Breakdown Voltage
Reverse Current
Interterminal Capacitance*
Quality Factor
Capacitance Ratio
Matching Tolerance
Symbol
V(BR)R
IR
C1.0V
C6.0V
C9.0V
Q
CR
∆C
m
IR=10µA
VR=10V
VR=1.0V, f=1MHz
VR=6.0V, f=1MHz
VR=9.0V, f=1MHz
VR=3.0V, f=100MHz
C1.0V / C9.0V
VR=1.0V
VR=6.0V
VR=9.0V
(Cmax
--
Cmin)
Cmin
× 100
58.80
18.72
10.84
60
4.6
6.5
5.5
11.8
%
%
%
Conditions
Ratings
min
16
50
65.98
25.11
13.40
typ
max
Unit
V
nA
pF
pF
pF
* Capacitance value of one diode
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be
indicated by the Electrical Characteristics if operated under different conditions.
Address and Capacitance Value
(Reference Value)
C1.0V
Address
11
12
Capacitance (pF)
59.10
62.92
61.97
65.65
Address
61
62
63
64
65
66
C6.0V
Capacitance (pF)
18.91
19.95
19.76
20.85
20.64
21.79
21.57
22.77
22.55
23.80
23.56
24.87
Address
91
92
C9.0V
Capacitance (pF)
10.89
12.17
11.93
13.33
ORDERING INFORMATION
Device
SVC203C-TB-E
Package
CP
Shipping
3,000pcs./reel
memo
Pb-Free
www.onsemi.com
2
SVC203C
Outline Drawing
SVC203C-TB-E
Mass (g) Unit
0.013 mm
* For reference
Land Pattern Example
Unit: mm
0.8
1.0
2.4
0.95
0.95
ON Semiconductor and the ON logo are registered trademarks of Semiconductor Components Industries, LLC (SCILLC) or its subsidiaries in the United States
and/or other countries. SCILLC owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of
SCILLC’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent-Marking.pdf . SCILLC reserves the right to make changes without
further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose,
nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without
limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do
vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer
application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not
designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or
sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should
Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers,
employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of,
directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was
negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable
copyright laws and is not for resale in any manner.
www.onsemi.com
4
