R.A.063099
DME375A
375 Watts, 50 Volts, Pulsed
Avionics 1025-1150 MHz
GENERAL DESCRIPTION
The DME375A is a high power COMMON BASE bipolar transistor. It is
designed for pulsed systems in the frequency band 1025-1150 MHz. The device
has gold thin-film metallization for proven highest MTTF. The transistor
includes input and output prematch for broadband capability. Low thermal
resistance package reduces junction temperature, extends life.

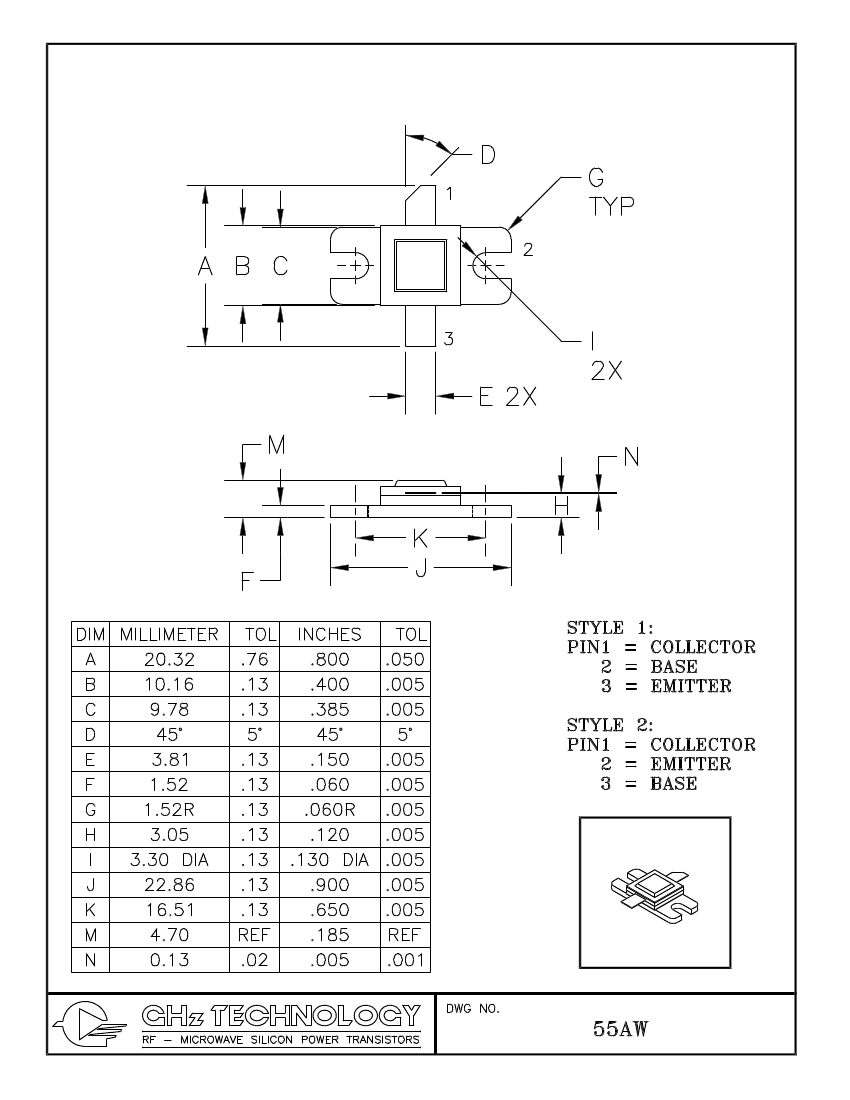

CASE OUTLINE
55AW Style 1
ABSOLUTE MAXIMUM RATINGS
Maximum Power Dissipation
875
Device Dissipation @25!C
2
Maximum Voltage and Current
55
Collector to Base Voltage (BV
ces
)
Emitter to Base Voltage (BV
ebo
)
4.0
Collector Current (I
c
)
30
Maximum Temperatures
Storage Temperature
-65 to +200
Operating Junction Temperature
+200
W
V
V
A
!C
!C
ELECTRICAL CHARACTERISTICS @ 25!C
!
SYMBOL
P
out
P
in
P
g
"
c
VSWR
1
CHARACTERISTICS
Power Out
Power Input
Power Gain
Collector Efficiency
Load Mismatch Tolerance
TEST CONDITIONS
F = 1025 – 1150 MHz
Vcc = 50 Volts
PW = 10
#sec
DF = 1%
F = 1090 MHz
MIN
375
85
6.5
40
TYP
MAX
UNITS
W
W
dB
%
!
:1
4.0
55
10
0.2
V
V
!C/W
FUNCTIONAL CHARACTERISTICS @ 25!C
!
BV
ebo
BV
ces
h
FE
$jc
2
Emitter to Base Breakdown
Collector to Emitter Breakdown
DC – Current Gain
Thermal Resistance
Ie = 20 mA
Ic = 25 mA
Vce = 5V, Ic = 300 mA
NOTE 1: At rated output power and pulse conditions
2. At rated pulse conditions
.
Initial Issue June 1994
