52437-2571 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52437-2571

52437-2571: Description8-bit Microcontrollers - MCU 3.5KB 224 RAM 16 I/O; CategoryThe connector The connector; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

52437-2571 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52437-2571	-	-	View	Buy Now

52437-2571 Overview

8-bit Microcontrollers - MCU 3.5KB 224 RAM 16 I/O

52437-2571 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
Samacsys Description	FFC & FPC Connectors 0.5 FPC ZIF SMT R/A 25Ckt EmbsTpPkg
Other features	EASY-ON, POLARIZED
Board mount options	FITTING NAIL
body width	0.079 inch
subject depth	0.205 inch
body length	0.752 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD (4)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	DUAL PRONG
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
Insulator color	WHITE
insulator material	NYLON
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	25
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 10/31/2017

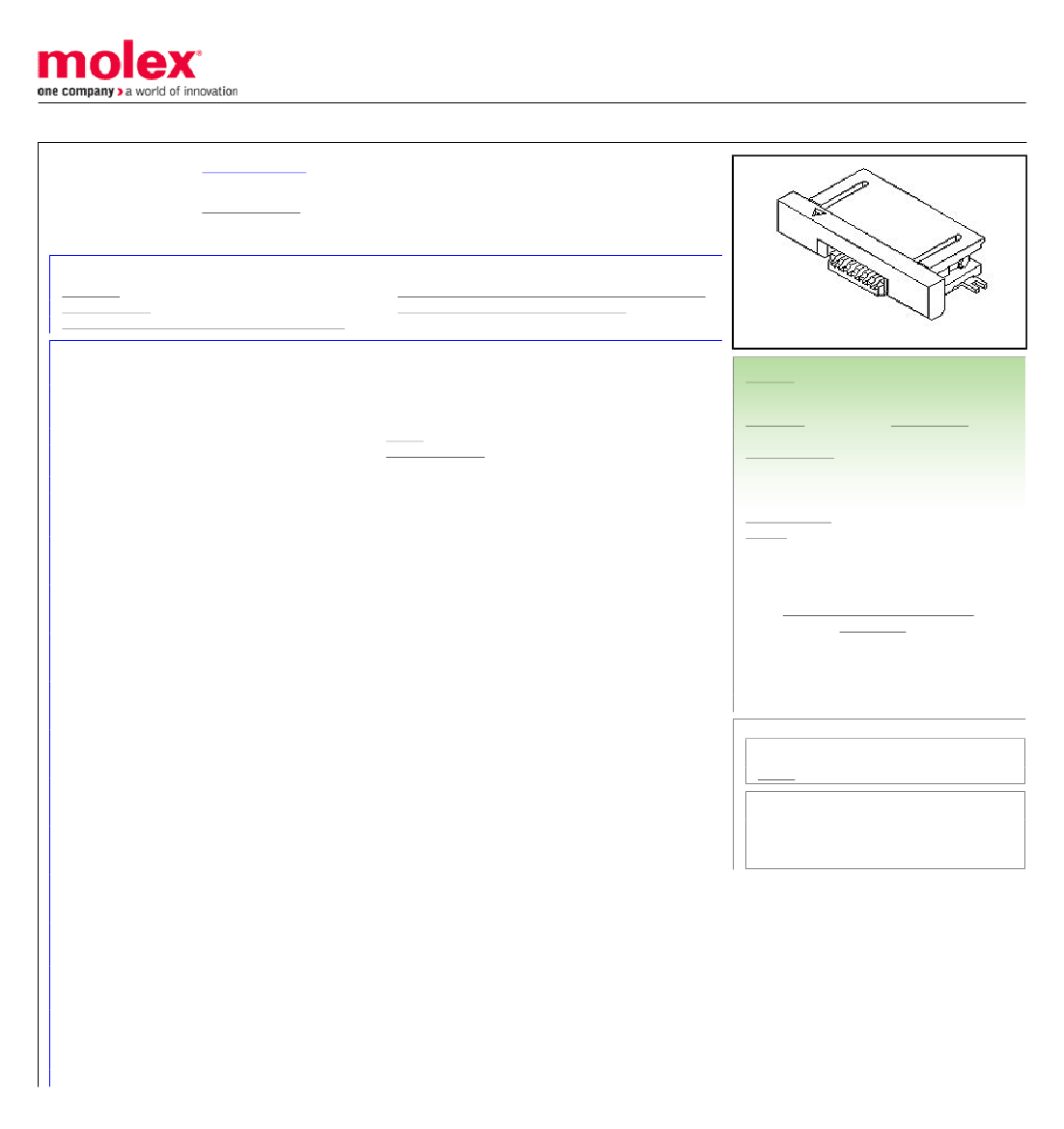

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0524372571

Active

FFC-FPC (SMT)

Easy-On Type FFC/FPC Connector, Right-Angle, Surface Mount, ZIF, Bottom Contact

Style, 25 Circuits, Gold (Au) Contact Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-52437-027-001 (PDF)

Agency Certification

General

Product Family

Series

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification SPK-52437-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

FFC/FPC Connectors

52437

FFC-FPC (SMT)

Easy-On

822350128308

Natural

Bottom

90° Angle

94V-0

Phosphor Bronze

Gold

High Temperature Thermoplastic

325.700/mg

Right Angle

None

Embossed Tape on Reel

0.50mm

0.102µm

0.051µm

Yes

N/A

-40°C to +85°C

Surface Mount

FFC/FPC

0.5A

50V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series
