180-073NF06-23-54S datasheet, PDF

Datasheet> All Categories > The connector> The connector> 180-073NF06-23-54S

180-073NF06-23-54S: DescriptionCircular MIL Spec Connector PLUG FBR OPTIC TEST ADAPTER SKT INSERT; CategoryThe connector The connector; File Size304KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

180-073NF06-23-54S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	180-073NF06-23-54S	-	-	View	Buy Now

180-073NF06-23-54S Overview

Circular MIL Spec Connector PLUG FBR OPTIC TEST ADAPTER SKT INSERT

180-073NF06-23-54S Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	not_compliant
Factory Lead Time	10 weeks
Connector type	CIRCULAR CONNECTOR ADAPTER

Preview

Download Datasheet

View All

With Special Insert Arrangement MIL-DTL-38999 Series III

180-073 (06)

Fiber Optic Test Adapter, Plug

Test Probes

and Kits

MIL-DTL-38999 test adapter (plug)

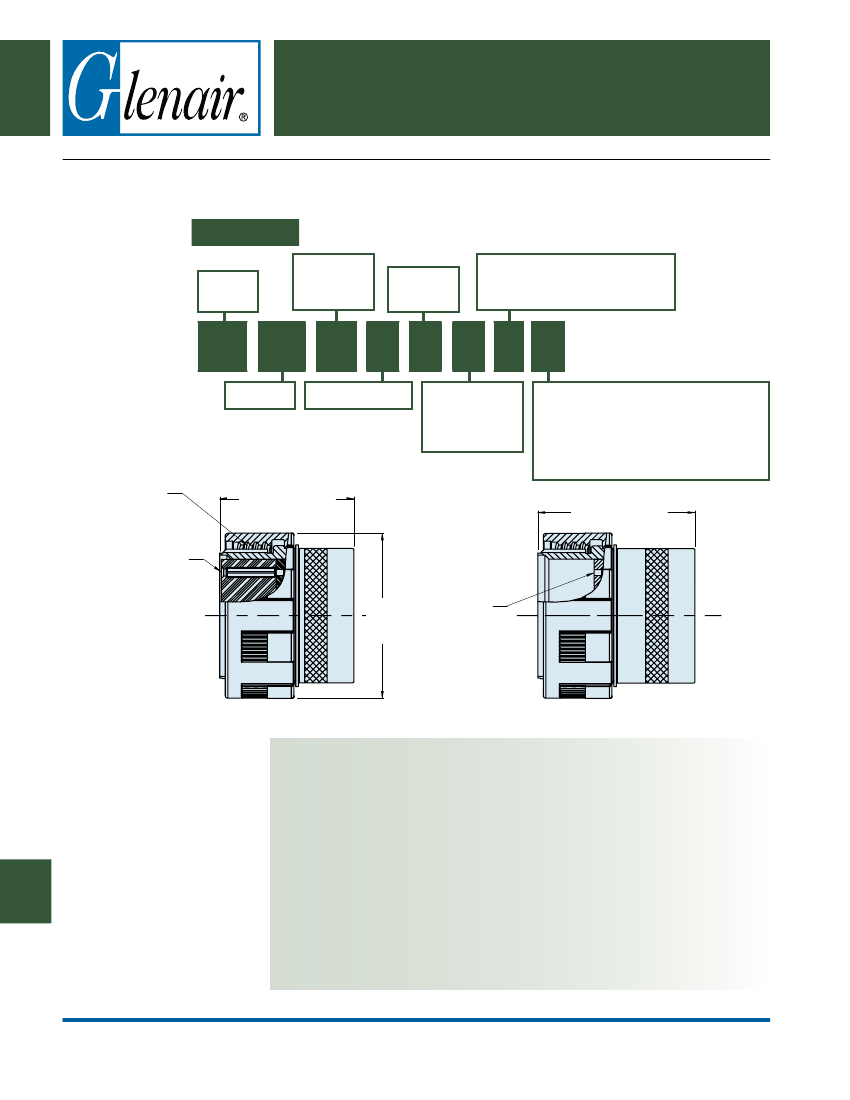

How To Order

Material/

Finish

(Table II)

Shell Size

(Table I)

= Pin

= Socket (with alignment sleeves

Insert Type

Product

Series

180

073 NF 06

24 P

Basic No.

Plug Adapter

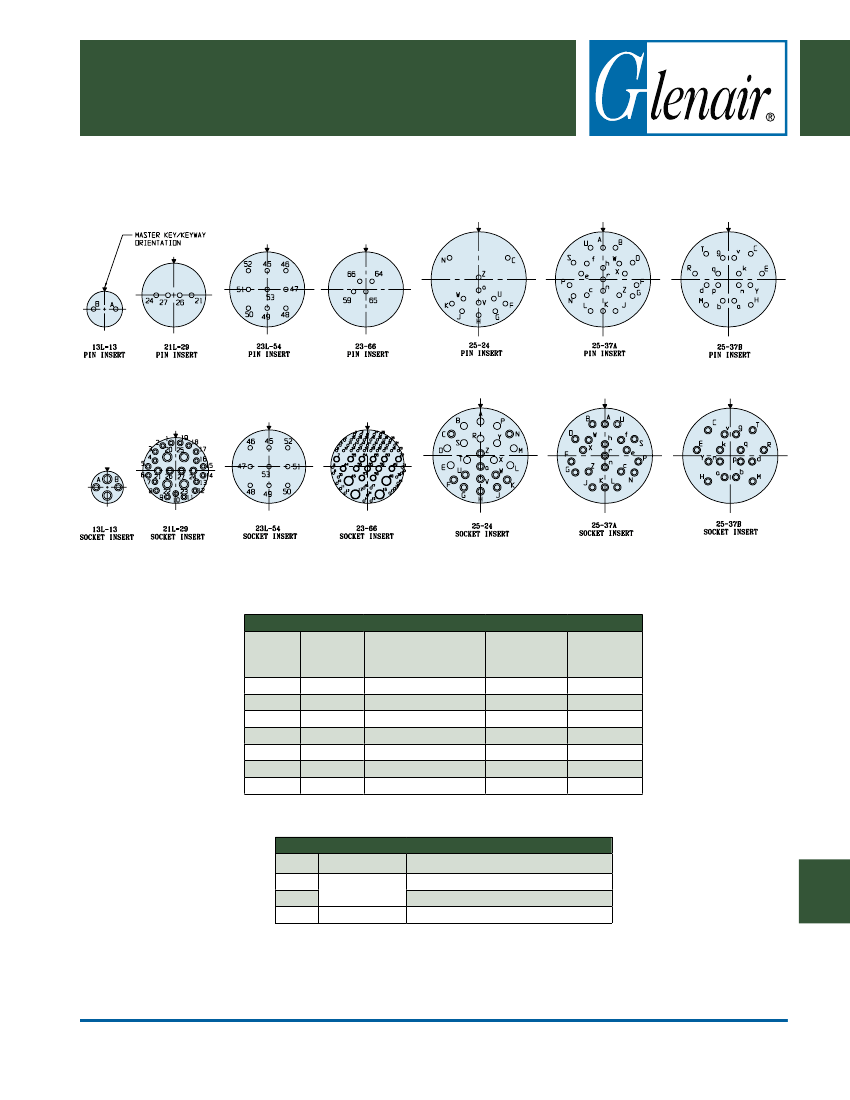

Insert

Arrangement

Per MIL STD-1560

(Table I)

Alternate Keying Positions

N, A, B, C, D

Per MIL-DTL-38999,Series III Omit keying

designator to receive universal single key

(master) only. This option not recommended

for larger shell sizes (19-25)

A Thread

1.50 (38.1) Max

1.75 (44.5) Max

Socket Insert

Pin Insert

ØB

06 Plug Adapter

U.S. PATENT NO. 5,960,137

Material and Finish

Barrel: See Table II

Insert, Coupling Nut: Hi-Grade Engineering Thermoplastic

Alignment Sleeve: Zirconia Ceramic

Misc. Hardware: Stainless Steel

Retaining Clips: Copper Alloy

Lock Nut: Al Alloy/Anodize

Notes

For fiber optic test probe jumper, see Glenair drawing ABC54705

For fiber optic test probe (low profile, probe-to-probe) jumper see Glenair drawing FO01757

25-37 insert cavity spacing too close to probe using one adapter. 2 adapters (25-37A and

25-37B) are required

Shell size 23 for insert 23-66 only is made of 300 series stainless steel

Cavity markings applied to rear insert face only

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

L-24

E-Mail: sales@glenair.com

180-073NF06-23-54S Related Products

	180-073NF06-23-54S	180-073M06-25-37BS	180-073NF06-25-37AP	180-073NF06-13-13P	180-073NF06-25-37BS	180-073NF06-23-54P	180-073NF06-25-37AS
Description	Circular MIL Spec Connector PLUG FBR OPTIC TEST ADAPTER SKT INSERT	Circular MIL Spec Connector PLUG FBR OPTIC TEST ADAPTER SKT INSERT	Circular MIL Spec Connector PLUG FBR OPTIC TEST ADAPTER PIN INSERT	Circular MIL Spec Connector PLUG FBR OPTIC TEST ADAPTER PIN INSERT	Circular MIL Spec Connector PLUG FBR OPTIC TEST ADAPTER SKT INSERT	Circular MIL Spec Connector PLUG FBR OPTIC TEST ADAPTER PIN INSERT	Circular MIL Spec Connector PLUG FBR OPTIC TEST ADAPTER SKT INSERT
Reach Compliance Code	not_compliant	compliant	not_compliant	not_compliant	not_compliant	unknown	not_compliant
Factory Lead Time	10 weeks	13 weeks	14 weeks 1 day	10 weeks	14 weeks 1 day	11 weeks	14 weeks 1 day
Connector type	CIRCULAR CONNECTOR ADAPTER	FIBER OPTIC CONNECTOR ADAPTER	FIBER OPTIC CONNECTOR ADAPTER	FIBER OPTIC CONNECTOR ADAPTER	FIBER OPTIC CONNECTOR ADAPTER	CIRCULAR CONNECTOR ADAPTER	FIBER OPTIC CONNECTOR ADAPTER
Is it lead-free?	-	Lead free	Contains lead	Contains lead	Contains lead	-	Contains lead
Is it Rohs certified?	-	conform to	incompatible	incompatible	incompatible	-	incompatible
Other features	-	STANDARS: MIL-DTL-3899	STANDARS: MIL-DTL-3899	STANDARS: MIL-DTL-3899	STANDARS: MIL-DTL-3899	-	STANDARS: MIL-DTL-3899
Body/casing type	-	PLUG	PLUG	PLUG	PLUG	-	PLUG
Connection Type	-	SIMPLEX	SIMPLEX	SIMPLEX	SIMPLEX	-	SIMPLEX
Contact to complete cooperation	-	NOT SPECIFIED	NOT SPECIFIED	GOLD (50) OVER NICKEL	NOT SPECIFIED	-	NOT SPECIFIED
Contact material	-	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED	-	NOT SPECIFIED
Coupling type	-	THREADED	THREADED	THREADED	THREADED	-	THREADED
DIN compliance	-	NO	NO	NO	NO	-	NO
IEC compliance	-	NO	NO	NO	NO	-	NO
MIL compliance	-	YES	YES	YES	YES	-	YES
Manufacturer's serial number	-	180	180	180	180	-	180
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
Base Number Matches	-	1	1	1	1	-	1
