MIG75J201H

Description
TOSHIBA Intelligent Power Module Silicon N Channel IGBT
CategoryOther integrated circuit (IC)    The signal circuit
File Size218KB,8 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Download Datasheet Parametric View All

MIG75J201H Overview

TOSHIBA Intelligent Power Module Silicon N Channel IGBT

MIG75J201H Parametric

Parameter NameAttribute value
MakerToshiba Semiconductor
package instruction,
Reach Compliance Codeunknow
ECCN codeEAR99
Analog Integrated Circuits - Other TypesAC MOTOR CONTROLLER
JESD-30 codeR-XXMA-X22
JESD-609 codee0
Number of functions1
Number of terminals22
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Certification statusNot Qualified
Nominal supply voltage (Vsup)300 V
surface mountNO
Terminal surfaceTIN LEAD
Terminal formUNSPECIFIED
Terminal locationUNSPECIFIED
MIG75J201H
TOSHIBA Intelligent Power Module Silicon N Channel IGBT
MIG75J201H
High Power Switching Applications
Motor Control Applications
l
Integrates inverter, brake power circuits & control circuits (IGBT drive units, protection units for over-current,
under-voltage & over-temperature) in one package.
l
The electrodes are isolated from case.
l

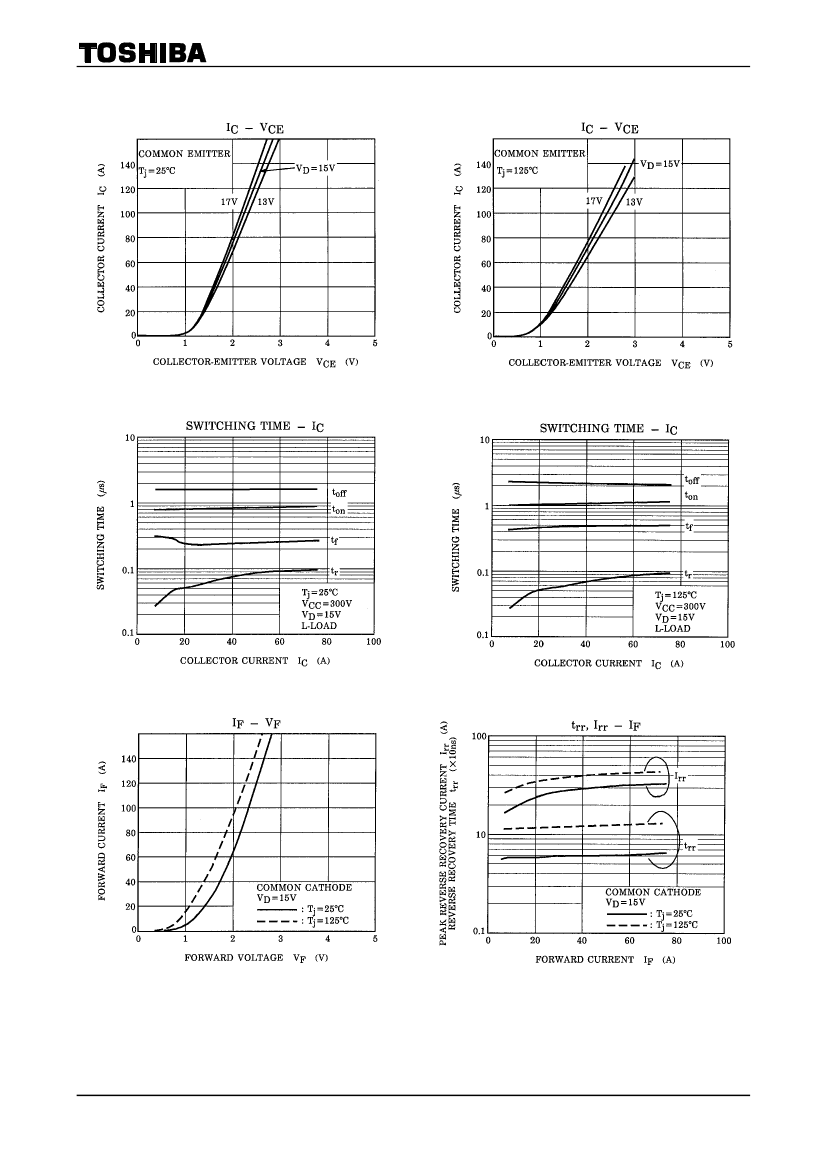

High speed type IGBT
: V
CE (sat)
= 2.5 V (Max)

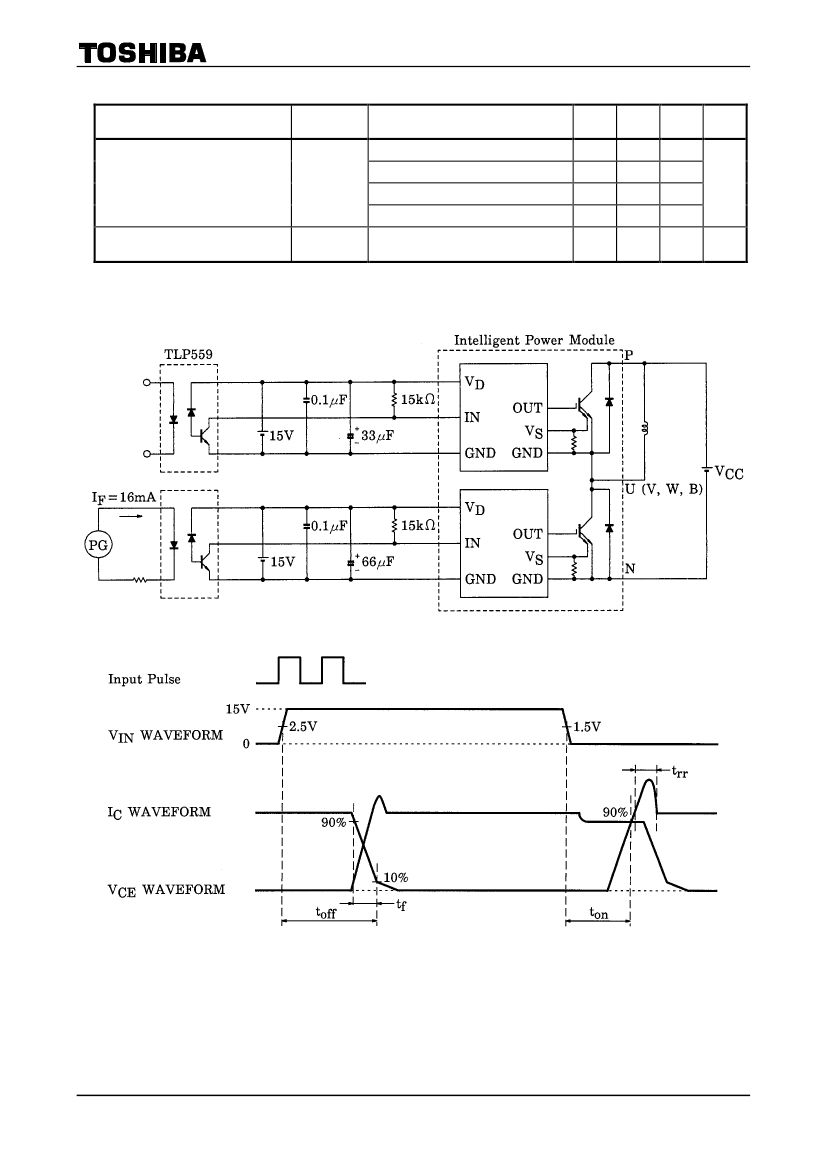

toff = 3.0 µs (Max)
trr = 0.30 µs (Max)
l
Package dimensions : TOSHIBA 2-110A1A
l
Weight : 520 g

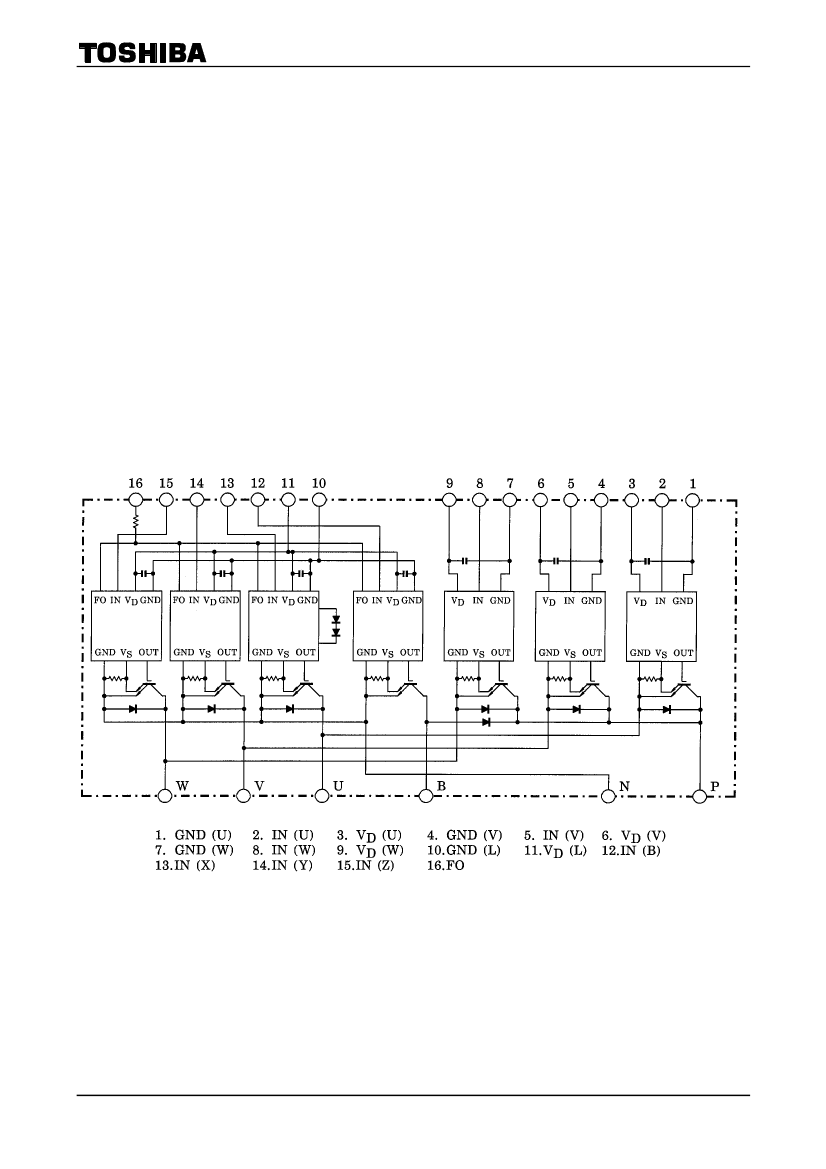

Equivalent Circuit
1
2001-05-29
