1. Scope
This product specification covers the requirements of a SUB DELTA D PIP.
For Product Pick Process: Hand Placing / Gripper / Vacuum Nozzle
2. Product description
2.1 General
PRODUCT LEAD FREE IN ACCORDANCE TO ROHs 2002/EC/95
UL 94 V0: E118235(R)

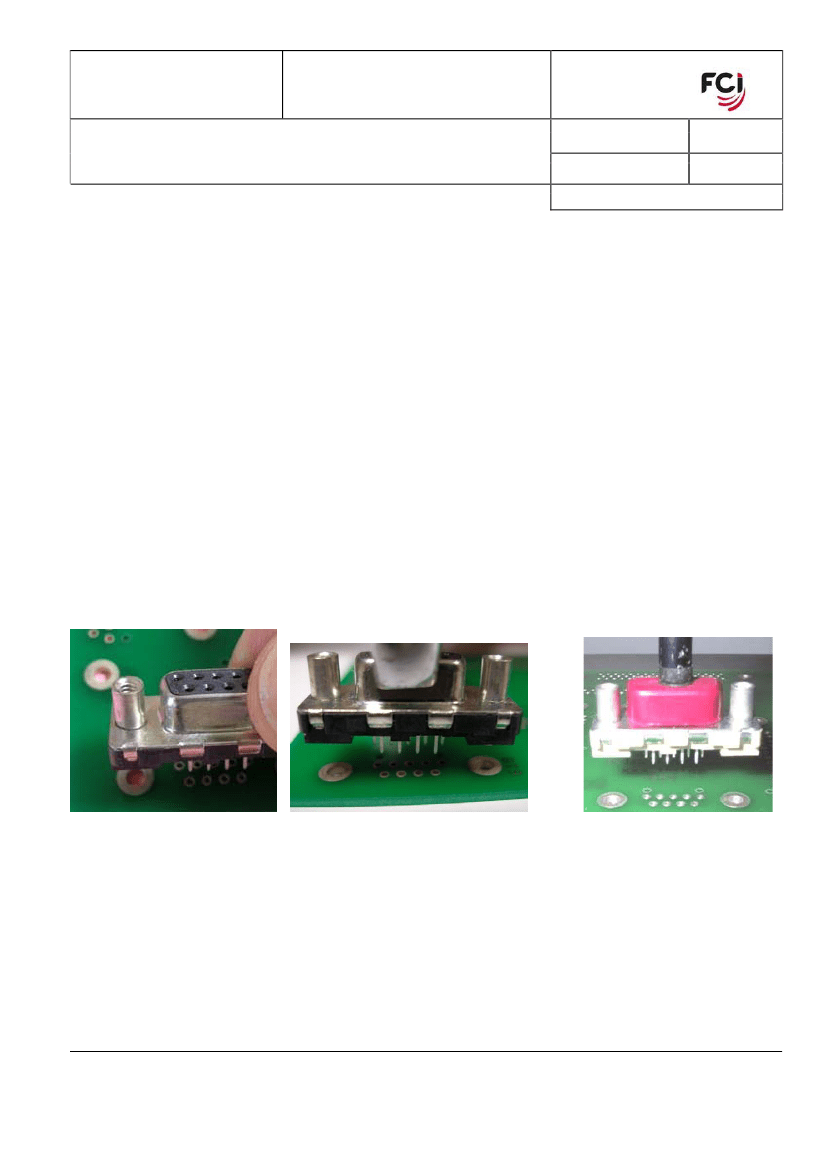

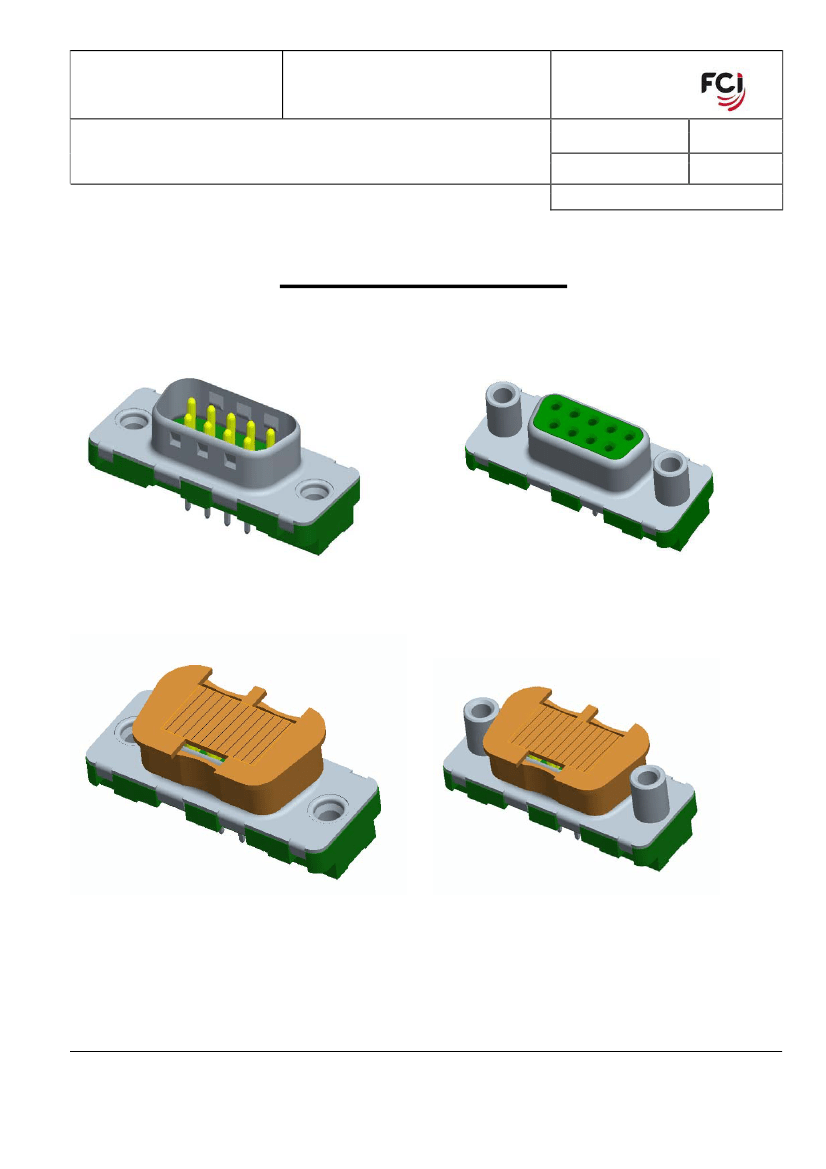

FOR EXEMPLE
.
HAND PLACING
GRIPPER
VACUUM NOZZEL
Copyright
Form E-3334
Rev F
FCI
GS-01-001
PDM: Rev:C
STATUS:
Released
Printed: Nov 27, 2010
.
NUMBER
TYPE
GS-12-372
PRODUCT SPECIFICATION
PAGE
REVISION
TITLE
SUB DELTA D PIP
FCI P/N : D--P/S24A6R---LF & D—P/S24B6R---LF
4 of 6
AUTHORIZED BY
DATE
C
07/06/08
H.LEGALLIC
CLASSIFICATION
UNRESTRICTED
2.2 Design and construction
The connector shall be of design, construction and physical dimensions as specified on the applicable
product customer drawings:
Code 24A
Hand Placing:
C01-8646-0878 / C01-8646-0879
Gripper:
C01-8646-0876 / C01-8646-0877
Vacuum Nozzle:
C01-8646-0874 / C01-8646-0875
Code 24B
Hand Placing:
C01-8646-0883 / C01-8646-0884
Gripper:
C01-8646-0885 / C01-8646-0886
Vacuum Nozzle:
C01-8646-0887 / C01-8646-0888
2.3 Materials and plating
2.3.1 Housing dielectric material
Plastic raw material: LCP, 30% glass fiber, UL94 V-O rating
Black colour
2.3.2 Terminal material
Copper Alloy CuSN8
2.3.3 Terminal Plating
Gold over Nickel on mating area metal
Tin over Nickel on termination
2.3.4 Shell material
Steel
2.3.5 Shell Plating
Ni over Cu
Copyright
Form E-3334
Rev F
FCI
GS-01-001
PDM: Rev:C
STATUS:
Released
Printed: Nov 27, 2010
.
NUMBER
TYPE
GS-12-372
PRODUCT SPECIFICATION
PAGE
REVISION
TITLE
SUB DELTA D PIP
FCI P/N : D--P/S24A6R---LF & D—P/S24B6R---LF
5 of 6
AUTHORIZED BY
DATE
C
07/06/08
H.LEGALLIC
CLASSIFICATION
UNRESTRICTED
2.3.6 Accessory Material
Brass
2.3.7 Accessory Plating
Pure Tin over Ni + Cu
2.3.8 CAP Material
PA4.6
3. Characteristics
3.1 Characteristics and Test sequence
In accordance with:
DIN 41 652 and CEI 512-
Other LNZ4404
3.2 Cycles
500Min
accordance to DIN 41652
3.3 Temperature
Temperature Range: -50°C to 125 °C
3.4 Accessories
Insert M3 or UNC 4-40: Retention against torque 0.7N.m Min.
Female screw lock: Retention against torque 0.5N.m Min
4. Reflow process
Lead free soldering
In accordance with: JSTD_020C 5 (solder pick to 265º)
5. Packaging
In accordance with GS-14-1061 for Hand Placing
In accordance with GS-14-1054 for Gripper
In accordance with GS-14-1052 for Vacuum nozzle (CAP)
