GSGX/GSGXHT Series
Documentation &
Ordering Information
Drawing
Sample
Stock
Email
CofC
RFQ
Kycon Part #
GSGXHT-N-2-88
Part Number Builder
GSGXHT
Series
N
Shield
Option
2
No. of
Ports
8
8
GSGX/GSGXHT Series

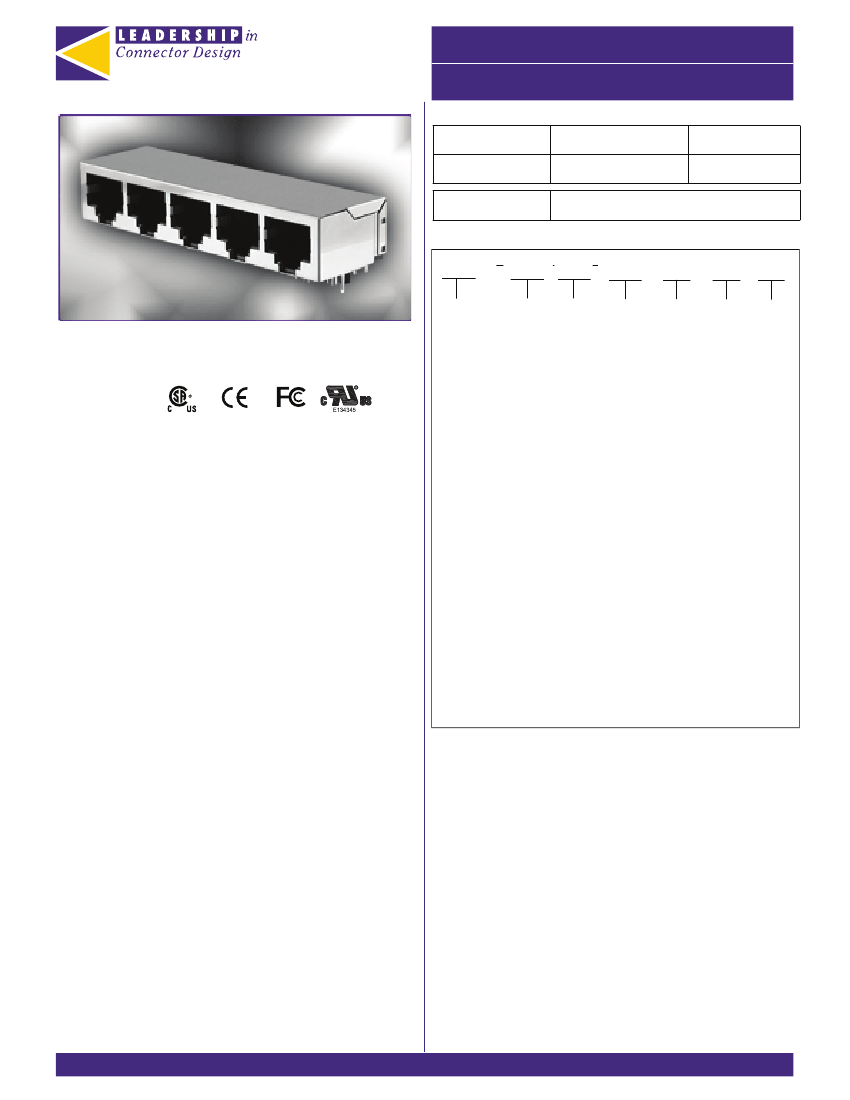

Right Angle Ganged Jack
Features
LR78160
Series
GSGX
GSGX
- Right Angle Ganged Jack
GSGXHT - High Temperature Right Angle Ganged Jack
GSGXHT
Shield Options
N
- Non-Shielded
N
NS
NS
- Shielded
No. of
No. of
Ground Plating
Positions Contacts
Pin
Option
Spacing
• Available in up to 12 Ports
• Available Fully Shielded for Category 5 Applications
• Reflow Compatible Through Hole Design
• CSA/NRTL Certified File No. LR78160
Performance Specifications
Materials and Finish
Housing Material
GSGX - PBT Thermoplastic, Glass Filled, UL 94V-0 Rated,
Black Color
GSGXHT - High Temperature Thermoplastic, UL 94V-0 Rated,
Black Color
Shield Material
Copper Alloy, Nickel Plated
Contact Material
Phosphor Bronze
Number of Ports
2
-
2 Port
2
4
-
4 Port
4
5
5
-
5 Port
6
-
6 Port
6
8
-
8 Port
10
-
10 Port
10
12
12
-
12 Port
Number of Positions/Contacts
88
-
8 Positions / 8 Contacts
88
Ground Pin Spacing (Shielded Only)
Blank
- 3.68 mm Ground Pin Spacing
Blank
4.57
4.57
- 4.57mm Ground Pin Spacing
Plating Option
Blank - Standard
Blank
50 - 50µ" Gold Plating
50
Electrical Characteristics
Insulation Resistance
500 Megohms Min.
Dielectric Withstanding Voltage
1000V RMS, 60 Hz
Contact Resistance
20 milliohms Max.
Current Rating
1.5A
Voltage Rating
125V DC
Operating Temperature
-40°C to +85°C
Durability
500 Mating Cycles Min.

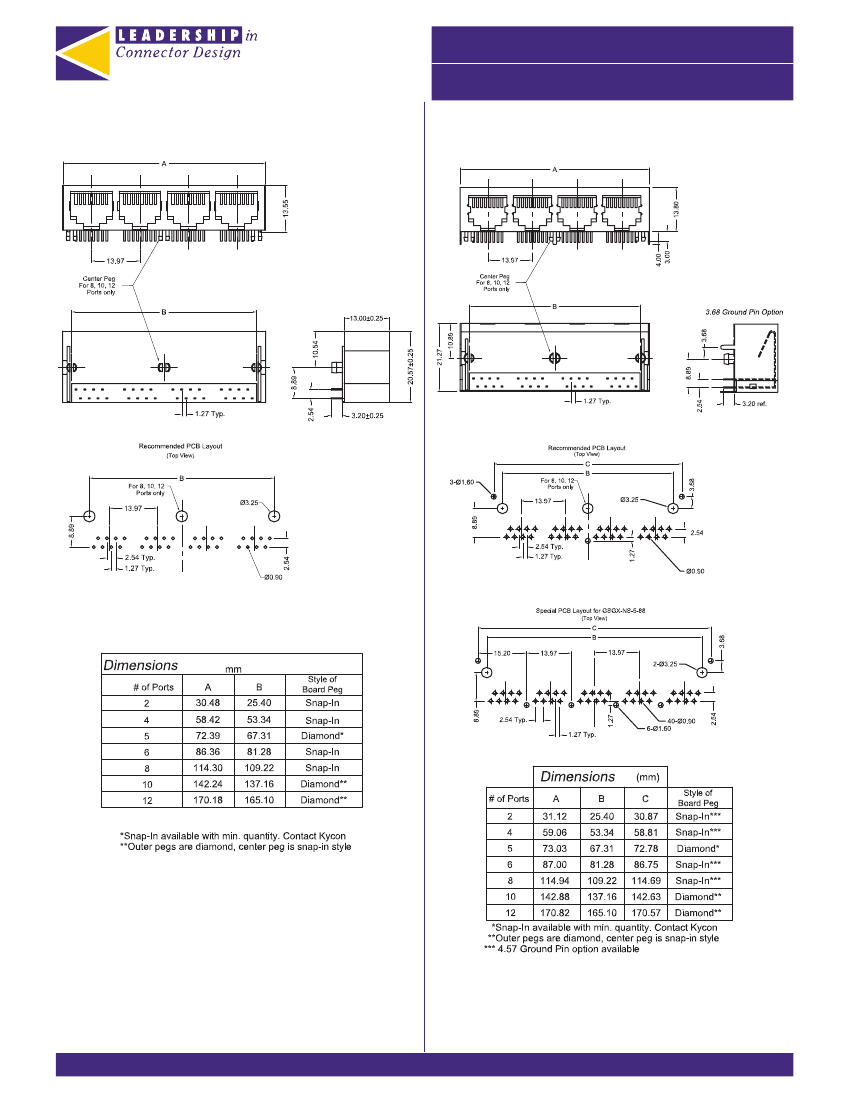

*See next page for dimensions
