1N2049-3R datasheet, PDF - EEWORLD Datasheet

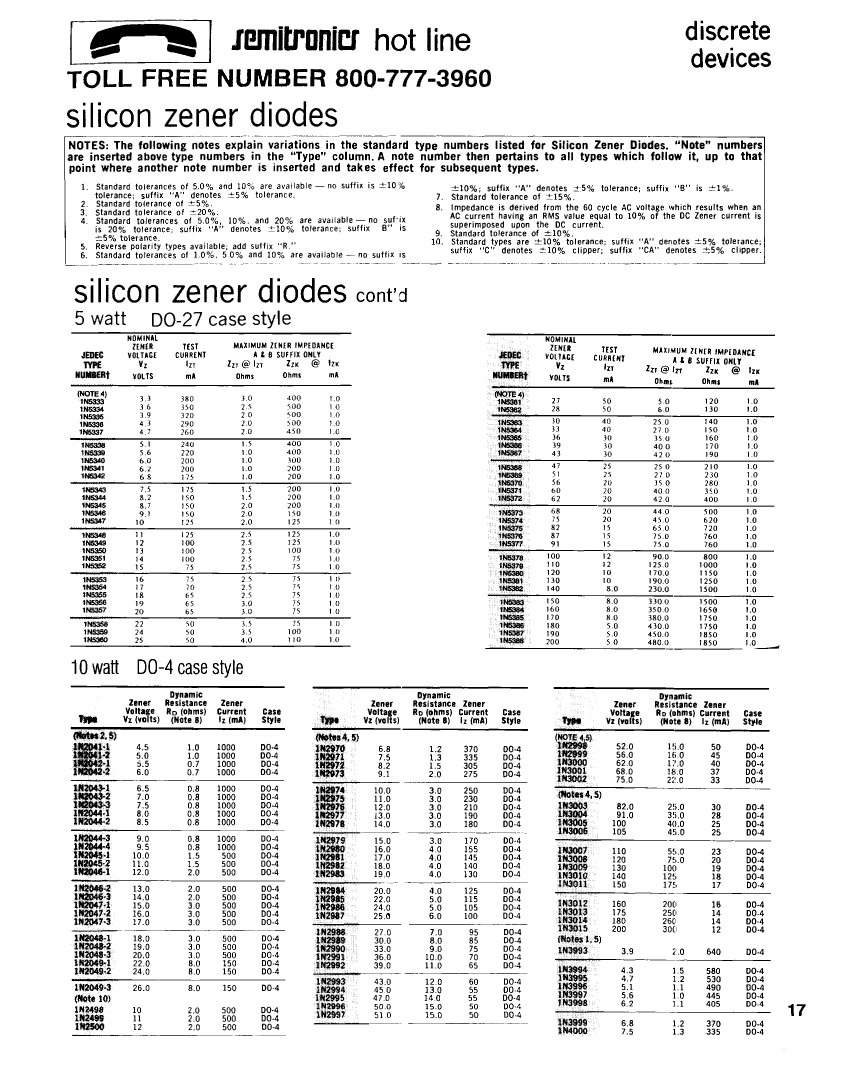

1N2049-3R: DescriptionZener Diode, 26V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, 1 PIN; CategoryDiscrete semiconductor diode; File Size188KB，2 Pages; ManufacturerSemitronics Corp.

Download Datasheet Parametric View All

1N2049-3R Overview

Zener Diode, 26V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, 1 PIN

Parameter Name	Attribute value
Parts packaging code	DO-4
package instruction	DO-4, 1 PIN
Contacts	1
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	8 Ω
JESD-30 code	O-MUPM-D1
Number of components	1
Number of terminals	1
Maximum operating temperature	175 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
polarity	UNIDIRECTIONAL
Maximum power dissipation	10 W
Certification status	Not Qualified
Nominal reference voltage	26 V
surface mount	NO
technology	ZENER
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum voltage tolerance	5%
Working test current	150 mA
Base Number Matches	1
