777-HR-B-G-44-P-VFM

Description
D Subminiature Connector, 44 Contact(s), Male, Crimp Terminal, Plug,
CategoryThe connector    The connector
File Size674KB,8 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

777-HR-B-G-44-P-VFM Overview

D Subminiature Connector, 44 Contact(s), Male, Crimp Terminal, Plug,

777-HR-B-G-44-P-VFM Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknown
Other featuresSTANDARD: MIL-C-24308, EMI/RFI SHIELDED TYPE
Body/casing typePLUG
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationGOLD (8)/GOLD (20)/GOLD (30) OVER NICKEL
Contact completed and terminatedGOLD FLASH/TIN OVER NICKEL
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED POLYETHYLENE
JESD-609 codee4/e3
MIL complianceYES
Manufacturer's serial numberHR
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
OptionsGENERAL PURPOSE
Shell surfaceTIN
Shell materialSTEEL
Housing size3/B
Termination typeCRIMP
Total number of contacts44
UL Flammability Code94V-0

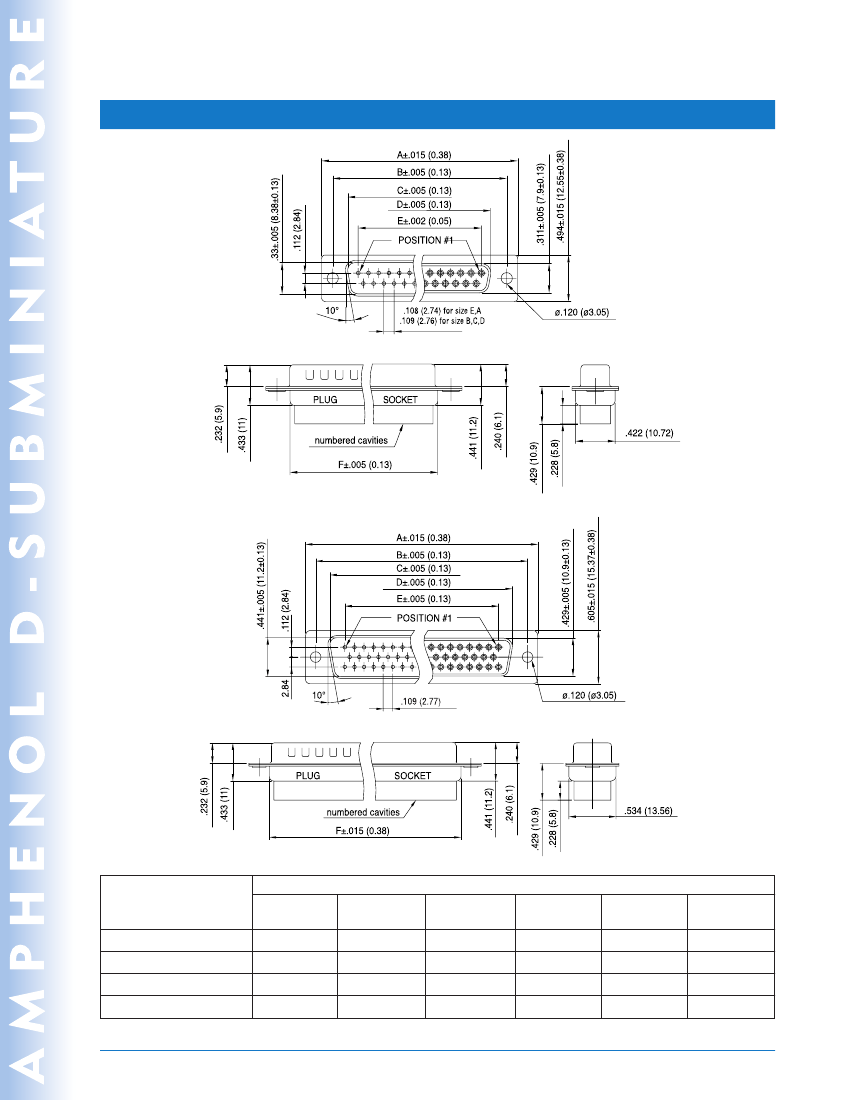

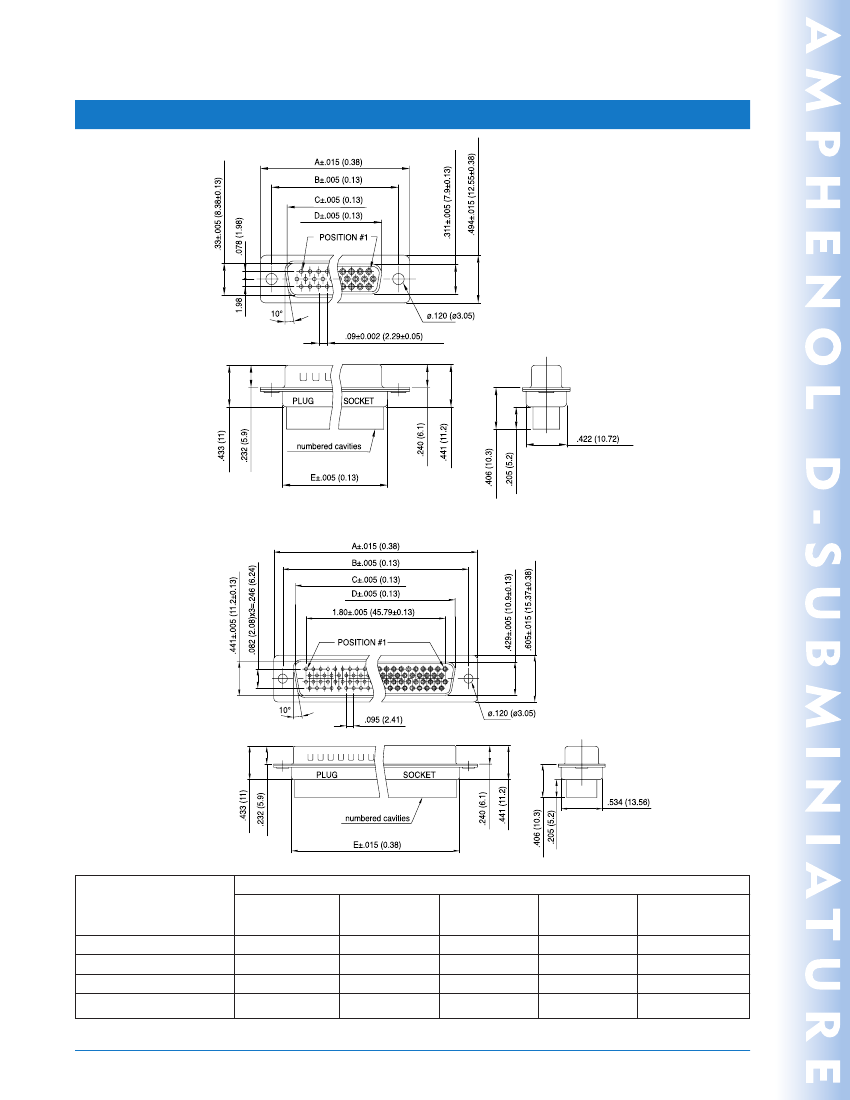

RR-HR S
ERIES

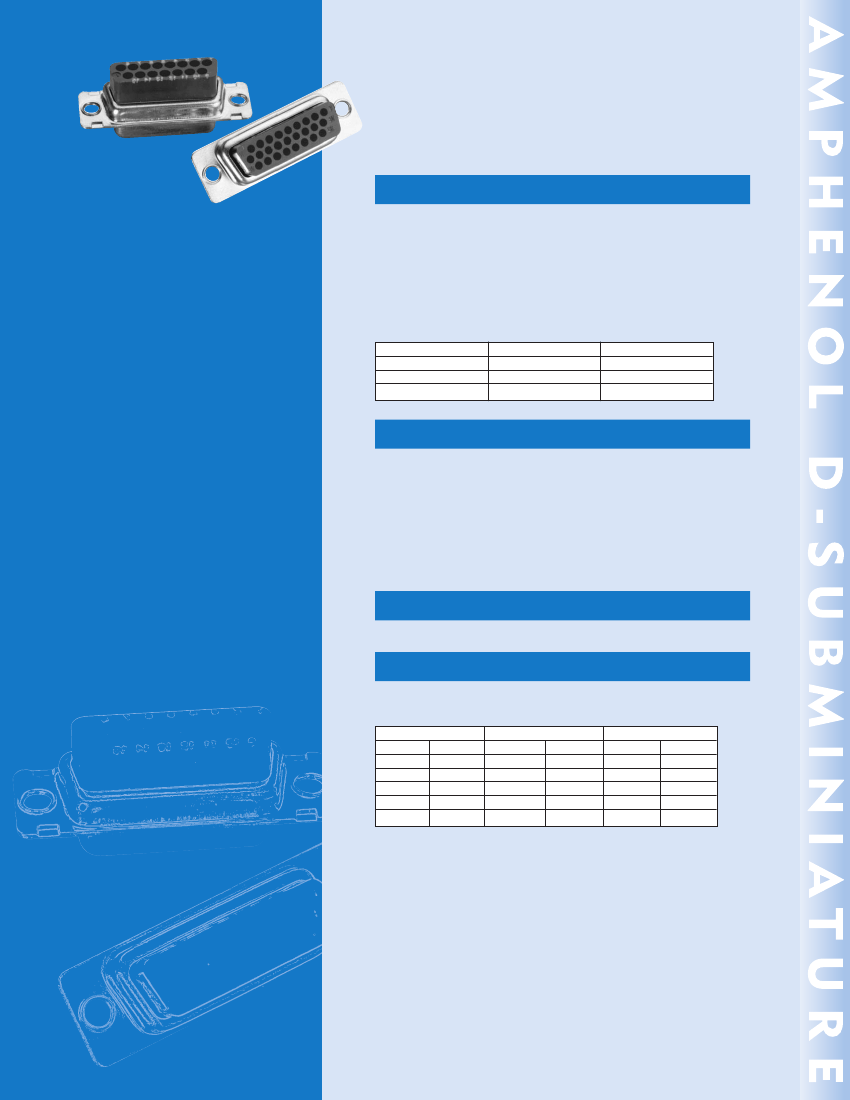

Standards:
Stamped And Formed Contacts
Rear Release Crimp Connectors
• RR: UL File :
E64911
• HR: UL File :
E149426
• Connectors according to MIL C24308
S
PECIFICATIONS
:
M
ATERIALS
Shells
AND
P
LATINGS
Steel yellow chromated over zinc or tinned steel
with or without dimples on plug connector
Black glass-filled thermoplastic, UL 94V-0
Brass, 118µ" up to 197µ" (3µm up to 5µm)
tinned over nickel 78µ” up to 118µ"
(2µm up to 3µm)
Brass, 236µ" up to 394µ" (6µm up to 10µm)
tinned over nickel 78µ" up to 118µ"
(2µm up to 3µm)
Under plating
78µ" (2µm) nickel
78µ" (2µm) nickel
78µ" (2µm) nickel
Crimp side
gold flash or tin
gold flash or tin
gold flash or tin
Designed for high volume
production, Amphenol's rear
release crimp connector and
contacts provide significant cost
savings.
- EMI / RFI shell configuration.
- Removable, reusable contacts.
- Automatic and manual
tooling available.
Insulator
Rear Insert

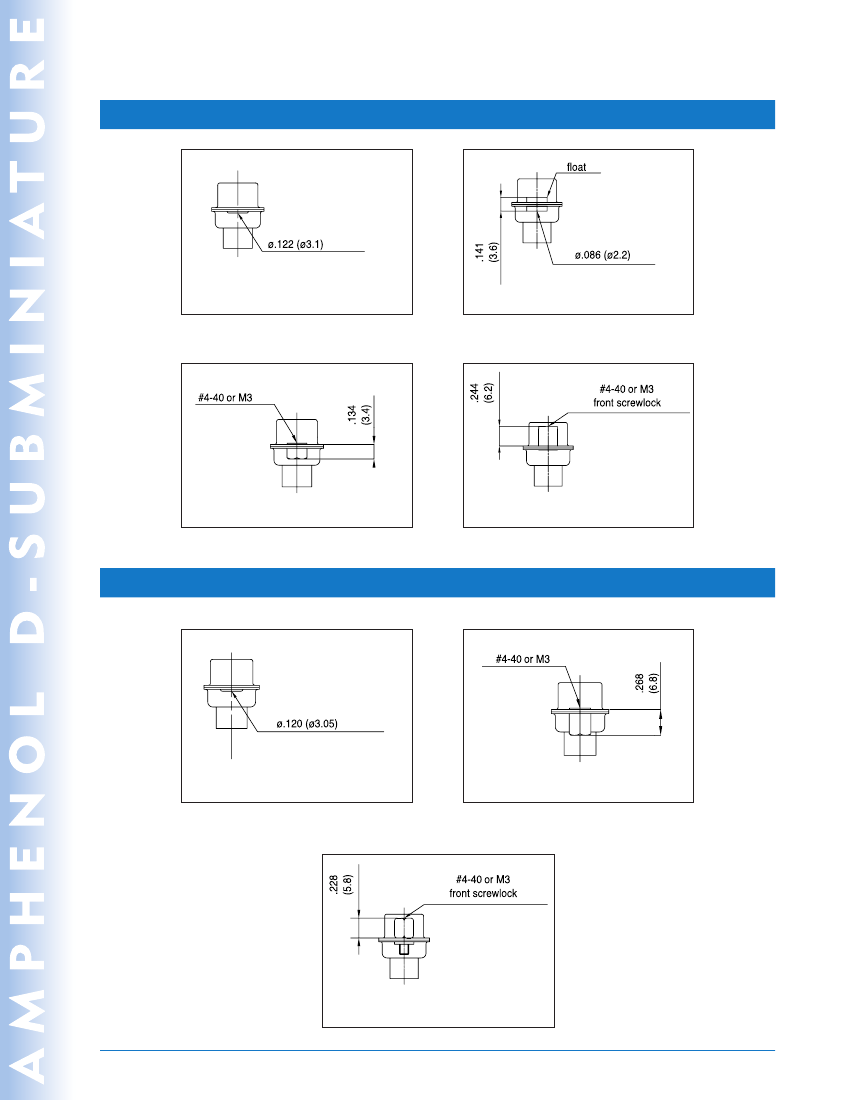

Screwlock

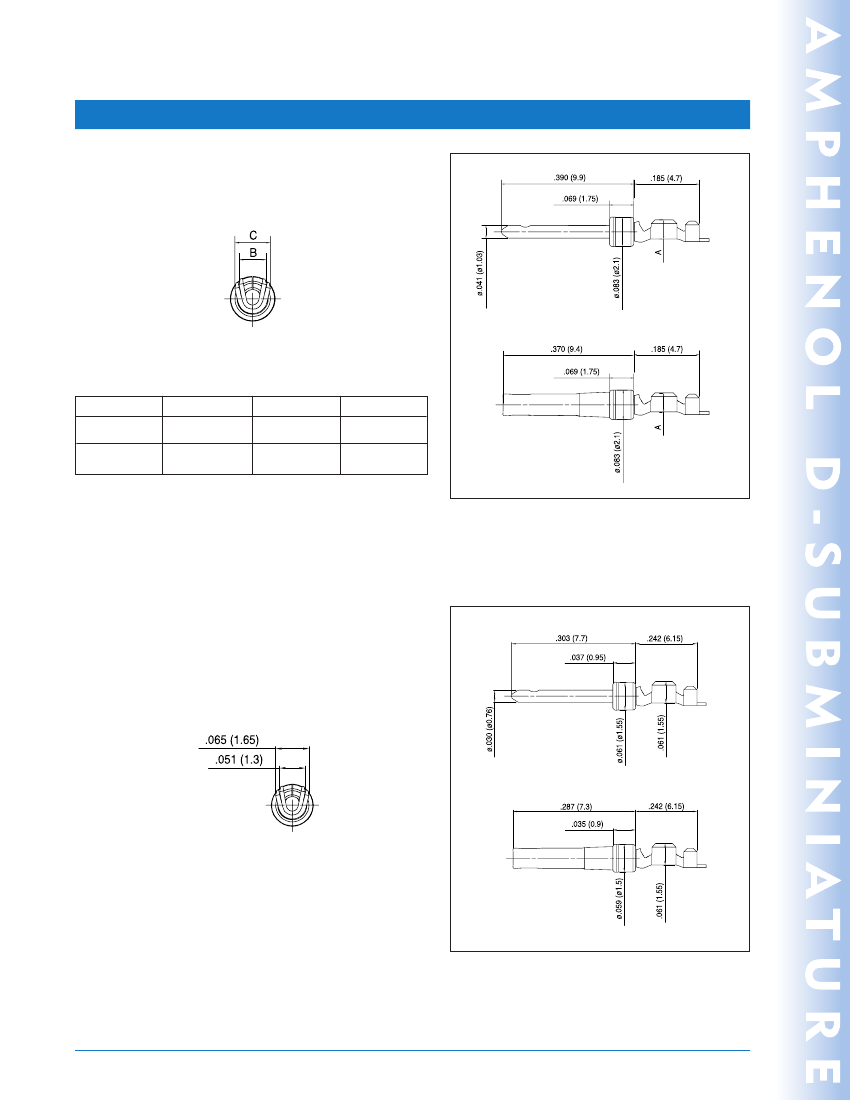

Contacts
8µ" (0.2µm) gold
20µ" (0.5µm) gold
30µ" (0.76µm) gold
E
LECTRICAL
D
ATA
Industrial
Telecom
Any industry standard
I / O connections
5A
Current Rating
Voltage Rating
500V AC/rms 50Hz
Withstanding Voltage
RR: 1000V AC/rms 50Hz for 1 minute
HR: 1000V AC/rms 60Hz for 1 minute
Insulation Resistance
RR: 5000MΩ
HR: 1000MΩ
Contact Resistance
10mΩ max.
Wire Size
20-28 AWG max. insulation out
.05 (Ø1.27)
C
LIMATIC
D
ATA
Operating Temperature
67°F to 221°F (-55°C to +105°C)
M
ECHANICAL
D
ATA
Mating and Unmating Force
Unit:
lb. (kg.)
No. of Contacts
RR
HR
9 (size E) 15 (size E)
15 (size A) 26 (size A)
25 (size B) 44 (size B)
37 (size C) 62 (size C)
50 (size D) 78 (size D)
Mate (max.)
RR
HR
6.74 (3.05) 8.42 (3.81)
11.24 (5.09) 13.16 (5.95)
18.66 (8.44) 20.46 (9.26)
27.65 (12.51) 29.78 (13.48)
32.38 (14.65) 34.96 (15.82)
Unmate (min.)
RR
HR
0.79 (0.36) 1.14 (0.52)
1.01 (0.46) 2.32 (1.05)
1.8 (0.81) 3.02 (1.37)
2.47 (1.1) 3.88 (1.76)
3.56 (1.6) 4.46 (2.02)
T
ELEPHONE
: (416) 754-5656
F
AX
: (416) 754-8668 E-M
AIL
:
SALES
@
AMPHENOLCANADA
.
