Base strip - DFK-PC 4/ 4-GF-7,62 - 1840573
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 20 A, Rated voltage (III/2): 630 V, Number of positions: 4, Pitch: 7.62 mm,
Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin, Mounting: Direct
mounting

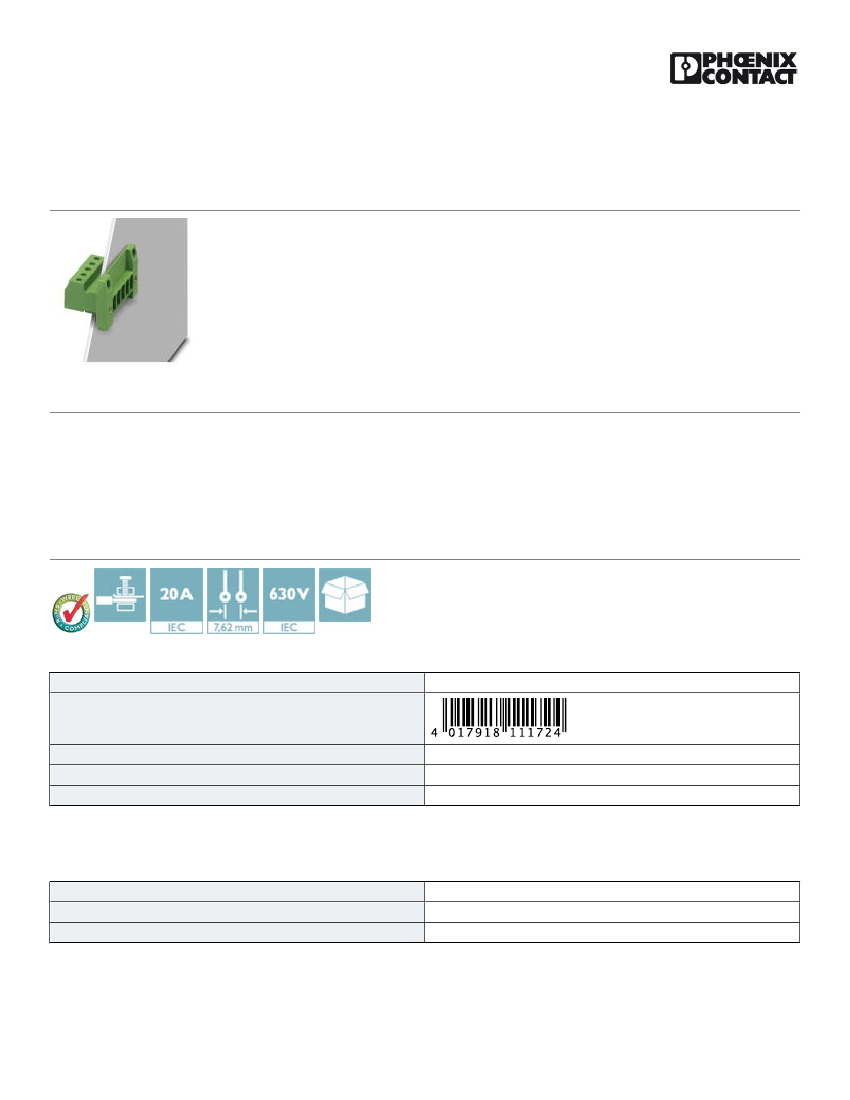

The figure shows a 5-pos. version of
the product
Product Features
■
■
■
■
■
Can be plugged into PC 4 and PC 5 plugs
Lateral mounting flanges (for screw set see accessories)
Screw connection on the inside of the device
Can be mounted from outside or prewired and mounted from inside
Feed-through connectors for a panel thickness of 1 to 5 mm
Key Commercial Data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
18.62 g
85366990
Poland
1 pc
Technical data
Dimensions
Width
Pitch
Dimension a
52.1 mm
7.62 mm
22.86 mm
General
04/20/2016 Page 1 / 7
https://www.phoenixcontact.com/us/products/1840573
Base strip - DFK-PC 4/ 4-GF-7,62 - 1840573
Technical data
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Flammability rating according to UL 94
Internal cylindrical gage
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
DFK-PC 4/..-GF
I
6 kV
6 kV
6 kV
400 V
630 V
1000 V
EN-VDE
20 A
4 mm²
20 A
PA
V0
A4
7 mm
4
M3
0.5 Nm
0.6 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.25 mm²
4 mm²
0.25 mm²
4 mm²
24
10
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.2 mm²
04/20/2016 Page 2 / 7
https://www.phoenixcontact.com/us/products/1840573
Base strip - DFK-PC 4/ 4-GF-7,62 - 1840573
Technical data
Connection data
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
2.5 mm²
sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
30
10
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CSA
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27141190
27260704
27440402
27141134
27141134
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001283
EC001283
EC001283
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
04/20/2016 Page 3 / 7
https://www.phoenixcontact.com/us/products/1840573
Base strip - DFK-PC 4/ 4-GF-7,62 - 1840573
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / LR / GL / DNV / EAC / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
28-10
20 A
300 V
C
28-10
20 A
300 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-10
35 A
300 V
C
30-10
35 A
300 V
D
30-10
5A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-10
35 A
300 V
C
30-10
35 A
300 V
D
30-10
5A
600 V
LR
04/20/2016 Page 4 / 7
https://www.phoenixcontact.com/us/products/1840573
Base strip - DFK-PC 4/ 4-GF-7,62 - 1840573
Approvals
GL
DNV
EAC
EAC
cULus Recognized

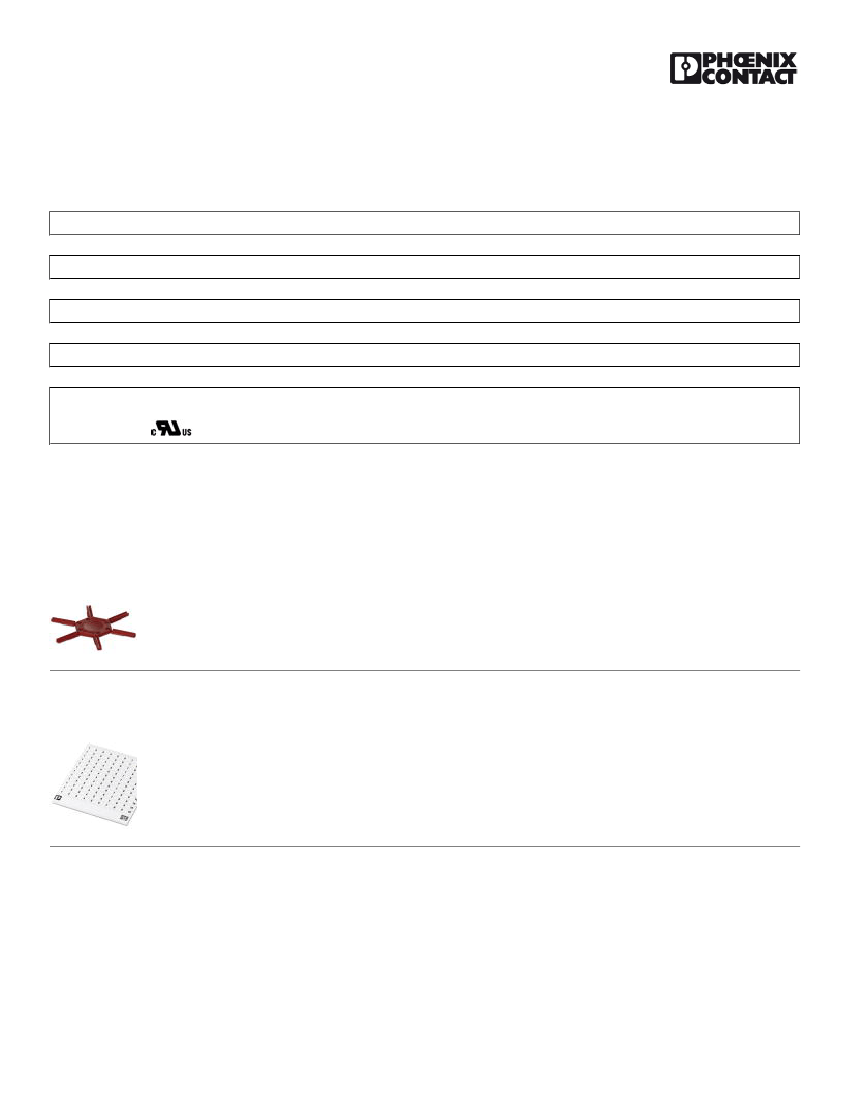

Accessories
Accessories
Coding element
Coding profile - CP-PC RD - 1701967
Coding profile, for plugging into the coding ribs of the plug at a later date, insulating material, color: Red
Labeled terminal marker
Marker card - SK 7,62/3,8:FORTL.ZAHLEN - 0804549
Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 100, Mounting type:
Adhesive, for terminal block width: 7.62 mm, Lettering field: 7.62 x 3.8 mm
Mounting material
