503148-0890 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 503148-0890

503148-0890: DescriptionHeaders u0026 Wire Housings CLIKMate Plg Term Gld 24-28AWG; CategoryThe connector The connector; File Size26KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

503148-0890 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	503148-0890	-	-	View	Buy Now

503148-0890 Overview

Headers u0026 Wire Housings CLIKMate Plg Term Gld 24-28AWG

503148-0890 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	21 weeks
Board mount options	FITTING NAIL
body width	0.36 inch
subject depth	0.344 inch
body length	0.406 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Insulation resistance	500000000 Ω
Insulator color	BEIGE
Plug contact pitch	0.059 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7112 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

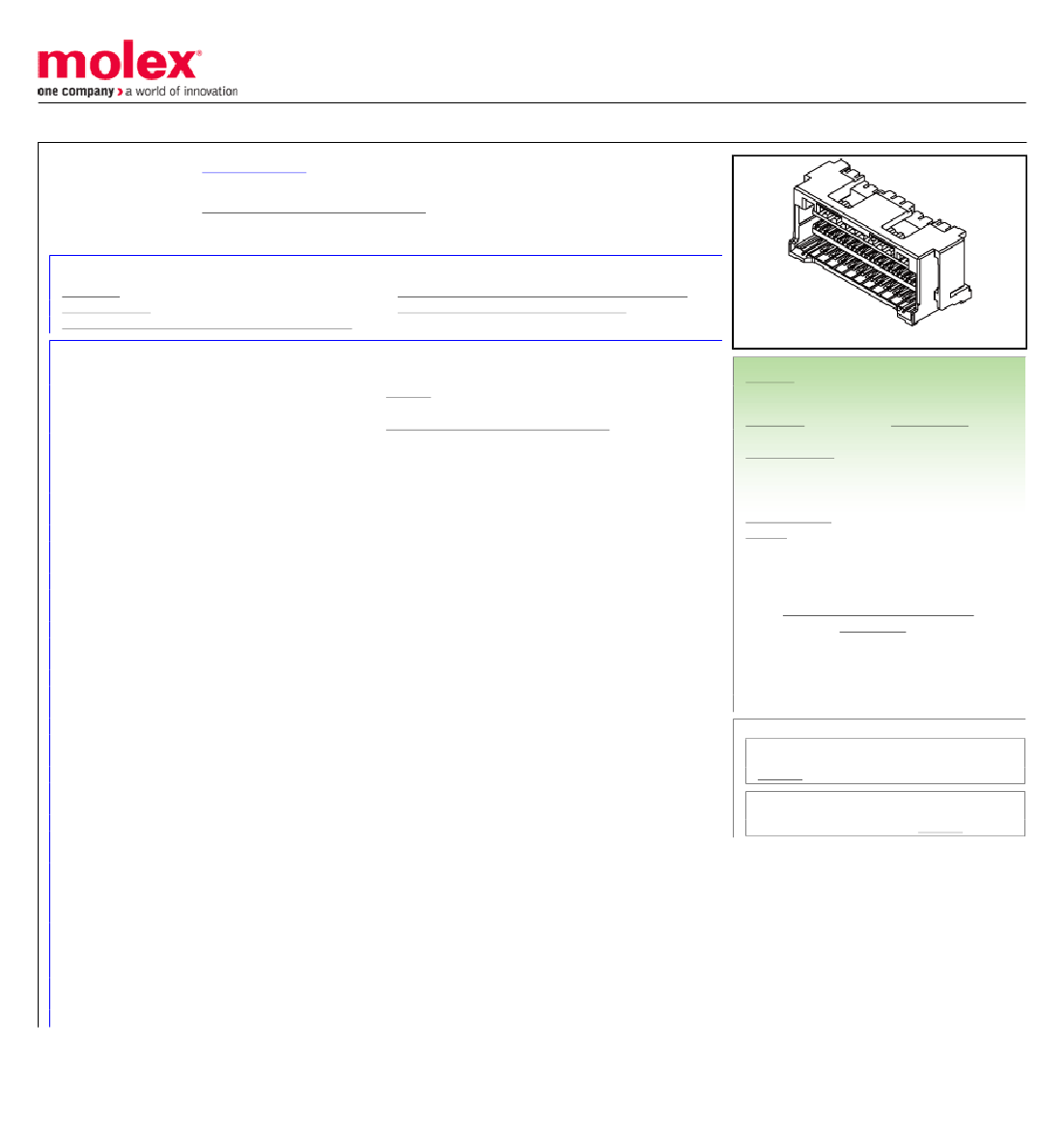

This document was generated on 10/17/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5031480890

Active

CLIK-Mate Wire-to-Board Connectors

1.50mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Dual Row, Surface Mount,

Right Angle, Tin Plating, 8 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-503148-001-001 (PDF)

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Application Specification

Product Specification

Sales Drawing

Application Specification 5031490000-000 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

PCB Receptacles

503148

Signal, Wire-to-Board

CLIK-Mate Wire-to-Board Connectors

CLIK-Mate

887191689869

Beige

Yes

9.20mm

Copper Alloy

Tin

1302.000/mg

Right Angle

Yes

1.20mm, 1.70mm

Embossed Tape on Reel

1.50mm

Yes

-40°C to +105°C

Surface Mount

1.0A

100V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

503148 Series

Mates With

CLIK-Mate Crimp Housing 503149

5031490000-000

PS-503148-001-001

SD-503148-001, SD-503148-002

This document was generated on 10/17/2017
