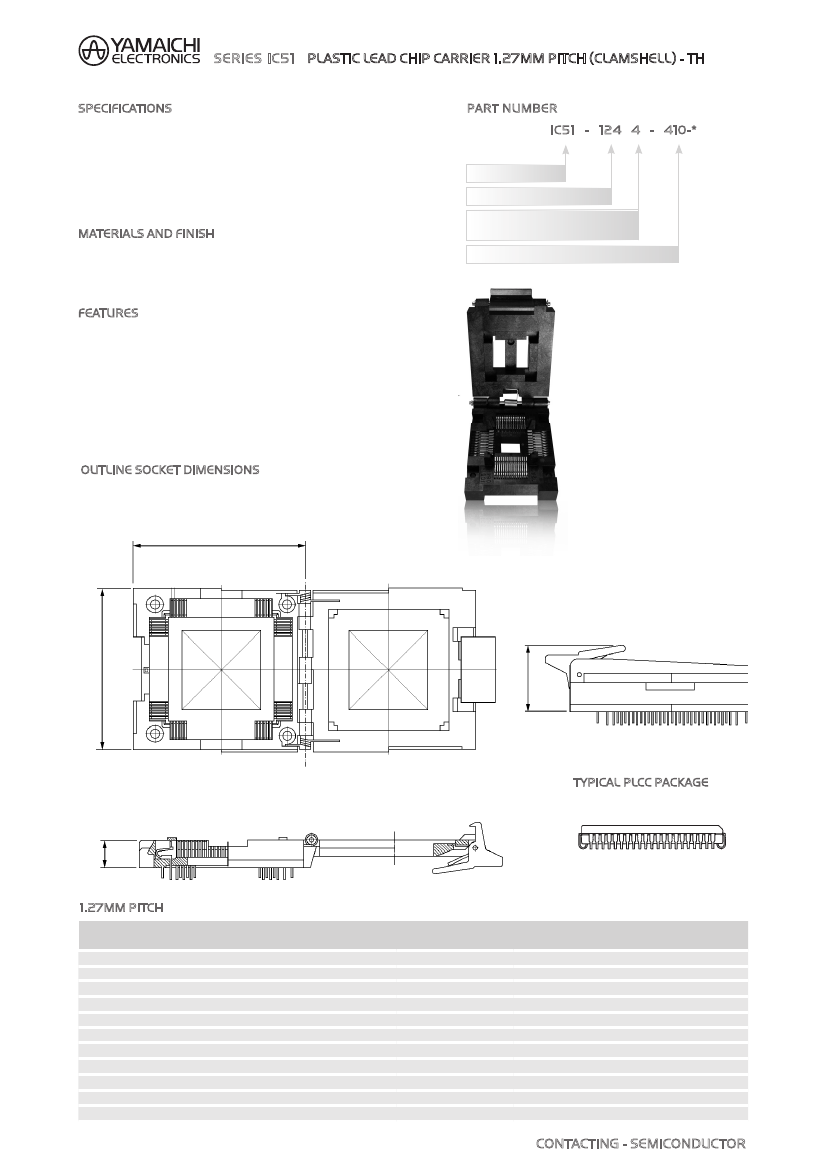

SERIES IC51
PLASTIC LEAD CHIP CARRIER 1.27MM PITCH (CLAMSHELL) - TH
SPECIFICATIONS
Insulation Resistance:
Dielectric Withstanding Voltage:
Contact Resistance:
Current Rating:
Operating Temperature Range:
Mating Cycles:
1,000MΩ min. at 500V DC
700V AC for 1 minute
30mΩ max. at 10mA/20mV max.
1A max.
–55°C to +170°C
10,000 insertions min.
PART NUMBER
IC51 - 124 4 - 410-*
Series No.
No. of Contact Pins
Number of Sides
with Contacts
Design Number
MATERIALS AND FINISH
Housing:
Contacts:
Plating:
Polyethersulphone (PES), glass-filled
Beryllium Copper (BeCu)
Gold over Nickel
FEATURES
• Clamshell socket for PLCC packages
• IC orientation, Live bug
OUTLINE SOCKET DIMENSIONS
A
B
D
TYPICAL PLCC PACKAGE
1.27MM PITCH
Part Number
IC51-0204-602
IC51-0284-399
IC51-0324-453
IC51-0444-400
IC51-0524-411-*
IC51-0644-1329-*
IC51-0684-390-*
IC51-0844-401-1*
IC51-1004-405-*
IC51-1244-410-*
Pin Count
20
28
32
44
52
64
68
84
100
124
A
31.5
36.0
35.0
40.0
43.0
43.0
49.0
55.0
60.6
65.0
B
26.0
30.0
30.0
34.0
38.0
30.0
42.0
48.0
54.0
60.0
C (open)
10.0
10.0
9.0
10.0
10.0
12.0
10.0
10.0
10.0
10.0
D (closed)
20.0
20.5
19.5
20.0
23.5
19.0
23.5
23.5
23.5
23.5
Table shows only a selection of sockets available. For customised or other socket types, please contact Yamaichi Electronics
20
C
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
CONTACTING - SEMICONDUCTOR
