54ABT543/BLA: DescriptionIC ABT SERIES, 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, CDIP24, CERAMIC, DIP-24, Bus Driver/Transceiver; Categorylogic logic; File Size171KB，7 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54ABT543/BLA Overview

IC ABT SERIES, 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, CDIP24, CERAMIC, DIP-24, Bus Driver/Transceiver

54ABT543/BLA Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
Other features	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; MASTER CONTROL FOR LATCH
series	ABT
JESD-30 code	R-GDIP-T24
Load capacitance (CL)	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	30 mA
propagation delay (tpd)	6.4 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BICMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

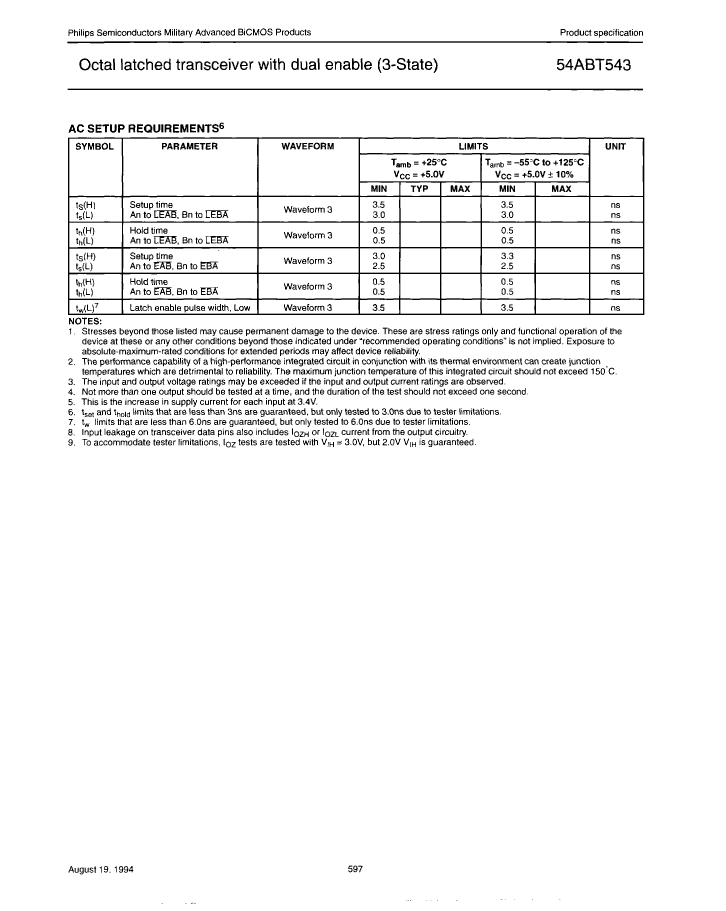

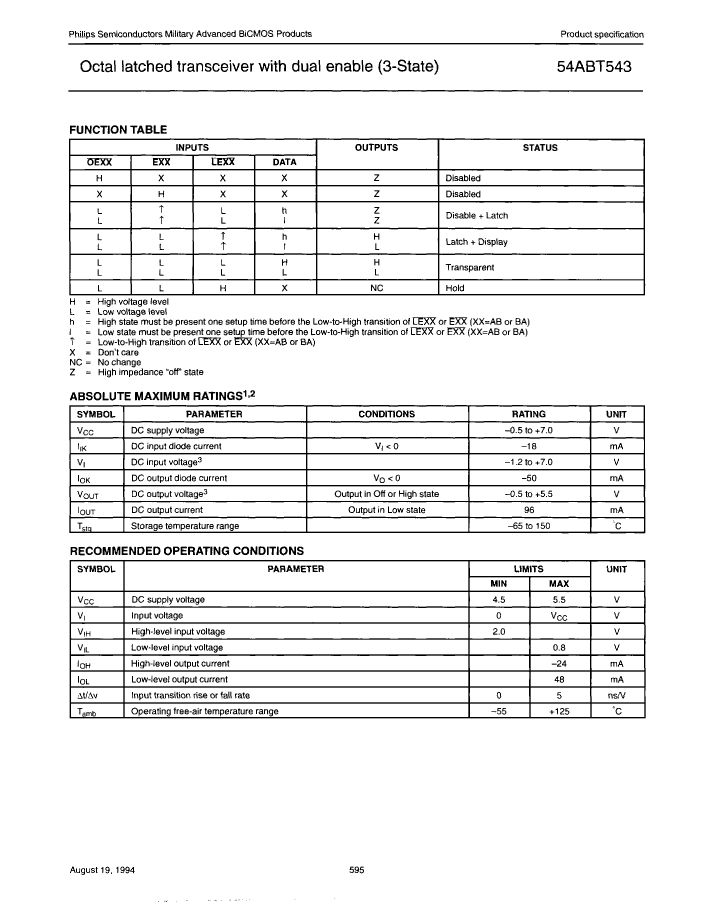

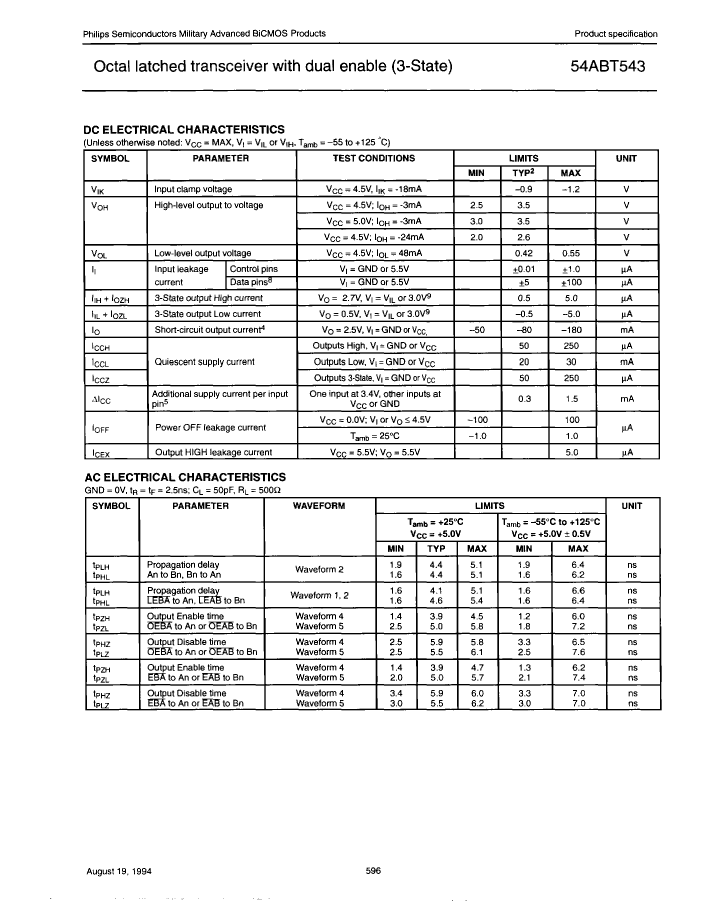

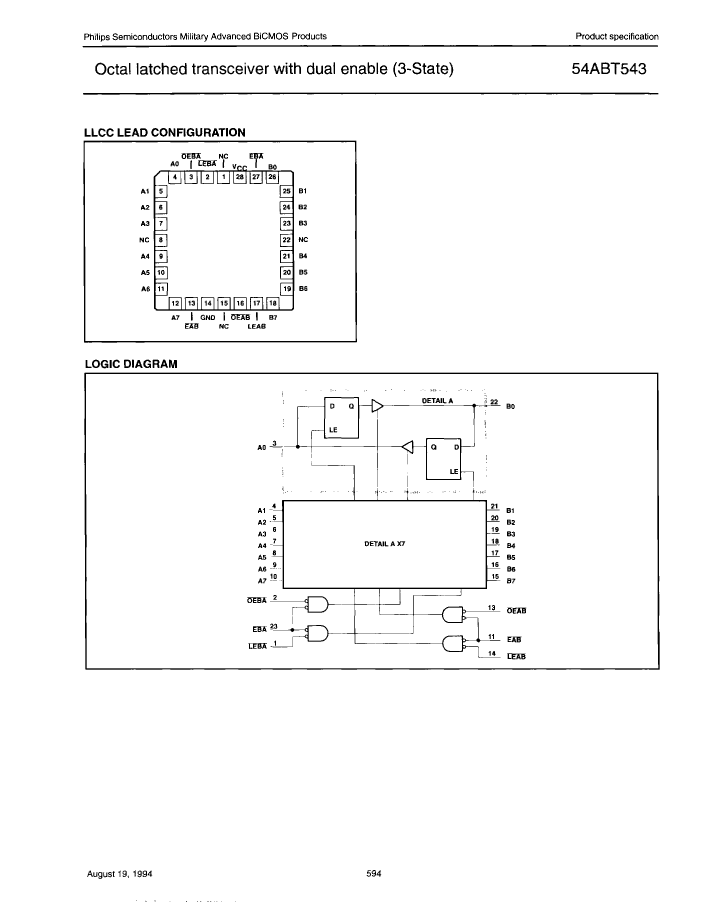

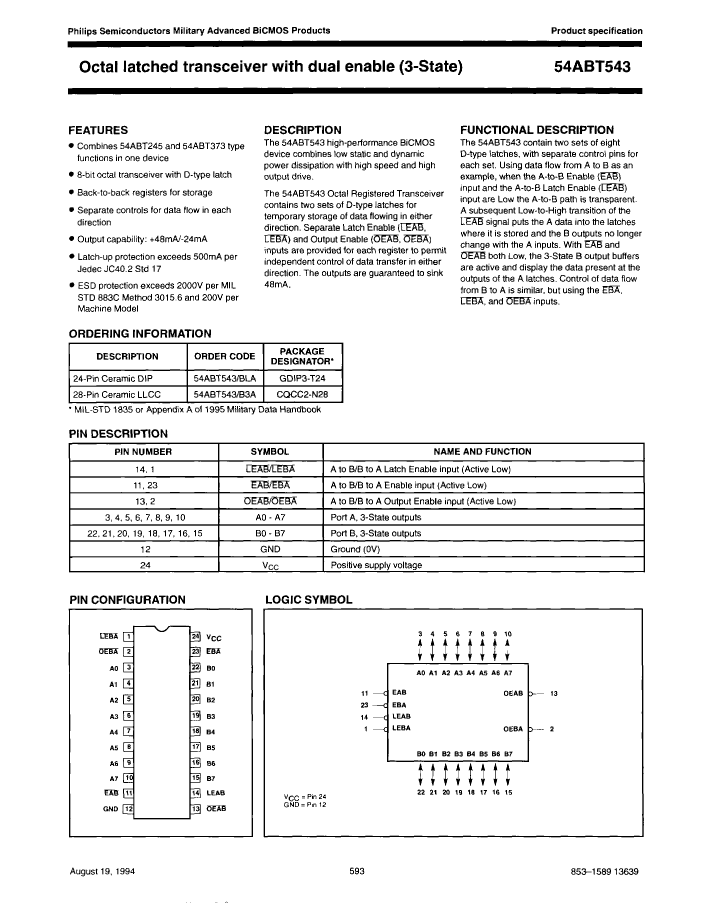

Preview

Download Datasheet

View All

54ABT543/BLA Related Products

	54ABT543/BLA	54ABT543/B3A
Description	IC ABT SERIES, 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, CDIP24, CERAMIC, DIP-24, Bus Driver/Transceiver	IC ABT SERIES, 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, CQCC28, CERAMIC, LLCC-28, Bus Driver/Transceiver
Maker	NXP	NXP
Parts packaging code	DIP	QLCC
package instruction	DIP,	CERAMIC, LLCC-28
Contacts	24	28
Reach Compliance Code	unknown	unknown
Other features	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; MASTER CONTROL FOR LATCH	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; MASTER CONTROL FOR LATCH
series	ABT	ABT
JESD-30 code	R-GDIP-T24	S-CQCC-N28
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Number of digits	8	8
Number of functions	1	1
Number of ports	2	2
Number of terminals	24	28
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
Maximum supply current (ICC)	30 mA	30 mA
propagation delay (tpd)	6.4 ns	6.4 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	1.905 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	BICMOS	BICMOS
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD
width	7.62 mm	11.4554 mm
Base Number Matches	1	1
