34675-0004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 34675-0004

34675-0004: DescriptionAutomotive Connectors MX150 ASSY 1.5 BLD 1X2 BLK A/2; CategoryThe connector; File Size25KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

34675-0004 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	34675-0004	-	-	View	Buy Now

34675-0004 Overview

Automotive Connectors MX150 ASSY 1.5 BLD 1X2 BLK A/2

34675-0004 Parametric

Parameter Name	Attribute value
Product Category	Automotive Connectors
Manufacturer	Molex
RoHS	Details
Product	Connectors
Number of Positions	2 Position
Gender	Male
Wire Gauge Range	22 AWG to 14 AWG
Color	Gray
Current Rating	22 A
Description/Function	Sealed Connector System
Dimensions	39.2 mm x 13.6 mm x 15 mm
Family	MX150
Features	Male 1 x 2 with Clip Slot, Key Option B
Housing Material	Nylon
Length	39.2 mm
Material	Nylon
Number of Rows	2 Row
Packaging	Bulk
Pitch	5 mm
Factory Pack Quantityddyqvyaaxfvsczwxdvwtqscbfeyaxsftxwdvy	1600
Type	Plug
Voltage Rating	500 VDC
Unit Weight	0.152983 oz

Preview

Download Datasheet

View All

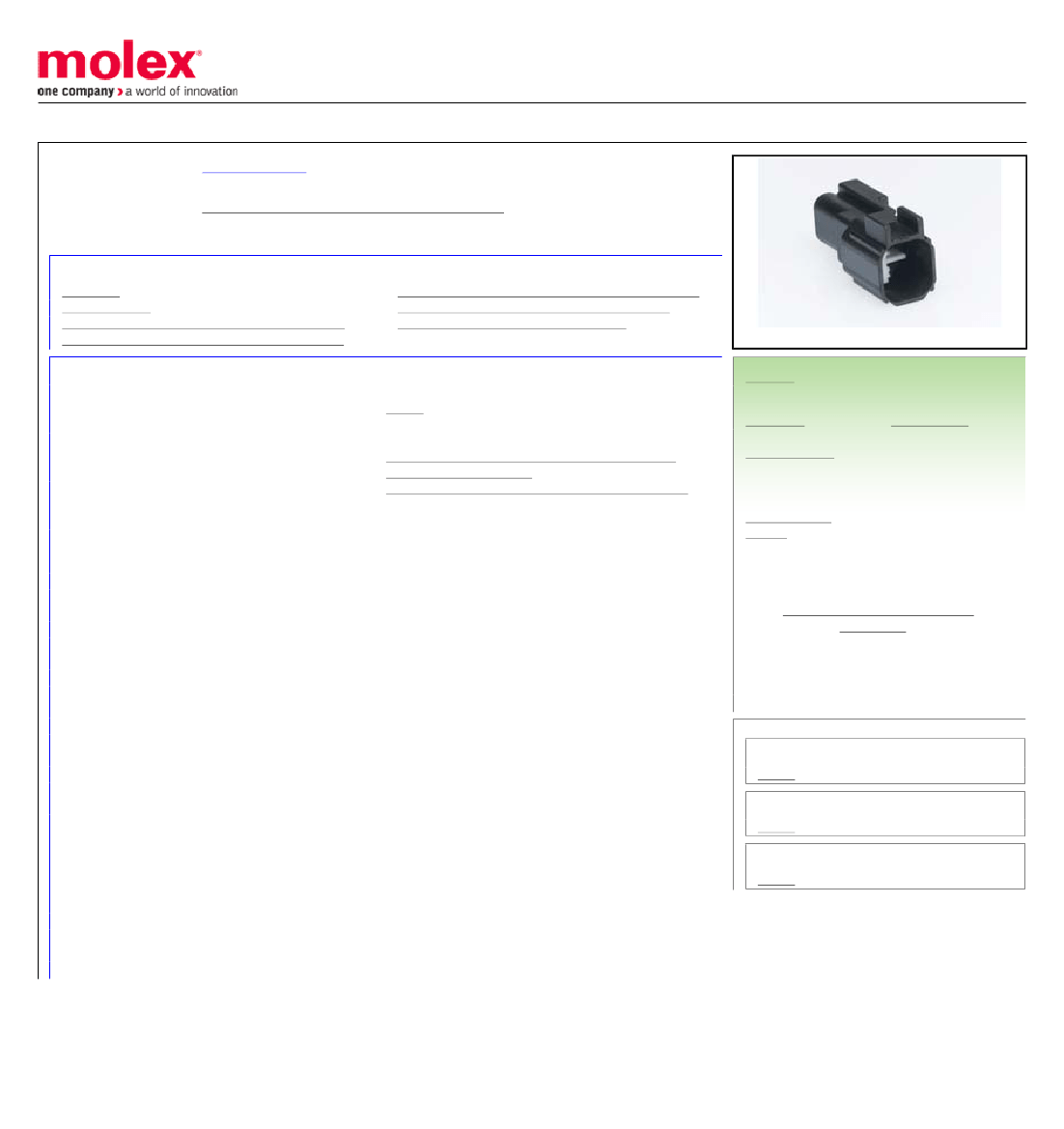

This document was generated on 10/10/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0346750004

Active

MX150™ Sealed and Unsealed Connector System

MX150 2 Way Inline Male Assembly with TPA, Single Row, 2 Circuits, Keying Option B,

with Clip Slot, Gray

Documents:

3D Model

Drawing (PDF)

Product Specification PS-34062-000-001 (PDF)

Product Specification TS-34062-992-001 (PDF)

General

Product Family

Series

Application

Comments

More Detailed Tech Information

Overview

Product Name

UPC

Physical

Circuits (maximum)

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

Application Specification AS-34062-000-001 (PDF)

Packaging Specification PK-31300-635 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Relevant

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Relevant

Compliant

Not Contained

Crimp Housings

34675

Power, Wire-to-Wire

with clip slot

http://uscar.org/guest/teams/10/Electrical-Wiring-

Component-Applications -Partnership

MX150™ Sealed and Unsealed Connector System

MX150

883906097790

Gray

Plug

Yes

Nylon

4.337/g

Bag

5.00mm

Yes

-40°C to +120°C

N/A

Search Parts in this Series

34675 Series

Mates With

34062 MX150 Sealed Female Receptacles

Use With

34080 Male Terminal

AS-34062-000-001

PK-31300-635

PS-34062-000-001, TS-34062-992-001

SD-34675-001-000

This document was generated on 10/10/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
