Compact Flash
©
Card Connectors
MI20/21 Series
Complies with Compact Flash Association
(a)Space-saving design
51
.75
0
7.
sFeatures

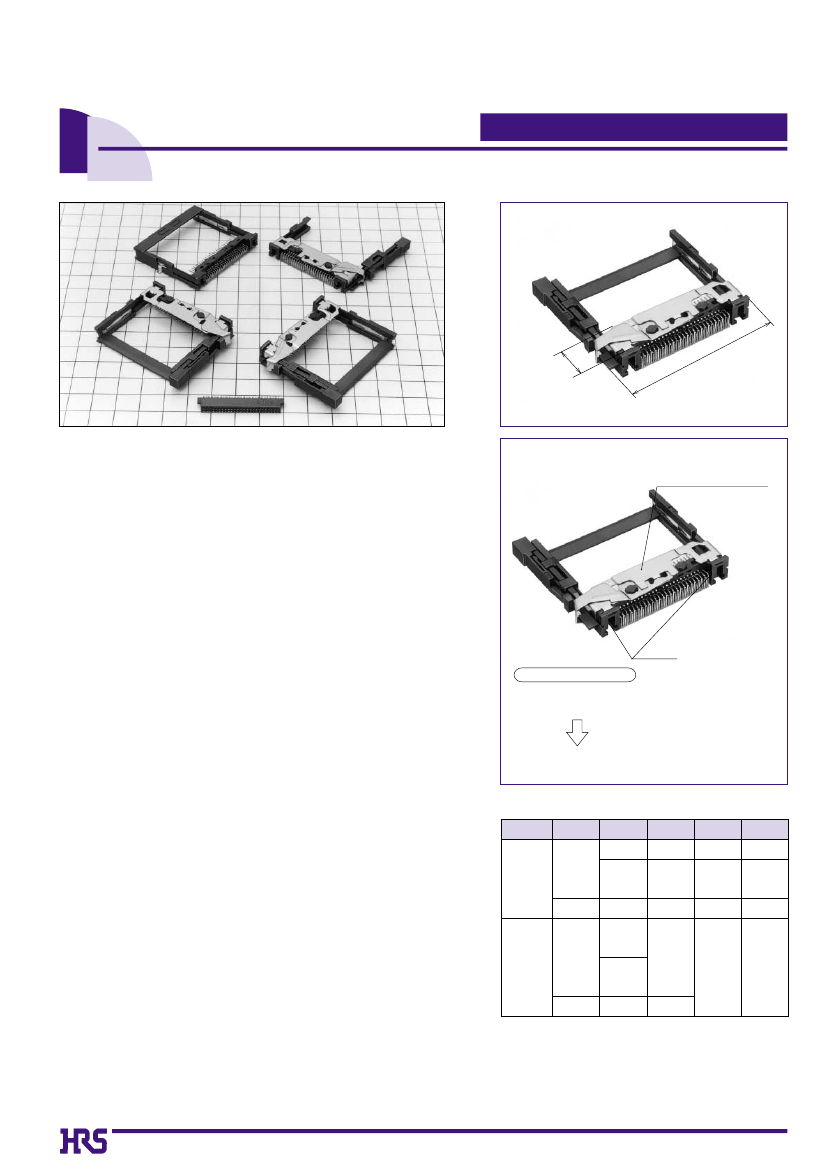

1. Compact design occupies minimum space
Connectors are designed with small width and depth for
miniaturization and the foot print on the board has been
made smaller. (See (a) to the right)
(b)Suitable for automatic mounting
Automatic equipment
pick up area.
2. Supplied with ground terminals
The MI21 Series are furnished with ground terminals.
3. Card ejection mechanism
Two point ejection mechanism to assure even card
ejection.
4. Designed and packaged for board placement
with automatic equipment
Headers are designed with a pick up area to accommodate
the pick-and -place nozzles of automatic mounting
machines. (Patents pending)
Receptacles are designed to be mounted on top the board,
and automatic mounting is possibble on the specified
board.
Fixed
HRS Product Feature
Fixed fittings make
slider immobile.
Construction facilitates
pick-and-place process.
5. Card ejection mechanism
Available in several termination and mouting styles, with
and without ejection mechanism, with and without stand-
offs.
qProducut
variation
Series Mounting offset
None
Ejector
None
Right
2.2 mm
Left
Reverse 2.2 mm
None
Standard
MI21
2.2 mm
Reverse
None
None
None
None
Right
Left
Type1or2
YES
Type1
Ø(
None
)
Type1
YES
Cards Built-in nuts
Type1or2
----
6. Rich variations
A rich assortment of variations allows selection of a type to suit
the specific card and the equipment to which it will be installed.
(1)Suitable cards: Type I , type I/II .
(2)Eject button: None, right , left
(3)Standoff: 0 mm, 2.2 mm
(4)Board mounting type: Standard , reverse
MI20
Standard
Note 1: Hexagonal nuts (M2∞0.4) are required.
sApplications
PDA, digital still cameras, etc.
C2
s
Product Specifications
Current rating 0.5 A
Rating Voltage rating 125 V AC
Operating temperature range -55 to +85ç (Note 1)
Storage temperature range -10 to +60ç
Operating humidity range
Relative humidity 95% or less Storage humidity range
-40
to 70%
(No condensation)
Specification
1,000 M
ohms
min.
40 m
ohms
max. (initial value) (Note 3)
No electrical discontinuity of 100ns or more
500 V DC
500 V AC / 1 minute
1 mA
Frequency: 10 to 2000 Hz, full amplitude of 1.52 mm or
acceleration of 147 m/s
2
(peak), 4 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
Temperature: -55ç for 30 min. --> +5 to 35ç within 5 min.
85ç for 30 min. --> +5 to 35ç within 5 min. for 5 cycles
10000 cycles at 400 to 600 cycles per hour
Reflow: At the recommended temperature profile
Manual soldering: 300ç for 3 seconds
Conditions
Item
1. Insulation resistance
3. Contact resistance
4. Vibration
2.
Withstanding voltage
No flashover or insulation breakdown.
5.
Humidity (Steady state)
Insulation resistance of 100 M
ohms
min.
6. Temperature cycle
7. Durability
(Insertion/withdrawal)
Insulation resistance of 100 M
ohms
min.
Change of contact resistance from initial value is
20 m
ohms
max.
8. Resistance to Soldering
No deformation of components affecting performance.
heat
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range covers non- conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: This does not include the resistance of the conductor .
sMaterials
Item
Receptacle
Part
Insulator
Contacts
Insulator
Contacts
Header
Metal fitting
Eject fitting
Ground clip
Nut
Material
PPS
Phosphor bronze
PPS
Brass
Brass
Stainless steel
Stainless steel
Steel
Finish
Color:Black
Contact Area : Gold plating
Lead Area
: Solder plating
Color:Black
Contact Area
: Gold plating
Termination Area : Solder plating
---------------
---------------
---------------
Solder plating
Remarks
UL94V-0
---------------
UL94V-0
---------------
Applied to eject mechanism
---------------
Applied to MI21 series
---------------
sOrdering
Information
qReceptacles
1
Series name: MI
2
Series No.
20: for type I cards (
½
)
21: for type I and II cards
3
Stand off type
Blank : None
A
: 2.2 mm
4
Number of contacts: 50
5
Connector type
PD: Header
6
Board mounting type
Blank : Standard
R
: Reverse
7
Contact type
SF: SMT
8
Eject button position
EJR : Right button
EJL
: Left button
Blank : None
9
Built-in nut type
(31): With built-in nuts
MI 20 - 50 RD - SF
1
1
2
3
4
5
2
3
4
5
Series name: MI
Series No.: 20
Number of contacts: 50
Connector type
Contact form
RD: Receptacle
SF: SMT
qHeaders
MI 20 A - 50 PD R - SF - EJR (31)
1
2
3
4
5
6
7
Blank: Standard product
8
9
(
½
) Can accommodate type II cards only when standard mounting is
used and stand off is 0 mm.
C3
sReceptacle
35.86
32.97
30.48
1.27
1.27
No.25
No.1
3.3
-2
No.26
No.50
2.7
0.5
0.2
(offset)
6
2.6
3
No.50
No.25
0.635
(t0.08∞w0.3)
31.115
No.1
No.26
1
0.05
Note 1 The coplanarity of the conductor is 0.1 mm Max.

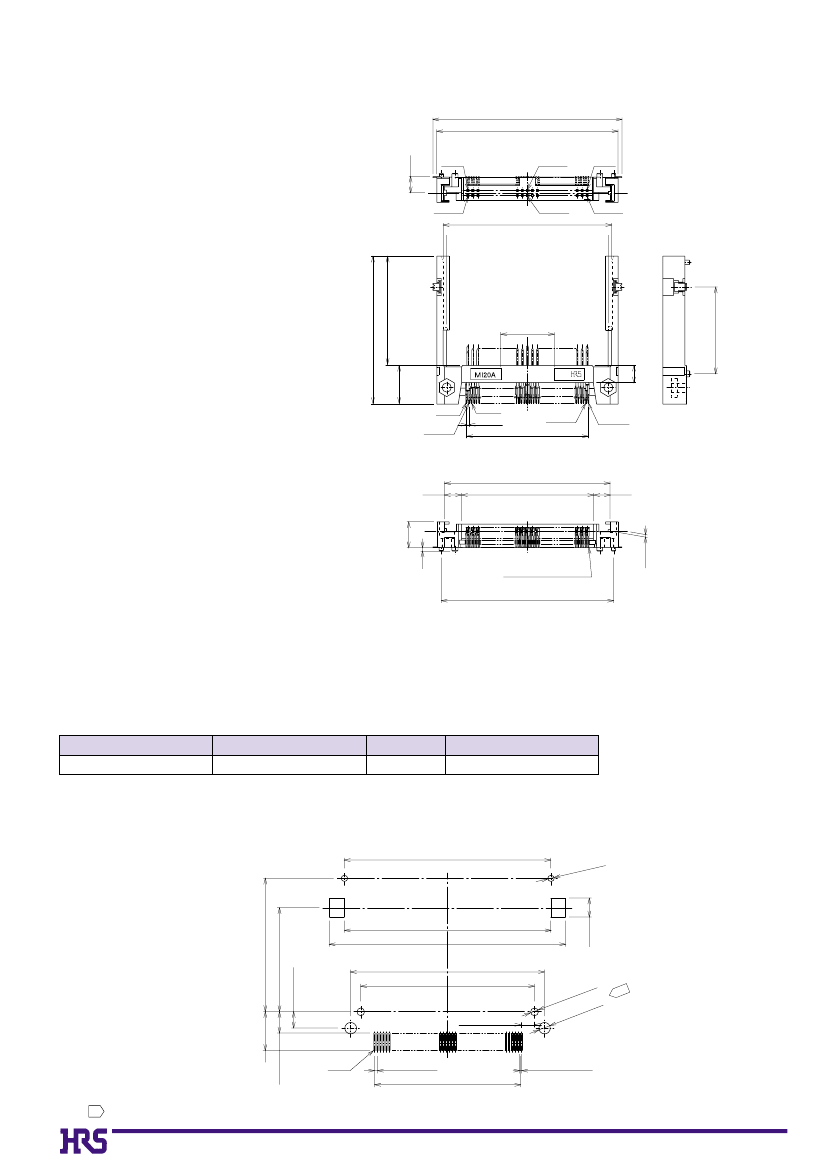

Part Number
MI20-50RD-SF
CL No.
640-7001-0
Number of Contacts
50
Packaging
Tray
B
PCB mounting pattern
(35)
33.4
+0.1
+0
31.115±0.05
2-R1max
(4.2)
0.635±0.03
50-0.4±0.03
3max
1.2
+0.2
+0
2min
(Recommended board thickness=0.4)
C4
A
1
sHeaders
for Type I or II Cards
qEject
button
: None
qOffset
: None
qMounting
style : Standard mounting
49
48
1.95
No.50
No.38
No.26
No.25
No.13
No.1
43.03
(20)
MI20--50PD
(10)
No.50
0.635
31.115
No.25
40.4
2.5
No.2
No.26
Polartiy mark
No.1
2.5
1.35
3.8
(0.8)
t : 0.25 ∞ w : 0.25
Note 1: Coplanarity of all surface mount terminals and components is 0.1.
Note 2: Dimensions in parentheses ( ) are reference dimensions.

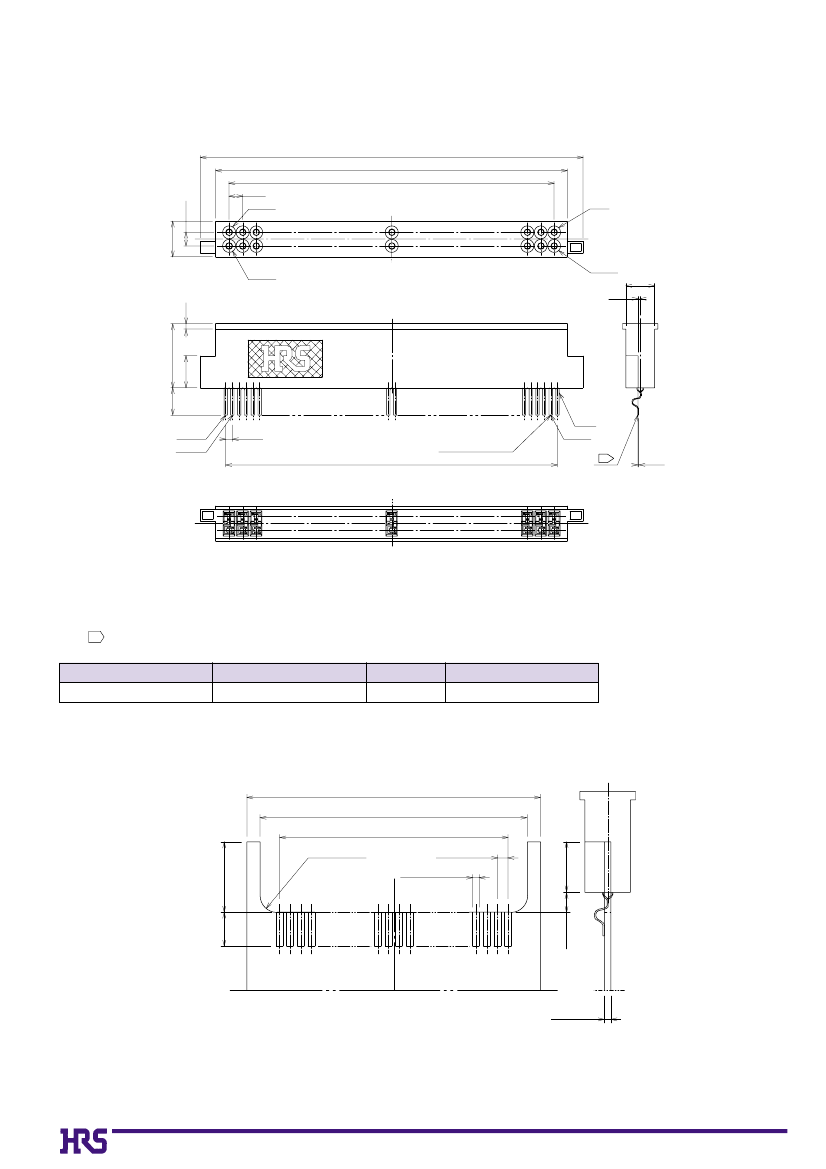

Part Number
MI20-50PD-SF
CL No.
640-7002-2
Number of Contacts
50
Packaging
Tray
B
PCB mounting pattern
51±0.1
45.5±0.05
44.6±0.1
37±0.05
2-Ø
1.4
18±0.05
12.25±0.1
4±0.05
+
0
+
0 .1
4.5max
+
0
1.6
-Ø
2
.1
+
0
8.25min
2.9425±0.05
No.1
0.634±0.03
31.115±0.05
50-0.4±0.03
12.25
18
30
C5
sHeaders
for Type I Cards
qEject
button
: None
qOffset
: 2.2 mm
qMounting
style : Reverse mounting
4.15
No.1
48.3
46.3
No.13
No.25
No.26
43.03
No.38
No.50
37.9
(27.9)
(17.2)
(10)
No.1
No.26
No.2
0.635
31.115
No.25
No.50
(4.3)
42.3
33.7
(4.3)
6.6
(4.5)
t : 0.25∞w : 0.25
44
Note 1: Coplanarity of all surface mount terminals and components is 0.1.
Note 2: Dimensions in parentheses ( ) are reference dimensions.
Part Number
MI20A-50PDR-SF
CL No.
640-7003-5
Number of Contacts
50
Packaging
Tray
B
PCB mounting pattern
44±0.05
+
0.1
0
2-Ø1.3
+
28.5±0.05
22.25±0.1
43.9±0.1
50.3±0.1
3.5±0.05
41.3±0.05
37±0.05
8.25min
0
1.6
+
1
2-Ø
+
0.
+
0
Ø2.4
2-
4±0.1
1
+
0.
1
2.9425±0.05
4.5max
No.1
0.635±0.03
31.115±0.05
50-0.4±0.03
Note 1 The holes (2-
Ø
2.4
+0.1
) illustrated in the figure are only required when screws are used for fastening.
0
C6
(0.15)
(1)
22.25
