UL91BJ0608J: DescriptionFilm Capacitor, Polypropylene, 900V, 5% +Tol, 5% -Tol, 6000uF, Chassis Mount; CategoryPassive components capacitor; File Size606KB，6 Pages; ManufacturerElectronic Concepts Inc; Environmental Compliance

Download Datasheet Parametric View All

UL91BJ0608J Overview

Film Capacitor, Polypropylene, 900V, 5% +Tol, 5% -Tol, 6000uF, Chassis Mount

UL91BJ0608J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Electronic Concepts Inc
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	6000 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
Manufacturer's serial number	UL9
Installation features	CHASSIS MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
positive tolerance	5%
Rated (DC) voltage (URdc)	900 V
surface mount	NO
Terminal shape	BINDING POST
Base Number Matches	1

Preview

Download Datasheet

View All

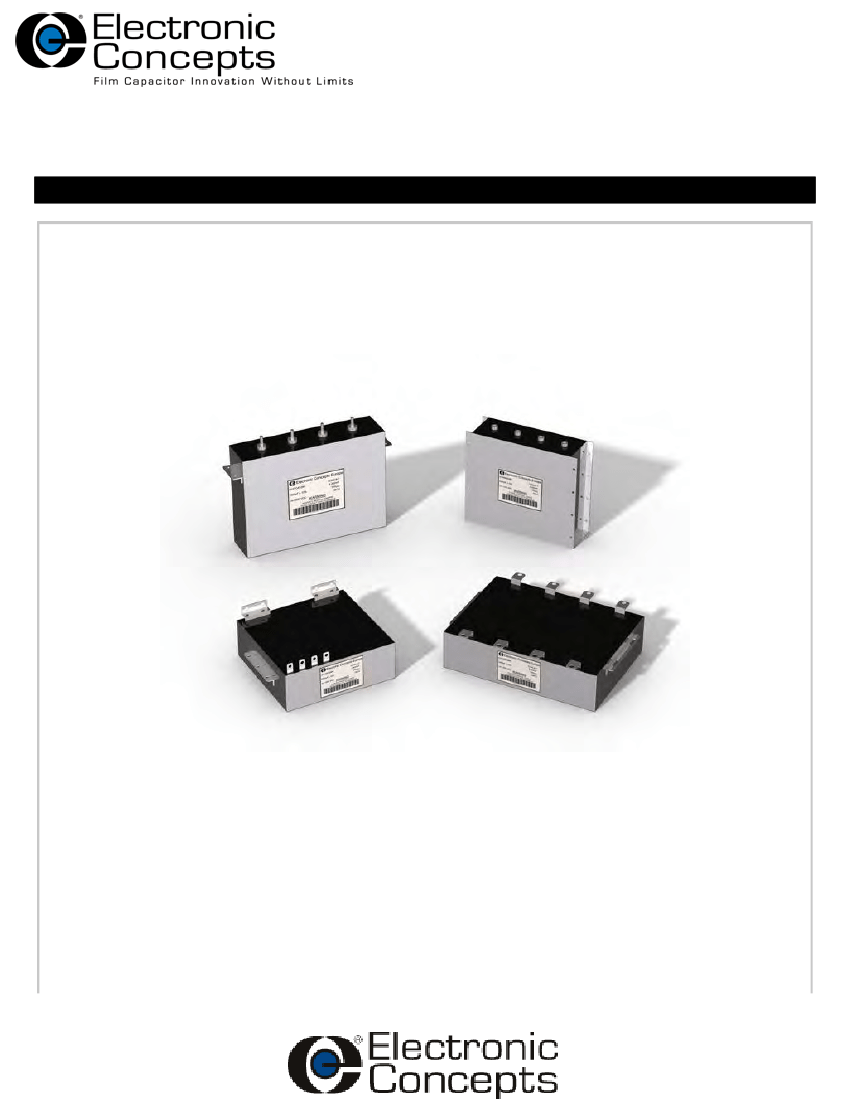

UL9

SERIES

Medium Power Film

DC Link Filter Capacitor

The UL9 is a metallized polypropylene film capacitor designed to handle the

heavy load of power applications, typical in DC Link applications. The packaging

incorporates mounting used in typical design, but can be customized to meet

specific customer needs.

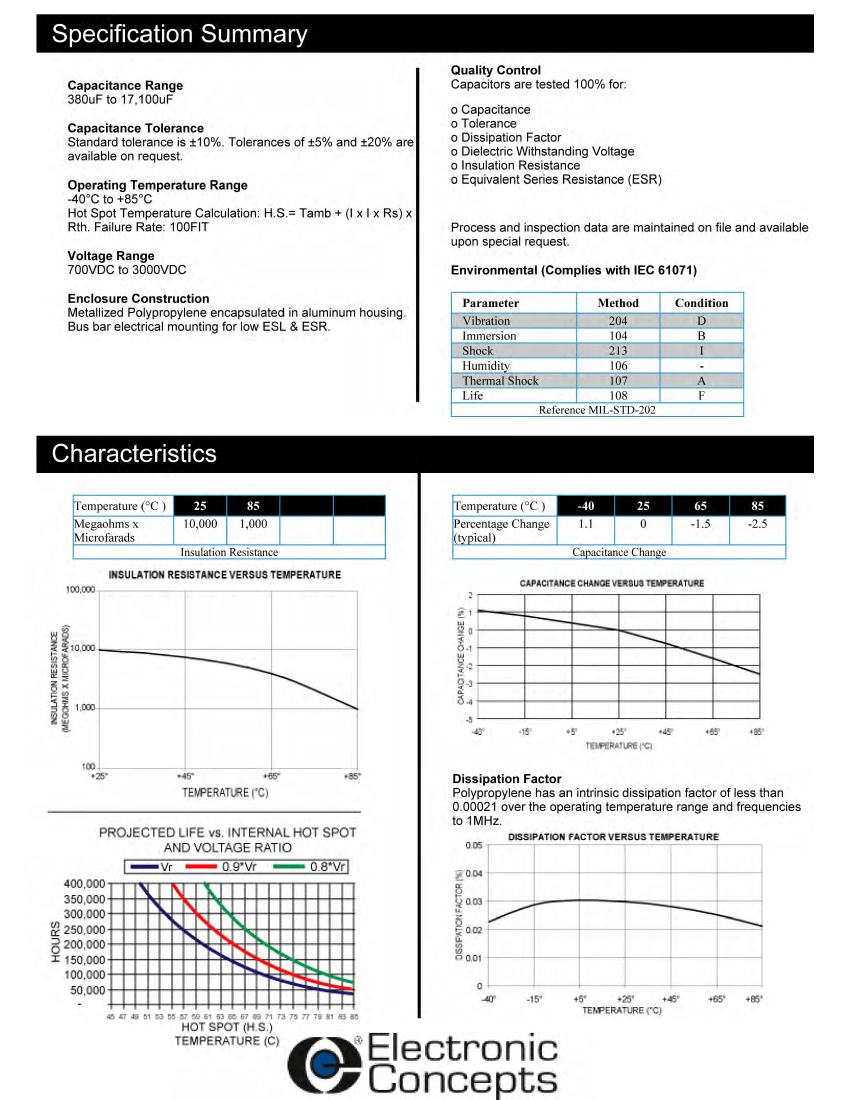

FEATURES

-

Long Life > 100,000 Hours

-

Cost Effective

-

Low ESL & ESR

-

High RMS Current Capability

-

High Surge Voltage

Capability, 1.5 X VDC 10s

-

Surge Current 1.5 x Ipk

-

Ground Test: 5 kVDC for 10s

-

Reference Mil-Std 202 & IEC

61071

-

Flexible Construction

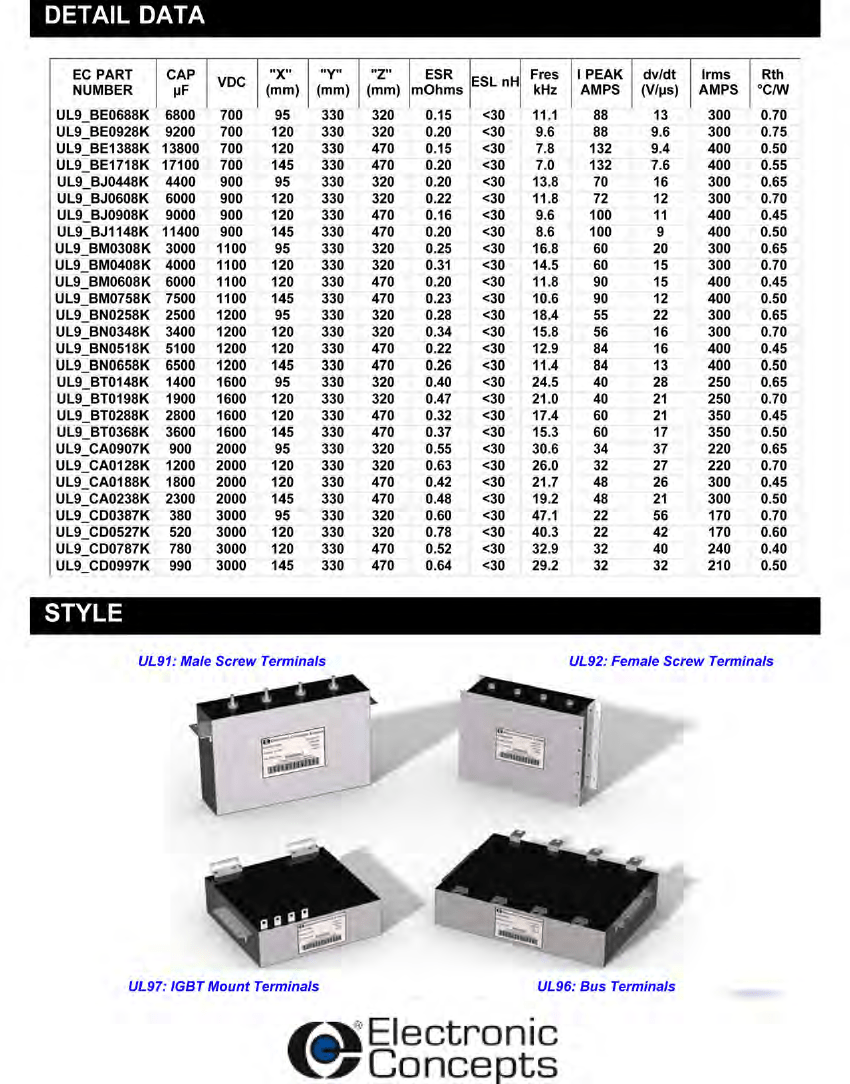

CONFIGURATION

-

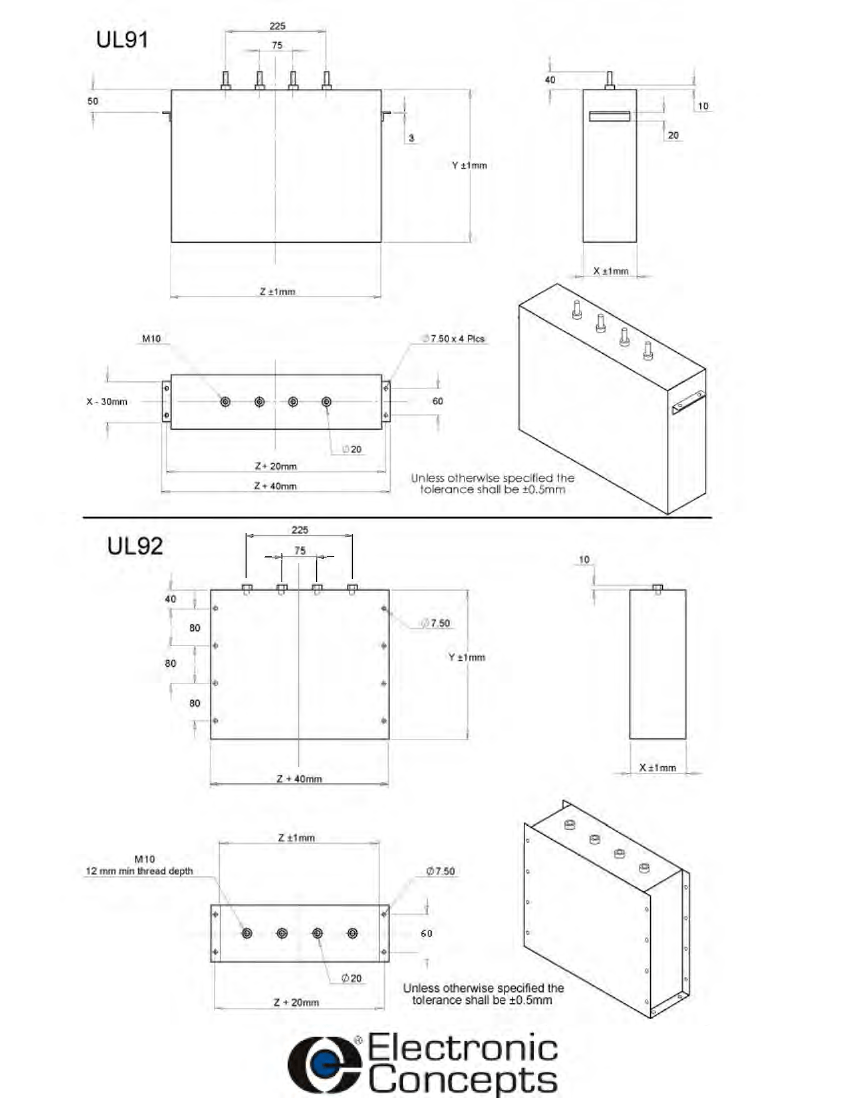

Male Screw Terminal

-

Female Screw Terminal

-

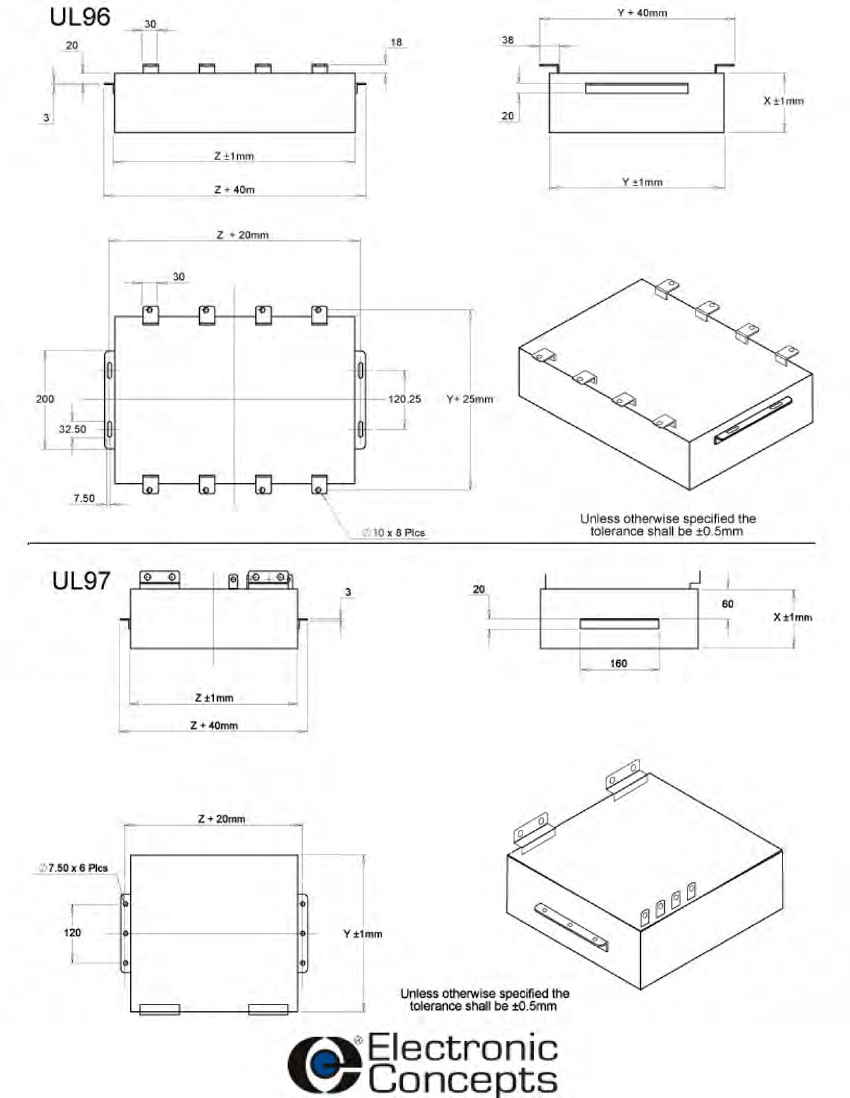

Low ESL Bus Mount Terminal

-

IGBT Direct Mount Terminal
