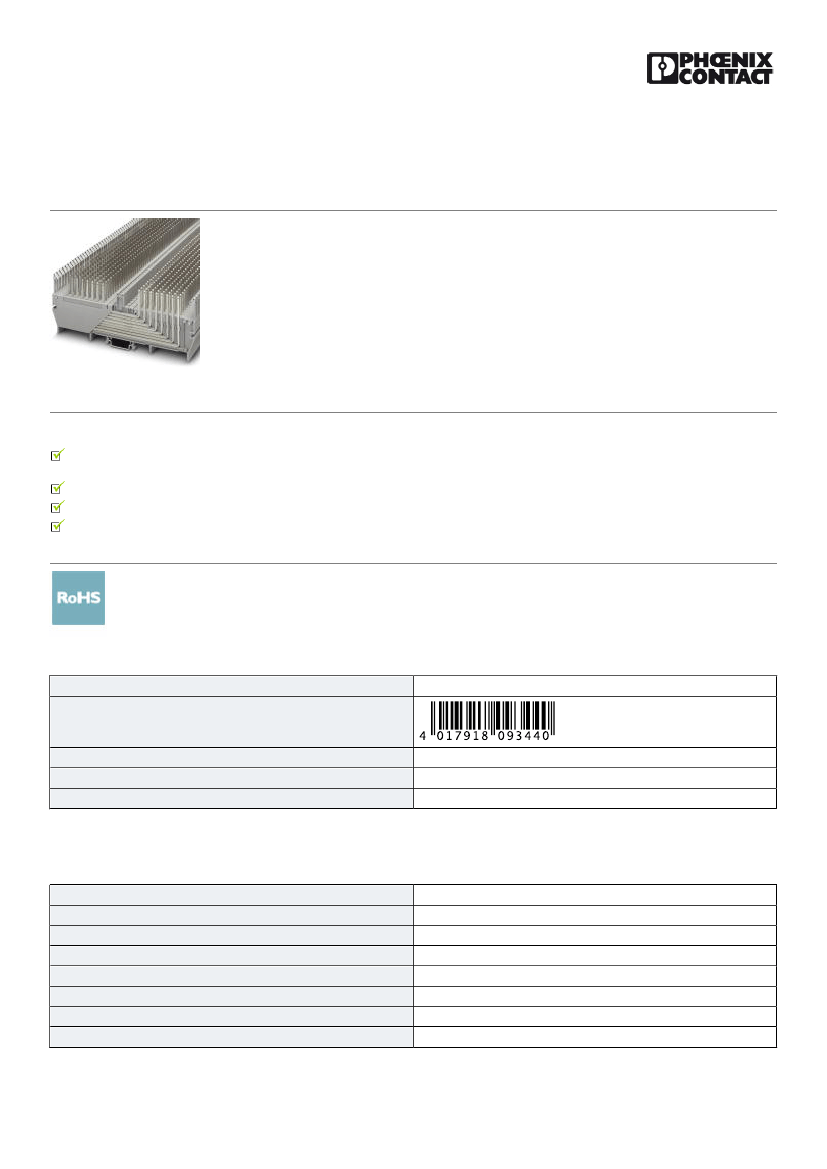

Marshalling panel - RV 8-PV-TP(2,4X0,8)L - 3191039
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Marshaling distributor, as potential distributor, all levels are linked together internally. TERMI-POINT
connection
The figure shows the RV 8-
TP(2.4X0.8)L version
Why buy this product
The red-white marking masks with alternating negative/positive 1 ‑ 8 or a ‑ h labeling clearly distinguish the rows of pins and make the process
of connecting and finding specific connections much easier
The external housing ridges act as a cable duct side panel, such that good cable routing is ensured and standard cable duct covers can be used
There are two housing grooves between the pin panel and labeling rib into which the potential busbars can be inserted
The RV 8 element has eight 2.4 x 0.8 mm TERMI-POINT (TP) pins for the incoming and outgoing conductors on both sides of the raised
labeling rib
®
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4017918093440
85389099
Made to Order (non-returnable)
5 STK
Technical data
General
Number of levels
Number of connections
Color
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
1
16
gray
V0
4 kV
3
III
I
11/15/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/3191039
Marshalling panel - RV 8-PV-TP(2,4X0,8)L - 3191039
Technical data
General
Nominal current I
N
Max. load current
Nominal voltage U
N
Open side panel
Number of positions
5A
5A
250 V
No
1
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
7.6 mm
202 mm
81.5 mm
89 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Connection method
TERMI-POINT pin dimensions
Position of the TERMI-POINT pin
0.22 mm²
0.56 mm²
0.22 mm²
0.56 mm²
24
20
TERMI-POINT
2.4 x 0.8 mm
vertical
®
Standards and Regulations
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
11/15/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/3191039
Marshalling panel - RV 8-PV-TP(2,4X0,8)L - 3191039
Approvals
EAC EAC-Zulassung
